Product Description

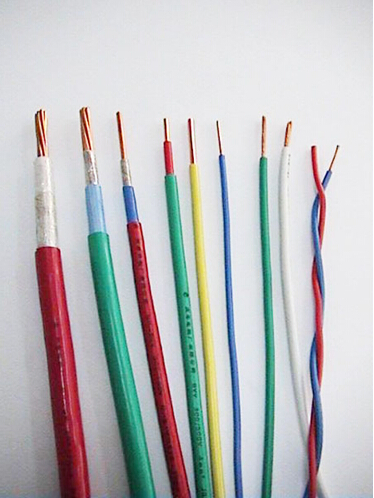

Building wire -----They are useful for the building, Building Cable and Wire (Silicone)

heat resitant, and can run huge current.
If you are interested in them, please feel free to contact us.
1. Nominal voltage: 3 KV-- 50 KV
2. Temperature range: -60 -- 200
3. Testing votage: 3 KV -- 50 KV
4. Conductor: Tinned copper
5. Insulator: Silicone rubber
6. Colors: White--red--blue--black--brown--yellow--green--yellow/green
7. Application: They are the same with the derivate connect wires for home appliance and office equipment ( LCD TV, microwave oven, neon light, fax machine, printer, copier, scanner )etc.

AWG	conductor	diameter	Insu: 6KV	OD: 6KV
28	7/0.12	0.37	0.7	1.77
26	7/0.15	0.55	0.7	1.89
24	7/0.2	0.6	0.7	2
22	22/0.14	0.65	0.7	2.14
20	20/0.18	0.91	0.7	2.31
18	30/0.18	1.17	0.7	2.57
16	50/0.18	1.5	0.7	2.9
14	37/0.254	1.83	0.8	3.43
