ACAR--Aluminium Conductor Aluminium Alloy Reinforced

APPLICATIONS
Used as bare overhead transmission cable and as primary and secondary distribution cable. A good strength-to-weight ratio makes ACAR applicable where both ampacity and strength are prime considerations in line design; for equal weight, ACAR offers higher strength and ampacity than ACSR.

SPECIFICATIONS
ACAR bare conductor meets or exceeds the following ASTM specifications:
• B230 Aluminum 1350-H19 Wire for Electrical Purposes.
• B398 Aluminum-Alloy 6201-T81 Wire for Electrical Purposes.
• B524 Concentric-Lay-Stranded Aluminum Conductors, Aluminum-Alloy Reinforced (ACAR, 1350/6201).

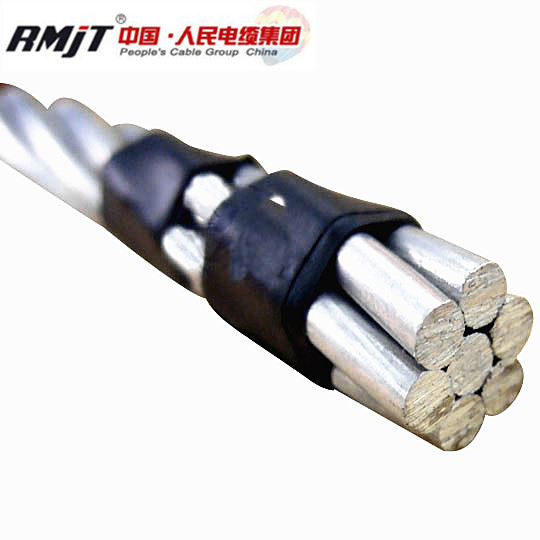

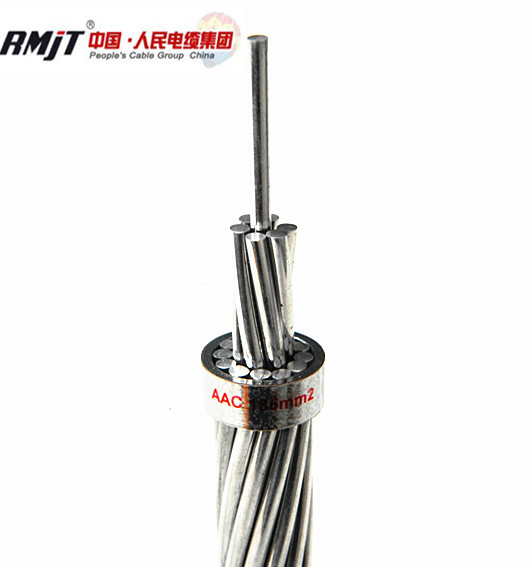

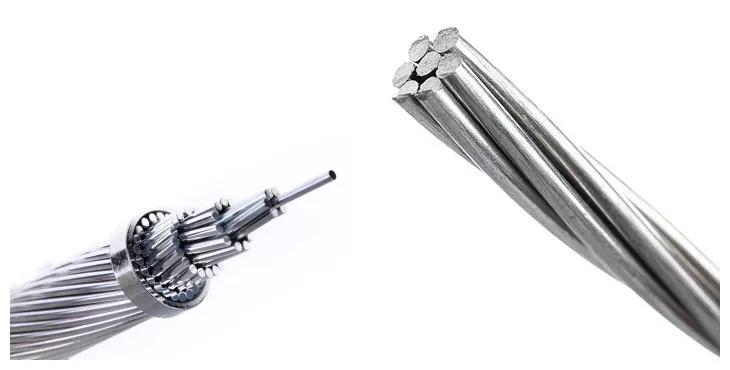

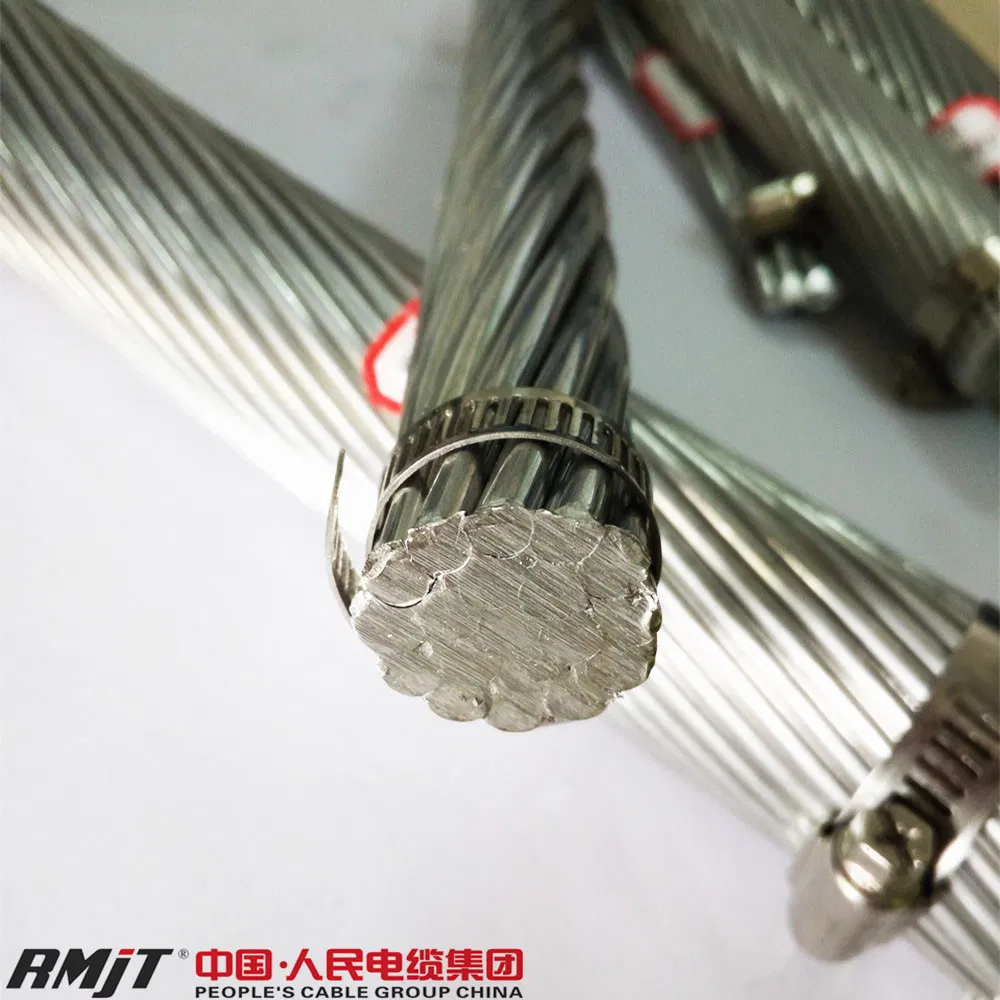

CONSTRUCTION
Aluminum 1350-H19 wires, concentrically stranded around aluminum-alloy 6201-T81 core. Although the alloy strands generally comprise the core of the conductor, in some constructions they are distributed in layers throughout the aluminum 1350-H19 strands.

SPECIFICATION

Aluminum Conductors Aluminum Alloy Reinforced ASTM B524

Size (kcmil)	Stranding		Diameter (ins.)			Weight Per 1000 ft. (lbs.)	Rated Strength (lbs.)	Resistance OHMS/1000 ft.		Allowable Ampacity + (Amps)
	Stranding		Individual Wires		Comp. Cable			DC @ 20°C	AC @ 75°C
	EC	6201	6201	1350	Comp. Cable			DC @ 20°C	AC @ 75°C
355.0	12	7	0.1367	0.1367	0.683	332.1	8500	0.0514	0.0624	519
465.9	12	7	0.1566	0.1566	0.783	435.8	11000	0.0392	0.0477	616
503.6	12	7	0.1628	0.1628	0.814	471.1	11900	0.0362	0.0441	646
653.1	12	7	0.1854	0.1854	0.927	611.0	15400	0.0279	0.0342	760
739.8	30	7	0.1414	0.1414	0.990	692.7	15300	0.0240	0.0296	831
739.8	18	19	0.1414	0.1414	0.990	691.6	18800	0.0252	0.0308	814
853.7	30	7	0.1519	0.1519	1.063	799.3	17500	0.0208	0.0257	907
853.7	18	19	0.1519	0.1519	1.063	798.0	21500	0.0218	0.0268	890
927.2	30	7	0.1583	0.1583	1.108	868.2	19000	0.0192	0.0238	955
927.2	18	19	0.1583	0.1583	1.108	866.7	23400	0.0201	0.0247	936
1024.5	30	7	0.1664	0.1664	1.165	959.3	20900	0.0173	0.0216	1015
1024.5	18	19	0.1664	0.1664	1.165	957.7	25800	0.0182	0.0225	995
1081.0	30	7	0.1709	0.1709	1.196	1012.1	22100	0.0164	0.0205	1048
1081.0	18	19	0.1709	0.1709	1.196	1010.5	27200	0.0172	0.0213	1028
1109.0	30	7	0.1731	0.1731	1.212	1038.4	22700	0.0160	0.0200	1065
1109.0	18	19	0.1731	0.1731	1.212	1036.6	27900	0.0168	0.0208	1044
1172.0	30	7	0.1780	0.1780	1.246	1097.3	24000	0.0152	0.0190	1101
1172.0	18	19	0.1780	0.1780	1.246	1095.5	29500	0.0159	0.0198	1080
1197.0	30	7	0.1799	0.1799	1.259	1120.8	24500	0.0148	0.0187	1115
1197.0	18	19	0.1799	0.1799	1.259	1118.9	30200	0.0156	0.0194	1094
1280.0	30	7	0.1860	0.1860	1.302	1198.5	26200	0.0139	0.0175	1160
1280.0	18	7	0.1860	0.1860	1.302	1196.5	32200	0.0146	0.0182	1139
1361.0	42	19	0.1494	0.1494	1.344	1273.6	30300	0.0133	0.0168	1196
1527.0	42	19	0.1582	0.1582	1.424	1428.8	33600	0.0118	0.0151	1314
1703.0	42	19	0.1671	0.1671	1.504	1593.5	37500	0.0106	0.0137	1363
1933.0	42	19	0.1780	0.1780	1.602	1808.8	42500	0.00936	0.0123	1465
2267.0	42	19	0.1928	0.1928	1.735	2142.0	49900	0.00806	0.0108	1594
2493.0	72	19	0.1655	0.1655	1.821	2356.9	50400	0.00722	0.0099	1687
2493.0	54	37	0.1655	0.1655	1.821	2354.5	57600	0.00743	0.0101	1670
+Ampacity based on 75°C conductor temperature, 25°C ambient temperature,with 2 ft./sec. wind in the sun.

Aluminum Conductors Aluminum Alloy Reinforced IEC 61089
Characteristics of A1/A2 Conductors

Code number	Diameter		No. of wires		Areas			Linear mass	Rated strength	D.C resistance
Code number	Wire	Cond.	A1	A2	A1	A2	Total	Linear mass	Rated strength	D.C resistance
	mm	mm			mm2	mm2	mm2	kg/km	kN	Ohm/km
16	1.76	5.28	4	3	9.73	7.3	17	46.6	3.85	1.7896
25	2.2	6.6	4	3	15.2	11.4	26.6	72.8	5.93	1.1453
40	2.78	8.35	4	3	24.3	18.3	42.6	116.5	9.25	0.7158
63	3.49	10.5	4	3	38.3	28.7	67.1	183.5	14.38	0.4545
100	4.4	13.2	4	3	60.8	45.6	106	291.2	22.52	0.2863
125	2.97	14.9	12	7	83.3	48.6	132	362.7	27.79	0.2302
160	3.36	16.8	12	7	107	62.2	169	464.2	35.04	0.1798
200	3.76	18.8	12	7	133	77.8	211	580.3	43.13	0.1439
250	4.21	21	12	7	167	97.2	264	725.3	53.92	0.1151
250	3.04	21.3	18	19	131	138	269	742.2	60.39	0.1154
315	3.34	23.4	30	7	263	61.3	324	892.6	60.52	0.0916
315	3.42	23.9	18	19	165	174	339	935.1	76.09	0.0916
400	3.76	26.3	30	7	334	77.8	411	1133.5	75.19	0.0721
400	3.85	27	18	19	210	221	431	1187.5	95.58	0.0721
450	3.99	27.9	30	7	375	87.6	463	1275.2	84.59	0.0641
450	4.08	28.6	18	19	236	249	485	1335.9	107.52	0.0641
500	4.21	29.4	30	7	417	97.3	514	1416.9	93.98	0.0577
500	4.31	30.1	18	19	262	277	539	1484.3	119.47	0.0577
560	4.45	31.2	30	7	467	109	576	1586.9	105.26	0.0515
560	3.45	31	54	7	504	65.4	570	1571.9	101.54	0.0516
630	3.71	33.4	42	19	454	205	660	1820.0	130.25	0.0458
630	3.79	34.1	24	37	271	417	688	1897.5	160.19	0.0458
710	3.94	35.5	42	19	512	232	743	2051.2	146.78	0.0407
710	4.02	36.2	24	37	305	470	775	2138.4	180.53	0.0407
800	4.18	37.6	42	19	577	261	838	2311.2	165.39	0.0361
800	4.27	38.4	24	37	344	530	873	2409.5	203.41	0.0361
900	4.43	39.9	42	19	649	294	942	2600.1	186.06	0.0321
900	3.66	40.2	54	37	567	388	955	2638.4	199.54	0.0321
1000	3.8	41.8	72	19	816	215	1032	2849.1	190.94	0.0289
1000	3.85	42.4	54	37	630	432	1061	2931.6	221.71	0.0289
1120	4.02	44.2	72	19	914	241	1155	3191.0	213.85	0.0258
1120	4.08	44.9	54	37	705	483	1189	3283.4	248.32	0.0258
1250	4.25	46.7	72	19	1020	269	1289	3561.4	238.68	0.0231
1250	4.31	47.4	54	37	787	539	1327	3664.5	277.14	0.0231
1400	4.5	49.4	72	19	1143	302	1444	3988.8	267.32	0.0207

Packing

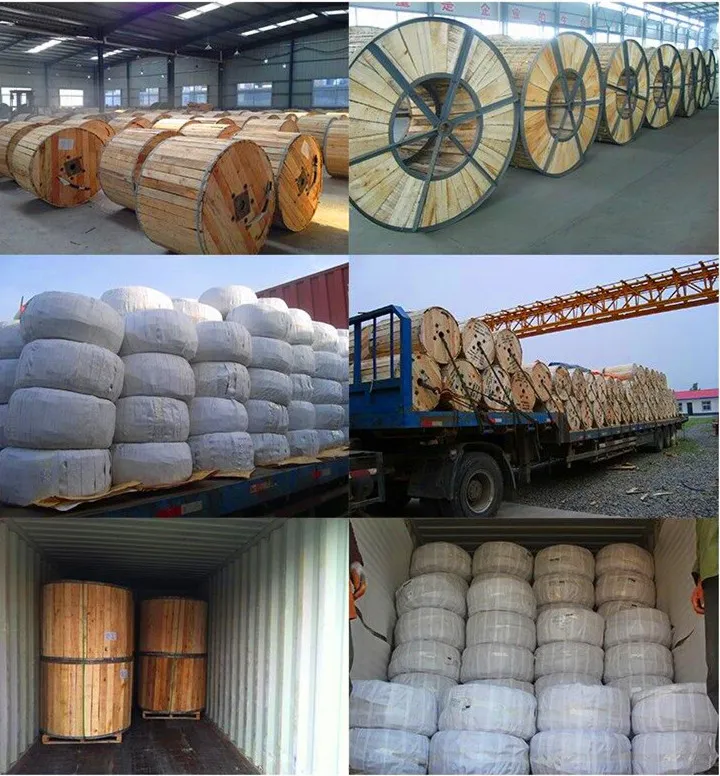

Packing in wooden drums,steel wooden drums or as customer's requirement.
