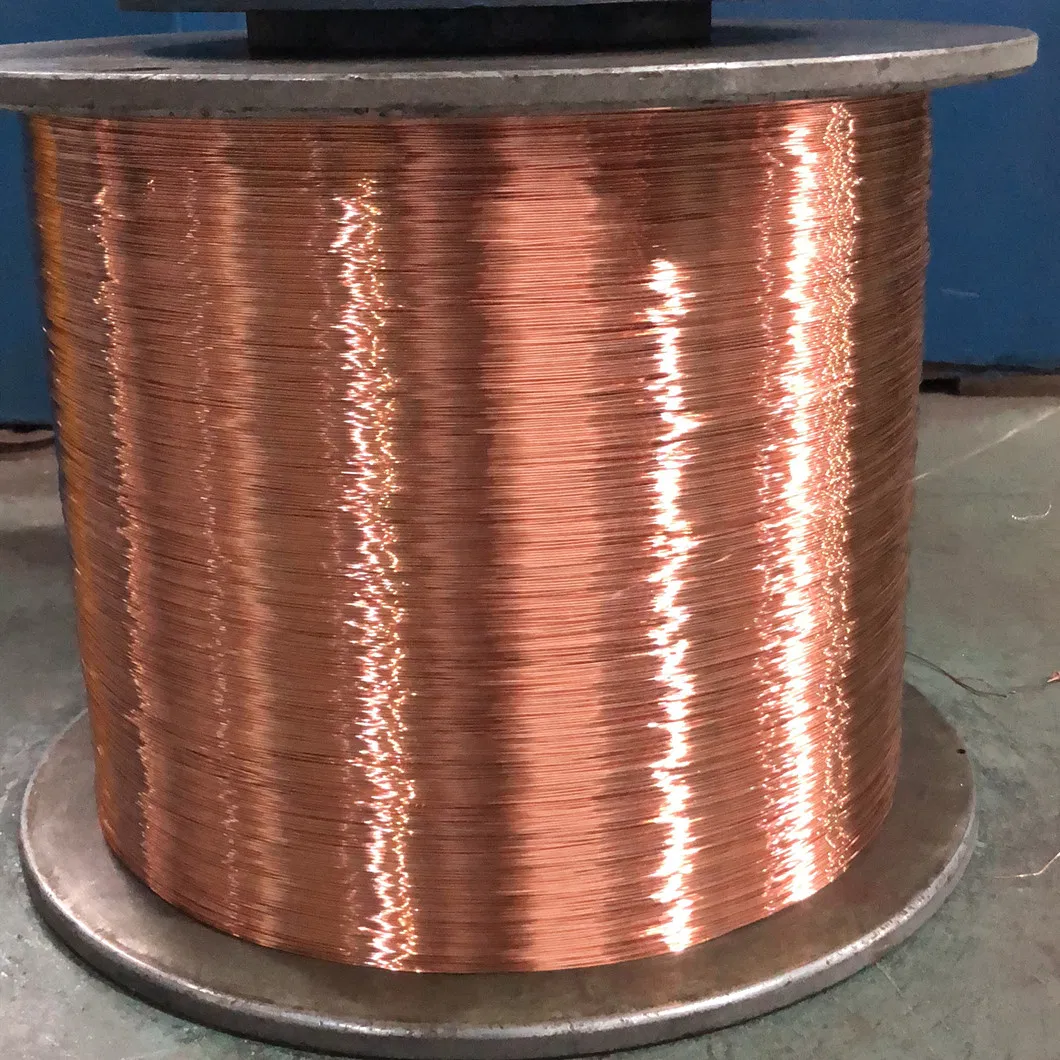

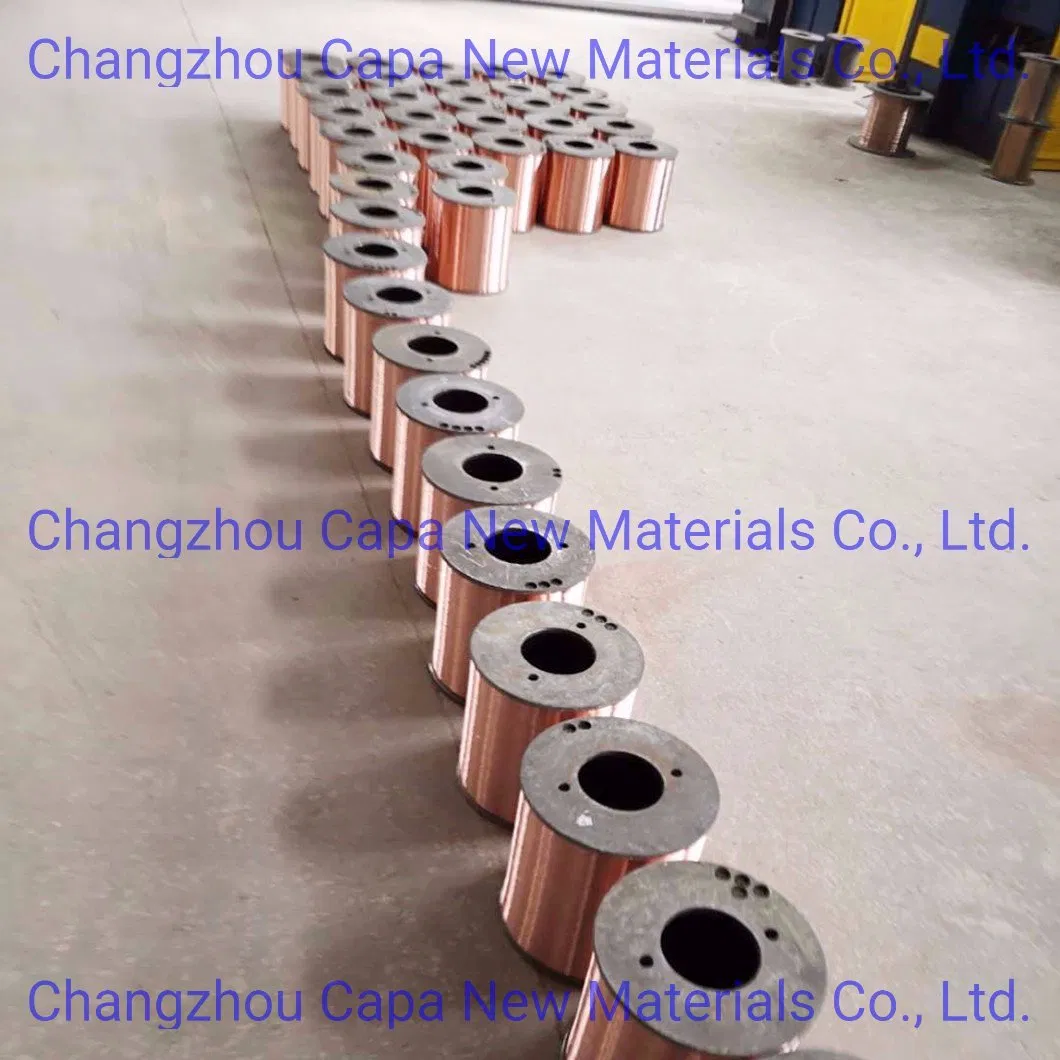

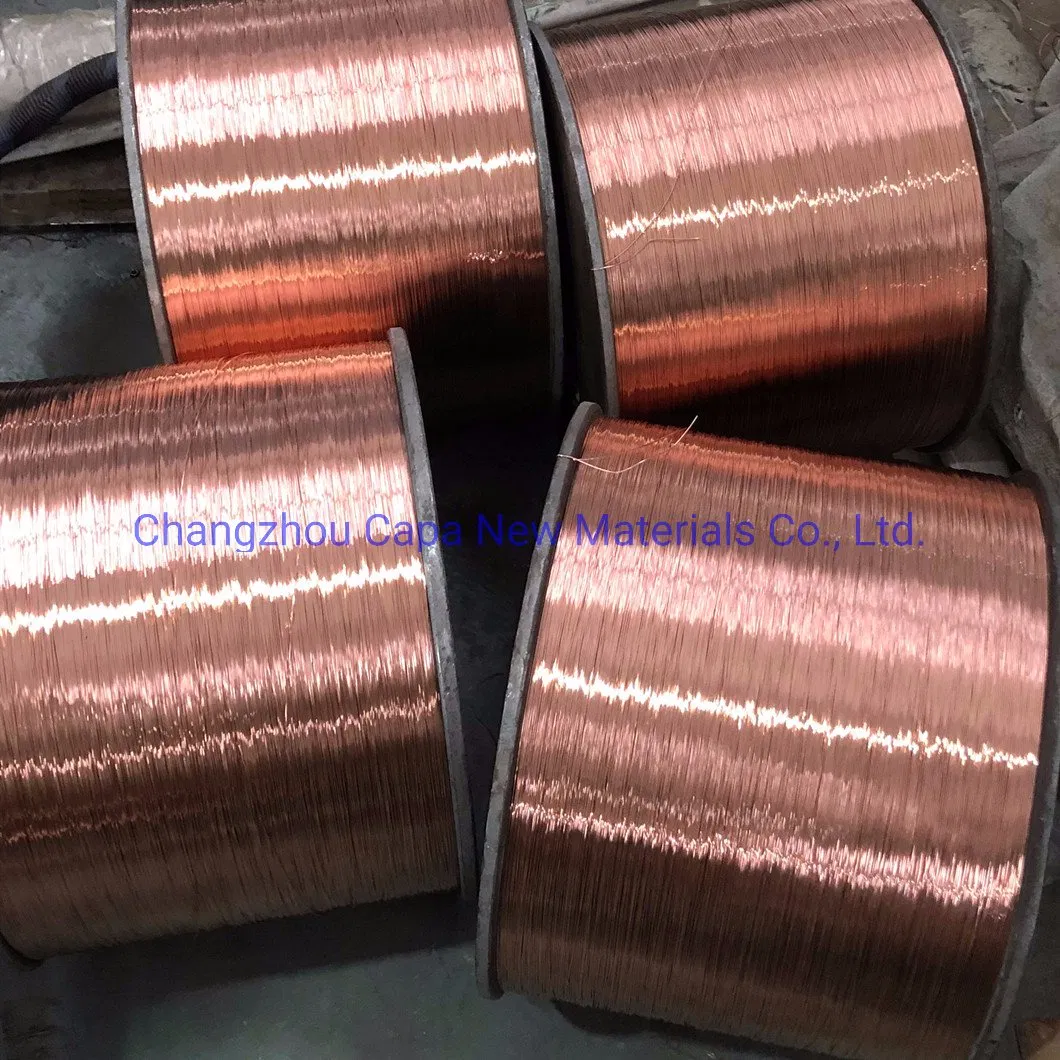

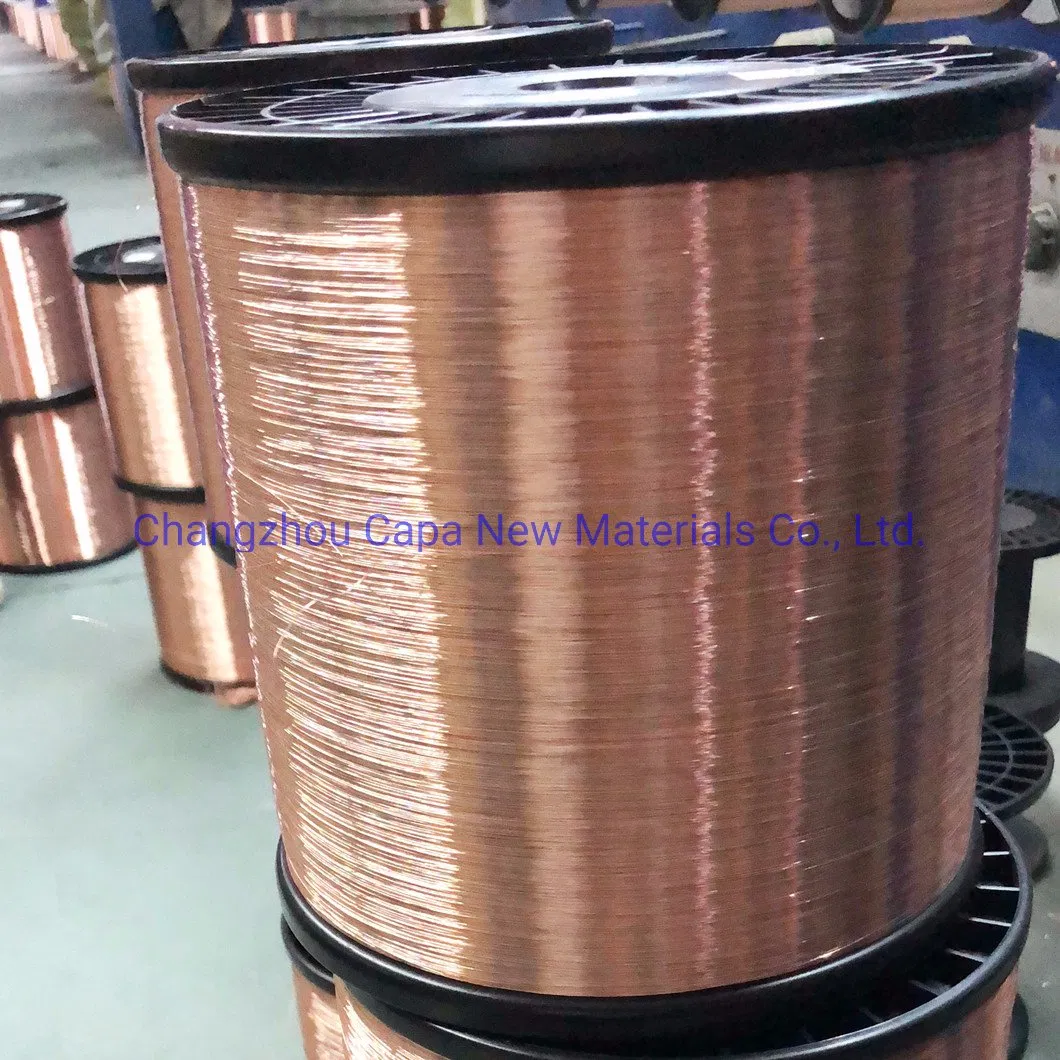

AWG26 H Type CCA Wire/ Copper Clad Aluminum Wire
CCA Wire Main Technical ParametersTechnical CharacteristicsCCA WireClad typePlated type10H10A15H15ASize range (mm)0.10-8.000.10-8.000.10-8.000.10-8.000.10-6.00Copper content (% by weight)25-3125-3132-4032-4010Tensile strength (Mpa)≥152110-172≥152110-17290-120Elongation (%) Min.15155Con......
Send Inquiry
Product Description
CCA Wire Main Technical Parameters

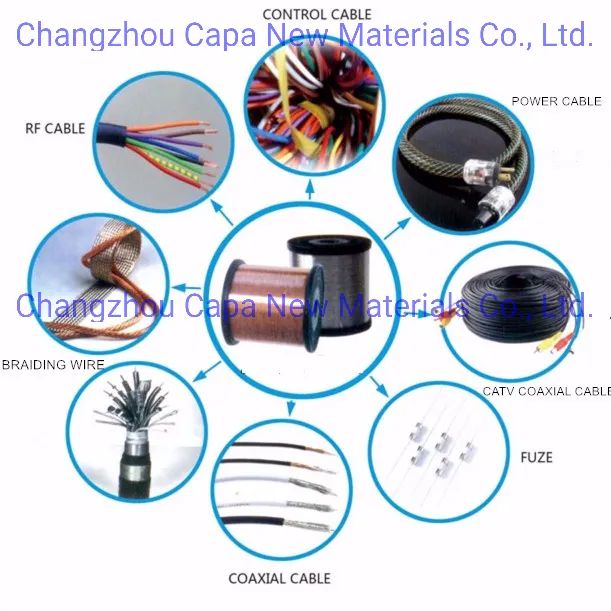

CCA Wire Main Application Area
CCA Wire Productive Process (OUR FACTORY)
Quality Control
Incoming inspection(Raw material) » Process inspection &control(Semi-finished product) » Outgoing inspection (Finished product)
Test Equipment
Packing & Shipping (20GP can put in 15-23 tons)
Our Advantages:
1.Short delivery and timely delivery.
2.To be your partner,not only supplier.considerate after-sales service.
3.Professional manufacture for CCA with more than 10 years experience.
4.Full set of testing equipment to ensure products' performance.
5.Strict quality control process.
6.We are factory and our price is competitive.
7.Products can be customized according to your special requirements.
If you are interested in our products, it would be highly appreciated to contact me anytime.
CCA Wire FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO9001,14001,SGS,REACH ROHS and UL certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department with 5 inspection personnel. Quality inspection team including incoming material, process and finished product inspection.Strict Quality Control and full inspection for each reel of wire.
We have the solderability test instrument, automatic spring back angel test instrument and dielectric loss test instruments to ensure the quality in each step.
4. Q: What's the main market of your company?
A: We have customers all over the world. Abundant experience serving overseas market.
5. Q: What's your company 's product scope?
A: We have many kinds of products ,such as Copper Clad Aluminum Wire (CCA wire), Copper Clad Aluminum Magnesium (CCAM) Wire, Copper Clad Steel Wire (CCS wire), Tinned CCA wire, Tinned CCAM wire, Tinned CCS wire, enameled copper clad aluminum wire (Enameled CCA wire, ECCA Wire),Enameled copper wire, Enameled Aluminum wire (EAL wire), Silver plated wire, Composite Round (Tinned) copper wire, Copper Clad copper wire, CCA stranded wire & Parallel wire, CCS stranded Wire, CCA Busbar, power wire and cable,Coaxial cables, communication cables., etc.
6. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Changzhou City, Jiangsu Province, China.
Near Shanghai, convenient transportation. We offer transportation service.
7.Q: How long is your delivery time?
A: Generally it is 5-10 days after confirm P.O., it is according to quantity.Sample order needs around 5 days, Formal order needs around 7-10 days.
8.Q: What is your terms of payment?
A: We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated.
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
9. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
If you have other questions, please feel free to contact us.
Tel: +86 88658588
capawire.en.made-in-china.com
| Technical Characteristics | CCA Wire | ||||
| Clad type | Plated type | ||||
| 10H | 10A | 15H | 15A | ||
| Size range (mm) | 0.10-8.00 | 0.10-8.00 | 0.10-8.00 | 0.10-8.00 | 0.10-6.00 |
| Copper content (% by weight) | 25-31 | 25-31 | 32-40 | 32-40 | 10 |
| Tensile strength (Mpa) | ≥152 | 110-172 | ≥152 | 110-172 | 90-120 |
| Elongation (%) Min. | 1 | 5 | 1 | 5 | 5 |
| Conductivity (%) Min. at 20ºC | 62 | 62 | 64 | 64 | 62 |
| DC Resistivity (Ω.mm2/m) Max. at 20ºC | 0.02743 | 0.02743 | 0.02676 | 0.02676 | 0.02743 |
| Density (g/cm3) Min. | 3.32 | 3.32 | 3.63 | 3.63 | 2.85 |
CCA Wire Main Application Area

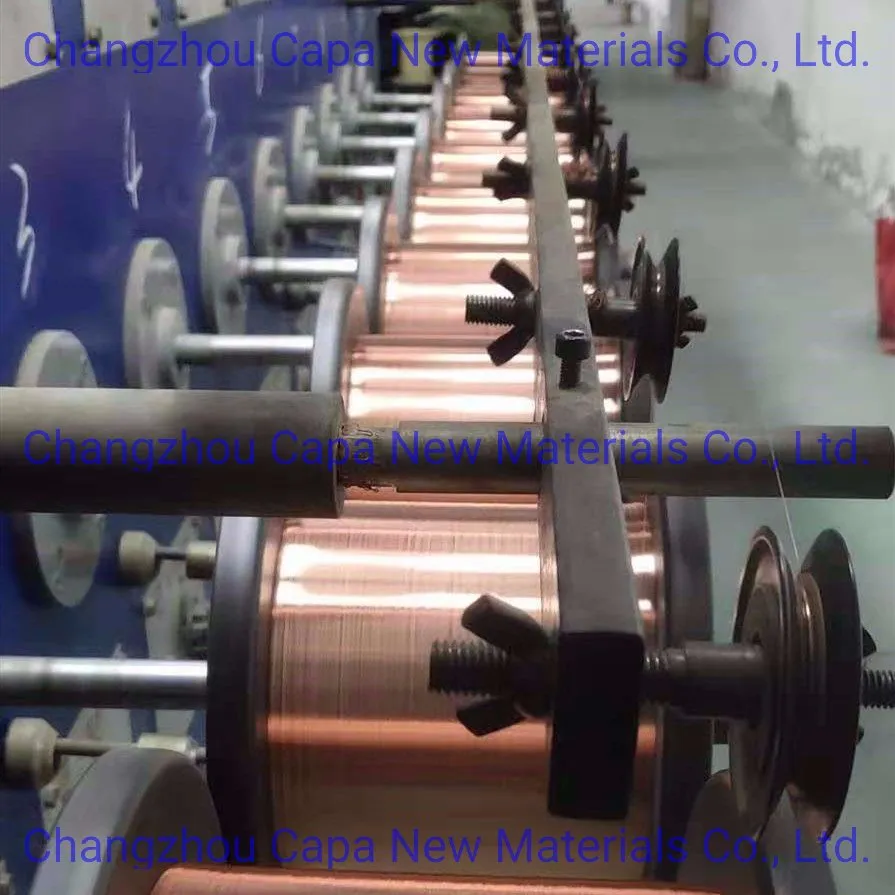

CCA Wire Productive Process (OUR FACTORY)
Quality Control
Incoming inspection(Raw material) » Process inspection &control(Semi-finished product) » Outgoing inspection (Finished product)

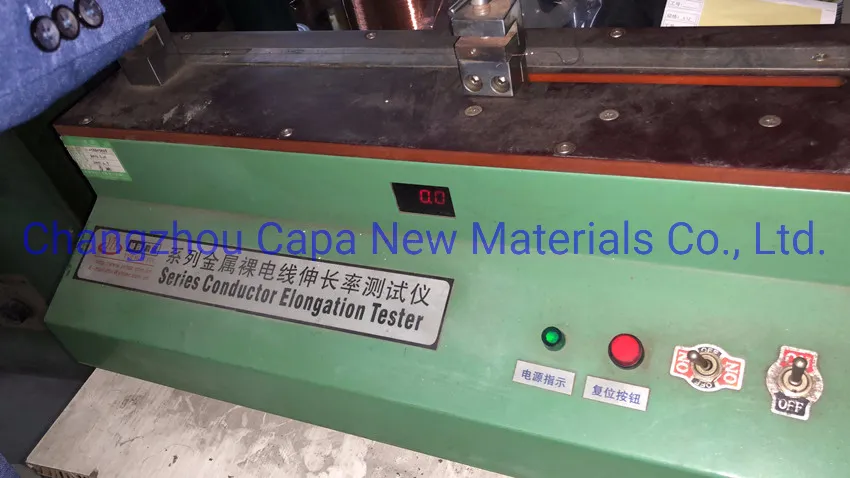

Test Equipment

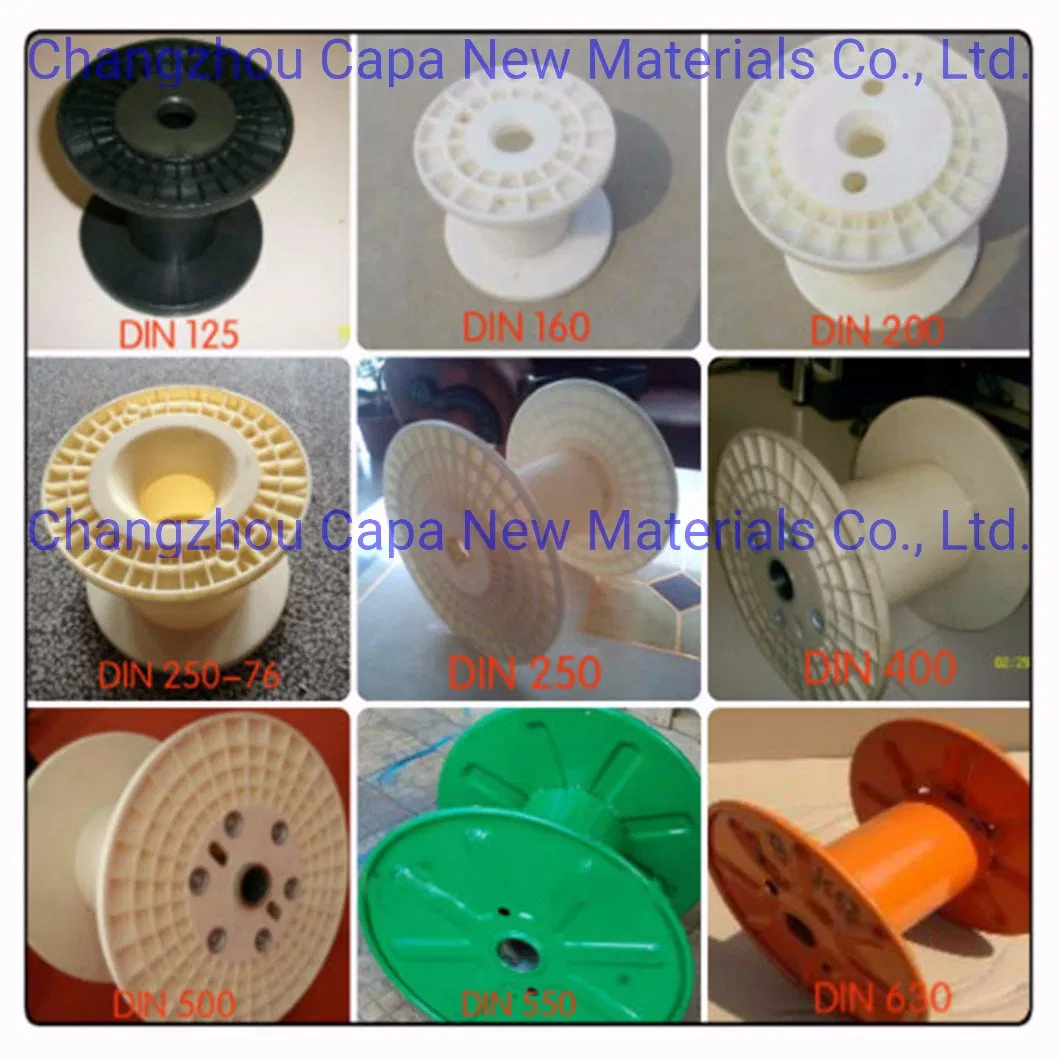

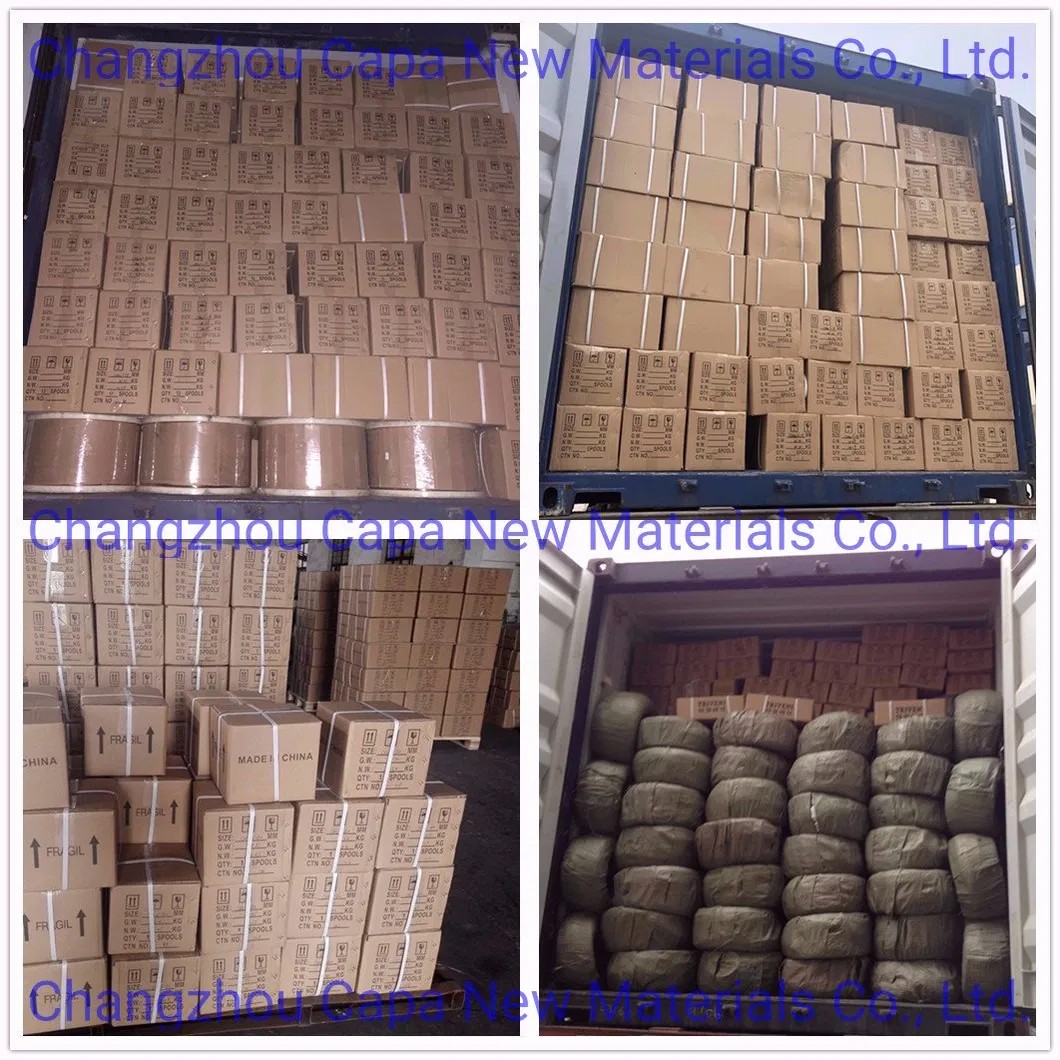

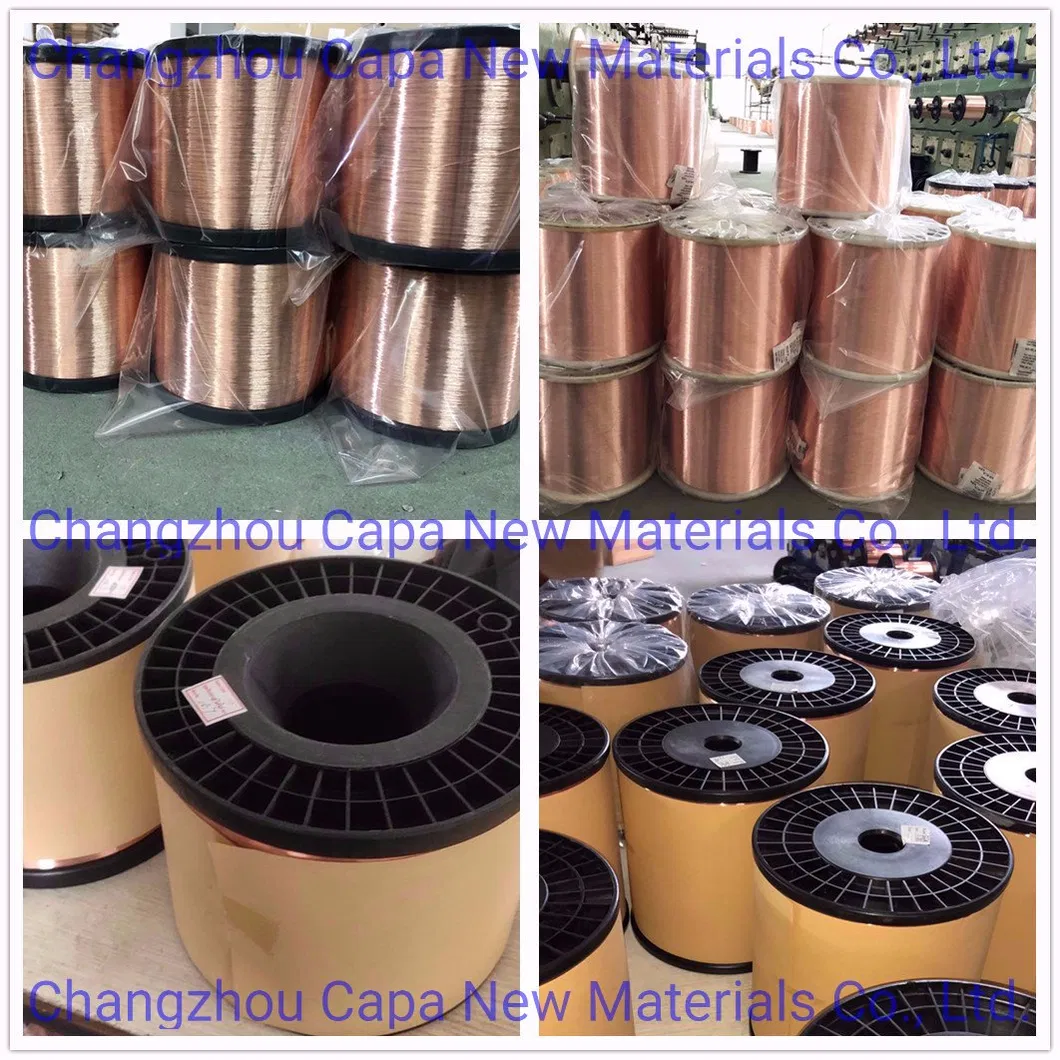

Packing & Shipping (20GP can put in 15-23 tons)
Our Advantages:
1.Short delivery and timely delivery.
2.To be your partner,not only supplier.considerate after-sales service.
3.Professional manufacture for CCA with more than 10 years experience.
4.Full set of testing equipment to ensure products' performance.
5.Strict quality control process.
6.We are factory and our price is competitive.
7.Products can be customized according to your special requirements.
If you are interested in our products, it would be highly appreciated to contact me anytime.
CCA Wire FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO9001,14001,SGS,REACH ROHS and UL certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department with 5 inspection personnel. Quality inspection team including incoming material, process and finished product inspection.Strict Quality Control and full inspection for each reel of wire.
We have the solderability test instrument, automatic spring back angel test instrument and dielectric loss test instruments to ensure the quality in each step.
4. Q: What's the main market of your company?
A: We have customers all over the world. Abundant experience serving overseas market.
5. Q: What's your company 's product scope?
A: We have many kinds of products ,such as Copper Clad Aluminum Wire (CCA wire), Copper Clad Aluminum Magnesium (CCAM) Wire, Copper Clad Steel Wire (CCS wire), Tinned CCA wire, Tinned CCAM wire, Tinned CCS wire, enameled copper clad aluminum wire (Enameled CCA wire, ECCA Wire),Enameled copper wire, Enameled Aluminum wire (EAL wire), Silver plated wire, Composite Round (Tinned) copper wire, Copper Clad copper wire, CCA stranded wire & Parallel wire, CCS stranded Wire, CCA Busbar, power wire and cable,Coaxial cables, communication cables., etc.
6. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Changzhou City, Jiangsu Province, China.
Near Shanghai, convenient transportation. We offer transportation service.
7.Q: How long is your delivery time?
A: Generally it is 5-10 days after confirm P.O., it is according to quantity.Sample order needs around 5 days, Formal order needs around 7-10 days.
8.Q: What is your terms of payment?
A: We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated.
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
9. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
If you have other questions, please feel free to contact us.
Tel: +86 88658588
capawire.en.made-in-china.com
