Product Description

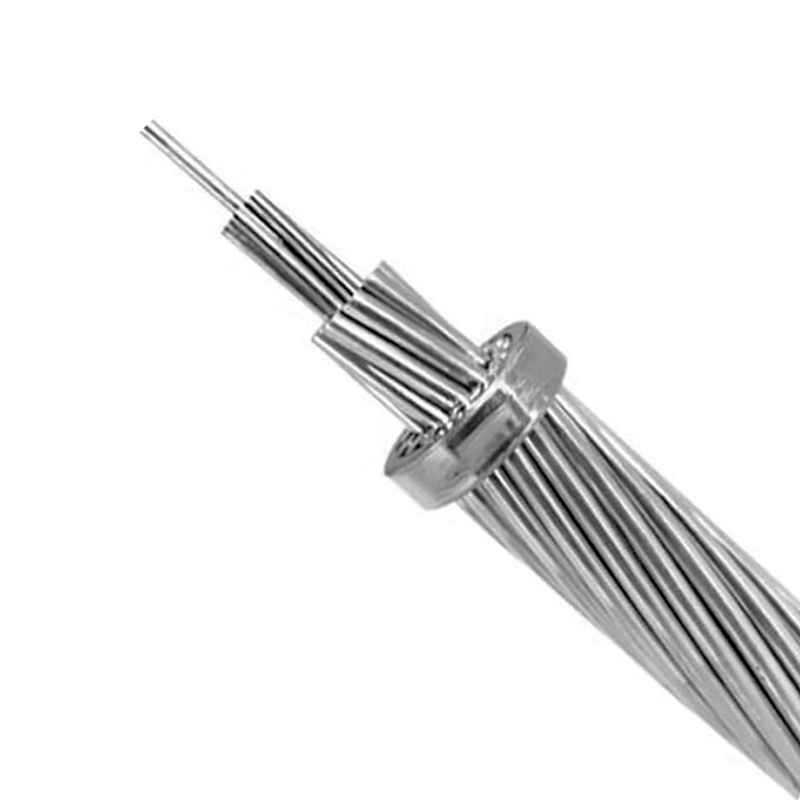

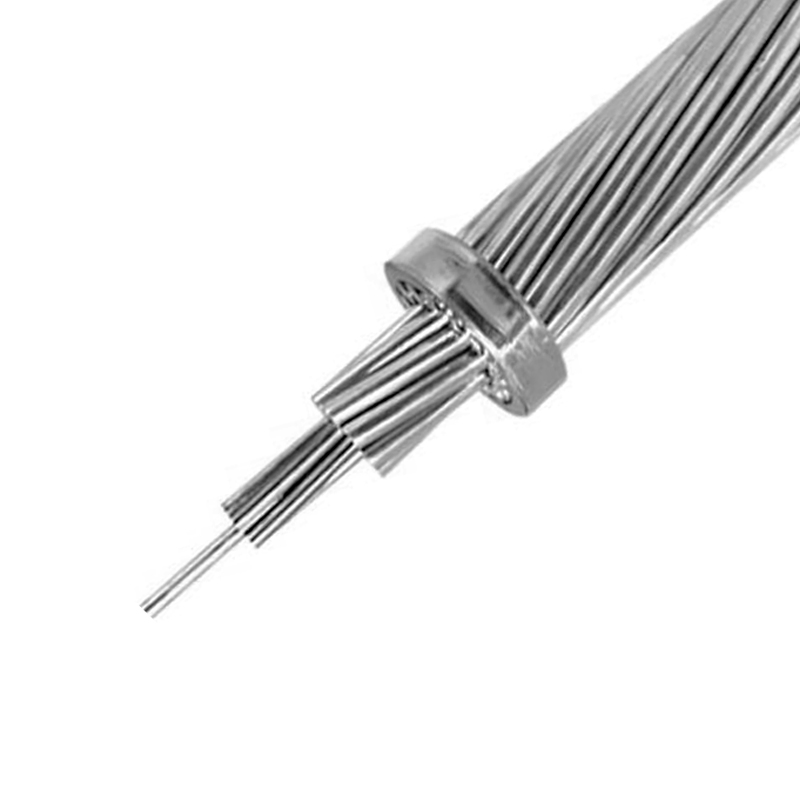

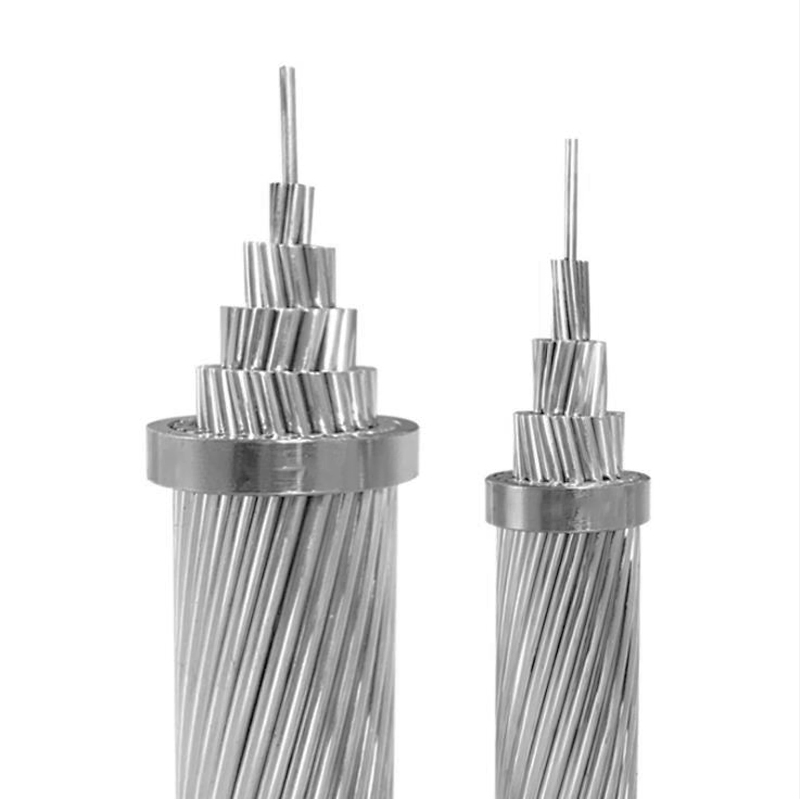

ASTM BS AS Standard Bare Aluminum Conductor Steel Reinforced Overhead Line Conductor

1.Application
All Aluminum Alloy Conductor Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR
Aluminum Conductor Standard Cable AAC/ACSR/AAAC

Aluminum Conductor Standard Cable AAC/ACSR/AAAC

2.Standard
AAAC-6201 bare conductor meets or exceeds the following ASTM standards
DIN 48201 Concentric-Lay-Stranded 6201 Aluminum Alloy Conductors.
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.

3.Specification
Aluminum alloy 6201 wires. Concentrically stranded.

Code number	Calculated area	Number of wires	Diameter of wire	Overall diameter of conductor	Linear mass	Rated tensile strength	Max. DC resistance at 20ºC
mm2	mm2		mm	mm	kg/km	daN	Ω/km
16	15.89	7	1.7	5.1	43	444	2.091
25	24.25	7	2.1	6.3	66	677	1.3703
35	34.36	7	2.5	7.5	94	960	0.9669
50	49.48	7	3	9	135	1382	0.6714
50	48.35	19	1.8	9	133	1350	0.6905
70	65.81	19	2.1	10.5	181	1838	0.5073
95	93.27	19	2.5	12.5	256	2605	0.3579
120	116.99	19	2.8	14	322	3268	0.2854
150	147.11	37	2.25	15.8	406	4109	0.2274
185	181.62	37	2.5	17.5	500	5073	0.1842
240	242.54	61	2.25	20.3	670	6774	0.1383
300	299.43	61	2.5	22.5	827	8363	0.112
400	400.14	61	2.89	26	1104	11176	0.0838
500	499.63	61	3.23	29.1	1379	13960	0.06709
625	626.2	91	2.96	32.6	1732	17490	0.054
800	802.09	91	3.35	36.9	2218	22402	0.0418
1000	999.71	91	3.74	41.1	2767	27922	0.0335

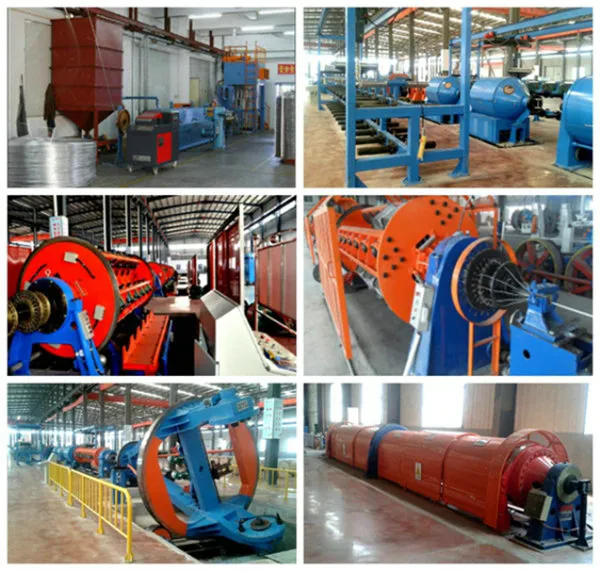

4.Production process:
AAAC conductor producing process is drawing stranding and cabling, our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
Aluminum Conductor Standard Cable AAC/ACSR/AAAC

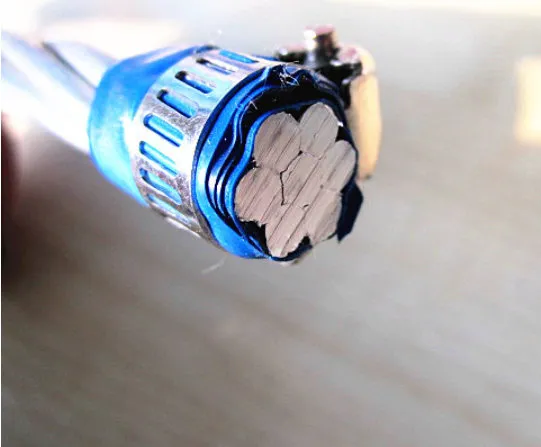

5.Package
Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.
Aluminum Conductor Standard Cable AAC/ACSR/AAAC

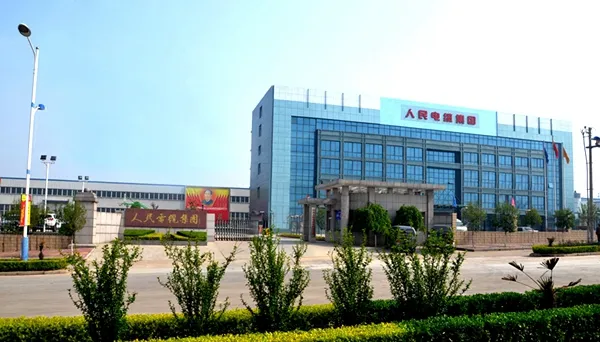

6.About us:
People's Cable Group Co.,Ltd was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Aluminum Conductor Standard Cable AAC/ACSR/AAAC

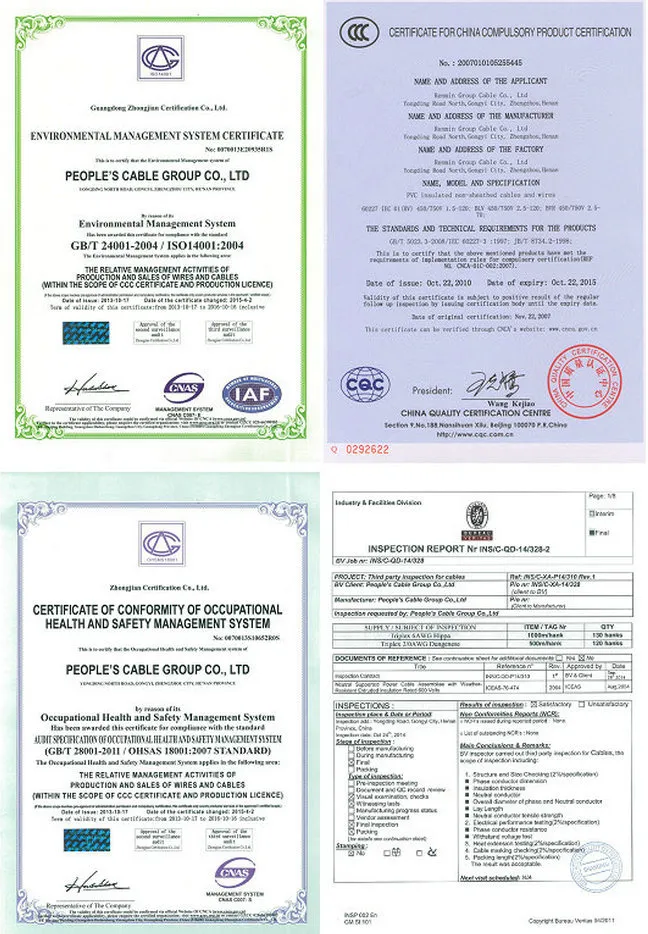

7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Aluminum Conductor Standard Cable AAC/ACSR/AAAC

8.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship
