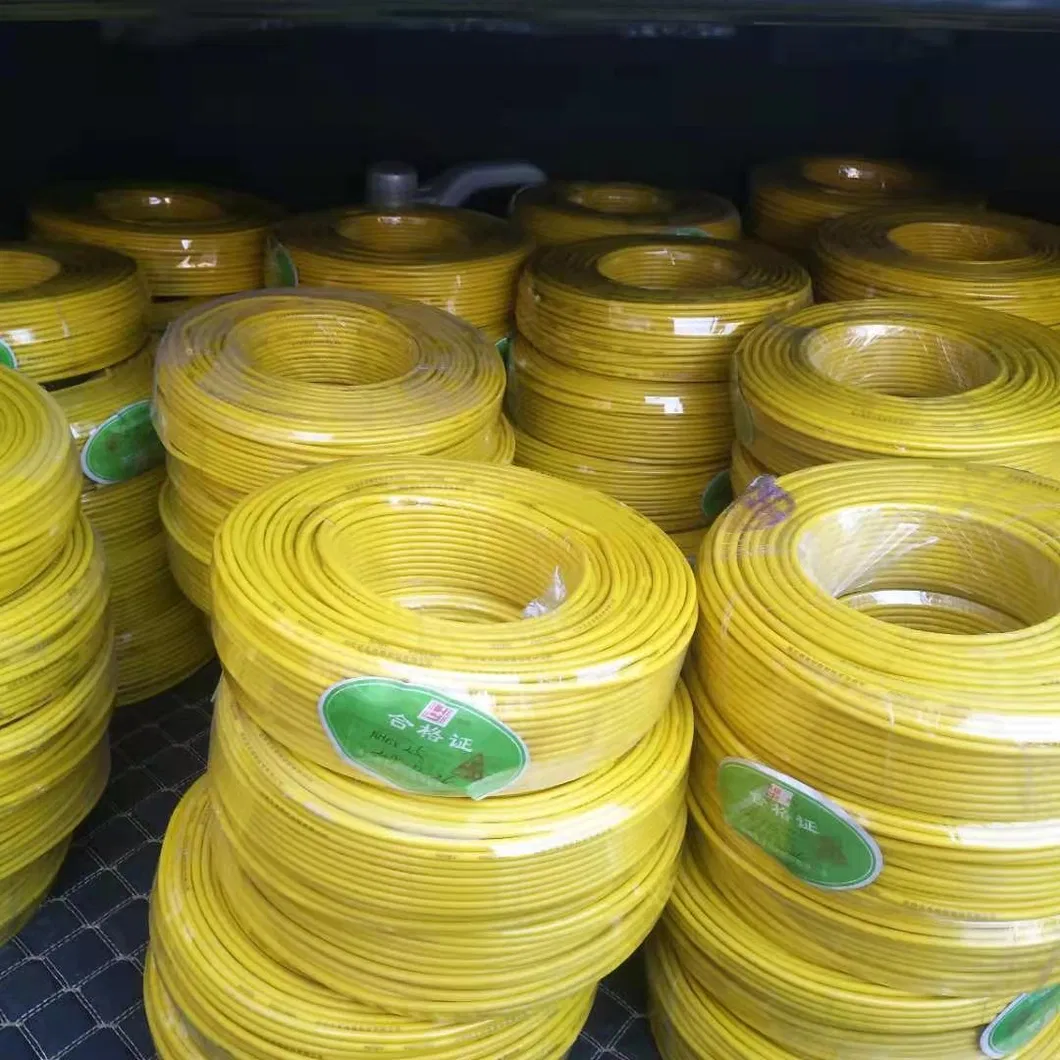

AS/NZS Copper Core, Polyvinyl Chloride, Insulated LV Electric Wire

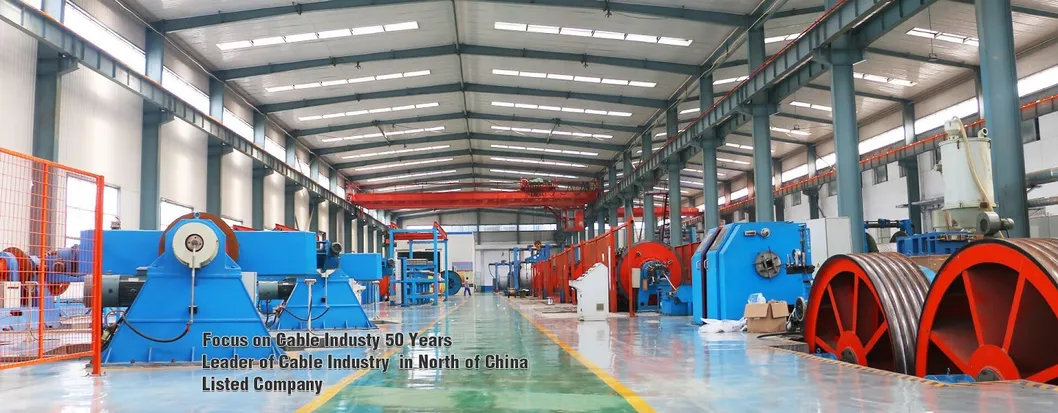

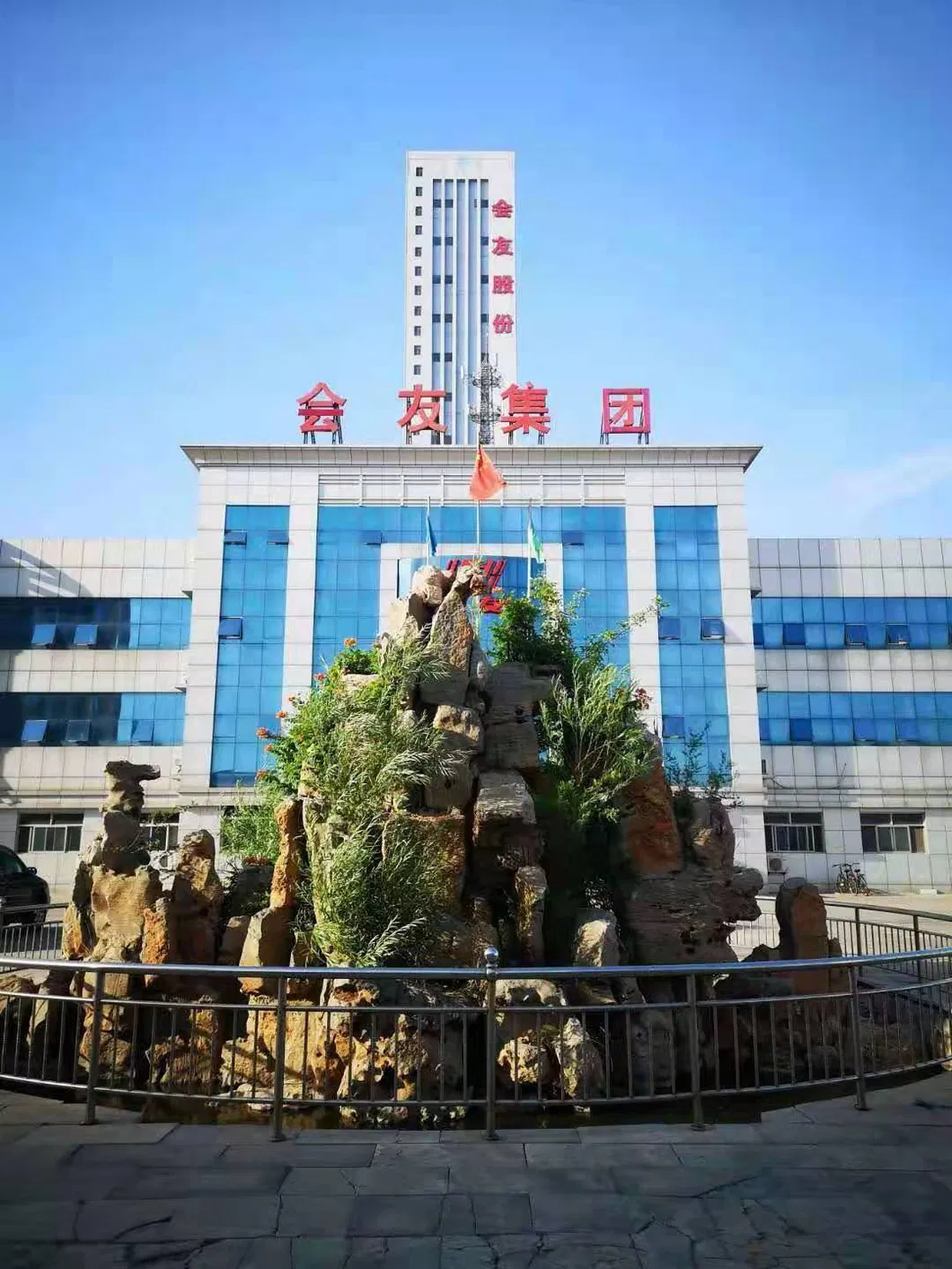

Company profile

cangzhou Huiyou Cable Co.,LTD,founded in 1966,export enterprises,state power cable companies,Beijing"Now Third Board"listed companies,Stock Code;831844. Ministry of Science and Technology of the people's Republic of China and Hebei Province Science and Technology Department recognized high-teach and new technology enterprises,won China's well known trademark enterprises ,the national "abide by the contract heavy  credit "enterprises.The total area of the company is 96888 square meters,the total area is 37000 square meters,the existing fixed assets are 580 million yuan ,the work capital is 960 million yuan ,the smooth commissioning of the company's ultra-high pressure tower production line has brought enormous power to the company,annual production of various specification and models of cable up to the 400,000KM.The company has sound organization,with modern office equipment and advanced production.

Development course   {1966-2021}

1994       WON "Industrial Production Permit of China " issued by Ministry of Machine Building of the people 's Republic of China ,at the same year ,got "Product Certification "issued by CCEE.

2001                Won the title of "Top Hundred Enterprises of Cable Industry of China "from State Electric Power Corporation .

2006                Be granded the "Certificate of Products exempted from national inspection " by General Administration of Quality  Supervision
                         Inspection and Quarantine .

2008                  HUIYOU trademark was appointed the Chinese Well -known  trademark by State ,It passed the attedtation of "Environment
                          Management System and Occupational Health and Safety Mangement System ".

2012                  Approved the "Hight and New tech enterprise of Hebei Provine " and Famous brand enterprise  in Hebei Province "by the Ministry of
                          Science and Technology in succession.

2015                   The company was listed up on New OTC Matket of Beijing and got Provincial government Quality Award in the same year.

Product Info

1This product is suitable for use in rated voltage 450/750 V and below power device for fixed laying

2.

Property for Use

a.

U0/U is 300/500 V and 450/750 V.

b.

Allowed work temperature for a long period:

BV -105 - TYPE ----should not exceed 105ºC.

Other TYPES ---should not exceed 70ºC.

c. The temperature for laying cable should be not less than 0ºC, allowed bend radius:

Overall diameter (D) less than 25 mm - should be not less than 4 D .

Overall diameter ( D) 25 mm and above - should be not less than 6 D .

3.Types

Type	Name	Method of Laying
BV	Copper core PVC insulated wire	Fixed
BLV	Aluminium core PVC insulated wire	Fixed
BVV	Copper core PVC insulated, PVC sheathed round cable	Fixed

BVR

Copper core PVC insulated soft wire

Fixed



Model	Rated Voltage V	Numbers of Core	Nominal cross-sectional area mm2
BV	450/750	1	1.5~400
BLV	450/750	1	2.5~400
BVV	450/750	1	0.75~35
BVR	450/750	1	2.5~70

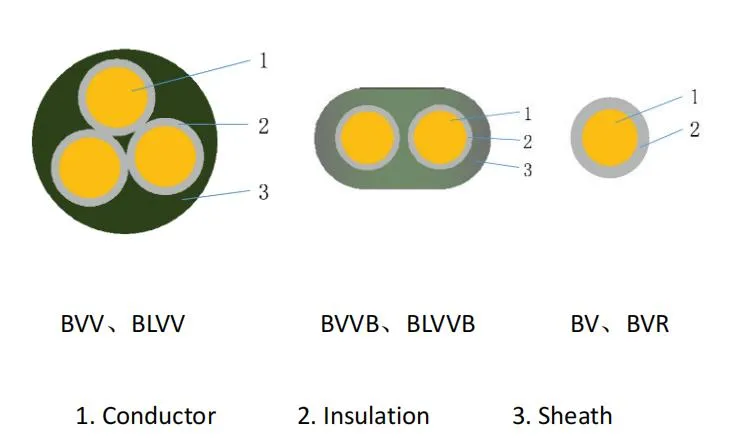

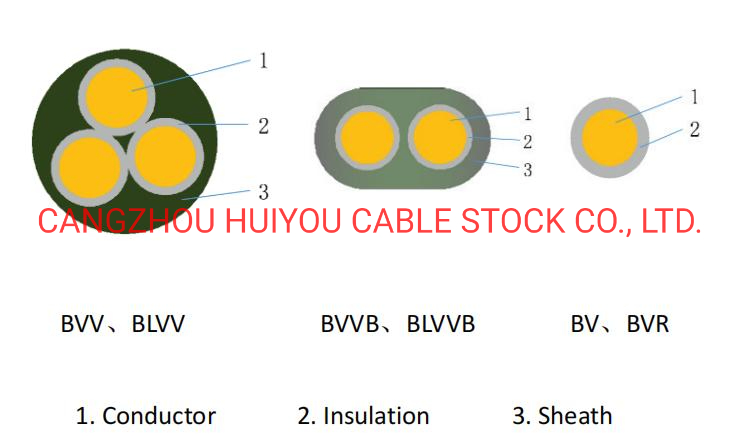

4.Diagram of Structure

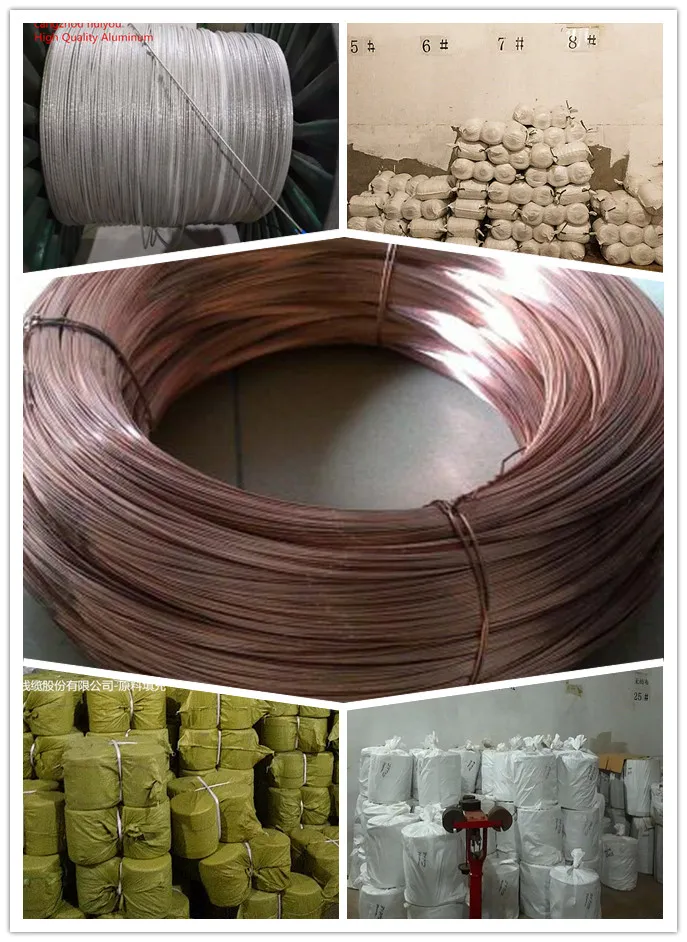

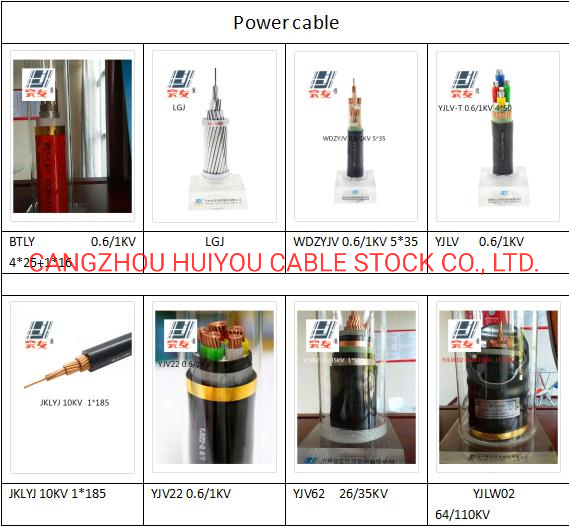

Materials

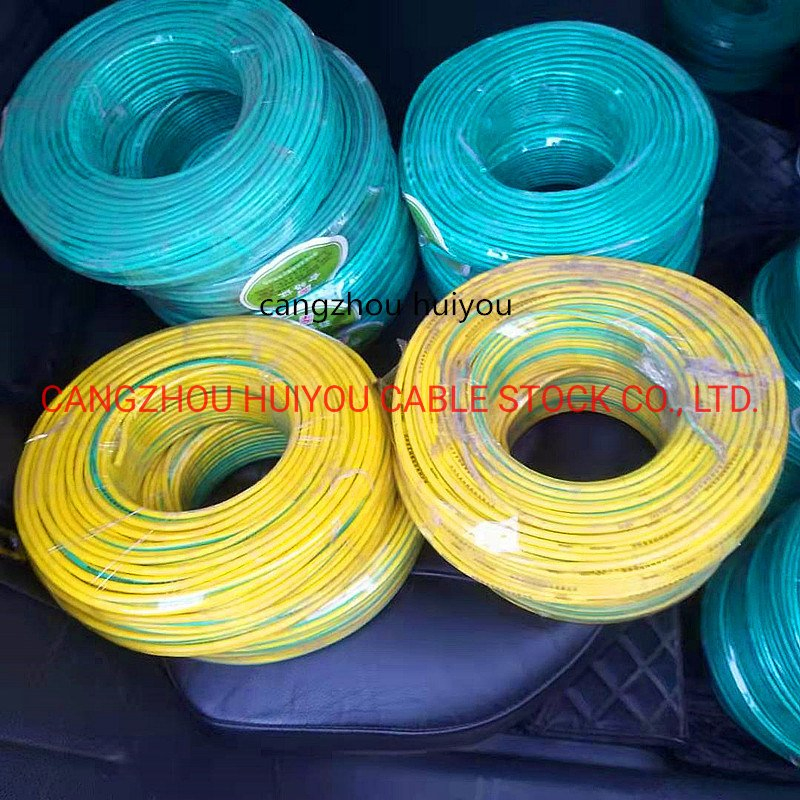

Packing and shipping

  Cetification
