Product Description

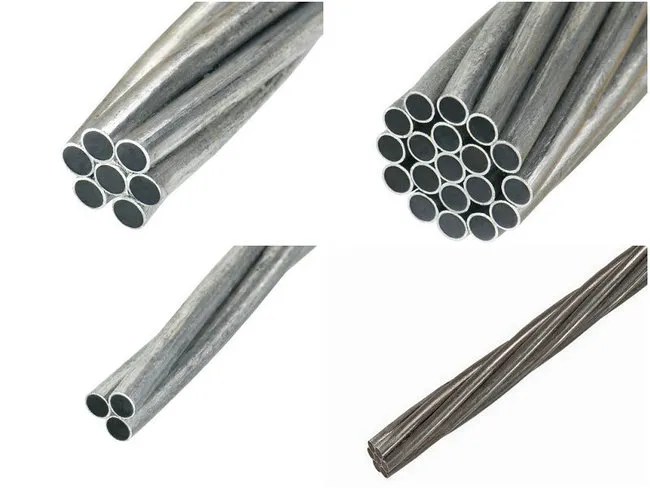

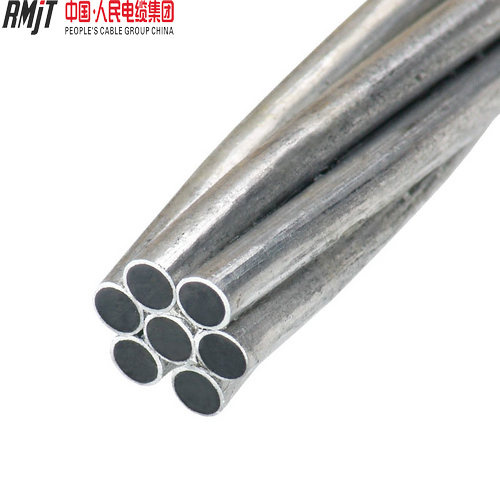

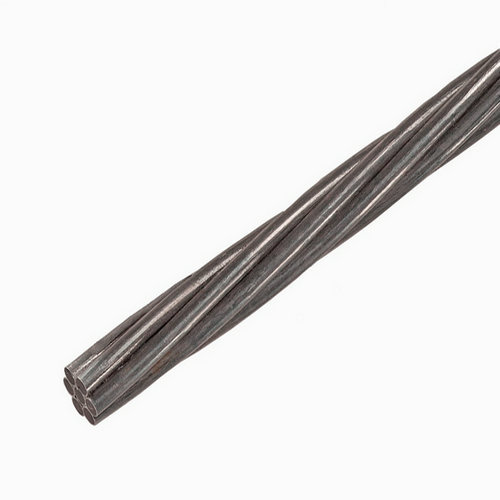

aluminum clad steel wire strand ACS
1.Application
The aluminum clad steel wire is widely used in long-span transmission line, coastal areas and island as well as other hot and humid regions, salt fog regions and heavily polluted regions where the high corrosion resistance strand is needed.
It is used as the core of ACSR/AW, overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line, self-damping conductor line, bare overhead conductor, OPGW, ground wire, messenger wire, guy wire formed wire for protecting, terminating and splicing transmission and distribution lines, fence, barber wire and hardware, etc.
2.Standard
Aluminum clad steel wire is perfectly combined of aluminum and steel core, and there will be no flaking off during the heat treatment or mechanical workout. The aluminum clad steel wire is the best new bimetallic wire instead of pure copper wire.
A high strength steel wire with a 25% thick cross-section ratio of aluminum cladding creates a high electrical conductivity, highly corrosive resistant, and a thermal stability for high temperature operation and all with a lighter weight.
3.Specification
Aluminum Clad Steel Wire/Alumoweld ASTM B416
4.Production process:
ACS Wire producing process is drawing stranding and cabling, our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.
5.Package
Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.
6.About us:
People's Cable Group Co.,Ltd was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
Tel: +86-371-55632896
Fax: +86-371-55632837
Mobile: +86-15138915193
1.Application
The aluminum clad steel wire is widely used in long-span transmission line, coastal areas and island as well as other hot and humid regions, salt fog regions and heavily polluted regions where the high corrosion resistance strand is needed.
It is used as the core of ACSR/AW, overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line, self-damping conductor line, bare overhead conductor, OPGW, ground wire, messenger wire, guy wire formed wire for protecting, terminating and splicing transmission and distribution lines, fence, barber wire and hardware, etc.
2.Standard
Aluminum clad steel wire is perfectly combined of aluminum and steel core, and there will be no flaking off during the heat treatment or mechanical workout. The aluminum clad steel wire is the best new bimetallic wire instead of pure copper wire.
A high strength steel wire with a 25% thick cross-section ratio of aluminum cladding creates a high electrical conductivity, highly corrosive resistant, and a thermal stability for high temperature operation and all with a lighter weight.
3.Specification
Aluminum Clad Steel Wire/Alumoweld ASTM B416
| Code Number | Area | No. of wires | Diameter | Weight | Rated Strength | DC Resistance | |
| mm2 | wire | conductor | kg/km | kN | ohm/km | ||
| 3 No 5 Awg. | 50,32 | 3 | 4,62 | 9,96 | 334,1 | 54,42 | 1.699 |
| 3 No 6 Awg. | 39 ,00 | 3 | 4,11 | 8,87 | 265,0 | 45,74 | 2.142 |
| 3 No 7 Awg. | 31,65 | 3 | 3,67 | 7,90 | 210,1 | 38,36 | 2.701 |
| 3 No 8 Awg. | 25,10 | 3 | 3,26 | 7,03 | 166,7 | 32,06 | 3.406 |
| 3 No 9 Awg. | 19,90 | 3 | 2,91 | 6,26 | 132,2 | 25,43 | 4.294 |
| 3 No 10 Awg. | 15,78 | 3 | 2,59 | 5,58 | 104,8 | 20,16 | 5.415 |
| 7 No 5 Awg. | 117,40 | 7 | 4,62 | 13,90 | 781,1 | 120,27 | 0,7426 |
| 7 No 6 Awg. | 93,10 | 7 | 4,11 | 12,40 | 619,5 | 101,14 | 0,9198 |
| 7 No 7 Awg. | 73,87 | 7 | 3,67 | 11,00 | 491,1 | 84,81 | 1.16 |
| 7 No 8 Awg. | 58,56 | 7 | 3,26 | 9,78 | 389,6 | 70,88 | 1.463 |
| 7 No 9 Awg. | 46,44 | 7 | 2,91 | 8,71 | 308,9 | 56,20 | 1.844 |
| 7 No 10 Awg. | 36,83 | 7 | 2,59 | 7,76 | 245,1 | 44,58 | 2.325 |
| 7 No 11 Awg. | 29,21 | 7 | 2,30 | 6,91 | 194,4 | 35,35 | 2.932 |
| 7 No 12 Awg. | 23,16 | 7 | 2,05 | 6,16 | 154,2 | 28,03 | 3.697 |
| 19 No 5 Awg. | 318,70 | 19 | 4,62 | 23,10 | 2129,0 | 326,39 | 0,2698 |
| 19 No 6 Awg. | 252,70 | 19 | 4,11 | 20,60 | 1688,0 | 274,55 | 0,3402 |
| 19 No 7 Awg. | 200,40 | 19 | 3,67 | 18,30 | 1339,0 | 230,18 | 0,4290 |
| 19 No 8 Awg. | 158,90 | 19 | 3,26 | 16,30 | 1062,0 | 192,41 | 0,5409 |
| 19 No 9 Awg. | 126,10 | 19 | 2,91 | 14,50 | 842,0 | 152,58 | 0,6821 |
| 19 No 10 Awg. | 99,96 | 19 | 2,59 | 12,90 | 667,7 | 121,00 | 0,8601 |
| 37 No 5 Awg. | 620,60 | 37 | 4,62 | 32,30 | 4170,0 | 635,43 | 0,1394 |
| 37 No 6 Awg. | 492,20 | 37 | 4,11 | 28,80 | 3307,0 | 534,85 | 0,1757 |
| 37 No 7 Awg. | 390,30 | 37 | 3,67 | 25,70 | 2623,0 | 448,09 | 0,2216 |
| 37 No 8 Awg. | 309,50 | 37 | 3,26 | 22,90 | 2080,0 | 374,67 | 0,2794 |
| 37 No 9 Awg. | 245,50 | 37 | 2,91 | 20,30 | 1649,0 | 279,11 | 0,3523 |
| 37 No 10 Awg. | 194,70 | 37 | 2,59 | 17,90 | 1308,0 | 235,61 | 0,4443 |

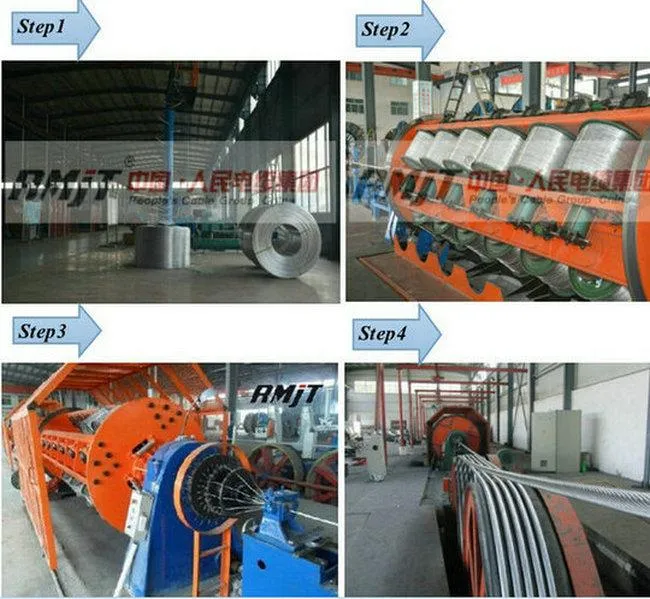

4.Production process:
ACS Wire producing process is drawing stranding and cabling, our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.

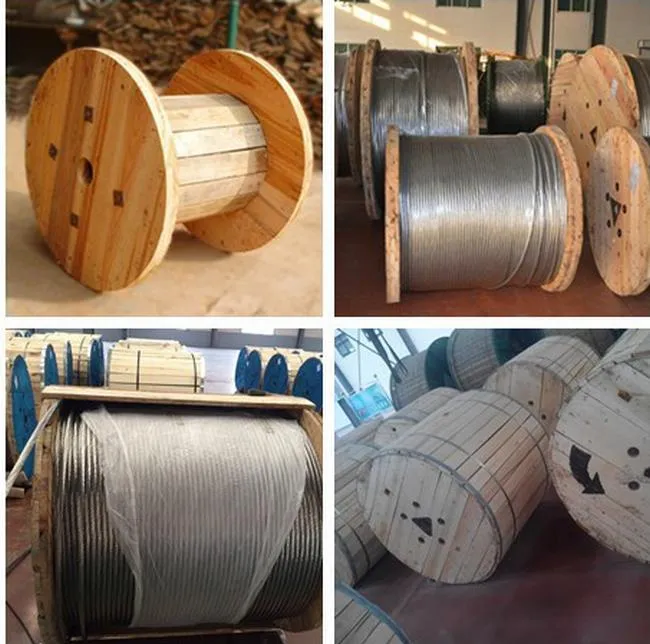

5.Package
Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.

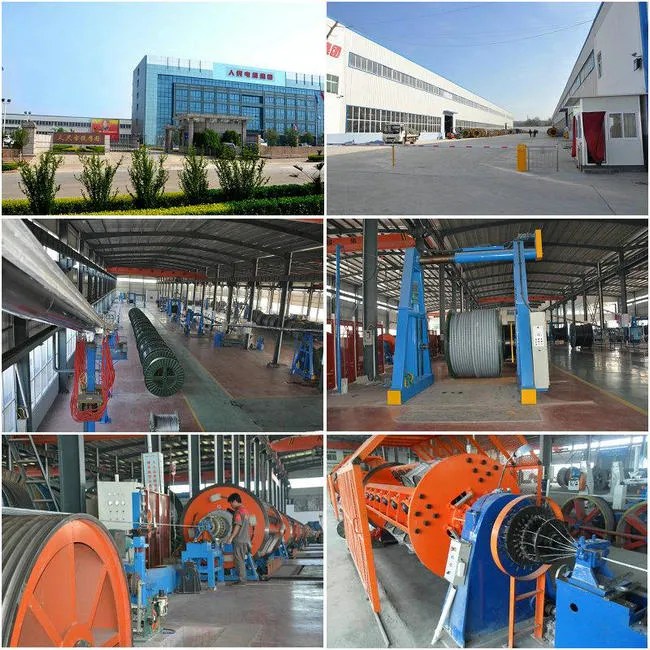

6.About us:
People's Cable Group Co.,Ltd was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
8.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
9.Contact us
Factory Add: No. 13th, Yongding Road, Gongyi, Zhengzhou city, Henan province, China.Tel: +86-371-55632896
Fax: +86-371-55632837
Mobile: +86-15138915193
