Product Description

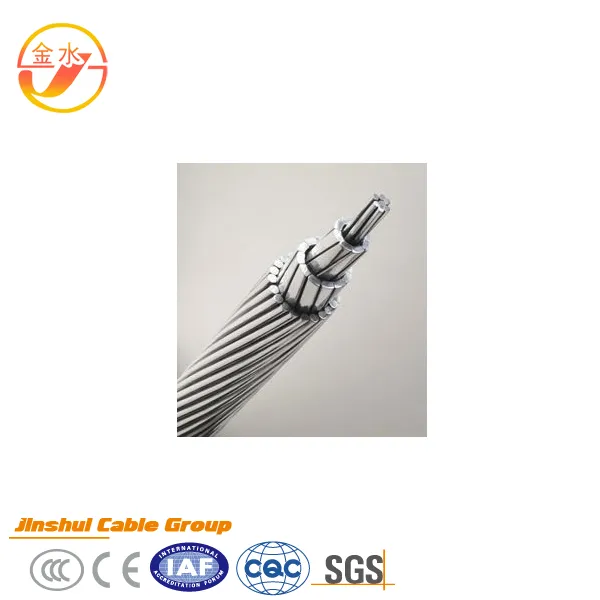

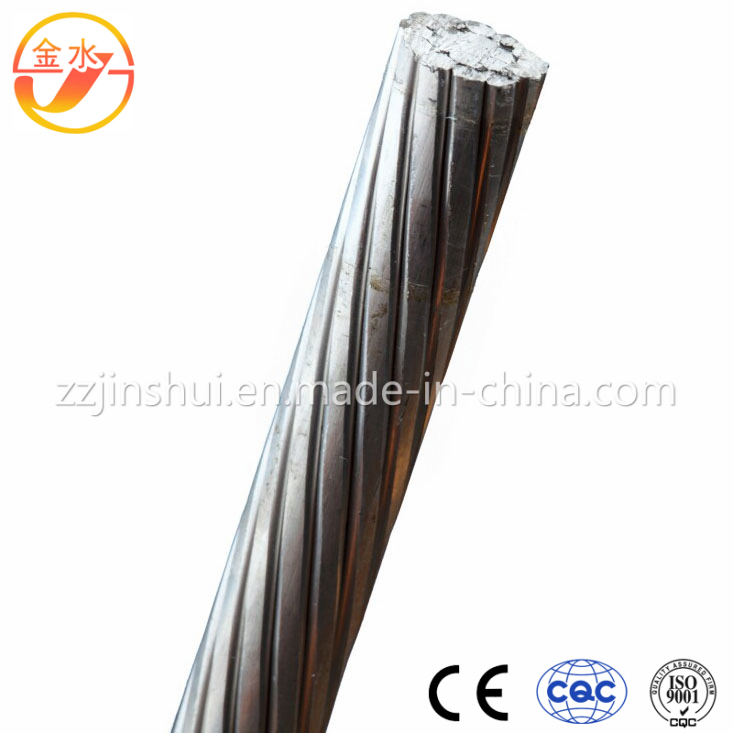

Aluminum Alloy AAAC Conductor 246.9 Alliance

Specifications

AAAC All aluminium alloy conductor referred to have higher strength but lower conductivity than pure aluminum.

AAAC conductors referred to have higher strength but lower conductivity than pure aluminum.being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR;having lower breaking loads than the latter,their use becomes particularly favourable when ice and win loadings are low.

Item	Description	Unit	Data
1	Manufacture	Henan Jinshui Cable Group Co.,ltd
2	Standards		ASTM B399
3	Code Name		AMES
4	Size	AWG	2
5	Cross-section	Mm2	77.47
6	No. Of strands wires/Single wire diameter	No./mm	7/2.67
7	Diameter of phase conductor	mm	8.02
8	Max D.C resistance at 20°C	Ω /km	0.8547
9	Nominal Breaking Load	kN	12.4
10	Linear Mass	Kg/km	108
