All Aluminum Conductor AAC Bare Overhead Conductor in Accordance with Standard IEC 61089
All Aluminum Conductor AAC Bare Overhead Conductor in Accordance With Standard IEC 61089Basic InfoType: BareConductor Type: StrandedApplication: Overhead Transmission LineConductor Material: AluminumSheath Material: BareInsulation Material: BareBasic InformationModel No: AAC Conductor Materia......
Send Inquiry
Product Description

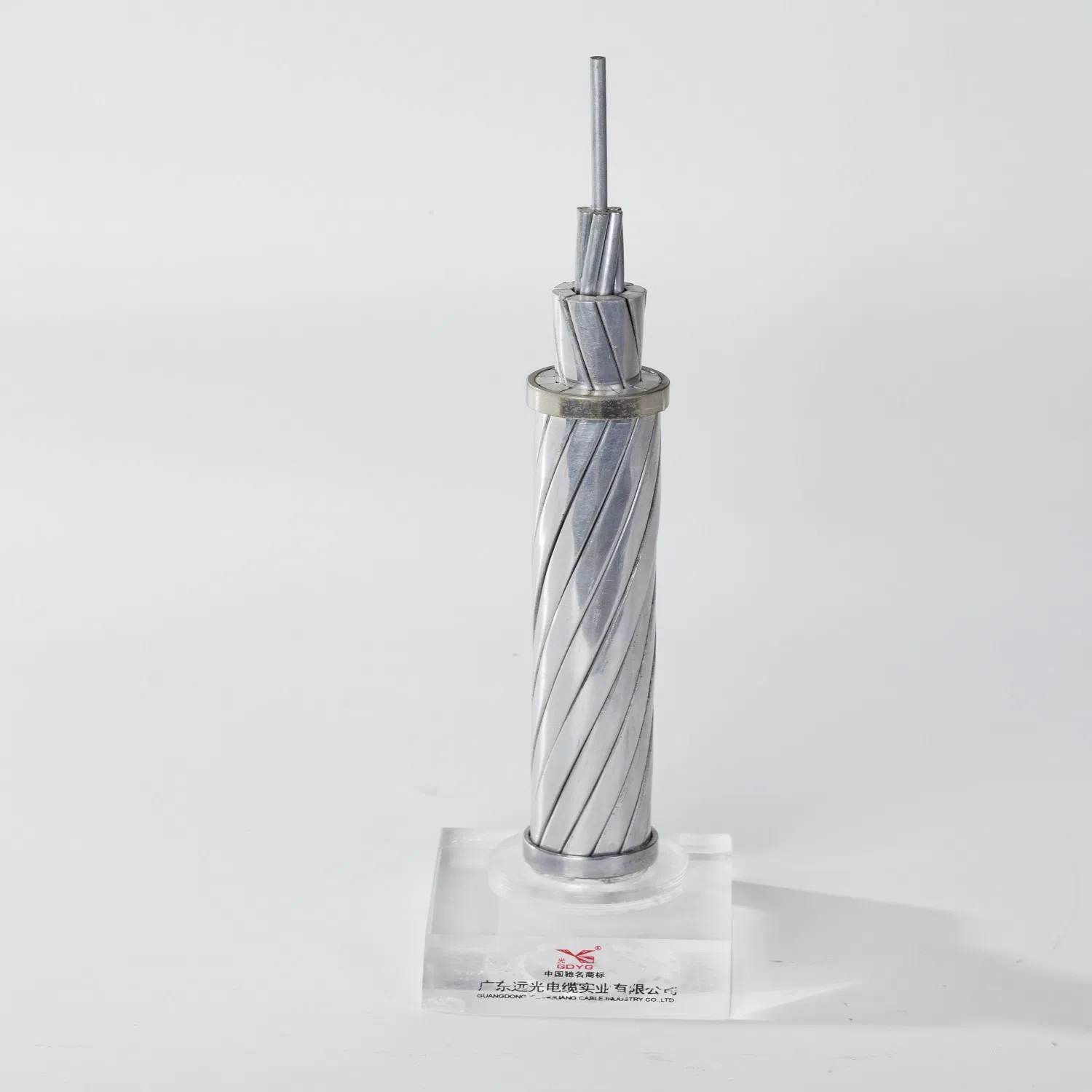

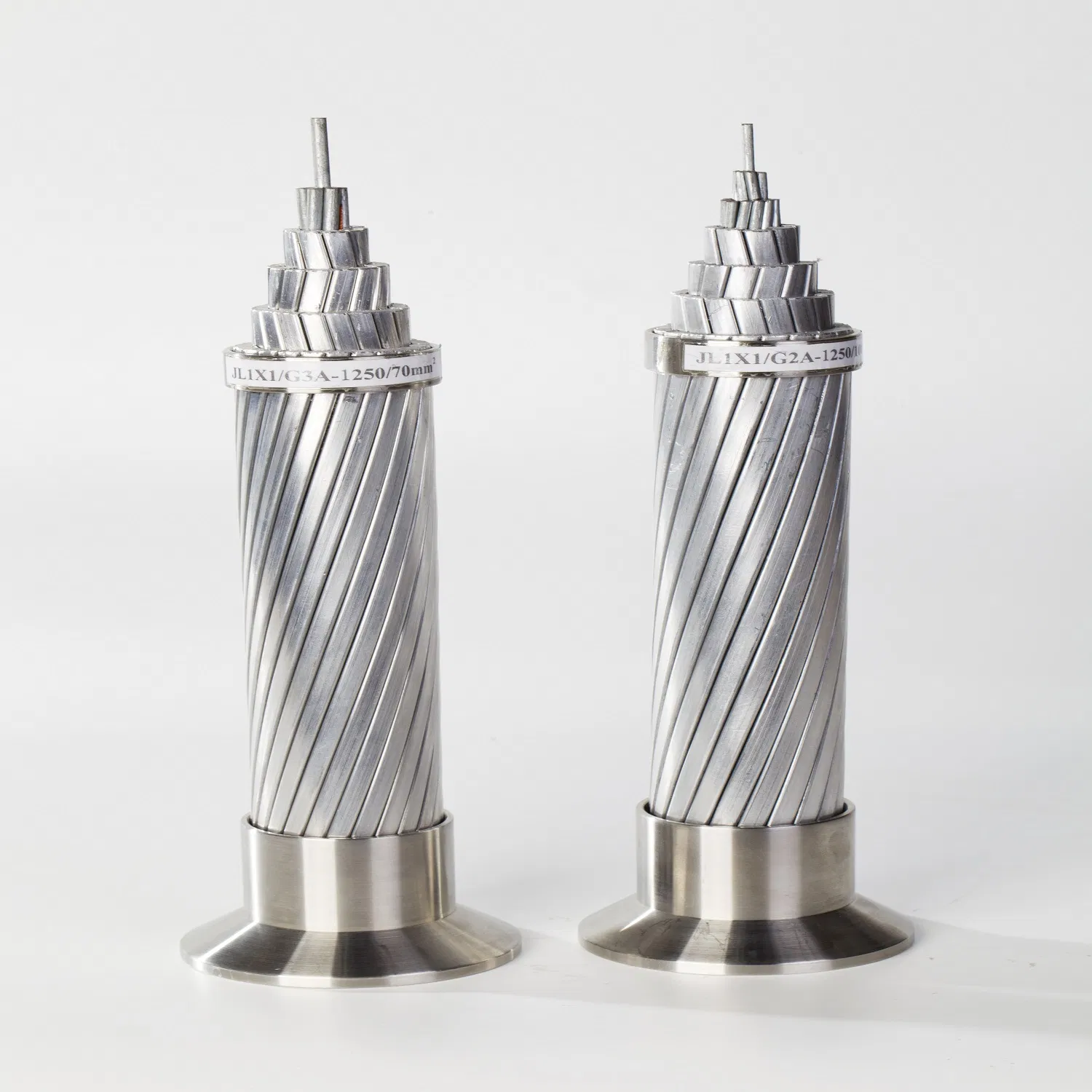

All Aluminum Conductor AAC Bare Overhead Conductor in Accordance With Standard IEC 61089
Basic Info
Type: Bare
Conductor Type: Stranded
Application: Overhead Transmission Line
Conductor Material: Aluminum
Sheath Material: Bare
Insulation Material: Bare
Basic Information
Model No: AAC Conductor
Material Shape: Round Wire
Range of Application: Overhead Installation
Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG
HS Code: 7614100000
Code:Midge, Ant, Fly, etc
Feature: Simple Construction, Easy Installation, Excellent Electric and Mechanical and Conductive etc
Supply Record: African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China
Application
For high voltage transmission lines, higher urban, high-rise buildings and forest and other safety requirements occasions.
Product Features
1,Simple structure, easy erection maintenance, low cost and large transmission capacity.
2,Through the application together with the tower erected manner, saving erection.
3,Conducive to cross rivers and valleys and other special geographical conditions laid.
4,Having good conductivity and sufficient mechanical tensile strength, tower and pole distance can be enlarged.
Technical Parameters
IEC 61089 A1
Our company
Established in 1988, Guangdong Vango Cable Industry Co., Ltd., the Guangdong Top 100 Private enterprise, is a professional manufacturer of power cables and wires. It is the main supplier of cable & conductor and special transmission conductor of National Power Grid and China Southern Power Grid. The comprehensive strength of Vango Company ranks top 20 of the cable industry in China and top 5 of the Guangdong province.
It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipments. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.

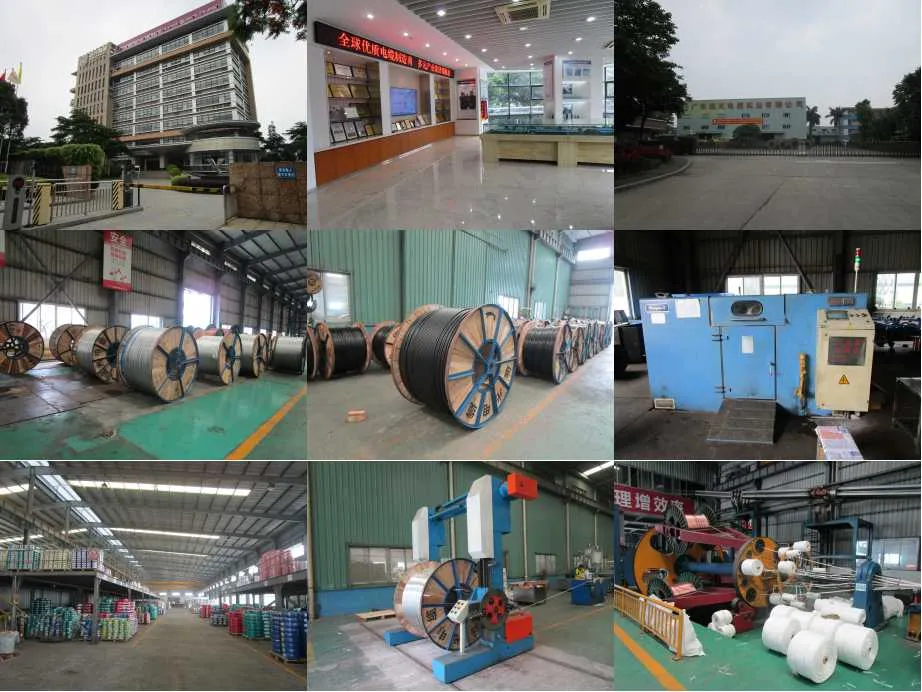

Factory view
Certificates
Customers
Basic Info
Type: Bare
Conductor Type: Stranded
Application: Overhead Transmission Line
Conductor Material: Aluminum
Sheath Material: Bare
Insulation Material: Bare
Basic Information
Model No: AAC Conductor
Material Shape: Round Wire
Range of Application: Overhead Installation
Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG
HS Code: 7614100000
Code:Midge, Ant, Fly, etc
Feature: Simple Construction, Easy Installation, Excellent Electric and Mechanical and Conductive etc
Supply Record: African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China
Application
For high voltage transmission lines, higher urban, high-rise buildings and forest and other safety requirements occasions.
Product Features
1,Simple structure, easy erection maintenance, low cost and large transmission capacity.
2,Through the application together with the tower erected manner, saving erection.
3,Conducive to cross rivers and valleys and other special geographical conditions laid.
4,Having good conductivity and sufficient mechanical tensile strength, tower and pole distance can be enlarged.
Technical Parameters
IEC 61089 A1
| Code number | Area | Number of wires | Diameter | Linear mass | Rated strength | D.C. resistance | |
| Wire | Conductor | ||||||
| mm2 | mm | mm | kg/km | kN | Ohm/km | ||
| 10 | 10 | 7 | 1.35 | 4.05 | 27.4 | 1.95 | 2.8633 |
| 16 | 16 | 7 | 1.71 | 5.12 | 43.8 | 3.04 | 1.7896 |
| 25 | 25 | 7 | 2.13 | 6.40 | 68.4 | 4.50 | 1.1453 |
| 40 | 40 | 7 | 2.70 | 8.09 | 109.4 | 6.80 | 0.7158 |
| 63 | 63 | 7 | 3.39 | 10.2 | 172.3 | 10.39 | 0.4545 |
| 100 | 100 | 19 | 2.59 | 12.9 | 274.8 | 17.00 | 0.2877 |
| 125 | 125 | 19 | 2.89 | 14.5 | 343.6 | 21.25 | 0.2302 |
| 160 | 160 | 19 | 3.27 | 16.4 | 439.8 | 26.40 | 0.1798 |
| 200 | 200 | 19 | 3.66 | 18.3 | 549.7 | 32.00 | 0.1439 |
| 250 | 250 | 19 | 4.09 | 20.5 | 687.1 | 40.00 | 0.1151 |
| 315 | 315 | 37 | 3.29 | 23.0 | 867.9 | 51.97 | 0.0916 |
| 400 | 400 | 37 | 3.71 | 26.0 | 1102.0 | 64.00 | 0.0721 |
| 450 | 450 | 37 | 3.94 | 27.5 | 1239.6 | 72.00 | 0.0641 |
| 500 | 500 | 37 | 4.15 | 29.0 | 1377.6 | 80.00 | 0.0577 |
| 560 | 560 | 37 | 4.39 | 30.7 | 1542.9 | 89.60 | 0.0515 |
| 630 | 630 | 61 | 3.63 | 32.6 | 1738.3 | 100.80 | 0.0458 |
| 710 | 710 | 61 | 3.85 | 34.6 | 1959.1 | 113.60 | 0.0407 |
| 800 | 800 | 61 | 4.09 | 36.8 | 2207.4 | 128.00 | 0.0361 |
| 900 | 900 | 61 | 4.33 | 39.0 | 2483.3 | 144.00 | 0.0321 |
| 1000 | 1000 | 61 | 4.57 | 41.1 | 2759.2 | 160.00 | 0.0289 |
| 1120 | 1120 | 91 | 3.96 | 43.5 | 3093.5 | 179.20 | 0.0258 |
| 1250 | 1250 | 91 | 4.18 | 46.0 | 3452.6 | 200.00 | 0.0231 |
| 1400 | 1400 | 91 | 4.43 | 48.7 | 3866.9 | 224.00 | 0.0207 |
| 1500 | 1500 | 91 | 4.58 | 50.4 | 4143.1 | 240.00 | 0.0193 |
Our company
Established in 1988, Guangdong Vango Cable Industry Co., Ltd., the Guangdong Top 100 Private enterprise, is a professional manufacturer of power cables and wires. It is the main supplier of cable & conductor and special transmission conductor of National Power Grid and China Southern Power Grid. The comprehensive strength of Vango Company ranks top 20 of the cable industry in China and top 5 of the Guangdong province.
It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipments. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
Factory view
Certificates
Customers
