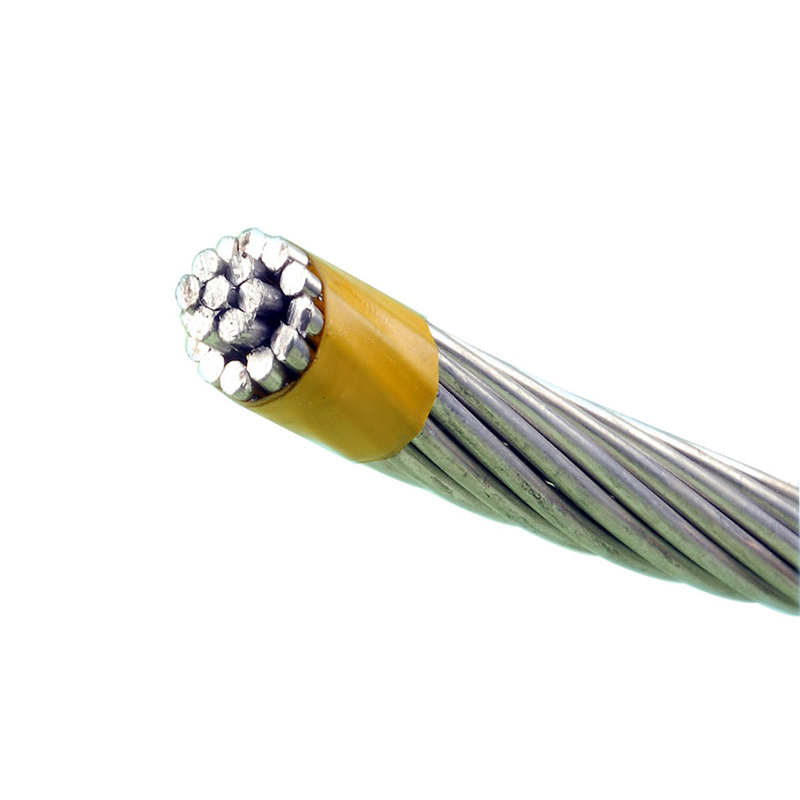

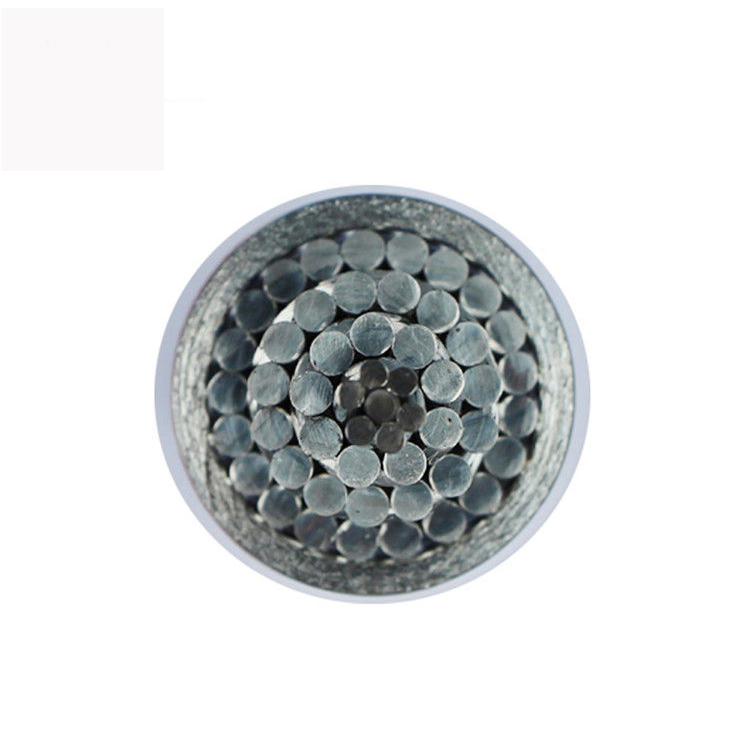

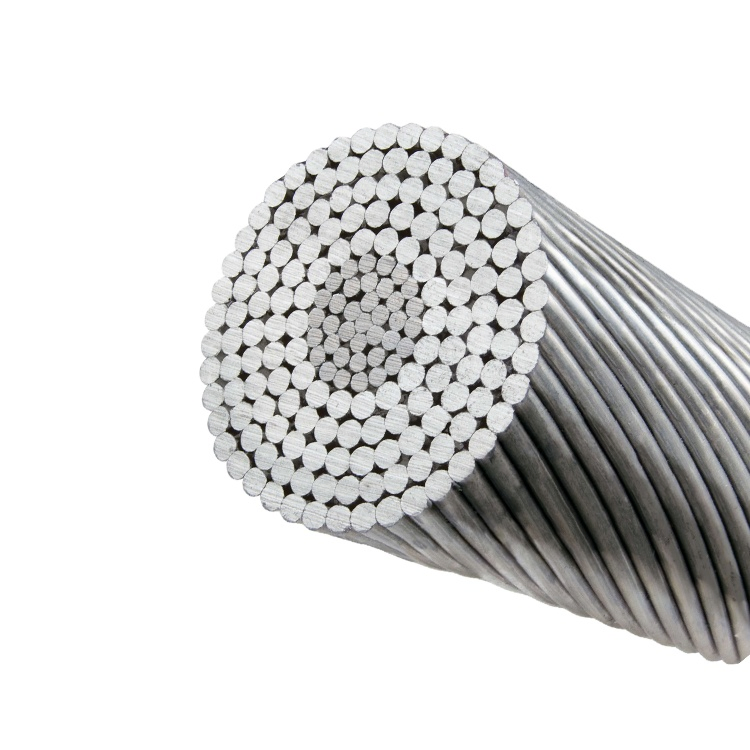

ACSR Conductor Code Name Hawk 795mcm 1272 Mcm ACSR Conductor with Factory Price
AAC/AAAC/ACSR/ACSS/ACCC Cable Overhead Bare Conductors Applications:aluminum alloy conductor Used as bare overhead conductor for power transmission lines with various voltage levels, primary and secondary distribution.the product is Designed utilizing a high-strength aluminum alloy to achieve a high......
Send Inquiry
Product Description

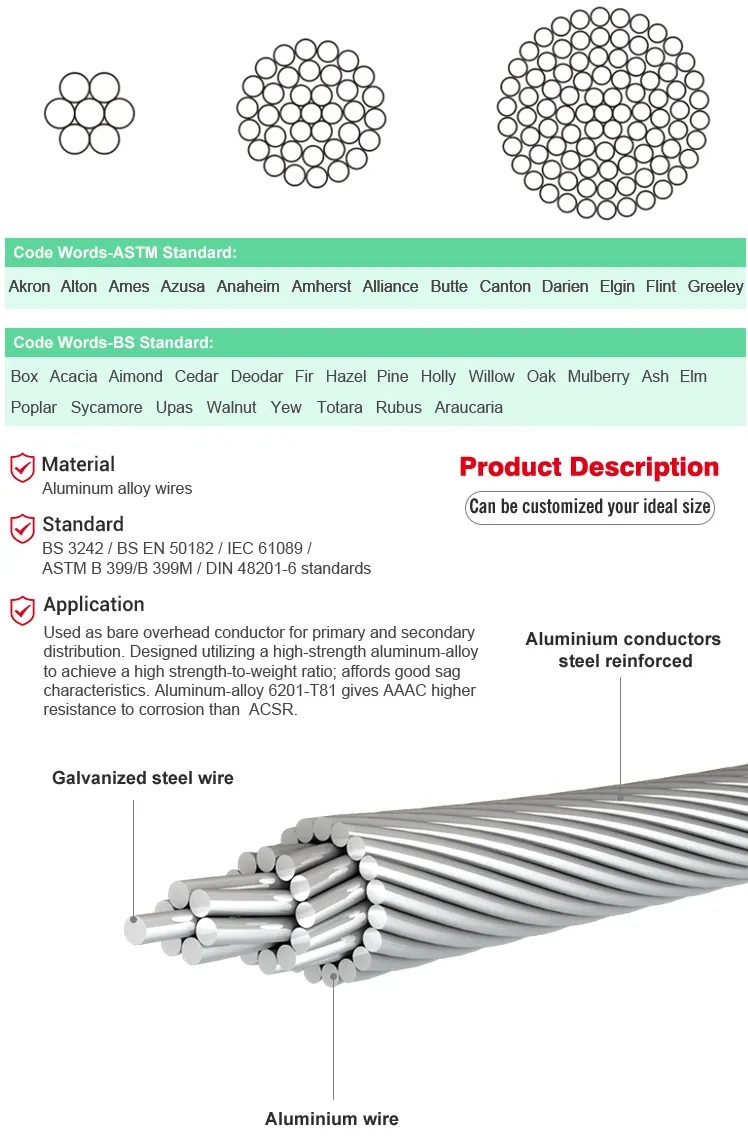

aluminum alloy conductor Used as bare overhead conductor for power transmission lines with various voltage levels, primary and secondary distribution.the product is Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics.Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.
1. Corrosion Resistance: AAAC exhibits excellent corrosion resistance specially in sea coast areas and in polluted industrial areas due to absence of steel core.
2. Lower Power losses: Since AAAC is homogeneous (with all strands of Aluminium Alloy) with no steel component the resistance of AAAC is lower as compared to ACSR.
3. Higher Ampacity: AAAC can carry atleast 15-20% extra current as compared to ACSR of equal size
Longer Life: Experience in foreign countries shows that All Aluminium Alloy Conductors are in service for over 60 years, which is about double the life of
ACSR Conductors.Type & Designation of aac aaac acsr bare conductor
Type | Description | No. of Wire | Section Area (mm2) |
AAC | All Aluminum Conductor | 7~127 | 10~1500 |
AAAC | All Aluminum Alloy Conductor | 7~91 | 16~1500 |
ACSR | Aluminum Conductors Steel Reinforced | 7~103 | 16~1250 |
AACSR | Aluminum Alloy Conductors Steel Reinforced | 7~103 | 16~1250 |
ACSR | Aluminum Conductors Aluminum Alloy Reinforced | 7~103 | 16~1250 |
ACSR/AW | Aluminum Conductor Aluminum Clad Steel Reinforced | 7~103 | 16~1250 |
GSW | Galvanized Steel Wire | 3/2.64~37/4.55 | 16.41~765.99 |
FAQ:
1. How many years has Qingdao yilan Cable Group been in production?

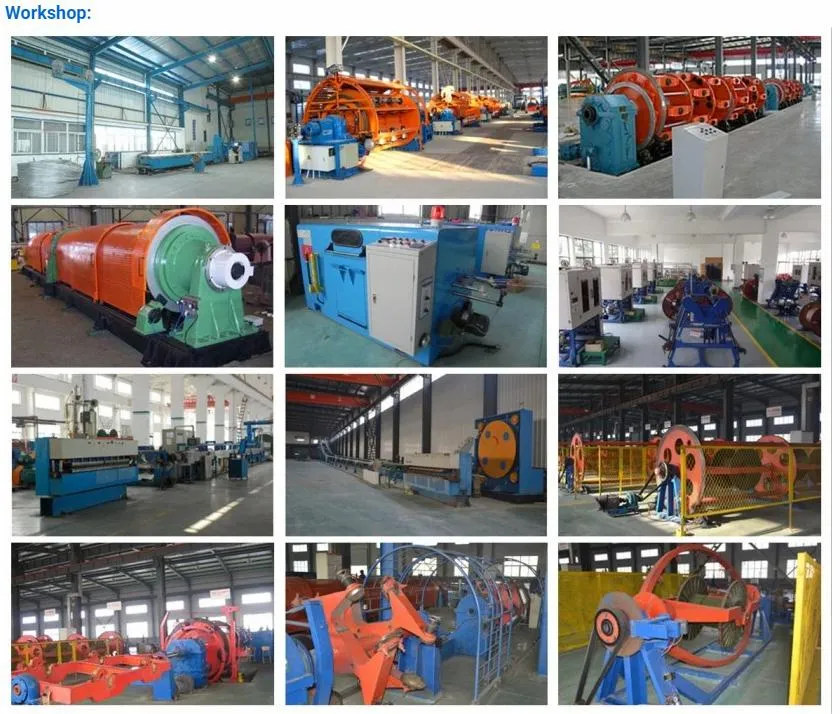

Founded in October 2011 by Mr. kuang, our facility has three separate manufacturing workshops within its 100, 000-sq. -FT. Building. In 2012, we operates in a new 666, 000 sq. Foot state-of-the-art facility in Qingdao ,China

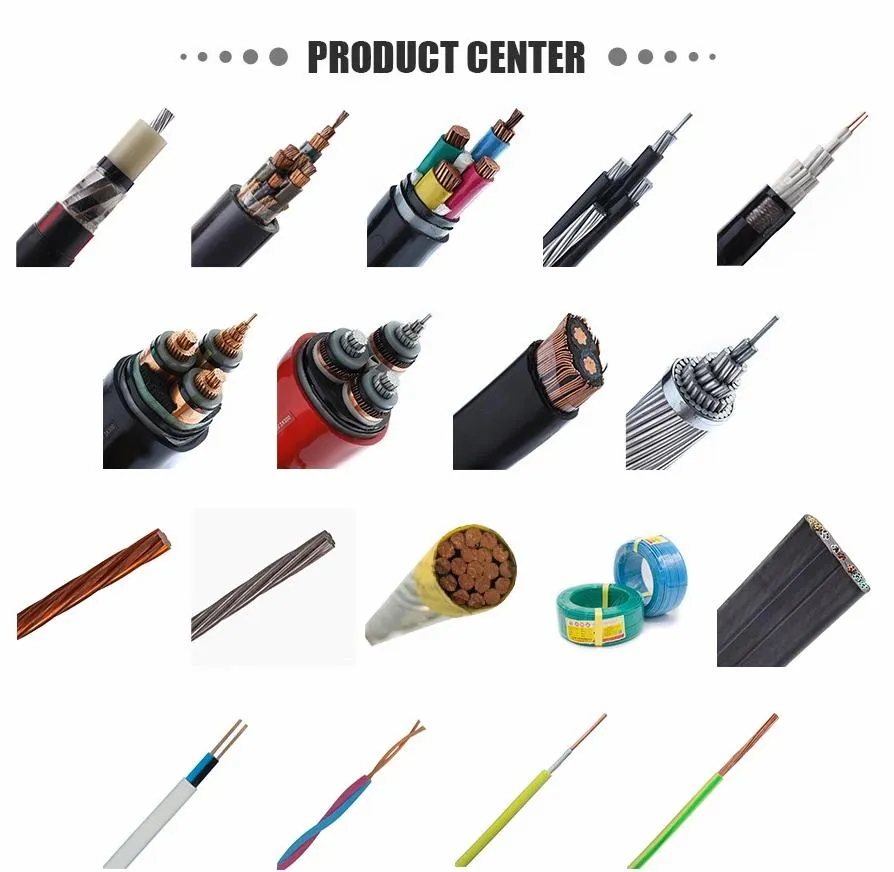

2. What kinds of products does Qingdao yilan Cable manufacture?
1)Bare Conductor, such as AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ), such as Duplex, Triplex, Quadruplex Drop Wires and so on;

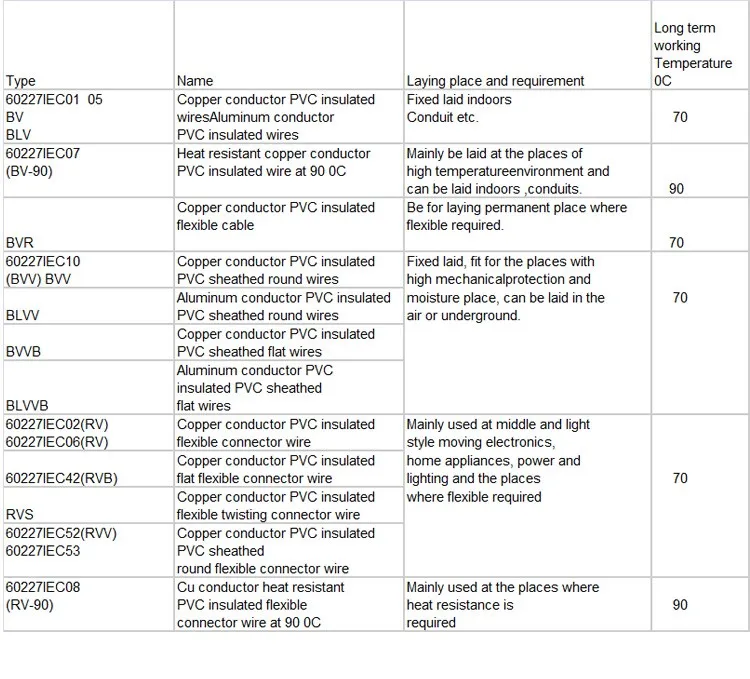

3)PVC Insulated (Flexible ) Wire;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
3. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS
4. Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia, etc.
5. Which standards do you comply with when you produce the electrical wires and cables?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
6. What is the min. Order quantity?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted. But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow, we will try our best to solve the problem and meet with the requirement If you have special request.
7. What is the production capacity per week or per month?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3, 000, 000.00 for insulated aluminum cables and that is approx. USD8, 000, 000.00 for insulated copper cables.
8. Do you supply the customers with installation service in foreign country?
We don't have professional installation teams in foreign country. But if that is necessary, we will recommend our partners to cooperate with you
