China AAC Cable 1/0, 2/0, 4/0 Mcm Conductor for Power Transmission Line

Product Description

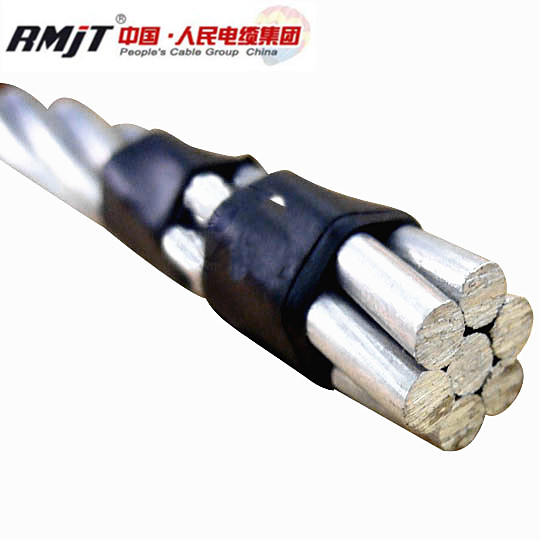

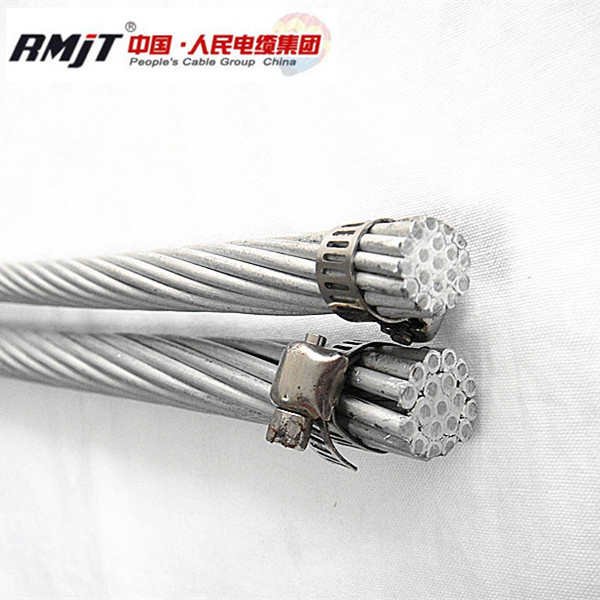

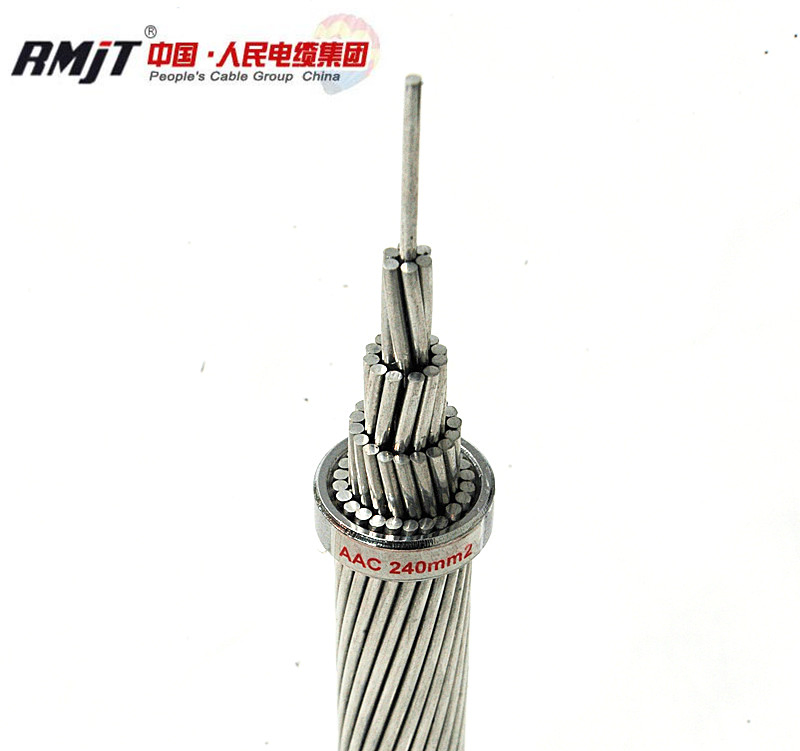

AAC Cable 1/0,2/0,4/0 MCM Conductor for Power Transmission Line

1.Application
This all aluminum conductor is a kind of aluminum product made through stranding aluminum wires. It is used for the electricity distribution lines with short span length and small load-carrying capability of the pole. The AAC provides reliable performance for overhead power transmission and distribution lines. This standard covers hard drawn circular aluminum wires for electric purposes to be used as component wires of hard drawn aluminum stranded cables and aluminum conductor steel reinforced.

2.Standard:
ASTM B 231, BS 215 Part 1, IEC 61089, DIN 48201, CSA C 49, JIS C 3109, etc.

3.Specification
Characteristics of A1 Conductors IEC 61089

Code Name	Area	Stranding		Approx. Overall Diameter	Weight	Nominal Breaking Load	D.C. Resistance at 20ºC
Code Name	Area	No.	Dia.	Approx. Overall Diameter	Weight	Nominal Breaking Load	D.C. Resistance at 20ºC
	mm2	mm2	mm	mm	kg/km	kN	ohm/km
10	10	7	1.35	4.05	27.4	1.95	2.8633
16	16	7	1.71	5.12	43.8	3.04	1.7896
25	25	7	2.13	6.40	68.4	4.50	1.1453
40	40	7	2.70	8.09	109.4	6.80	0.7158
63	63	7	3.39	10.2	172.3	10.39	0.4545
100	100	19	2.89	12.9	274.8	17.00	0.2877
125	125	19	3.27	14.5	343.6	21.25	0.2302
160	160	19	3.66	16.4	439.8	26.40	0.1798
200	200	19	4.09	18.3	549.7	32.00	0.1439
250	250	19	3.29	20.5	687.1	40.00	0.1151
315	315	37	3.71	23.0	867.9	51.97	0.0916
400	400	37	3.94	26.0	1102.0	64.00	0.0721
450	450	37	4.15	27.5	1239.8	72.00	0.0641
500	500	37	4.39	29.0	1377.9	80.00	0.0577
560	560	37	3.63	30.7	1542.9	89.60	0.0515
630	630	61	3.85	32.6	1738.3	100.80	0.0458
710	710	61	4.09	34.6	1959.1	113.60	0.0407
800	800	61	4.33	36.8	2207.4	128.00	0.0361
900	900	61	4.57	39.0	2483.3	144.00	0.0321
1000	1000	61	3.96	41.1	2759.2	160.00	0.0289
1120	1120	91	4.18	43.5	3093.5	179.20	0.0258
1250	1250	91	4.18	46.0	3452.6	200.00	0.0231
1400	1400	91	4.43	48.7	3866.9	224.00	0.0207
1500	1500	91	4.58	50.4	4143.1	240.00	0.0193

4.Packing
Packing in wooden drums,steel wooden drums or as customer's requirement.

5.Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!

6.Production process:
AAC conductor producing process is drawing stranding and cabling,our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.

7.Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.

8.About us:
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
