China 60V Rosh3 Twisted Copper Core Low Voltage Cable

Product Description

Products are used in industrial control system, household appliances, office system, and consumer electronics.

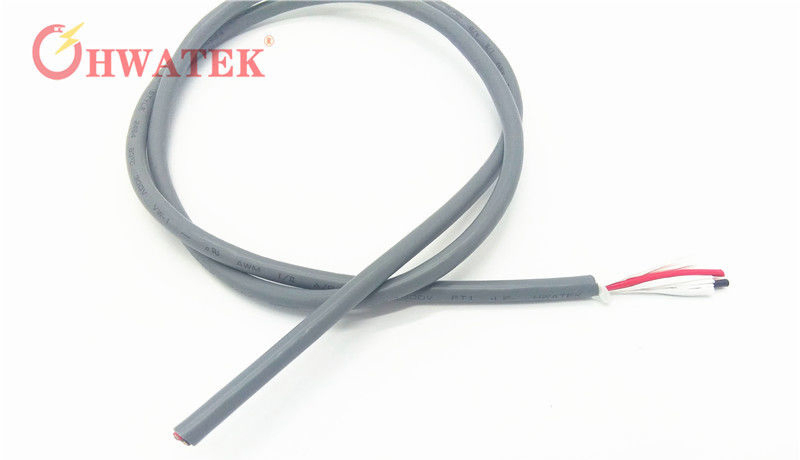

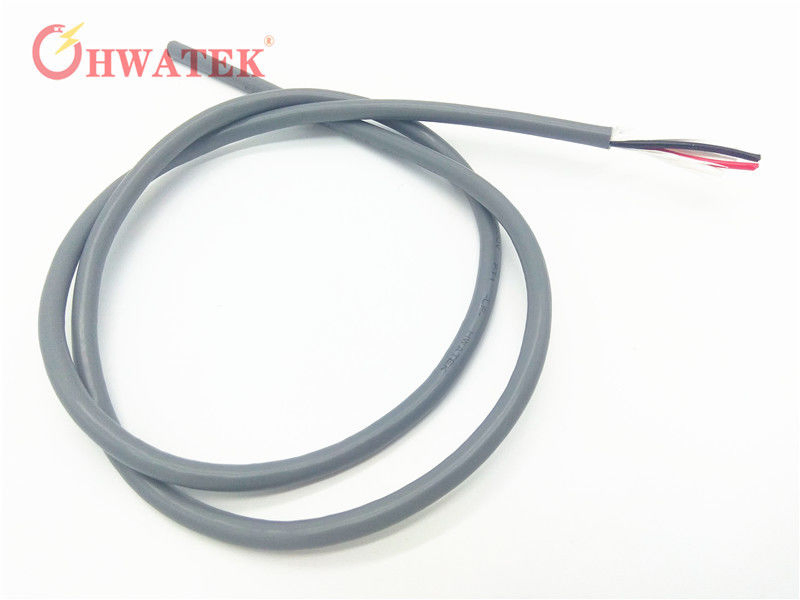

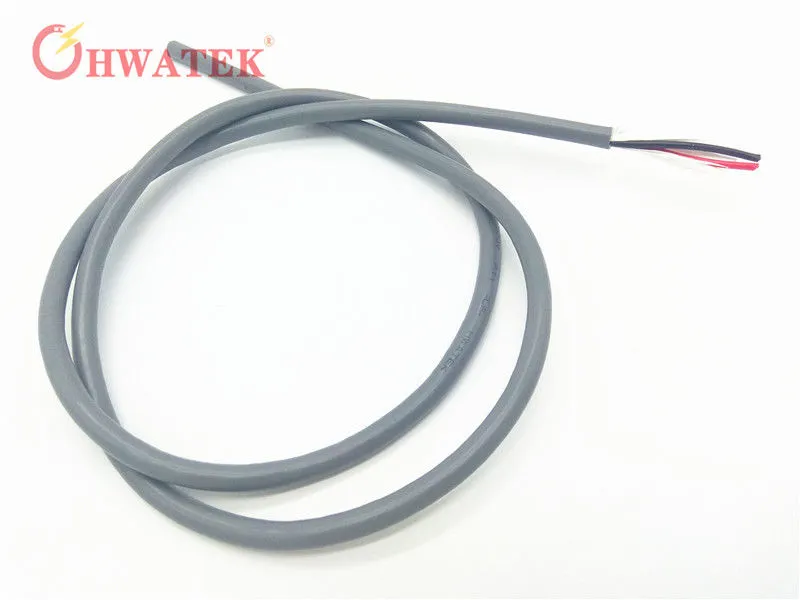

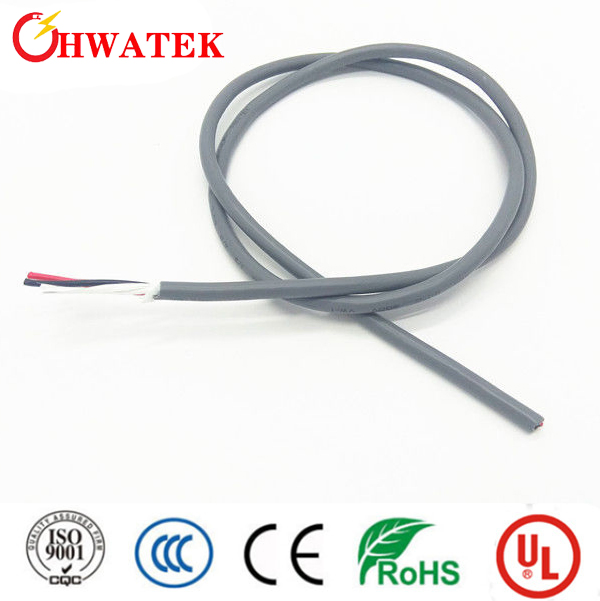

60V Rosh3 Twisted Copper Core Low Voltage Cable

Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581&CSA C22.2 No.210
Product character:
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
Heat resistance, anti-acid and environmental protection etc.

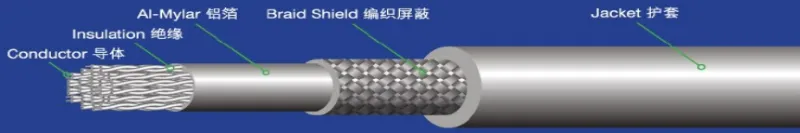

Constructure:
Tinned or bare copper, stranded or single conductor, 30-4/0AWG
PE or PP insulation
Two or more single-core wire are twisted
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
FRPE jacket
Technical parameter:
Rated temperature : 60ºC ,80ºC
Rated Voltage: 30V

Product Number	Conductor				Insulation		Shield	Jacket		Max. Cond. Resistance (20⁰C) Ω/km
	core	Size AWG	NO./mm	Conductor Dia . mm	Nom. Thickness mm	Nom. Dia. mm	m/n/d	Nom. Thick. mm	Nom. Dia. mm
HT21089**001	10C	28	7/0.127	0.38	0.20	0.78	16/6/0.12	0.65	5.10	223
HT21089**002	10P	28	7/0.127	0.38	0.20	0.78	16/8/0.12	0.70	6.60	223
HT21089**003	8C	28	7/0.127	0.38	0.20	0.78	16/6/0.12	0.60	4.60	223
HT21089**004	6P	28	7/0.127	0.38	0.20	0.78	16/7/0.12	0.60	5.60	223
HT21089**005	6C	26	7/0.16	0.48	0.20	0.88	16/6/0.12	0.60	4.40	140
HT21089**006	4P	26	7/0.16	0.48	0.20	0.88	16/6/0.12	0.60	5.20	140
HT21089**007	4C	22	17/0.16	0.76	0.20	1.16	16/6/0.12	0.55	4.20	55.4
HT21089**008	2C	18	41/0.16	1.18	0.25	1.68	16/7/0.12	0.60	5.40	21.8

Remark:Optional core wire number 2C-50C, and shielding way

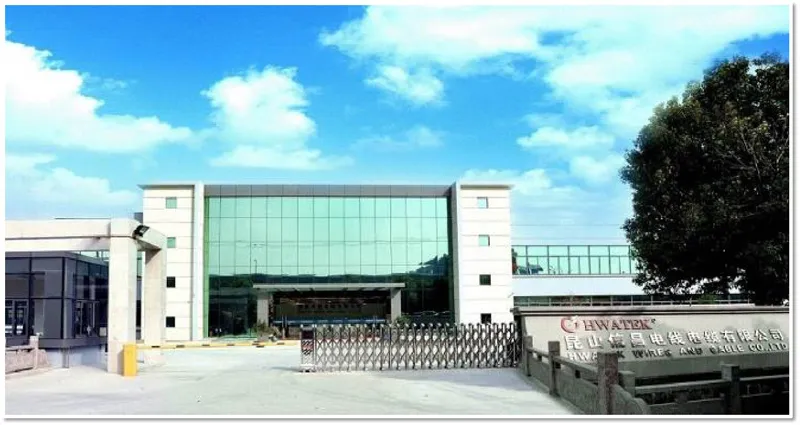

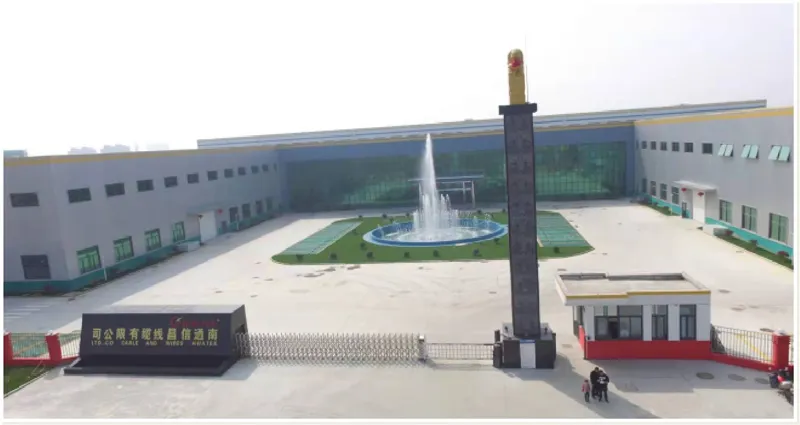

Company Profiles

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Multi-Pair Flexible Braiding Shield PU Jacket Cable

Multi-Pair Flexible Braiding Shield PU Jacket Cable

Certificates

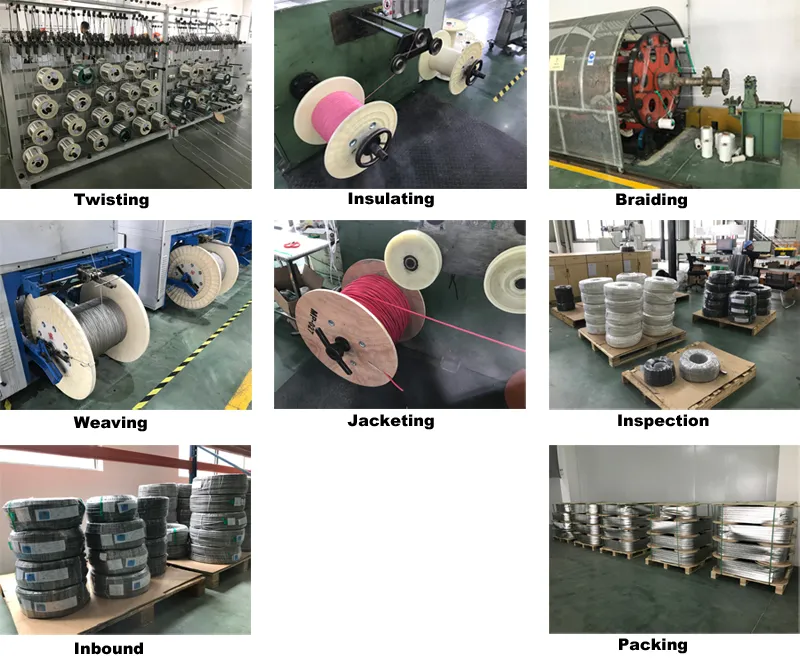

Production Progress
Shipping
FAQ
1.Q:What can you supply?
   A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
   A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
   A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
   A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
   A: Always a pre-production sample before mass production and final Inspection before shipment.
