5kv 6mm2 XLPE CTS PVC Cable Airfiled Lighting Cables
PRIMARY AIRPORT LIGHTING CABLE COPPER CONDUCTOR, XLPE INSULATION, COPPER TAPE SHIELD, HDPE SHEATH
Test voltage: 18 kV AC (5 minutes)
Maximum conductor temperature for normal operation is 90ºC
Maximum conductor temperature for short-circuit (5s maximum duration) is 250ºC
Continuous working current upto 20 A
Minimum bending radius: 9 x D (D: cable diameter)
PRIMARY AIRPORT LIGHTING CABLE COPPER CONDUCTOR, XLPE INSULATION, COPPER TAPE SHIELD, HDPE SHEATH
GENERAL SCOPE
- Airport lighting cable 5 kV used for power transmission from power generator to lighting and guiding light … in lighting system of airport. Buried direct in ground or install in duct buried in ground, rated voltage 5 kV.
APPLIED STANDARDS
- FAA L-824 Type C- ANSI/NEMA WC 74/ICEA S-93-639-2012

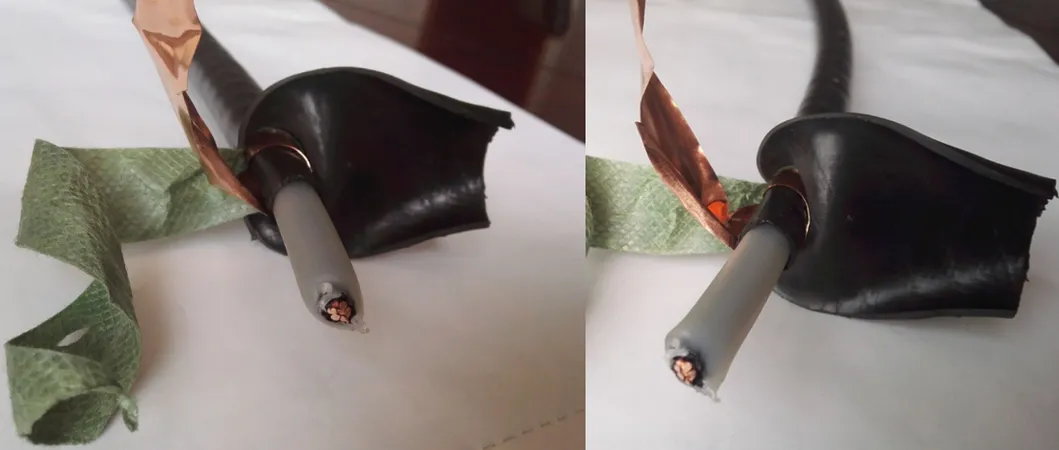

CONSTRUCTION

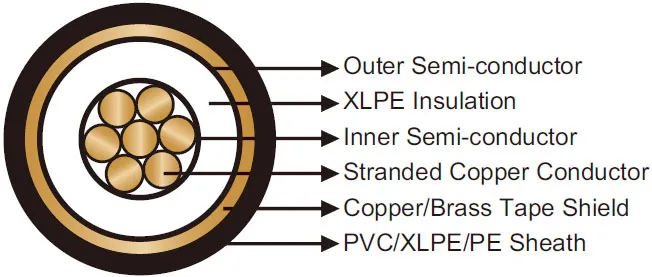

| Conductor | Stranded bare or tinned copper. |
| Inner Semi-Conductor | Extruded semi-conducting compound. |
| Insulation | XLPE. |
| Outer Semi-Conductor | Semi conducting tape or extruded. |
| Shield | Copper or brass tape(s). Tinned copper wire braid can be offered upon request. |
| Sheath | PVC. PE/XLPE can be offered upon request. |
TECHNICAL CHARACTERISTICS
Rated voltage: 5 kVTest voltage: 18 kV AC (5 minutes)
Maximum conductor temperature for normal operation is 90ºC
Maximum conductor temperature for short-circuit (5s maximum duration) is 250ºC
Continuous working current upto 20 A
Minimum bending radius: 9 x D (D: cable diameter)
Dimensions and Weight
| Construction | No. of Strand | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| No. x mm^2/ AWG | - | mm | mm | kg/km |
| 1×6mm^2 | 7/19 | 2.3 | 11.0 | 180 |
| 1×8 | 7/19 | 2.3 | 14.3 | 298 |
| 1×6 | 7/19 | 2.3 | 15.4 | 366 |
| 1×4 | 7/19 | 2.3 | 17.0 | 513 |
