50%Cu Enamelled CCA Wire High Quality Winding Wire Direct Welding
copper enameled wire winding wire of Class B, F, H, CSZ CABLE mainly supply:1-Enameled Wire( CCA wire, Al. wire, Copper wire)2-Electric wire( CCA wire, Al. wire, Copper wire)3-Electric cable( CCA wire, Al. wire, Copper wire)4-Bare/tinned conductor wire( CCA wire, Al.-alloy wire, Copper wire)5-Enamel......
Send Inquiry
Product Description
SZ CABLE mainly supply:
1-Enameled Wire( CCA wire, Al. wire, Copper wire)
2-Electric wire( CCA wire, Al. wire, Copper wire)
3-Electric cable( CCA wire, Al. wire, Copper wire)
4-Bare/tinned conductor wire( CCA wire, Al.-alloy wire, Copper wire)
5-Enameling machine(size from 0.02-8.00mm wire)
Advantages of enameled CCA wire:
As envelope alternatives of pure enameled copper wire, it has good performance of high frequency transmission, originally it was applied in various types of high-frequency electromagnetic induction coil; now in order to save more production cost, ECCA wire has been widely used in various types of electronic coils, transformers, inductors, rectifiers, and all kinds of large and small motors, and has excellent soldering performance. Its density is low, the weight of the unit product can at least save 40% of the copper wire, it can save a lot of cost of production material.
Specifications :

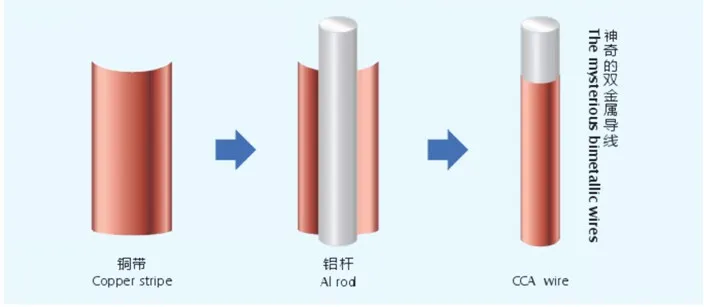

Enameled Copper clad aluminum(CCA) wire
Conductor:Copper clad aluminum(CCA)
Diameter: 0.10-8.00mm round enameled aluminum wire
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130/155/180/200/220 centigrade
Enamelled types : UEW,PEW,EIW,EI/AIW,AIW
Certification:UL Approved, iso9001, iso14001,RoHS,REACH
Product details:
Enameled Type | Polyester | Modified Polyester | polyester-imide | Polyamide-imide | polyester-imide /Polyamide-imide |
Insulation Type | PEW/130 | PEW(G)/155 | EIW/180 | EI/AIW/200 | EIW(EI/AIW)220 |
Thermal class | 130, CLASS B | 155, CLASS F | 180, CLASS H | 200, CLASS C | 220, CLASS N |
Conductor | CCA | CCA | CCA | CCA | CCA |
Size(mm) supply | 0.11-5.0 | 0.11-5.0 | 0.11-5.0 | 0.11-5.0 | 0.11-5.0 |
Enamel thickness | Grade(0,1,2,3) | Grade(0,1,2,3) | Grade(0,1,2,3) | Grade(0,1,2,3) | Grade(0,1,2,3) |
Standard | IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 | IEC60317-0-2 IEC60317-29MW36-A SZ Enterprise standard SJ/T11223-2000 | IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 | IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 | IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
Product Features:
High breakdown voltage
Good adhesion
Tin soldering
Few pinhole
Sustained and stable quality
Main Applications :
All kinds of household electric motors, vacuum cleaner motor, electric motor
All kinds of transformers, inductors, rectifiers
All kinds of fan motor
All kinds of high frequency electric appliance

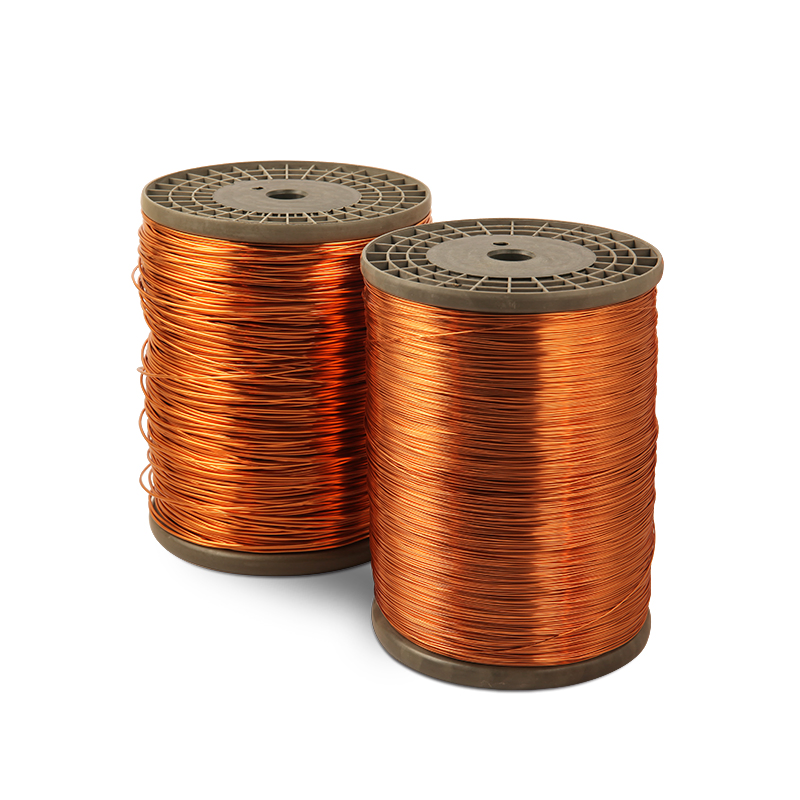

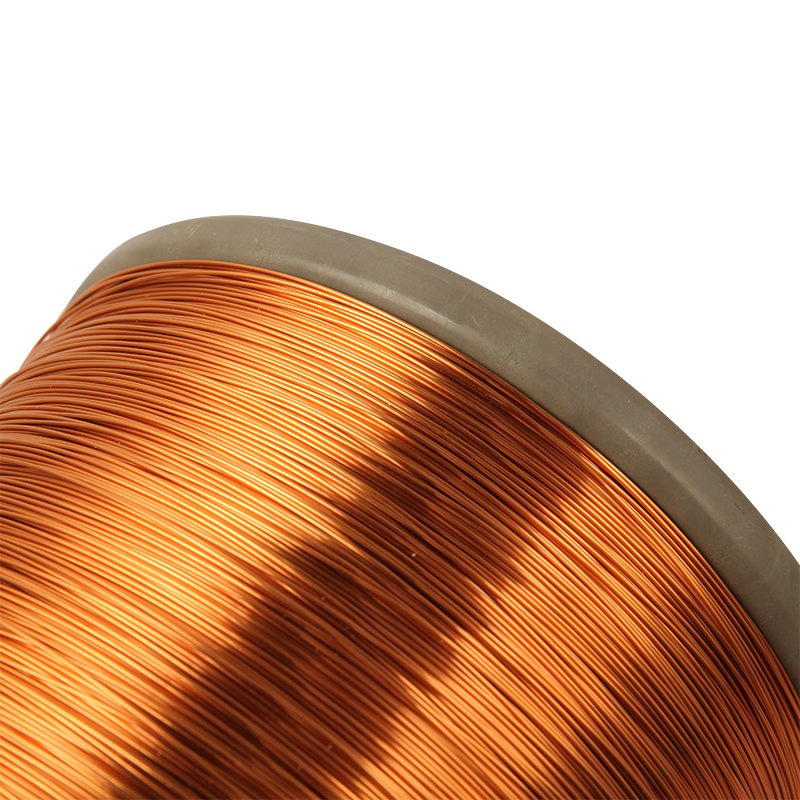

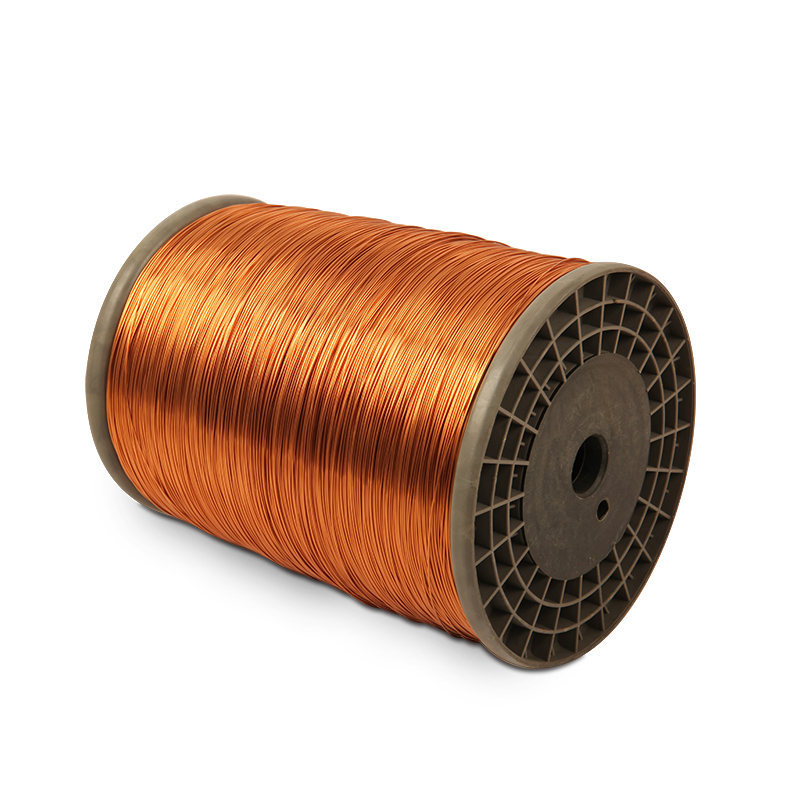

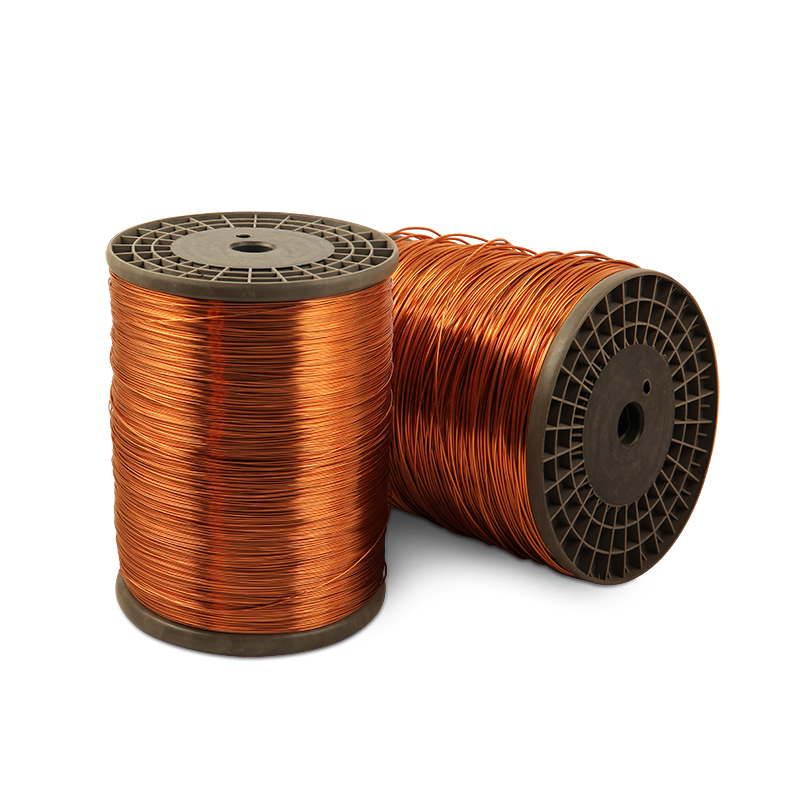

Product Pictures:

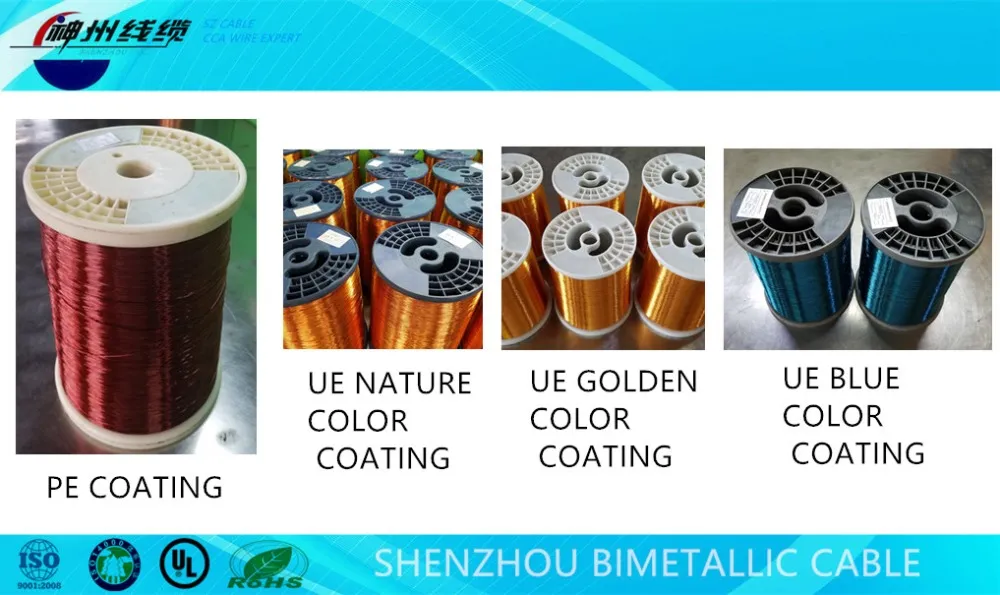

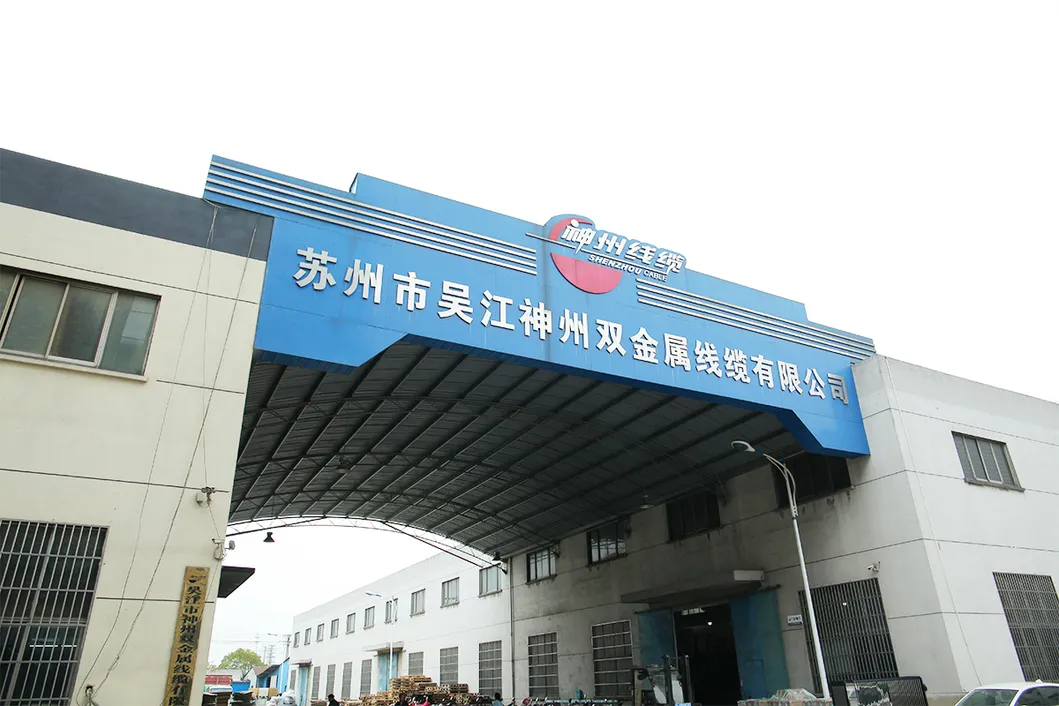

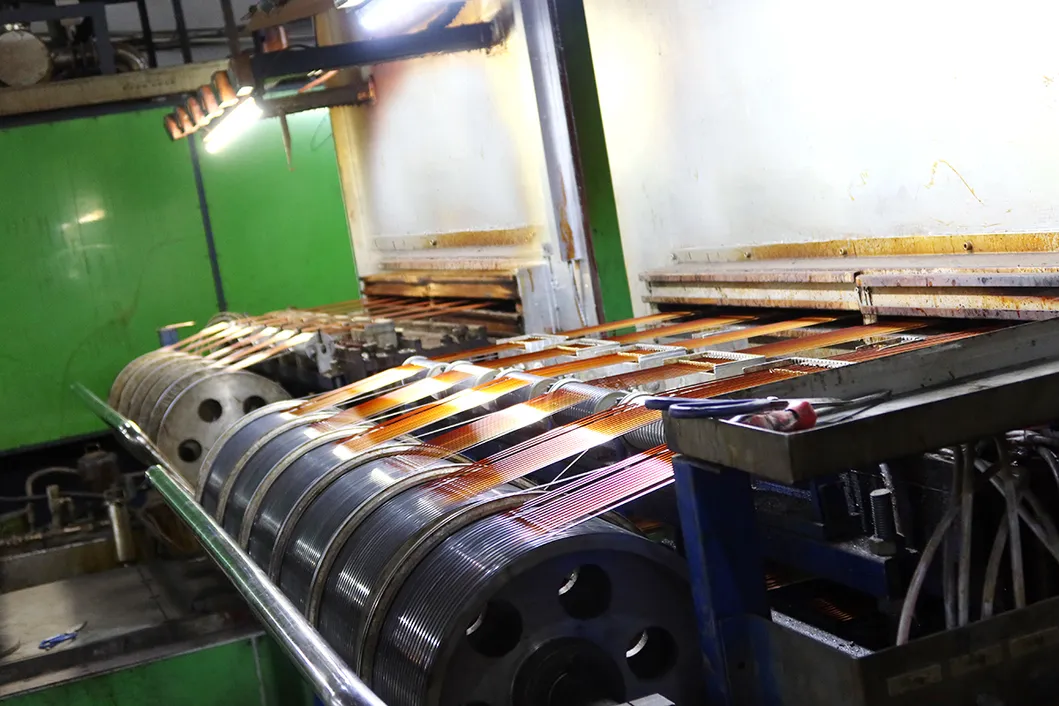

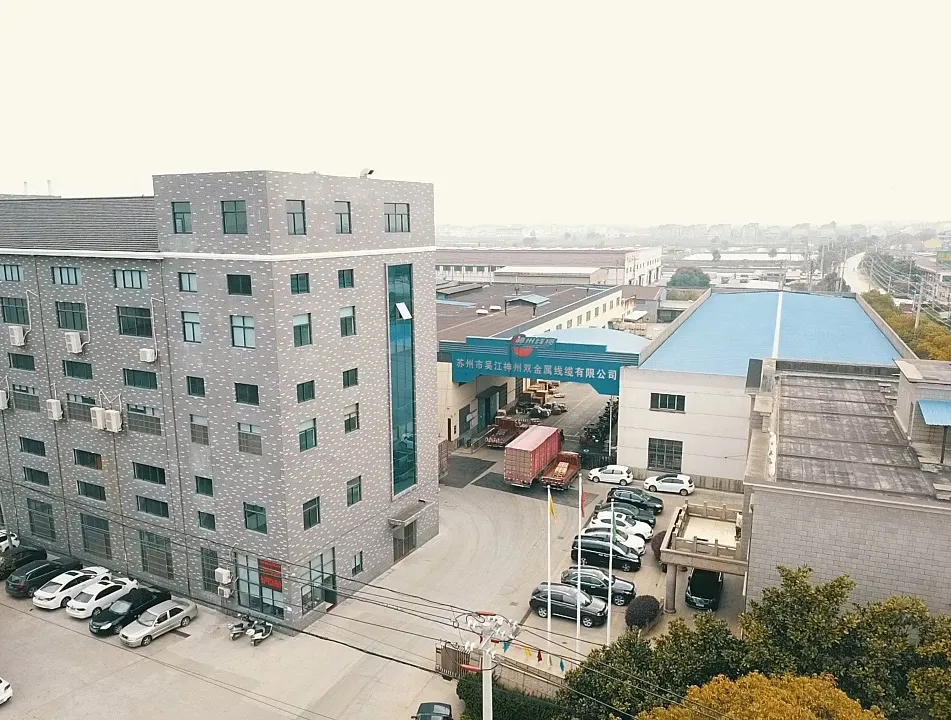

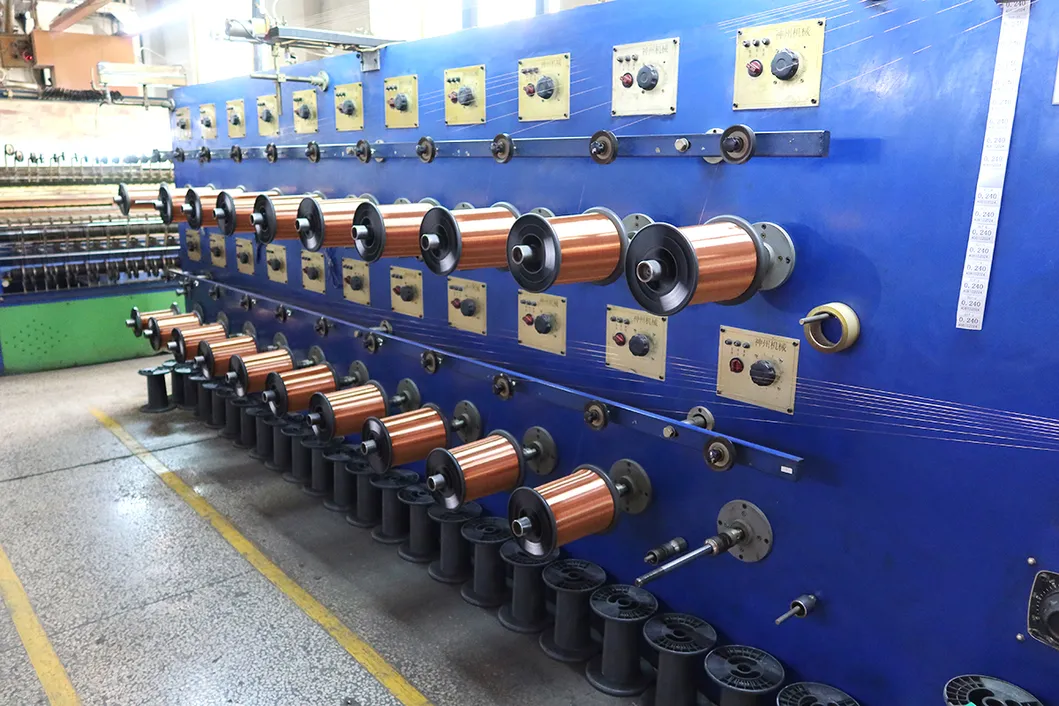

Suzhou Wujiang Shenzhou Bimetallic Cable Co., Ltd. parent company is located in Qidu Town,which is well known as the cable capital in China. Our company was set up in 2005, and now is the largest enameled copper clad aluminum wire production enterprise. The main products are enameled copper clad aluminum wire, enameled aluminum wire and copper clad aluminum wire. Enameled wire specifications include polyurethane (QA/UEW), (130,155,180) polyester QZ/PEW, class 180 polyester imide QZY/EIW, 200 grade polyamide-imide compound polyester imide QZY/XY/EI/AIW. At present, we are supplying size from 0.100 mm - 4.60 mm. Products are widely used in various types of electronics, (air conditioners, refrigerators, washing machines, electric tools) motor, large, medium and small transformer, electromagnetic induction coil, the motor of the car, charger, ballast, relays, etc. products. Strict quality control and long-term stable supply of products is the cornerstone of SHENZHOU's long-term stable development.
Certificate:
Standard: IEC, NEMA, GB,JIS
Thermal Class: 130/155/180/200/220 centigrade
Enamelled types : UEW,PEW,EIW,EI/AIW,AIW
Certification:UL Approved, iso9001, iso14001,RoHS,REACH
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO9001,14001,SGS,REACH and UL certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department with 15 inspection personnel. Quality inspection team including incoming material, process and finished product inspection
4. Q: How large the scale of your company?

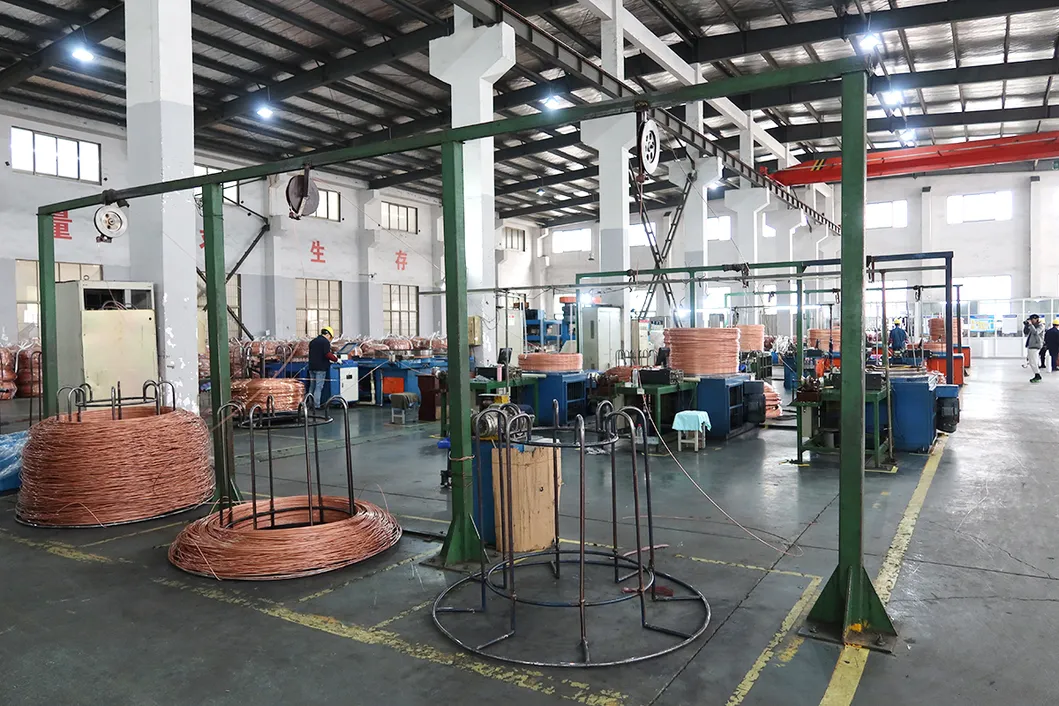

A: Our Company covers almost 40,000 square meters, Including 8 standard factory buildings.
5. Q: What's the main market of your company?
A: We have customers all over the world.
6. Q: What's your company 's product scope?
A: We have many kinds of products ,such as enameling machine, copper clad aluminum wire, enameled aluminum wire, enameled copper wire, enameled copper clad aluminum wire, copper rod, power wire and cable, communication cables.
7. Q: What's your company 's product scope?
A: We have many kinds of products ,such as enameling machine, copper clad aluminum wire, enameled aluminum wire, enameled copper wire, enameled copper clad aluminum wire, copper rod, power wire and cable, communication cables.
8. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Wujiang Dis. SuzhouCity, Jiangsu Province, China,
Near Shanghai Hongqiao Airport(90kms). We offer transportation service
