32A 3phase IEC 62196 Type 2 Evse Charging Cable for Renault Zoe
32A Type1 To Type2 EV Charging Cable For Electric VehiclesCord lenght: 3m, 5m or customizedMeet IEC 62196-2 (Mennekes, Type 2) EU European standardMeet SAE J1772 2009 (Type 1) North American standardNice shape and easy to use, protection class IP66(in mated conditions).Apply to VehicleChevrolet Volt......
Send Inquiry
Product Description

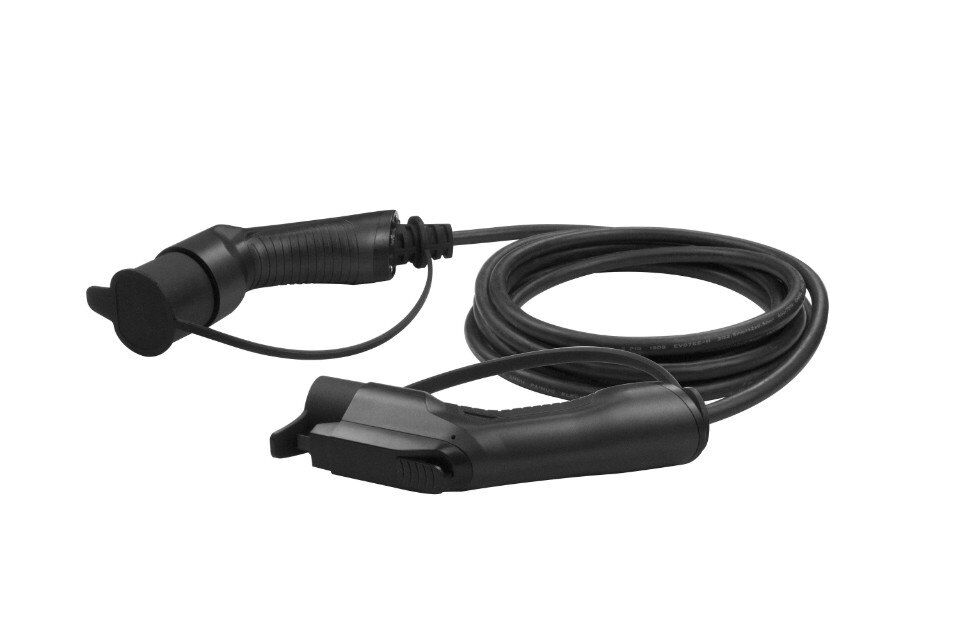

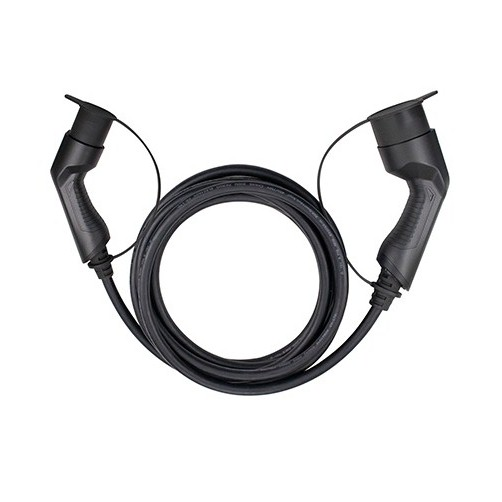

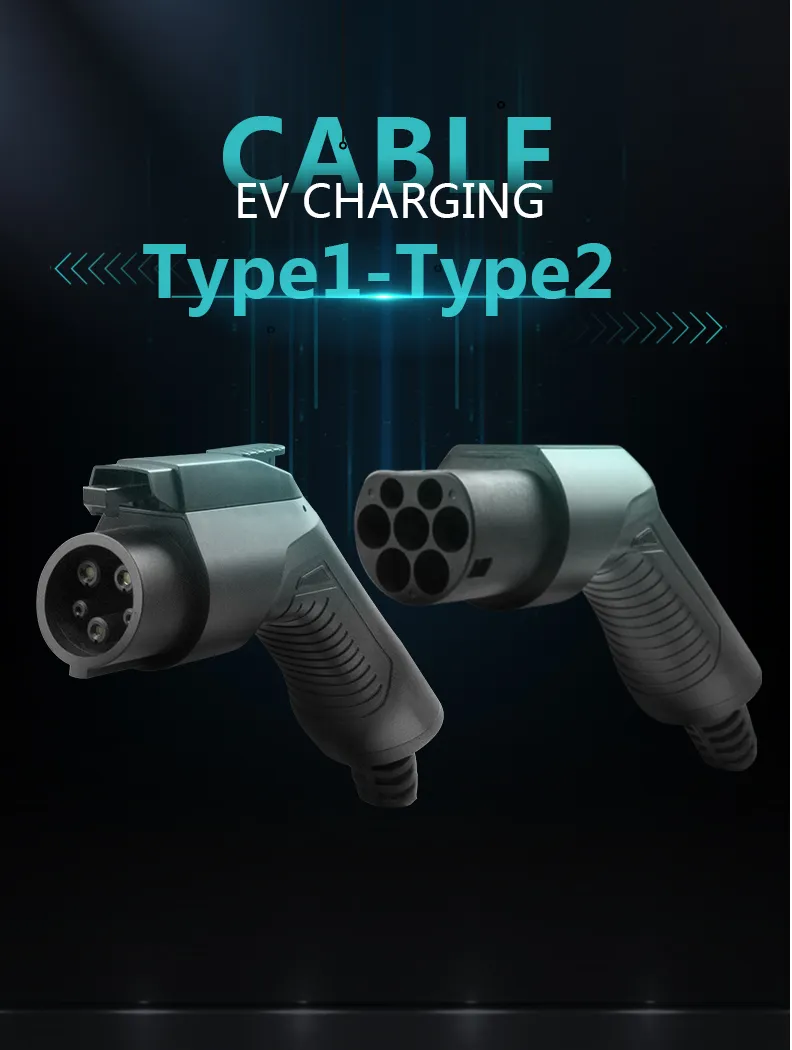

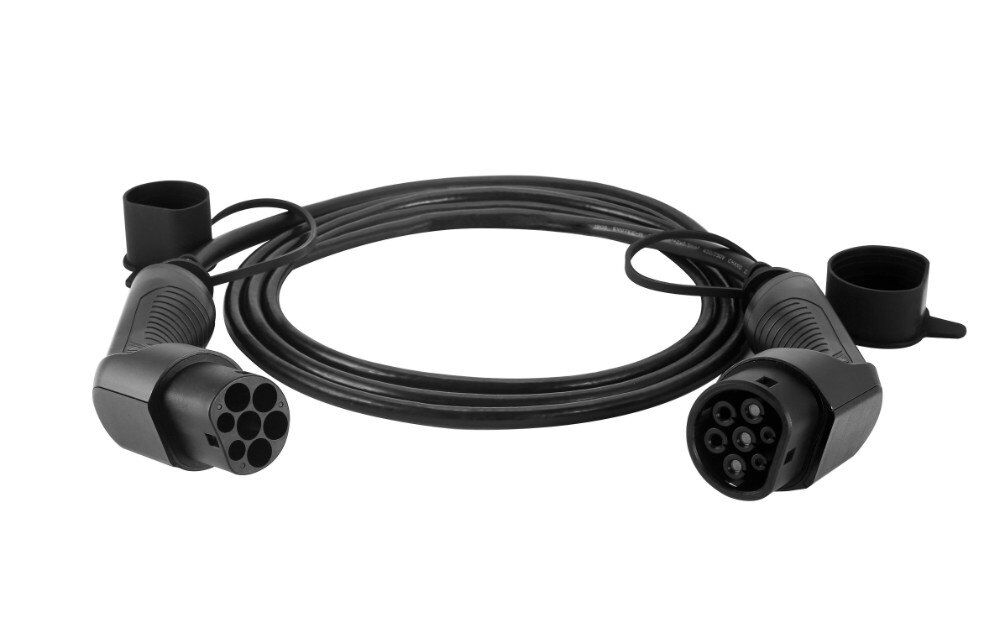

32A Type1 To Type2 EV Charging Cable For Electric Vehicles
Cord lenght: 3m, 5m or customized
Meet IEC 62196-2 (Mennekes, Type 2) EU European standard
Meet SAE J1772 2009 (Type 1) North American standard

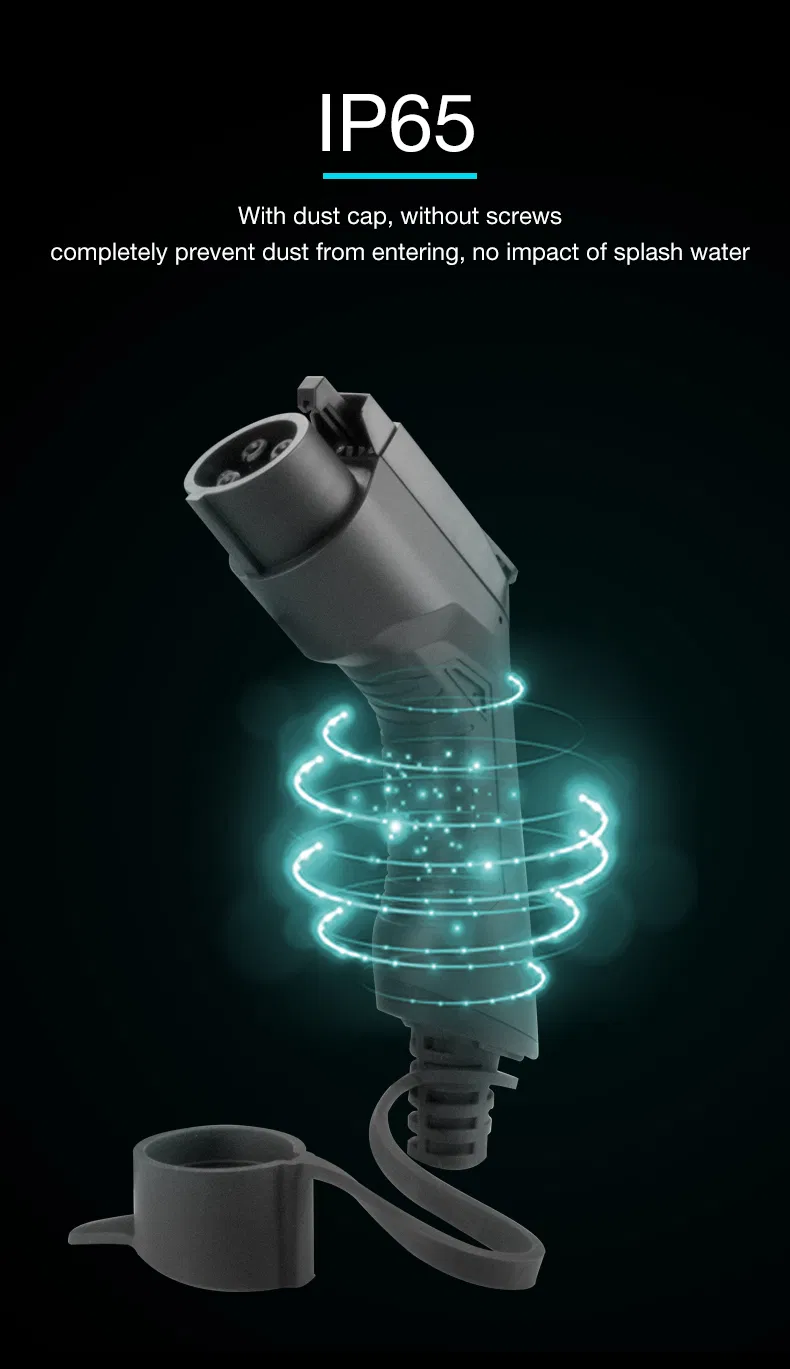

Nice shape and easy to use, protection class IP66(in mated conditions)
.
Apply to Vehicle
Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...
Product Description
Parameters ( 16A type1 to type2 ev charging cable )
Model: BS-CHC007
Reted current: 16A
Working voltage: 240V AC
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Vibration resistance: Meet JDQ 53.3 requirements
Working temperature: -30°C ~+ 50°C
CE, TUV approved

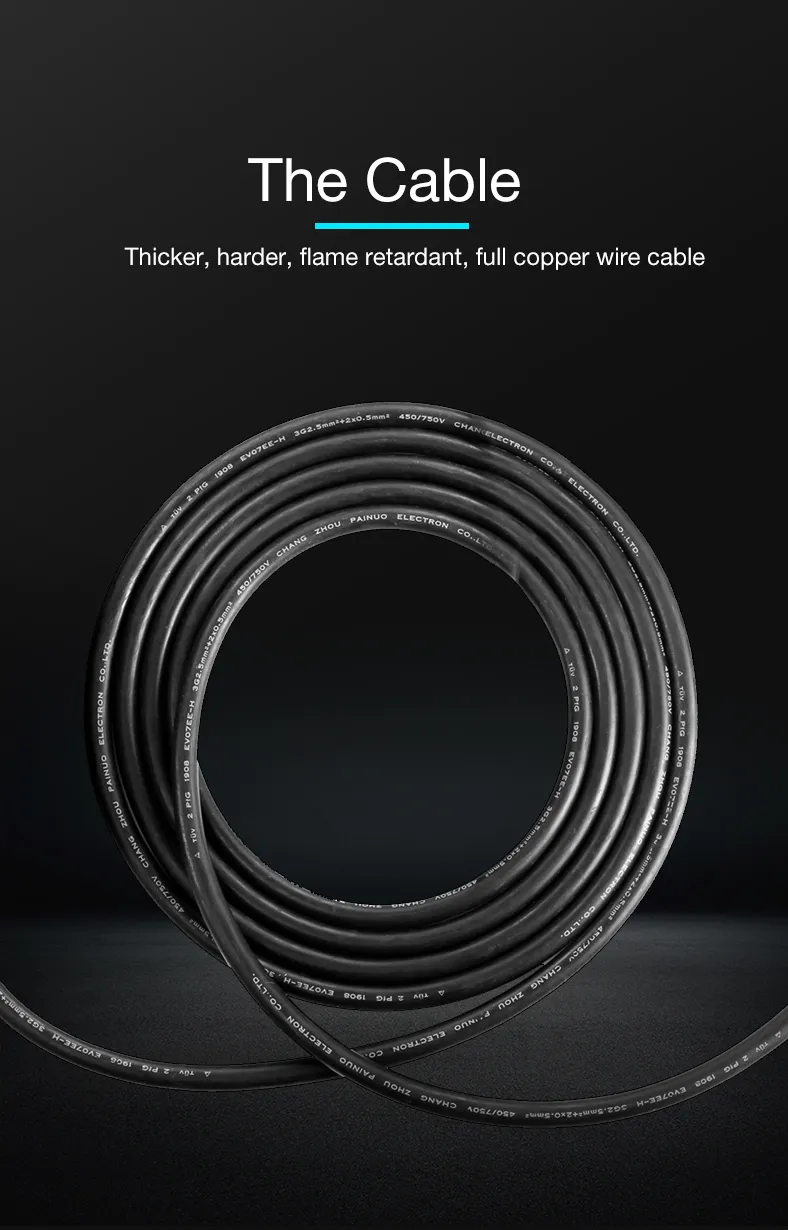

Charging Cable Spec
TUV or UL 3*6.0mm2+2*0.5mm2
Cord lenght: 3m, 5m or customized
Orange or Black
Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber.
.

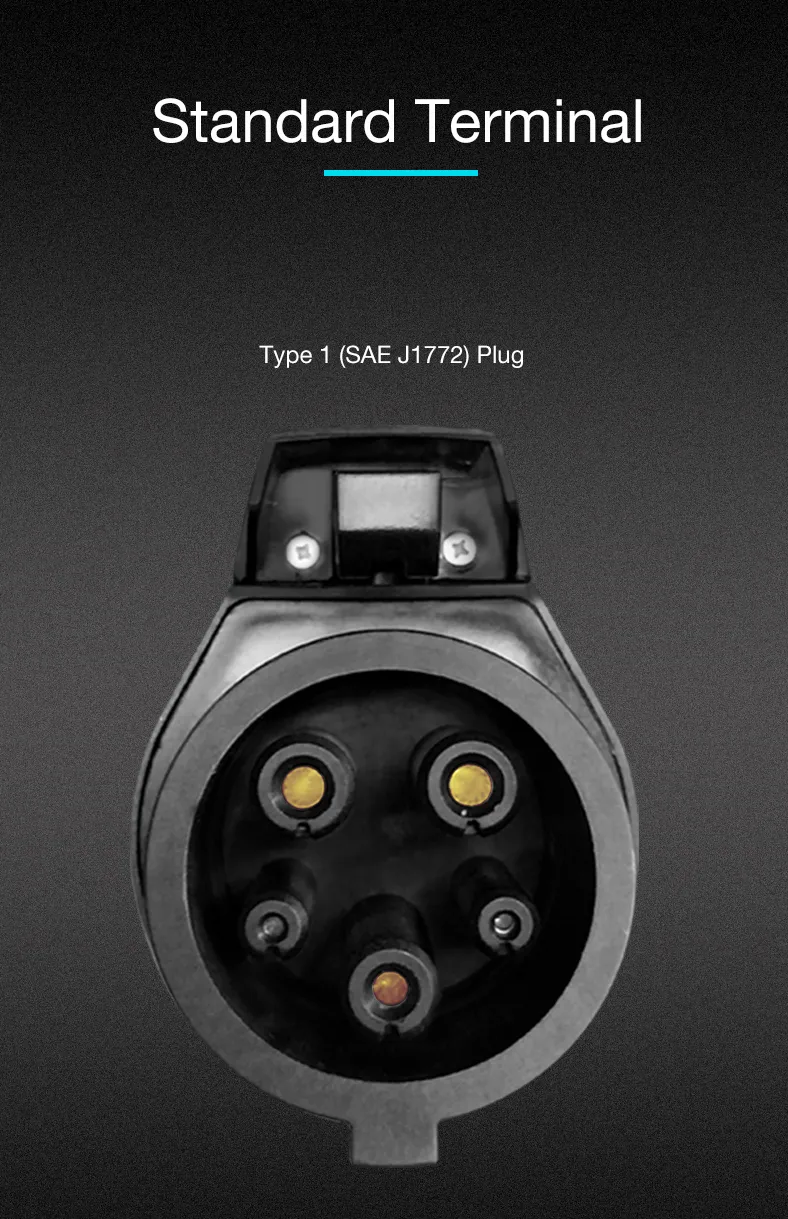

Insert Arrangements & Functional Definition of 32A type1 to type2 ev charging cable
Mark | Functional defination |
1-(L1) | AC power |
2-(L2) |
|
3-(L3) |
|
4-(N) | Netural |
5-(PE) | PE |
6-(CP) | Control confirmation |
7-(PP) | Connection confirmation |
.
Modle Selection & The Standard Wiring of 32A type1 to type2 ev charging cable
Model | Number of inserts | Cable Spec. | Color | Remark |
BS-CHC007 16A Type1-Type2 | 7 | 3*2.5mm2+2*0.5mm2 |
Black orOrange | The length of the cable can be customized |
BS-CHC008 32A Type1- Type2 | 7 | 5*6.0mm2+2*0.5mm2 |

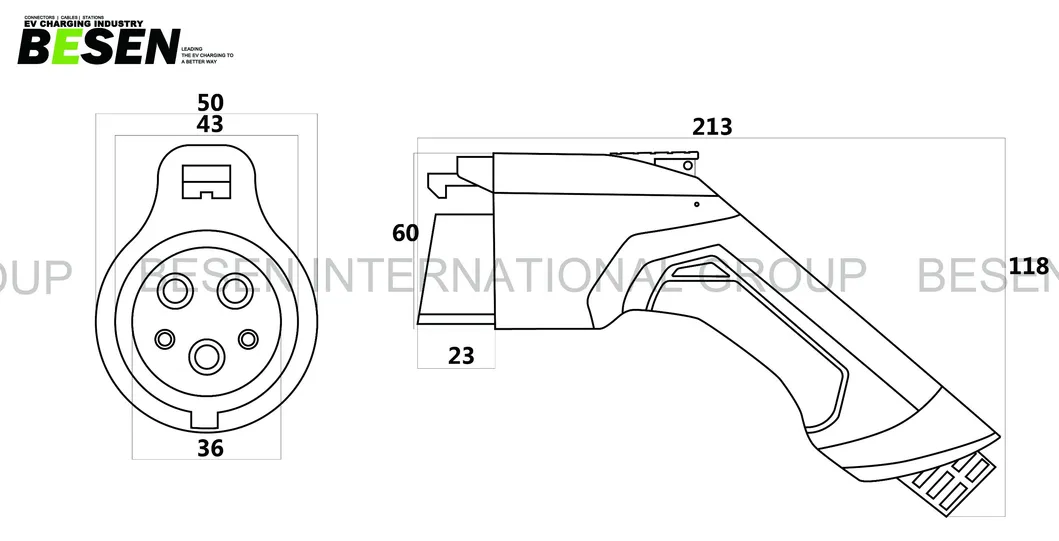

Drawing Interpretation of 32A type1 to type2 ev charging cable
-ABOUT BESEN GROUP--
As one of the largest manufacturers of charging equipment and components in China, BESEN possesses 12 years of expertise in the field of electric vehicle charging. We have participated in setting up the EV Charging Standard of China (GB). We are the supplier of State Grid Corporation of China. We have cooperated with many EV Manufacturers and Distributors in Europe and US.
All of our charging connectors has obtained CE, TUV and UL certifications. From cold Norway to hot Saudi Arabia, from Thailand whose EV market is just getting started to America whose EV market are tending to be mature, our products are known by more and more customers.
We believe in that diligent service is the soul of an outstanding company. No matter if you are our regular customers or new customers who just find us in the first time, any questions of you will be replied within the shortest time. And we have conscientious after-sale services, any problems of products will be followed up responsibly by our professionals until be solved perfectly.
We would like to show our honesty, top quality, competitive prices and high efficiency to establish business relationships with you. Our goal is to provide not only products, but also a complete solution including product design, tooling, fabrication and service to our customers to achieve their upmost satisfaction.
Welcome to walk into BESEN : )
--OUR MAIN PRODUCTS--
BESEN deliver the most innovative, safest, and smartest electric vehicle components, including EV plugs, sockets, mode 2 cables, mode 3 cables, and charging stations to our customers from all over the world.

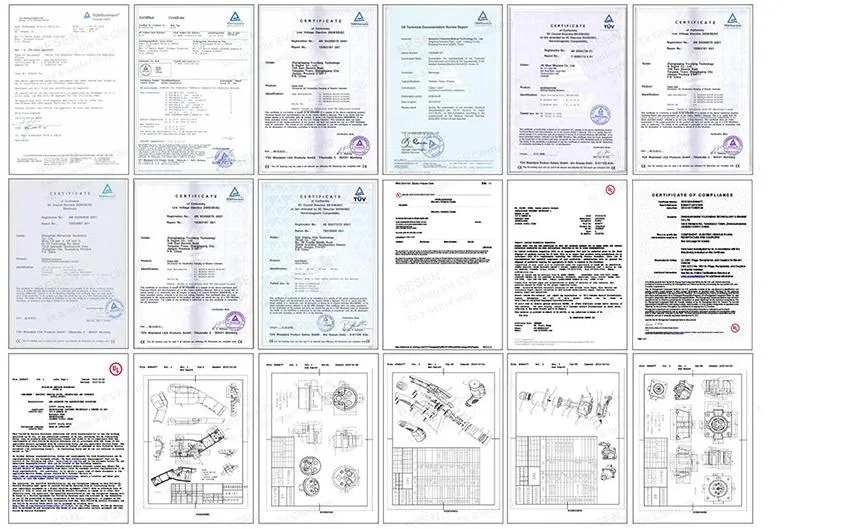

--CERTIFICATE--
Our EV products all have CE, TUV, UL certifications. All our products have to pass strict inspections and repeated texts before they leave factory. Please contact us for detailed certificates.
