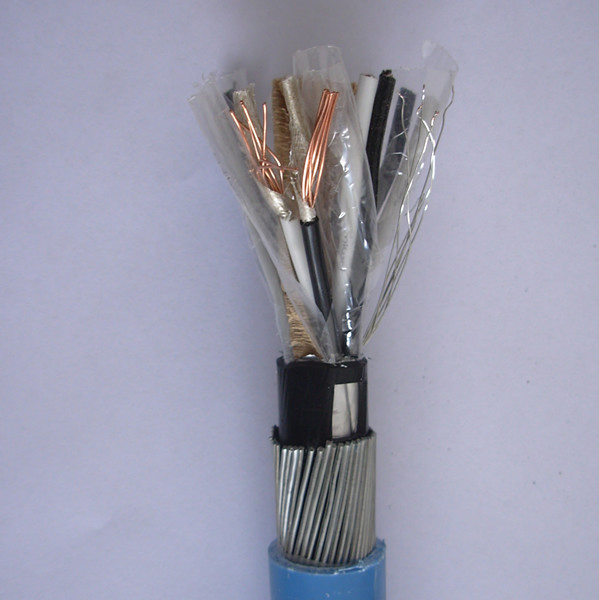

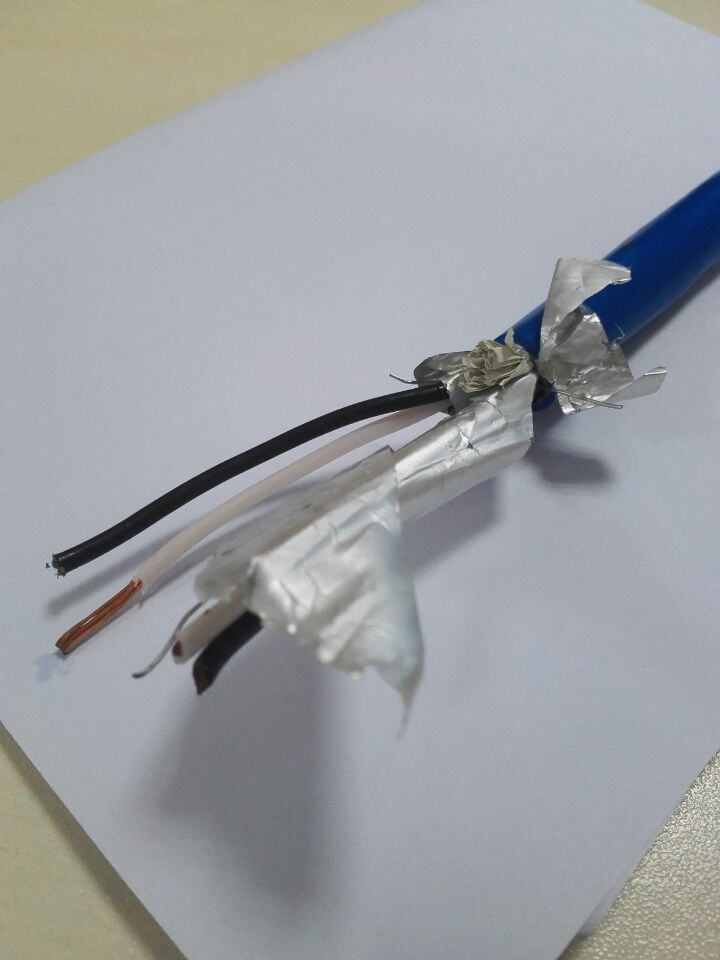

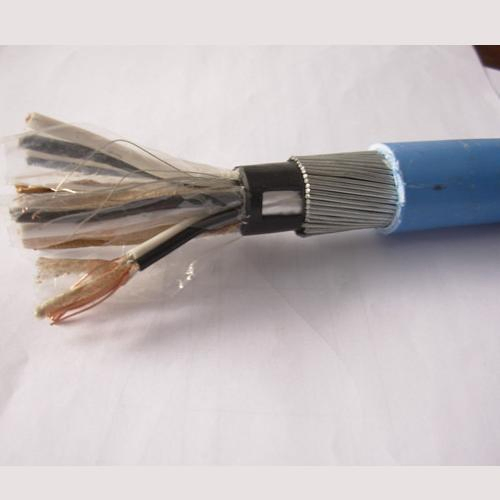

2X3X1.5mm2 Multi Pairs Insulated Is OS Screen Swa Armoured Flame Retardant PVC Oversheath Instrument Cable

Product Description

2X3X1.5mm2 Multi Pairs Insulated IS OS Screen SWA Armoured Flame retardant PVC Oversheath instrument cable

TECHNICAL DATA SHEET OF INSTRUMENT CABLE-Single&Multi Pairs,PE Insulated,Individual&Overall Screened,SWA armoured,PVC Outer Sheath
ITEM	DESCRIPTION	UNIT	DATA
1	Type	mm2	12×2×1.5	5×3×1.5	1×2×1.5	1×3×1.5	2×3×1.5	2×2×1.5	4×2×1.5	6×2×1.5
2	Reference standard	--	BS 5308
3	Conductor
	Conductor Material	--	Solid copper conductor
	Conductor Cross-sectional Area	mm²	1.5
	Stranding Number	No.	1
	Approx. Round Conductor Diameter	mm	1.38
	Max.Conductor D.C. Resistance at 20ºC	Ω/KM	12.1
4	Insulation
	Material	--	PE
	Nominal thickness	mm	0.6
5	Individual Screen	--	Aluminum/polyester tape with a 7 strand 0.5mm2 sized tinned annealed Copper drain wire
6	Overall Screen	--	Aluminum/polyester tape with a 7 strand 0.5mm2 sized tinned annealed Copper drain wire
7	Inner sheath
	Material	--	PE
	Nominal Thickness	mm	1.4	1.1	1.0	1.0	1.0	1.0	1.1	1.1
8	Armour layer
	Material of armour	--	Galvanized Steel Wire
	Nominal diameter of steel wire	mm	1.6	1.6	1.25	1.25	1.25	1.25	1.6	1.6
9	Outer sheath
	Material	--	Flame Retartant PVC
	Nominal thickness	mm	1.8	1.6	1.5	1.5	1.5	1.5	1.5	1.5
10	Approx Overall diameter	mm	30.3	23.9	13.0	13.4	18.9	17.6	20.5	23.4
11	Approx. Weight	kg/km	1969	1187	367	395	645	568	880	1130
