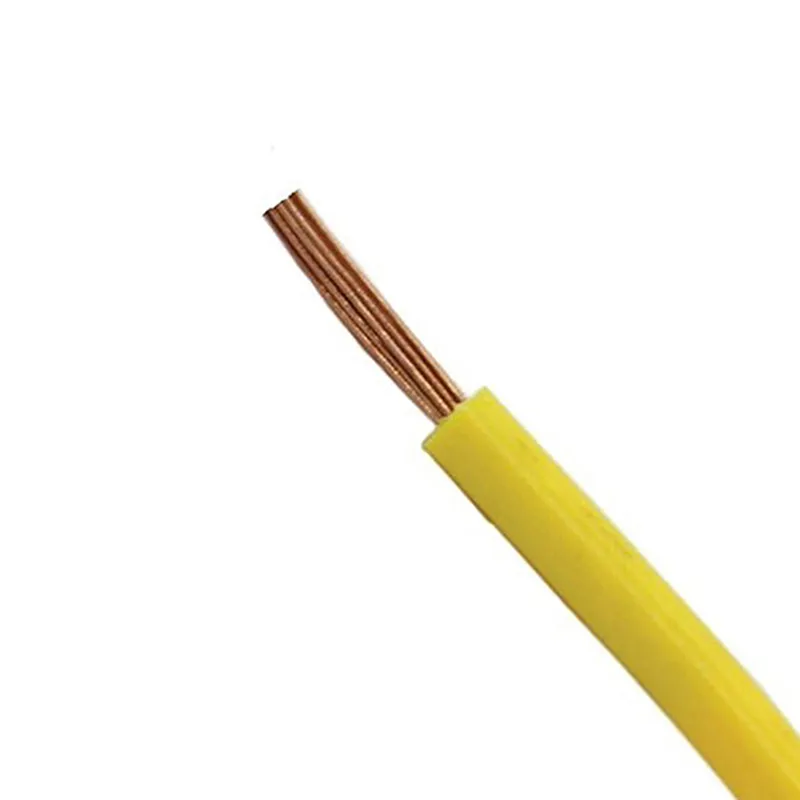

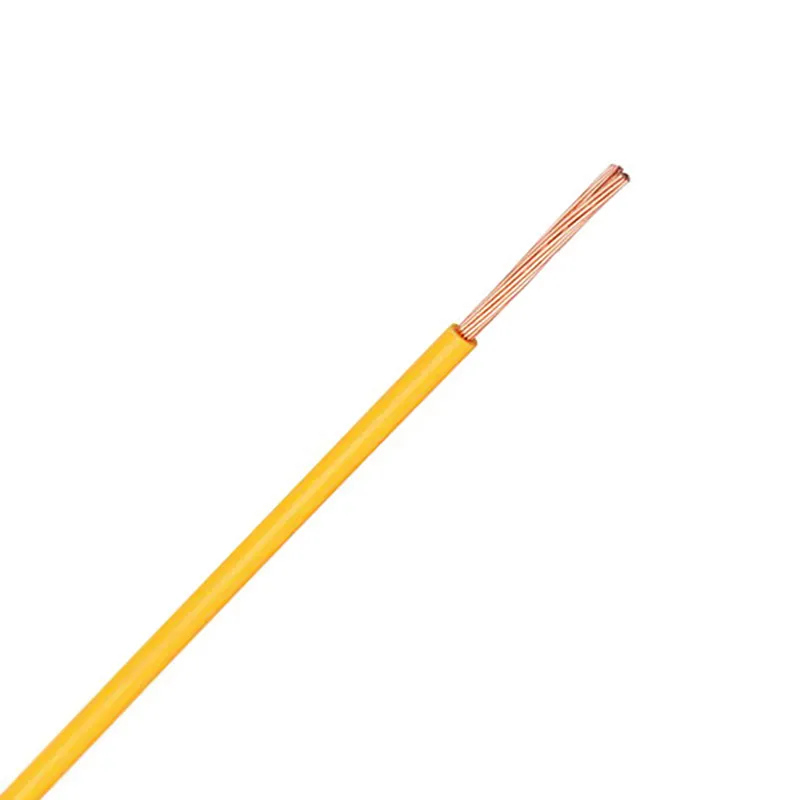

20AWG Low Noise Speaker Cable Hookup 1061 Wire
20awg low noise speaker cable hookup 1061 wireProduct Description: Rated temperature: 80ºC Rated voltage: 300V Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2 Tinned or bare, stranded or solid copper conductor,30-16 AWG Colour-coded lead free SR-PVC insulation Unifor......
Send Inquiry
Product Description
20awg low noise speaker cable hookup 1061 wire
Product Description:
★ Rated temperature: 80ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2

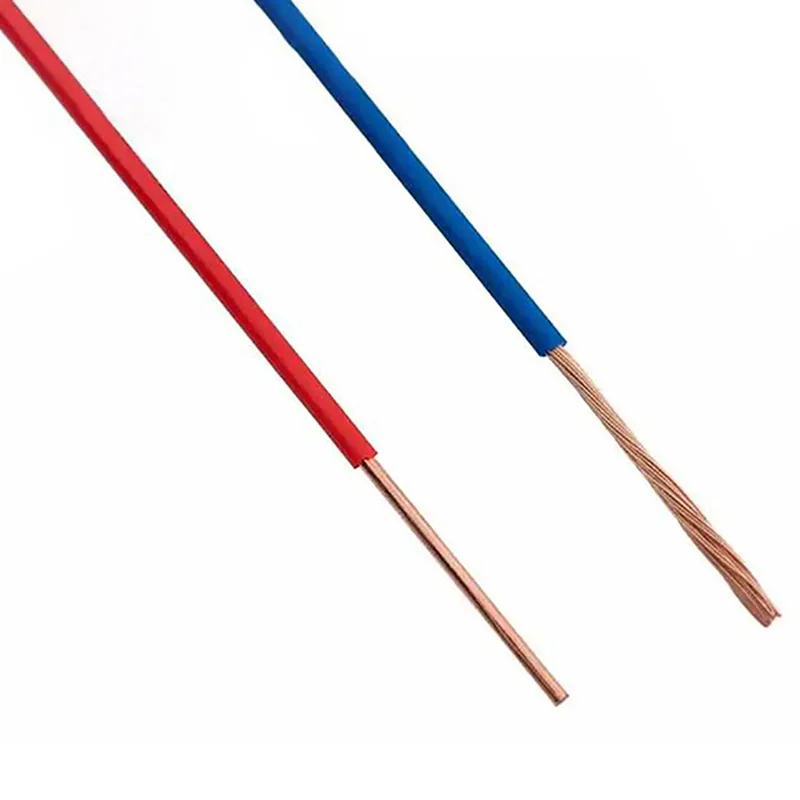

★ Tinned or bare, stranded or solid copper conductor,30-16 AWG
★ Colour-coded lead free SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment,
protection is required where mechanical damage is possible
Product Description:
★ Rated temperature: 80ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-16 AWG
★ Colour-coded lead free SR-PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment,
protection is required where mechanical damage is possible
| Conductor | Insulation | Maximum Resistance at 20ºC Ω/km | |||
| AWG | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | |
| 30 | 7/0.1 | 0.30 | 0.26 | 0.82 | 354 |
| 28 | 7/0.127 | 0.38 | 0.26 | 0.90 | 223 |
| 26 | 7/0.16 | 0.48 | 0.26 | 1.00 | 139 |
| 24 | 11/0.16 | 0.61 | 0.27 | 1.15 | 88.9 |
| 22 | 17/0.16 | 0.76 | 0.26 | 1.28 | 57.5 |
| 20 | 26/0.16 | 0.94 | 0.26 | 1.46 | 34.6 |
| 18 | 41/0.16 | 1.18 | 0.26 | 1.70 | 23.3 |
| 16 | 26/0.254 | 1.49 | 0.26 | 2.02 | 15.1 |
