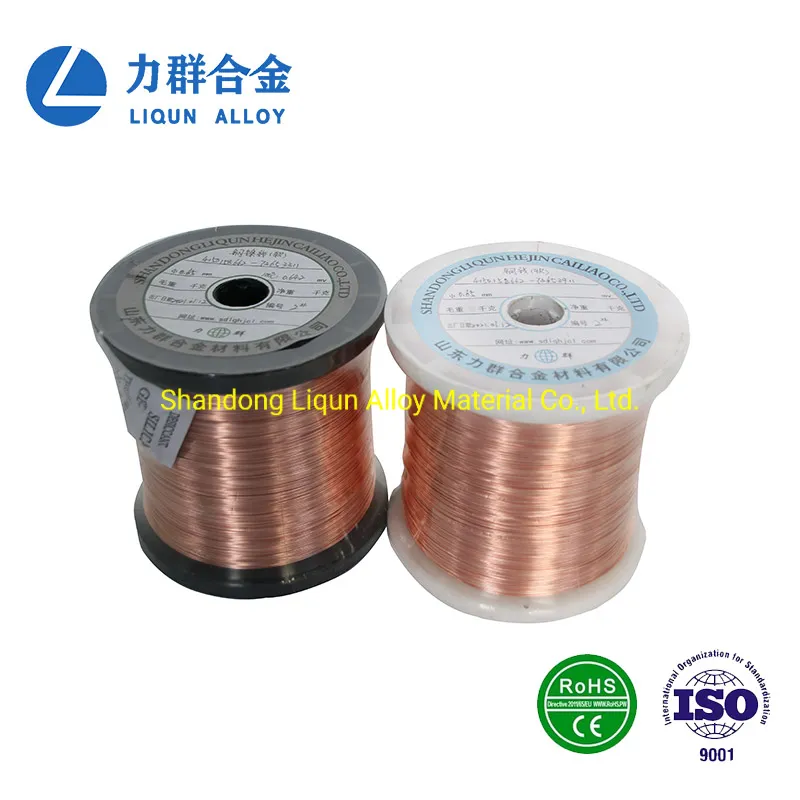

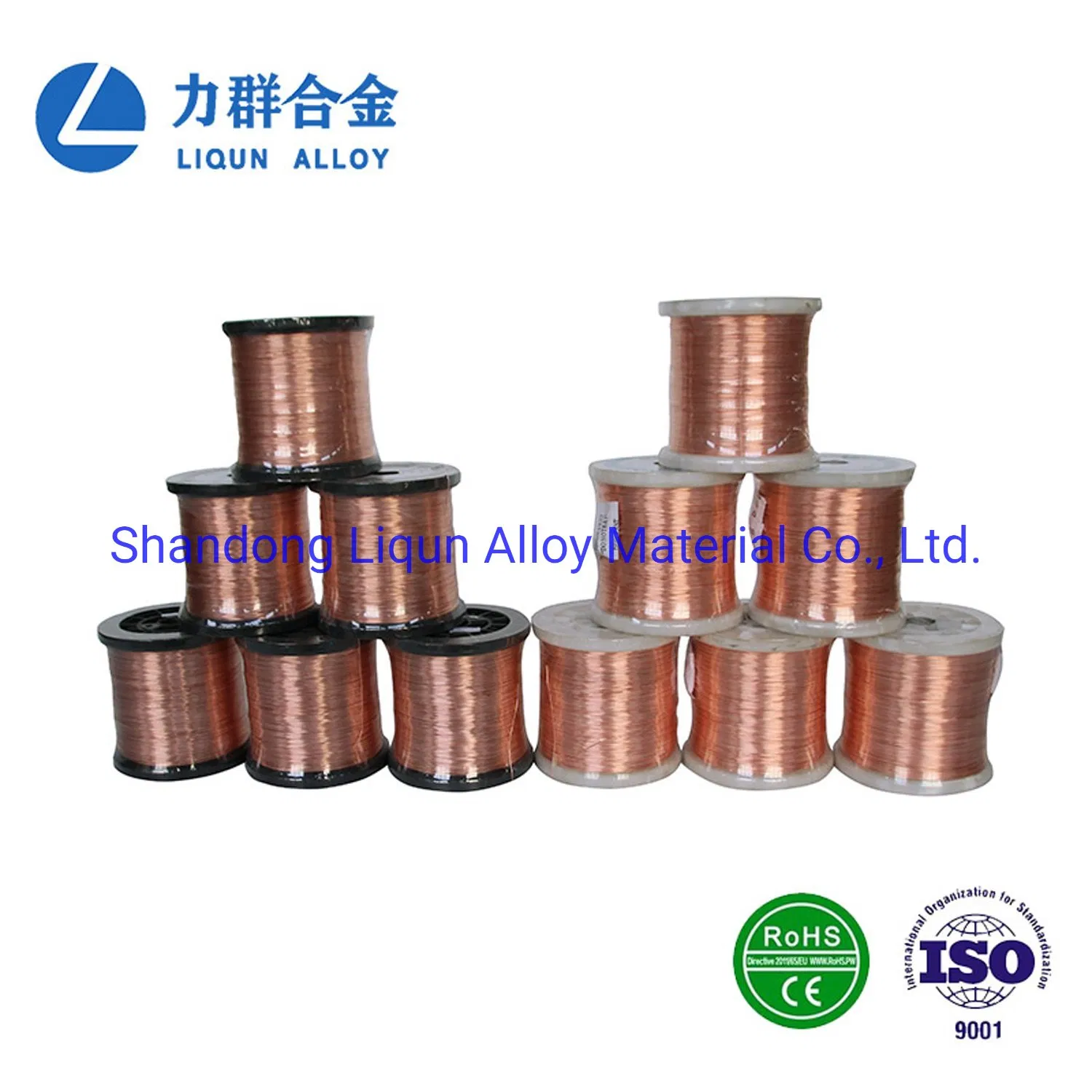

1x1.0mm2 SPC SNC Copper- Copper nickel 0.6 compensation extension alloy wire high temperature for thermocouple sensor electrical cable thermometer
SPC SNC Copper- Copper nickel 0.6 compensation extension alloy wire high temperature for thermocouple sensor electrical cable thermometer Product Description Thermocouple compensating wire is used to connect the electrode (cold side of thermocouple) with display instrument in order to form a tempe......
Send Inquiry
Product Description

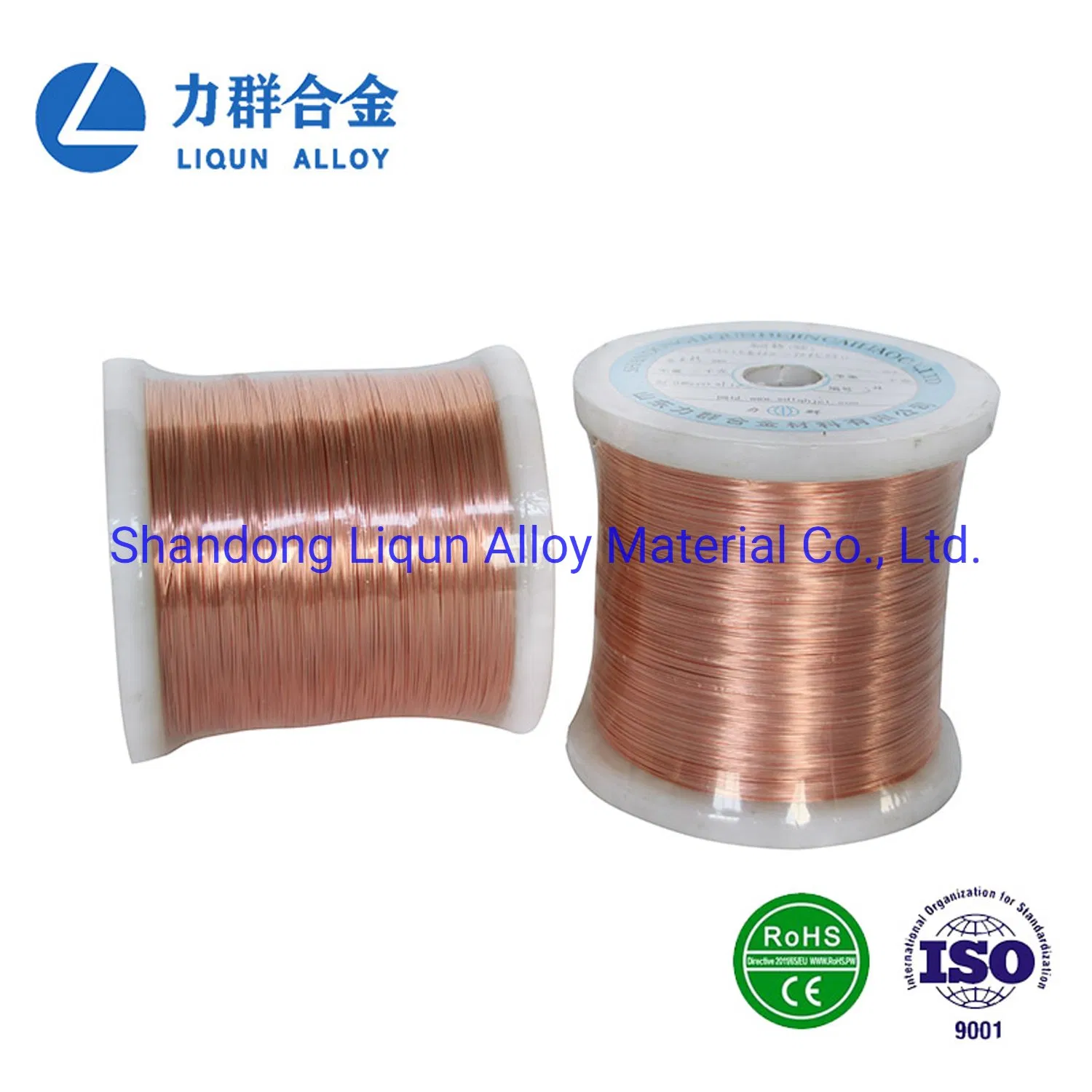

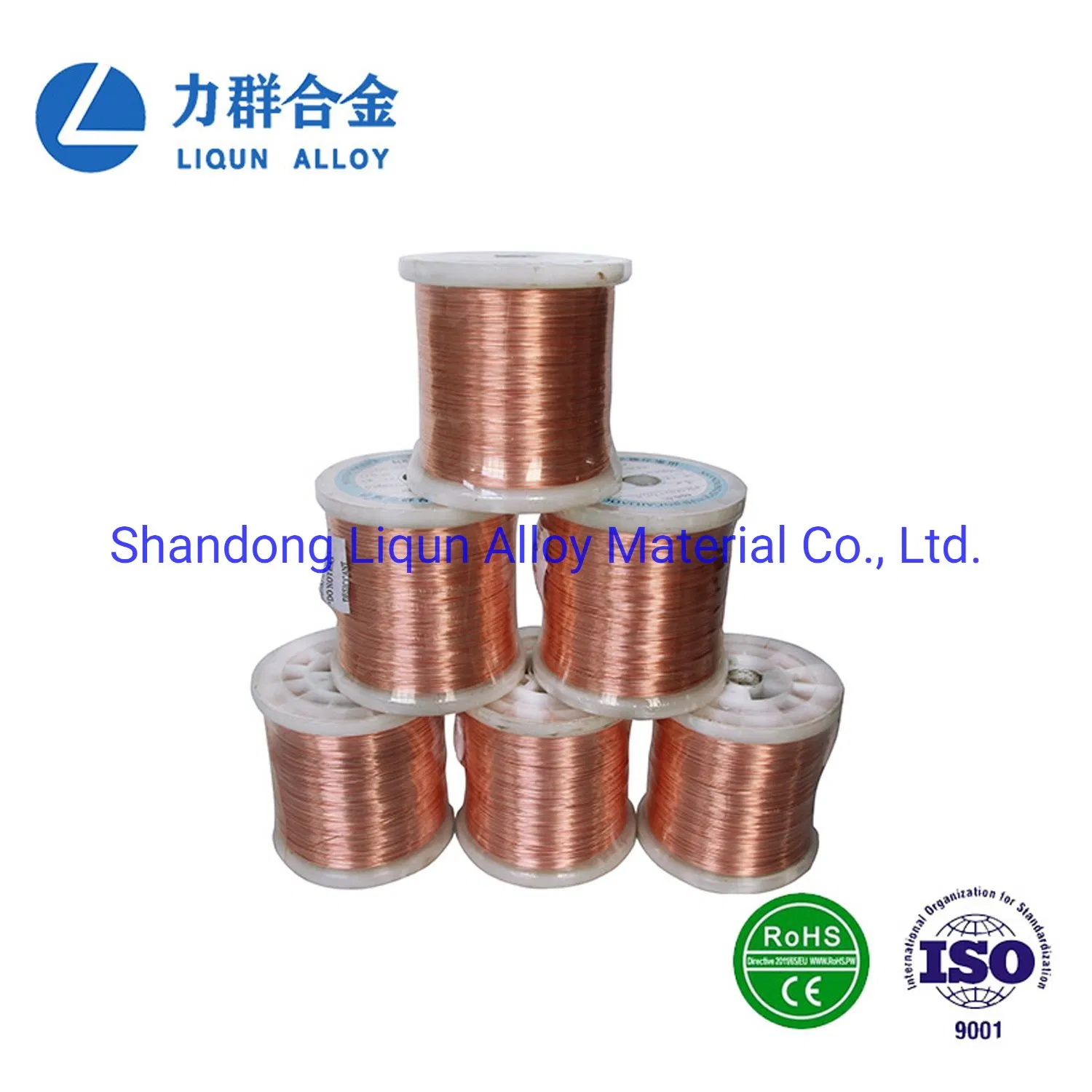

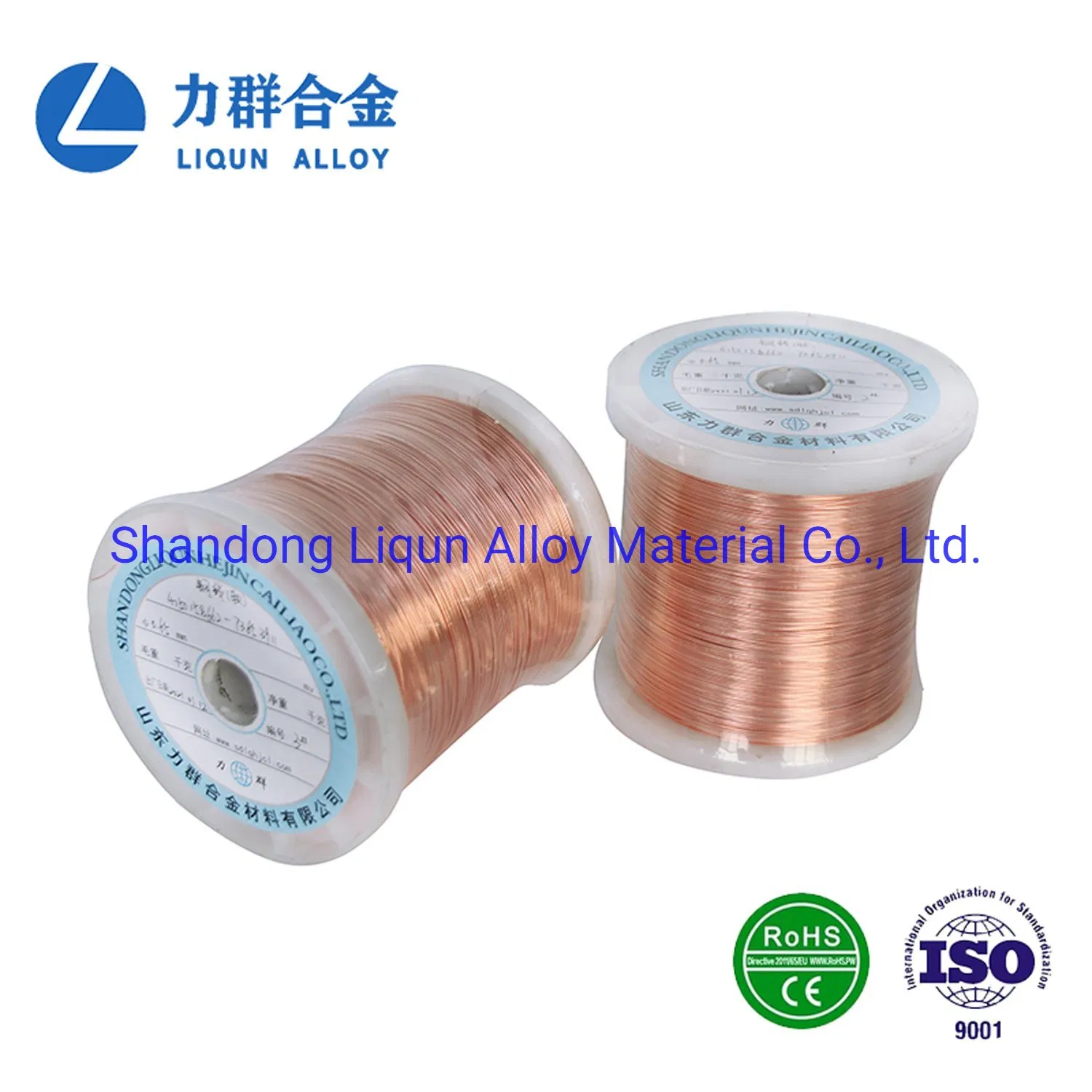

SPC SNC Copper- Copper nickel 0.6 compensation extension alloy wire high temperature for thermocouple sensor electrical cable thermometer
Thermocouple compensating wire is used to connect the electrode (cold side of thermocouple) with display instrument in order to form a temperature measurement system.
Thermocouple compensating wire is used to extend the reference junction of thermocouple and connect with the temperature measuring instrument to form a temperature measuring system.
It usually works in most applications, which include industrial aerospace,nuclear power,chemical industry.
1.Chemical composition and mechanical properties
| Thermocouple type | Extension condution model | Extension condution alloy wire | |||||||||||
| S | SC | Name | Code | Polarity | Chemical Composition/% | Density (g/cm3) | Resistivity (μΩ.cm) | Tensile Strength (Mpa) | |||||
| Ni | Cu | ||||||||||||
| Copper | SPC | Positive | - | 100 | 8.7 | <7.9 | >490 | ||||||
| Cu-Ni0.6 | SNC | Nagative | 0.6 | 99.4 | 8.6 | <0.3 | >390 | ||||||
2.Alloy wire specification
| Alloy wire Dia/mm | Apply to the number of wire cores | The nominal cross-sectional area of the wire core /mm² |
| 0.2 | 7 | 0.2 |
| 0.3 | 7 | 0.5 |
| 0.41 | 19 | 2.5 |
| 0.43 | 7 | 1.0 |
| 0.52 | 7 | 1.5 |
| 0.52 | 1 | 0.2 |
| 0.8 | 1 | 0.5 |
| 1.13 | 1 | 1.0 |
| 1.38 | 1 | 1.5 |
| 1.78 | 1 | 2.5 |
3.Couple SPC/SNC EMF reference table (μV)
| Thermocouple type | Extension condution model | Use classification | Operating temperatures/°C | Nominal value of thermoelectric EMF | Level I | |
| Tolerance | Range of EMF | |||||
| S | SC | G | 100 | 646 | ±30 | 616 - 676 |
| H | 100 | 646 | - | - | ||
| 200 | 1441 | - | - | |||
