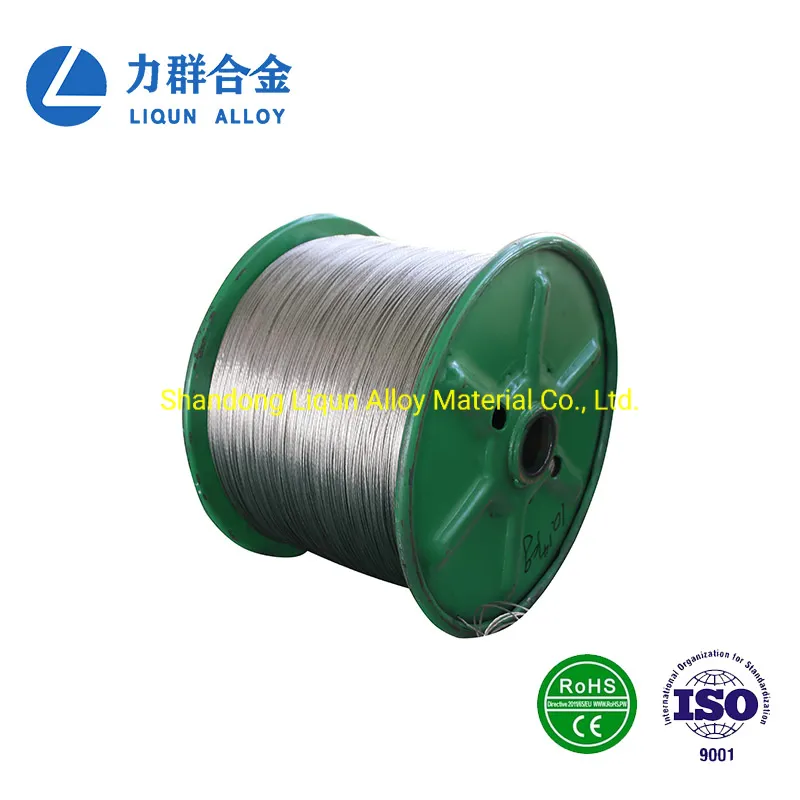

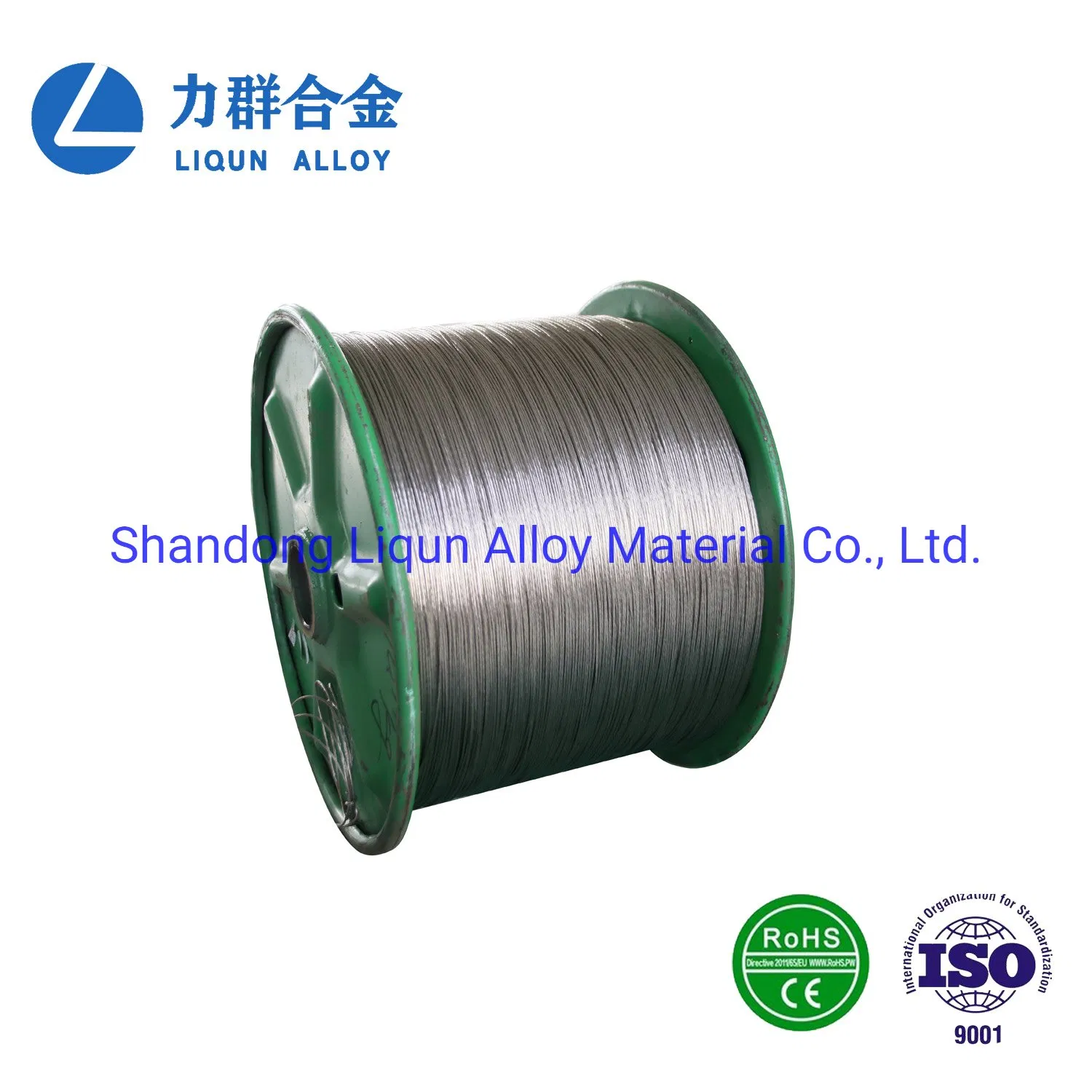

China 1X1.0mm2 KPCA KNCA Iron- Copper nickel 22 compensation extension alloy wire ?high temperature for thermocouple sensor electrical insluated cable thermometer

Product Description

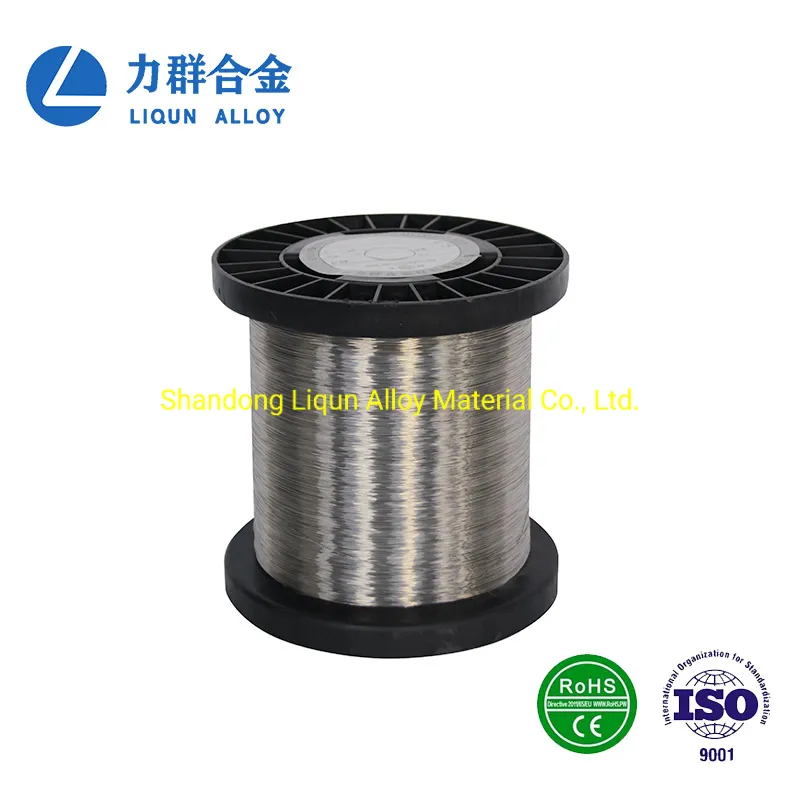

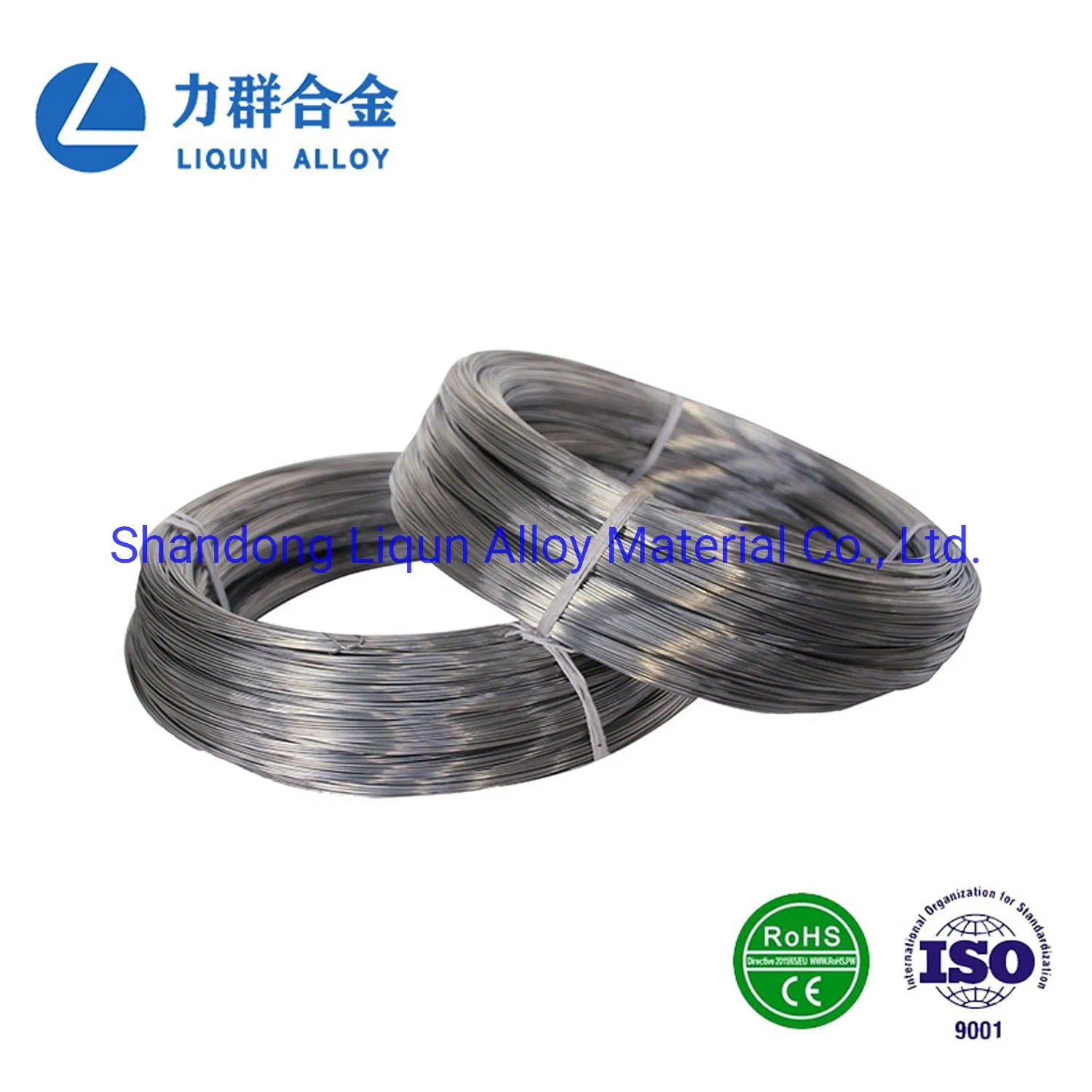

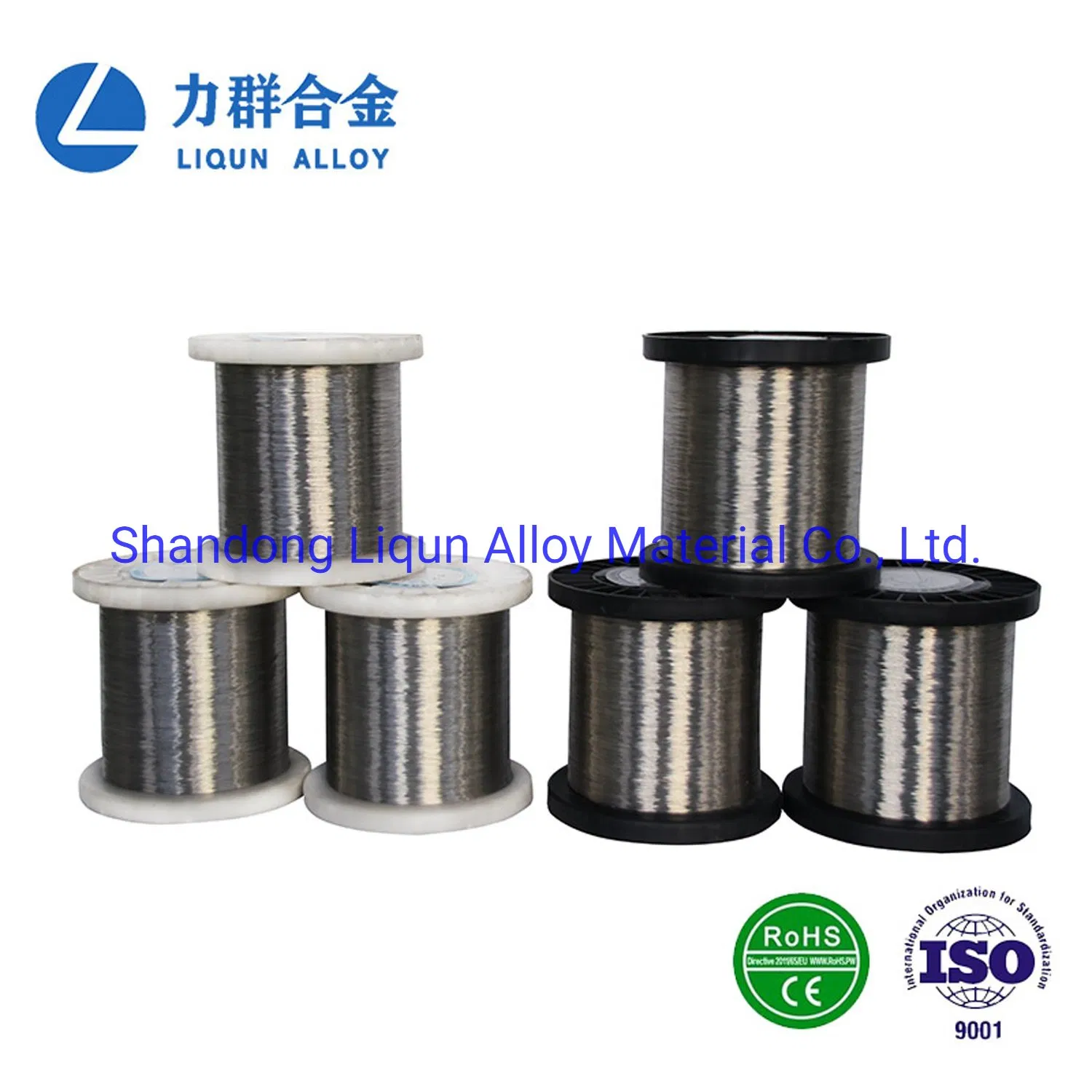

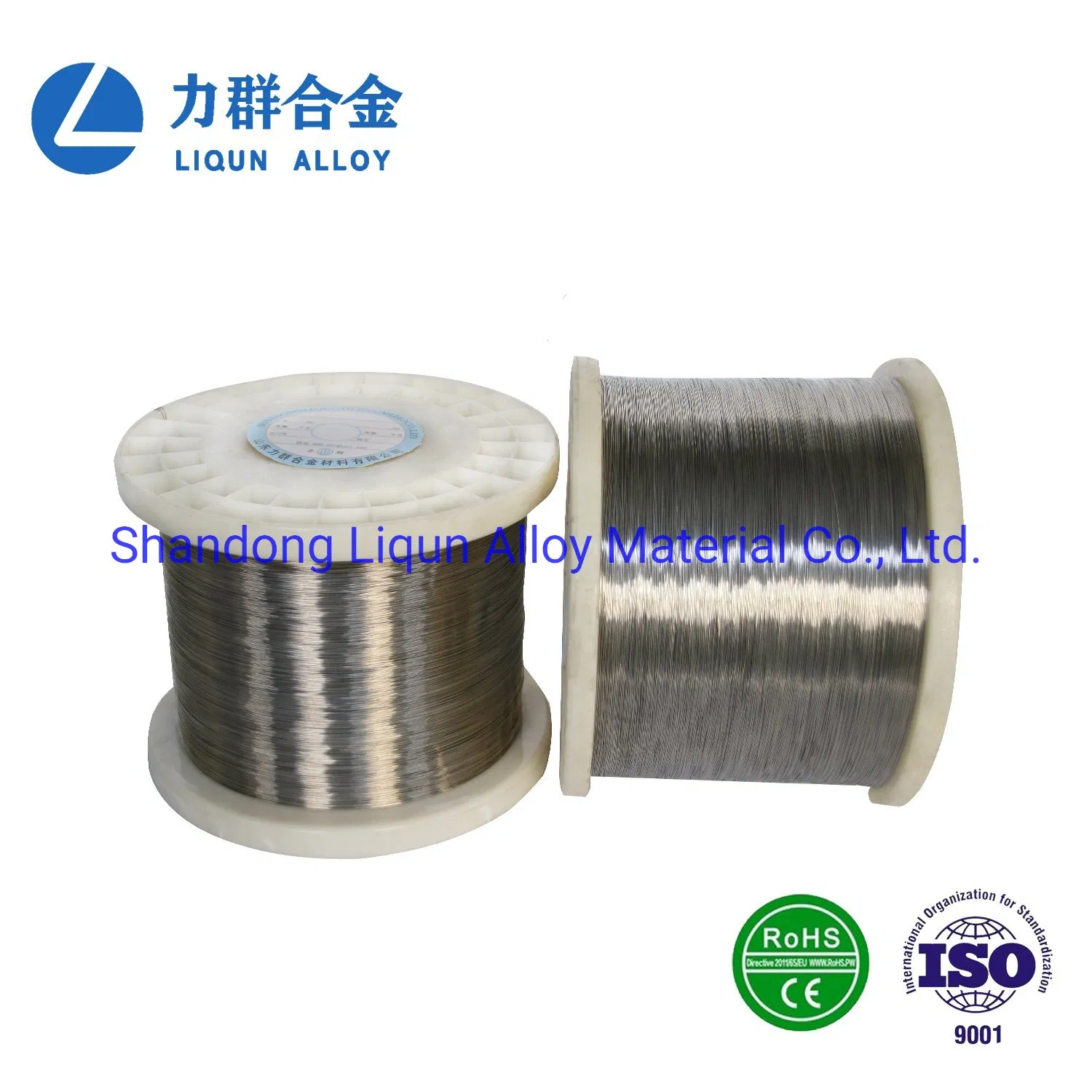

KPCA KNCA Iron- Copper nickel 22 compensation extension alloy wire high temperature for thermocouple sensor electrical insluated cable thermometer

Thermocouple compensating wire is used to connect the electrode (cold side of thermocouple) with display instrument in order to form a temperature measurement system.

Thermocouple compensating wire is used to extend the reference junction of thermocouple and connect with the temperature measuring instrument to form a temperature measuring system.

It usually works in most applications, which include industrial aerospace,nuclear power,chemical industry.

1.Chemical composition and mechanical properties

Thermocouple type

Extension condution model

Extension condution alloy wire

Name

Code

Polarity

Chemical Composition/%

Density (g/cm3)

Resistivity
(μΩ.cm)

Tensile Strength
(Mpa)

Ni

Cr

Si

Cu

Fe

K

KX

Ni-Cr10

KPX

Positive

90

10

-

8.7

<7.9

>490

NI-Si3

KNX

Nagative

97

-

3

-

8.6

<0.3

>390

KCA

Iron

KPCA

Positive

-

100

8.7

<7.9

>490

Cu-Ni22

KNCA

Nagative

22

-

78

-

8.6

<0.3

>390

KCB

Copper

KPCB

Positive

-

100

-

8.7

<7.9

>490

Cu-Ni40

KNCB

Nagative

40

-

60

-

8.6

<0.3

>390

2.Alloy wire specification

Alloy wire Dia/mm	Apply to the number of wire cores	The nominal cross-sectional area of the wire core /mm²
0.2	7	0.2
0.3	7	0.5
0.41	19	2.5
0.43	7	1.0
0.52	7	1.5
0.52	1	0.2
0.8	1	0.5
1.13	1	1.0
1.38	1	1.5
1.78	1	2.5

3.Couple KX/KCA/KCB EMF reference table (μV)

Thermocouple type	Extension condution model	Use classification	Operating temperatures/°C	Nominal value of thermoelectric EMF	Level I
					Tolerance	Range of EMF
K	KX KCA KCB	G	-25	-968	±44	-924~ -1012
			100	4 096		4 052 ~4 140
K	KX KCA	H	-25	-968	±44	-924~ -1012
			100	4096		4 052~4 140
			200	8138		8 094~8 182

Our production as per norm GB/T 2614-2010,ASTME230,IEC6584.For further information or special request, please contact us.

1X1.0mm2 KPCA KNCA Iron- Copper nickel 22 compensation extension alloy wire high temperature for thermocouple sensor electrical insluated cable thermometer

Q1.What is the nature of the company?
A: We are a production enterprise, our company has its own factory.

Q2. What is the MOQ of an order of your company?
A: Our company's MOQ is 100 kg for each type of product.

Q3.Can I get a sample before mass production ?
A: Sample is free,the shipping cost of the sample is paid by the customer .

Q4.How long is the mass production cycle of product?
A:We will end the production within 15-20 days after receiving the deposit.

Q5.What payment method does your company support?
A: We can accept T/T, L/C ,you can choose the one which the most convenient or most effective for you .
