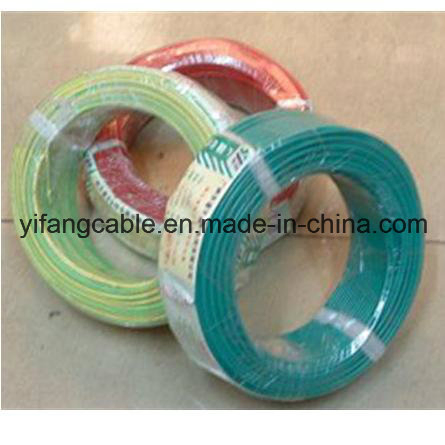

1kv House Wire 1 Core (1.5mm2 to 16mm2)

Product Description

Product Discription
Electric Wire, 450/750 V, Flexible Cu/PVC (BS 6004)
PVC insulated copper wires are covering series of wire products, its working voltage is from 450/750V and tis working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.

According to the conductor type, including solid conductor PVC insulated electrical wire, standed PVC insulated wire, Flexible PVC insulated wire with different colors.

According to its shape, including flat wire, round wires, etc. With different colors

According to its core number, including single core wires, multi-core wire. Etc. With different colors.

Nominal Cross Sectional Area	Nominal Overall Diameter	Nominal Weight
mm²	mm	kg/Km
0.75	2.3	10.6
1.00	2.5	13.7
1.5	3.1	20
2.5	3.6	31
4.0	4.3	46
6.0	5.5	75
10.0	6.8	125
16.0	8.6	199

SERVICING

Purpose:
To establish and maintain a procedure for performing and verifying that our service meets specified requirements and that a suitable method of feedback exists from the customer back to the appropriate individual or department within YIFANG.

Scope:
YIFANG does not currently have any contracts that obligate the company to provide installation or service above and beyond normal product service and delivery. Service activity not specified by contract (such as the treatment of a customer complaint) shall be determined and performed free of charge on a case by case basis. Service concerns will be recorded and will provide a feed-back system as required by the customer.
