16 AWG Solid Copper Wire/10mm Copper Cable Price Per Meter/10mm Copper Cable
16 awg solid copper wire/10mm copper cable price per meter/10mm copper cableProduct Description 16 awg solid copper wire/10mm copper cable price per meter/10mm copper cable Electric Wire and Cable Copper Conductor Insulated Cable 16mm * Material:Copper.1.Sheath: PVC 2. Insulation: PVC3.U0/U: 450/......
Send Inquiry
Product Description
16 awg solid copper wire/10mm copper cable price per meter/10mm copper cable
Product Description
16 awg solid copper wire/10mm copper cable price per meter/10mm copper cable

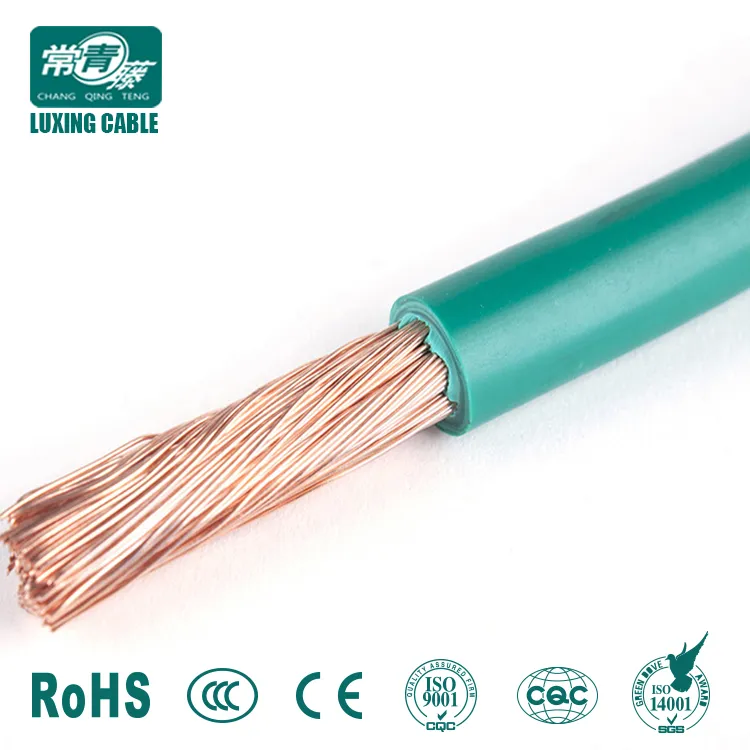

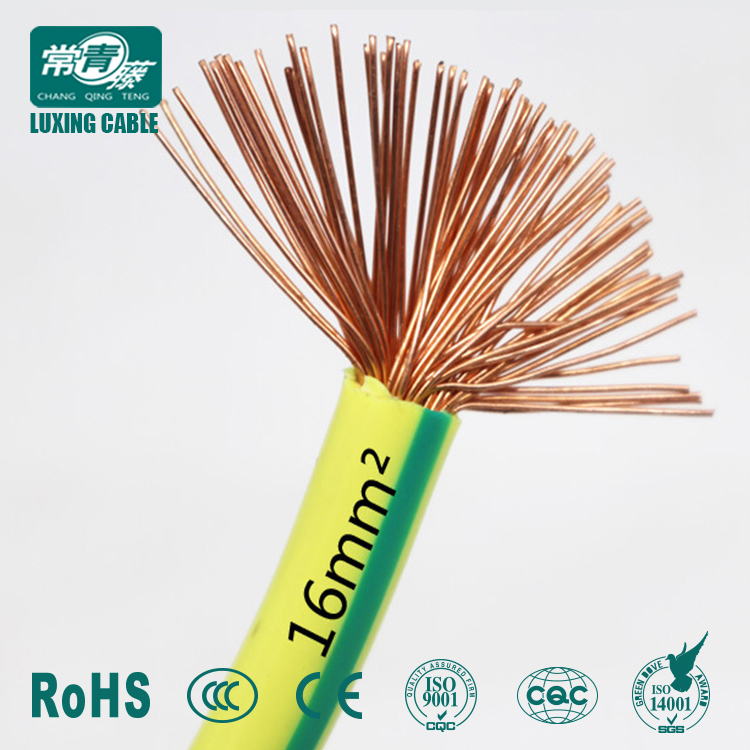

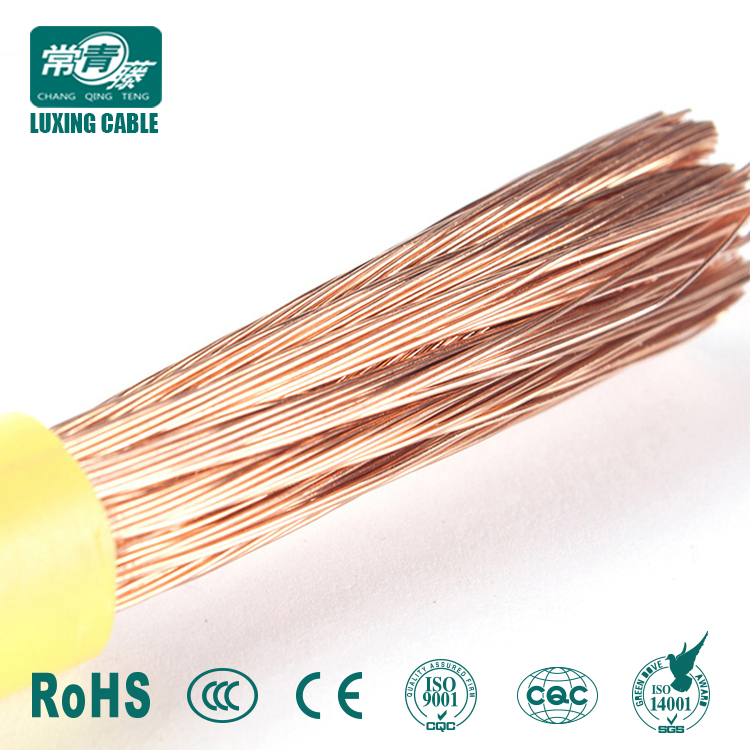

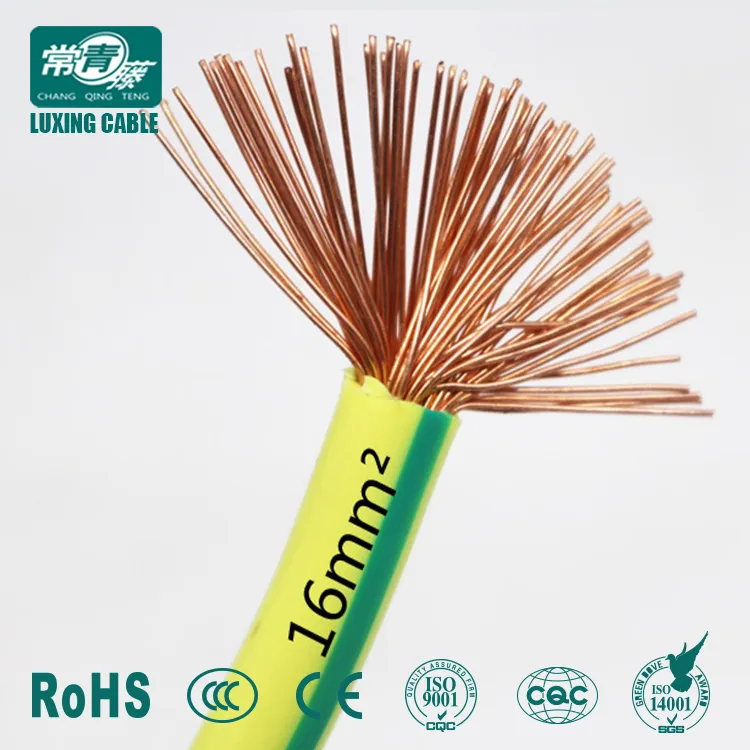

Electric Wire and Cable Copper Conductor Insulated Cable 16mm
* Material:Copper.
1.Sheath: PVC
2. Insulation: PVC
3.U0/U: 450/750V. Max.working temperature: 70°C, can be 90°C and 110°C as per requirement.
4.Flame retardent or Fire resistance or Low smoke and halogen free or other property can be available.

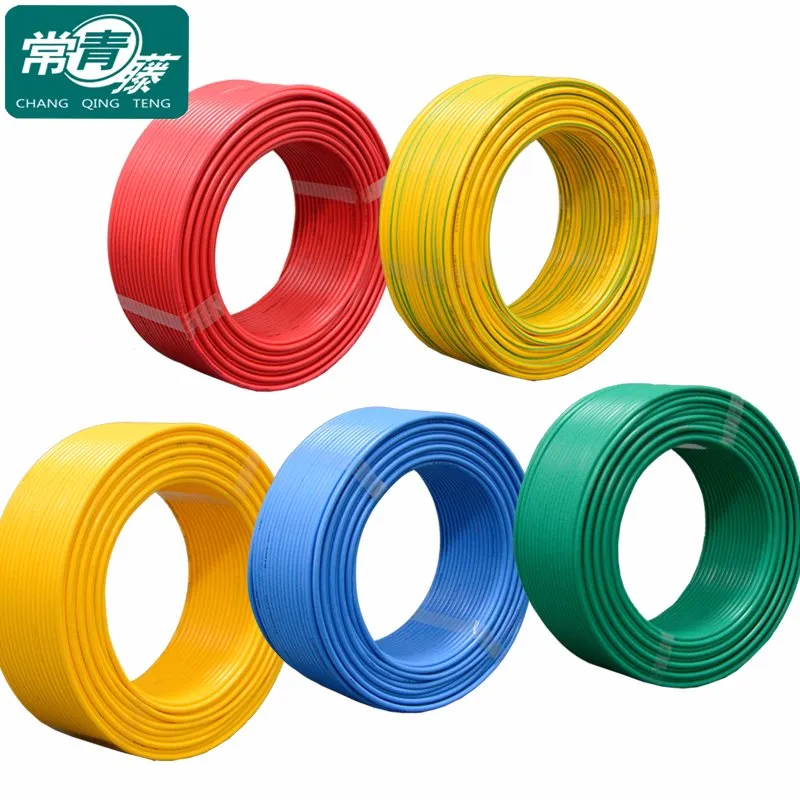

5.Wrapped PE coil package; Shrinked PE coil package; Carton box package; Carton reel package; Plastic reel package; Plywood reel package; or
to be specified.
6.Standard Applied: IEC 60331, BS6500, VDE0281, GB/T 5023, JB/T8734.
* Available Color:White, Black, Red, Yellow, Green, or as your point.
* Application:This product is fit A.C rated voltage up to and including 300/500V. It is suitable to be used in household appliances, electric tools and
lighting.
More Specifications:
Core*thickness(mm²) | The minimum stranded conductors | Insulation thickness(mm) | 20ºC Resistance minimum(MΩ/km) | 70ºC Resistance minimum(MΩ/km) |
BVR 2.5 | 19 | 0.8 | 7.41 | 0.010 |
BVR 4 | 19 | 0.8 | 4.61 | 0.009 |
BVR 6 | 19 | 0.8 | 3.08 | 0.0084 |
BVR 10 | 49 | 1.0 | 1.83 | 0.0072 |
BVR 16 | 49 | 1.0 | 1.15 | 0.0062 |
BVR 25 | 98 | 1.2 | 0.727 | 0.0058 |
BVR 35 | 133 | 1.2 | 0.524 | 0.0052 |
BVR 50 | 133 | 1.4 | 0.387 | 0.0051 |
BVR 70 | 189 | 1.4 | 0.268 | 0.0045 |
If you want to know more about the bvr cable,pls feel free to contact us!
Workshop: we are the 19 years Electric wire & power cable factory.
