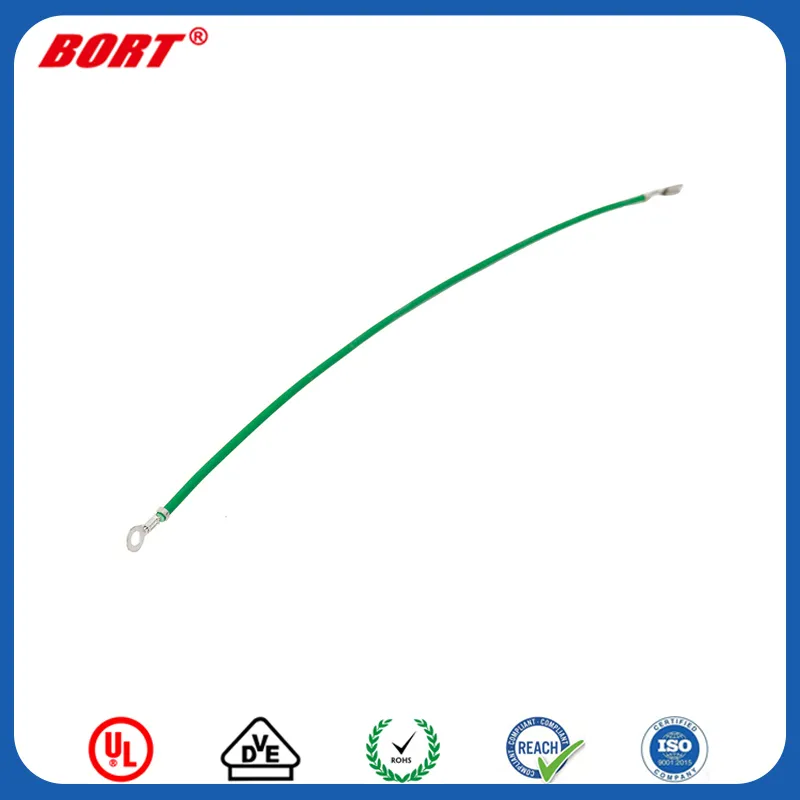

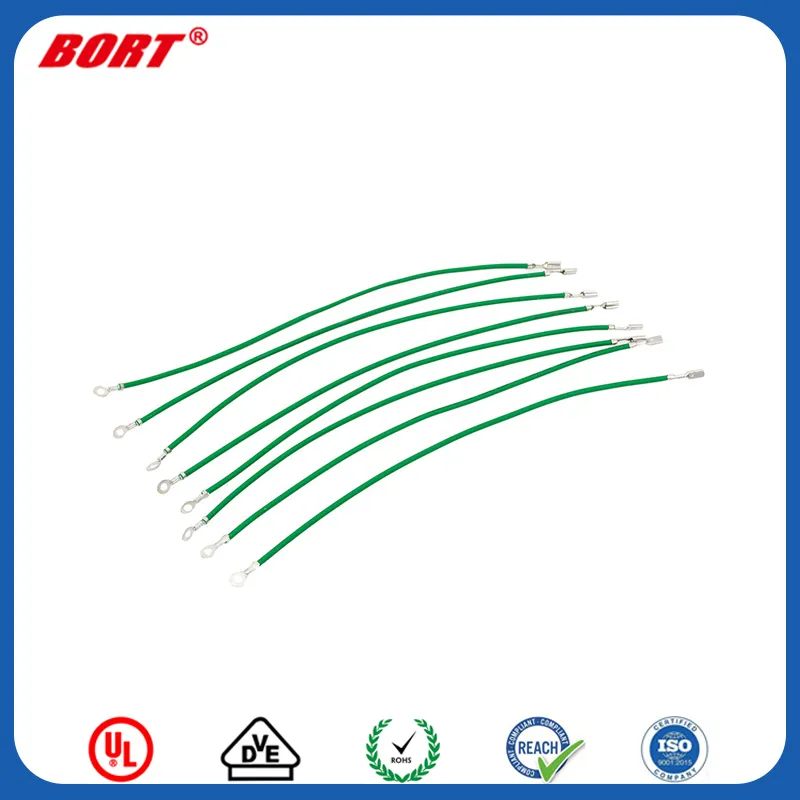

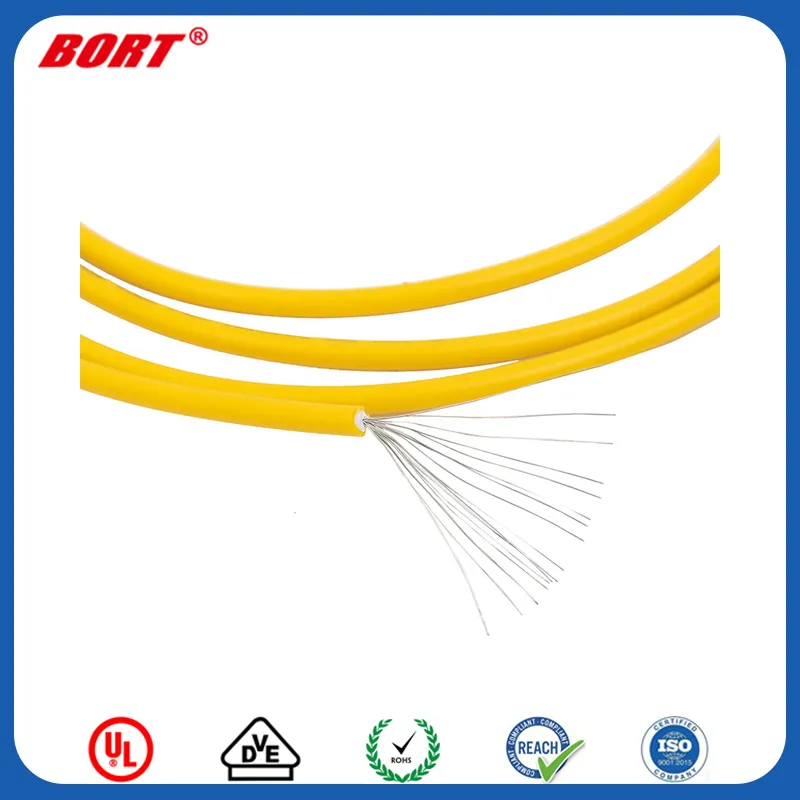

              16-30AWG Environmental Electronic PVC Wire Conductor to Internal Wiring
              • 16-30AWG Environmental Electronic PVC Wire Conductor to Internal Wiring16-30AWG Environmental Electronic PVC Wire Conductor to Internal Wiring
              • 16-30AWG Environmental Electronic PVC Wire Conductor to Internal Wiring16-30AWG Environmental Electronic PVC Wire Conductor to Internal Wiring
              • 16-30AWG Environmental Electronic PVC Wire Conductor to Internal Wiring16-30AWG Environmental Electronic PVC Wire Conductor to Internal Wiring
              • 16-30AWG Environmental Electronic PVC Wire Conductor to Internal Wiring16-30AWG Environmental Electronic PVC Wire Conductor to Internal Wiring

              16-30AWG Environmental Electronic PVC Wire Conductor to Internal Wiring

              16-30AWG Environmental Electronic PVC Wire Conductor To Internal Wiring Product Description: Rated temperature: 80ºC Rated voltage: 300V Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2 Tinned or bare, stranded or solid copper conductor,30-16 AWG Colour-coded lead fr......

              Send Inquiry

              Product Description

               16-30AWG  Environmental Electronic PVC Wire Conductor To Internal Wiring
              Product Description:
              ★ Rated temperature: 80ºC
                   Rated voltage: 300V
              ★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
              ★ Tinned or bare, stranded or solid copper conductor,30-16 AWG
              ★ Colour-coded lead free SR-PVC insulation
              ★ Uniform insulation thickness to ensure easy stripping and cutting
              ★ Passes UL VW-1 & CSA FT1 vertical flame test
              ★ Application: For internal wiring of electronic and electrical  equipment,
                   protection is required where mechanical damage is possible
              ConductorInsulationMaximum Resistance at 20ºC
              Ω
              /km
              AWGNo./mmDia.
              mm
              Nom. Thick.
              mm
              Nom.Dia.
              mm
              307/0.10.300.260.82354
              287/0.1270.380.260.90223
              267/0.160.480.261.00139
              2411/0.160.610.271.1588.9
              2217/0.160.760.261.2857.5
              2026/0.160.940.261.4634.6
              1841/0.161.180.261.7023.3
              1626/0.2541.490.262.0215.1
