15kv 200A 120mm2 Loadbreak Cable Connector

Anhuang specialized in Elbow Surge Arrester, we supply high quality Elbow Surge Arrester. Our products accord with IEEE386, and IEC standards.

Introduction:

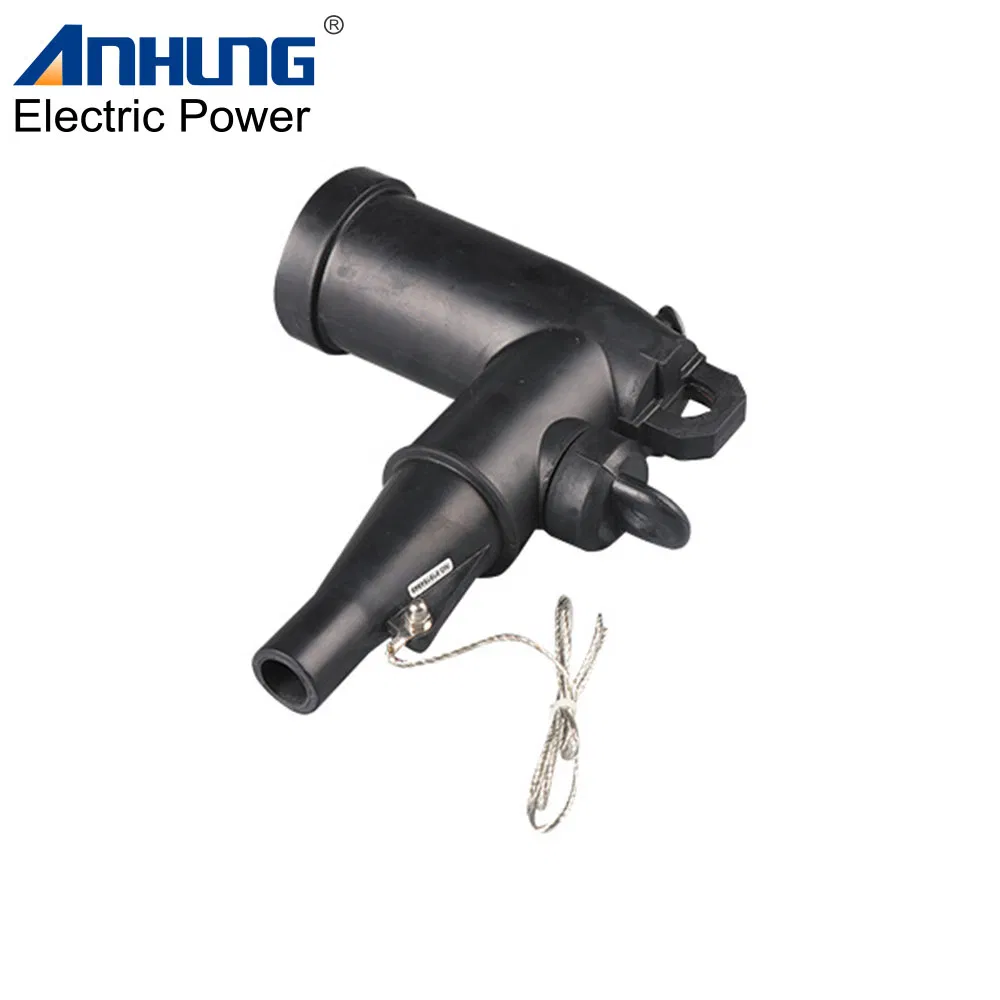

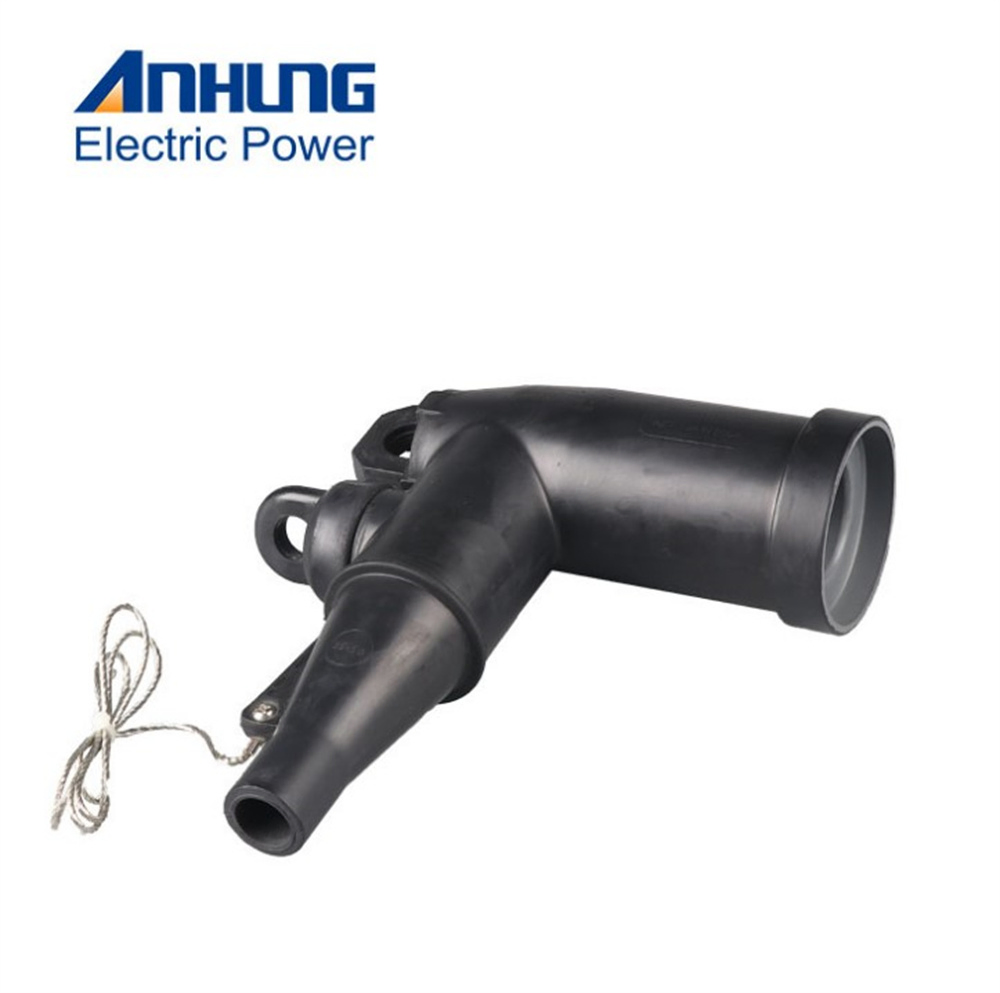

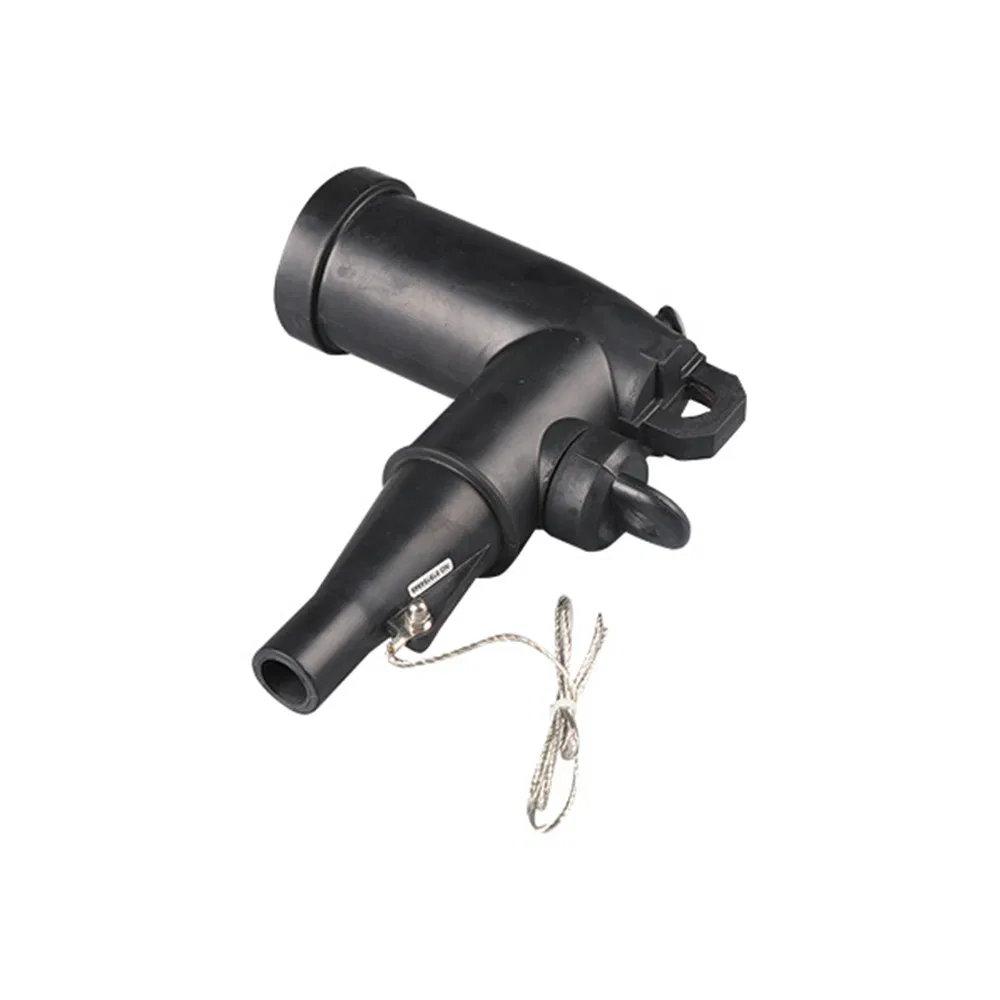

15kV 200A Load break Elbow Connector is a fully-shielded and insulated plug­in termination for connecting underground cable to distribution power system of pad-mound transformer, surrounding power supply branch box, cable branch box equipped with load break bushings. The elbow connector and bushing insert comprise the essential components of all load break connections. It can meet the demand of lines in nuclear.
Application:

Loadbreak Elbow Connector is a fully shielded and insulated termination for connecting underground cable to transformers, switchgear, and other apparatus equipped with loadbreak bushings, junctions, or other loadbreak connectors.
ANHUANG loadbreak elbow meets all the requirements of IEEE Standard 386 and is fully interchangeable with competitor's products

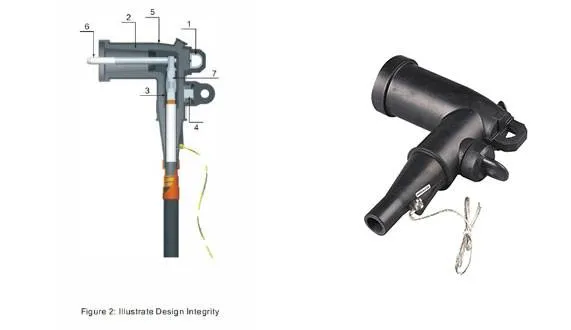

1,PULLINGEYE: Stainless steel reinforced for positive shotgun stick switching operations.
2,INSULATION: High-quality EPDM rubber formulated, mixed, and milled in-house for consistent and reliable field performance.
3,SEMI-CONDUCTIVE INSERT: High-quality EPDM rubber creates a smooth surface around the "current interchange" to evenly distribute electrical stress within the insulation.
4,TEST POINT(OPTIONAL): Corrosion-resistance, conductive electrode provides consistent capacitive voltage for application of fault indicators and determining a circuit's state (cap not shown)
5,SEMI-CONDUCTIVE SHIELD: High-quality EPDM rubber provides protective dead front shield that meets requirements of IEEE Standard 592.
6,LOADBREAK PROBE: Tin-plated copper probe with arc-ablative tip (arc follower)
7,CONDUCTOR CABLE LUG: Inertia-welded aluminum barrel and threaded copper lug makes crimping easy and ensures a tight, reliable electrical connection with load break probe. Standard IEEE and CSA types available.
