12AWG Single Wire Aluminium Clad Steel Wire Acs Wire

Product Description

12AWG Single Wire Aluminium Clad steel Wire Acs Wire

1.Application
The aluminum clad steel wire is widely used in long-span transmission line, coastal areas and island as well as other hot and humid regions, salt fog regions and heavily polluted regions where the high corrosion resistance strand is needed.
It is used as the core of ACSR/AW, overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line, self-damping conductor line, bare overhead conductor, OPGW, ground wire, messenger wire, guy wire formed wire for protecting, terminating and splicing transmission and distribution lines, fence, barber wire and hardware, etc.

2.Standard
Aluminum clad steel wire is perfectly combined of aluminum and steel core, and there will be no flaking off during the heat treatment or mechanical workout. The aluminum clad steel wire is the best new bimetallic wire instead of pure copper wire.
A high strength steel wire with a 25% thick cross-section ratio of aluminum cladding creates a high electrical conductivity, highly corrosive resistant, and a thermal stability for high temperature operation and all with a lighter weight.
12AWG Single Wire Aluminium Clad Steel Wire Acs Wire

3.Specification
Aluminum Clad Steel Wire/Alumoweld ASTM B416

Approximate Properties of Hard-drawn 20.3% Conductivity Aluminum-Clad steel
Wire (20.3%)

Nominal Dia		Size	Calculated cross sectional area								Weight
					Min tensile		Calculated	Mincoating	D.C resistance
					strength		breaking	thickness	at 20ºC≤
							load
in.	mm	AWG	mm2	cmils	Mpa	psi	kn	mm	Ω/1000ft	Ω/km	kg/km	1b/1000ft
0.2043	5.189	4	21.150	41740	1070	155000	22.60	0.259	1.222	4.009	139.32	93.63
0.188	4.775	4	17.908	35342	1100	160000	19.70	0.239	1.443	4.735	118.01	79.31
0.1819	4.620	5	16.767	33090	1140	165000	18.10	0.231	1.541	5.056	110.48	74.25
0.1729	4.392	5	15.150	29899	1170	170000	17.73	0.220	1.706	5.597	99.84	67.10
0.1620	4.115	6	13.296	26240	1210	175000	16.00	0.206	1.943	6.375	87.61	58.88
0.1549	3.934	6	12.155	23989	1240	180000	15.07	0.197	2.126	6.976	80.10	53.83
0.1443	3,665	7	10.549	20820	1280	185000	13.50	0.183	2.450	8.038	69.47	46.69
0.1369	3.477	7	9.495	18739	1310	190000	12.44	0.174	2.722	8.931	62.57	42.05
0.1285	3.264	8	8.366	16510	1340	195000	11.20	0.163	3.089	10.135	55.15	37.03
0.1144	2.906	9	6.633	13090	1340	195000	8.92	0.145	3.896	12.783	43.70	29.37
0.1019	2.588	10	5.260	10380	1340	195000	7.07	0.129	4.912	16.116	34.66	23.29
0.0907	2.304	11	4.170	8230	1340	195000	5.61	0.115	6.194	20.323	27.48	18.47
0.0808	2.052	12	3.309	6530	1340	195000	4.45	0.103	7.811	25.628	21.80	14.65

Code Number	Area	No. of wires	Diameter		Weight	Rated Strength	DC Resistance
Code Number	mm2	No. of wires	wire	conductor	kg/km	kN	ohm/km
3 No 5 Awg.	50,32	3	4,62	9,96	334,1	54,42	1.699
3 No 6 Awg.	39 ,00	3	4,11	8,87	265,0	45,74	2.142
3 No 7 Awg.	31,65	3	3,67	7,90	210,1	38,36	2.701
3 No 8 Awg.	25,10	3	3,26	7,03	166,7	32,06	3.406
3 No 9 Awg.	19,90	3	2,91	6,26	132,2	25,43	4.294
3 No 10 Awg.	15,78	3	2,59	5,58	104,8	20,16	5.415
7 No 5 Awg.	117,40	7	4,62	13,90	781,1	120,27	0,7426
7 No 6 Awg.	93,10	7	4,11	12,40	619,5	101,14	0,9198
7 No 7 Awg.	73,87	7	3,67	11,00	491,1	84,81	1.16
7 No 8 Awg.	58,56	7	3,26	9,78	389,6	70,88	1.463
7 No 9 Awg.	46,44	7	2,91	8,71	308,9	56,20	1.844
7 No 10 Awg.	36,83	7	2,59	7,76	245,1	44,58	2.325
7 No 11 Awg.	29,21	7	2,30	6,91	194,4	35,35	2.932
7 No 12 Awg.	23,16	7	2,05	6,16	154,2	28,03	3.697
19 No 5 Awg.	318,70	19	4,62	23,10	2129,0	326,39	0,2698
19 No 6 Awg.	252,70	19	4,11	20,60	1688,0	274,55	0,3402
19 No 7 Awg.	200,40	19	3,67	18,30	1339,0	230,18	0,4290
19 No 8 Awg.	158,90	19	3,26	16,30	1062,0	192,41	0,5409
19 No 9 Awg.	126,10	19	2,91	14,50	842,0	152,58	0,6821
19 No 10 Awg.	99,96	19	2,59	12,90	667,7	121,00	0,8601
37 No 5 Awg.	620,60	37	4,62	32,30	4170,0	635,43	0,1394
37 No 6 Awg.	492,20	37	4,11	28,80	3307,0	534,85	0,1757
37 No 7 Awg.	390,30	37	3,67	25,70	2623,0	448,09	0,2216
37 No 8 Awg.	309,50	37	3,26	22,90	2080,0	374,67	0,2794
37 No 9 Awg.	245,50	37	2,91	20,30	1649,0	279,11	0,3523
37 No 10 Awg.	194,70	37	2,59	17,90	1308,0	235,61	0,4443

4.Production process:

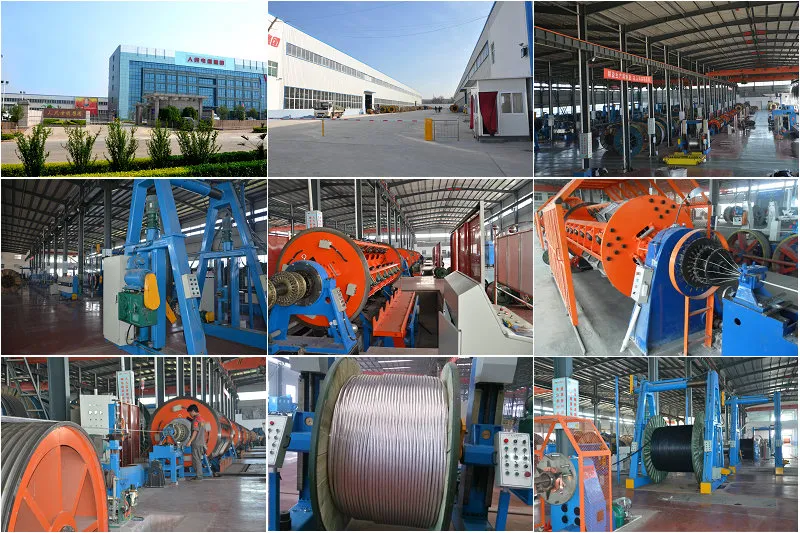

ACS Wire producing process is drawing stranding and cabling, our factory possess 2 subsidiaries,Zhulin factory is professional bare conductor workshop with 20 production line.

5.Package

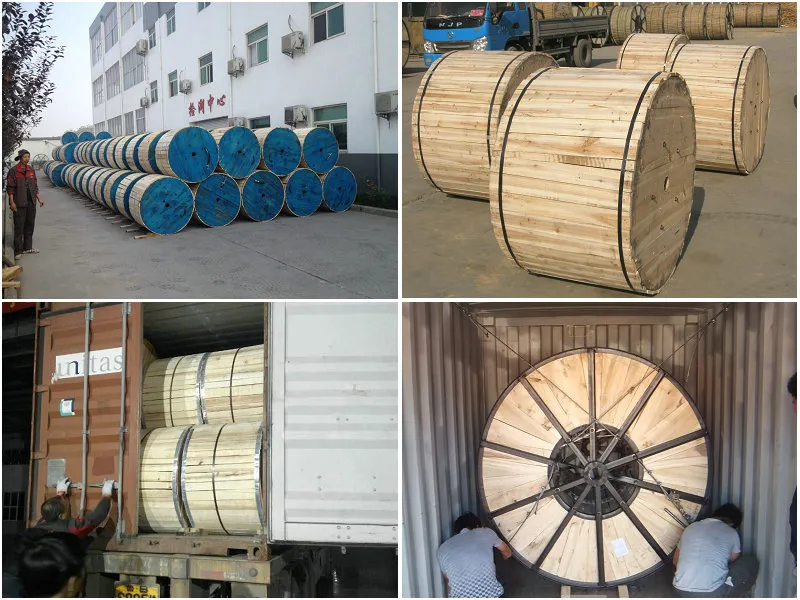

Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.
