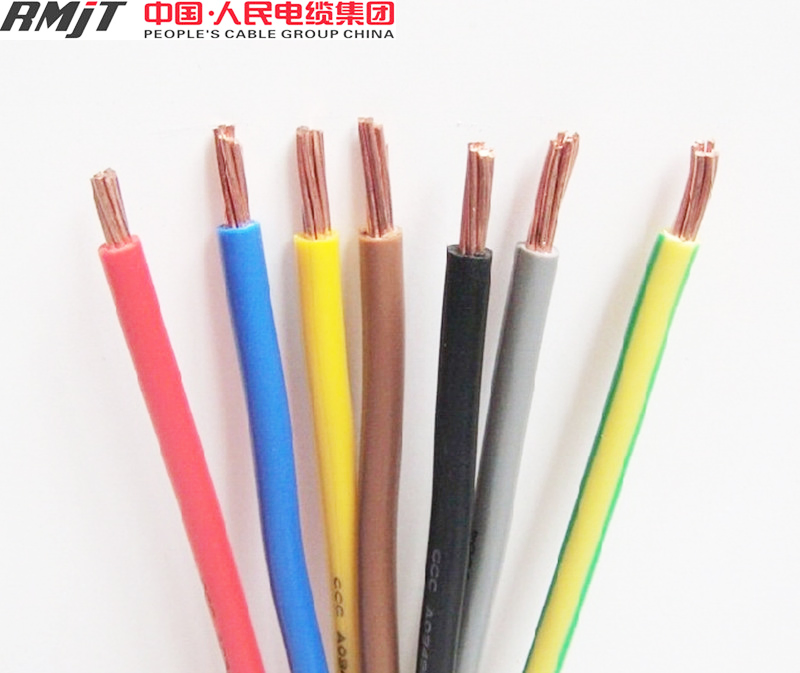

1.5 mm Isolati in PVC Cavo
1.5 mm isolati in pvc cavo 1.ApplicationElectrical cable is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage ......
Send Inquiry
Product Description
1.5 mm isolati in pvc cavo
1.Application
Electrical cable is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
2.Standard
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.
3.Brief construction
1) Conductor: Copper or aluminium, Solid/strand
2) Insulation: PVC
3) Number of cores: Single core or multicore
4) Other special characteristics: Design and manufacture according to the requirements of customers.
4. Service performance
1) Rated voltage: 450/750V,300/500V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
5.Specification and technical data
Package
Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.
About us
We were founded in 2007, located in Gongyi Henan,China. We have 2 factories (Headquarters Factory-produce insulated cables and Zhulin branch-produce bare conductors), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
Contact us
Sara Liu
TEL: +86-371-55632825
Mobile +86 13526585094
Watap +86 13526585094
1.Application
Electrical cable is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
2.Standard
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.
3.Brief construction
1) Conductor: Copper or aluminium, Solid/strand
2) Insulation: PVC
3) Number of cores: Single core or multicore
4) Other special characteristics: Design and manufacture according to the requirements of customers.
4. Service performance
1) Rated voltage: 450/750V,300/500V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
5.Specification and technical data
| Type | Name |
| 227 IEC 01 (BV) | Single-core non-sheathed cable with solid conductor for general purposes |
| 227 IEC 02 (RV) | Single-core non-sheathed cable with flexible conductor for general purposes |
| 227 IEC 05 (BV) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70oC |
| 227 IEC 06 (RV) | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70oC |
| 227 IEC 07 (BV-90) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90oC |
| 227 IEC 08 (RV-90) | Single-core non- sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90oC |
| 227 IEC 10 (BVV) | Light PVC sheathed cable |
| 227 IEC 42 (RVB) | Flat non-sheathed flexible cable |
| 227 IEC 52 (RVV) | Light PVC sheathed flexible cable |
| 227 IEC 53 (RVV) | Ordinary PVC sheathed flexible cable |
| 227 IEC 74 (RVVYP) | Oil-proof PVC sheathed, screened flexible cable |
| 227 IEC 75 (RVVY) | Oil-proof PVC sheathed, non screened flexible cable |
Package
Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.
About us
We were founded in 2007, located in Gongyi Henan,China. We have 2 factories (Headquarters Factory-produce insulated cables and Zhulin branch-produce bare conductors), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
Contact us
Sara Liu
TEL: +86-371-55632825
Mobile +86 13526585094
Watap +86 13526585094
