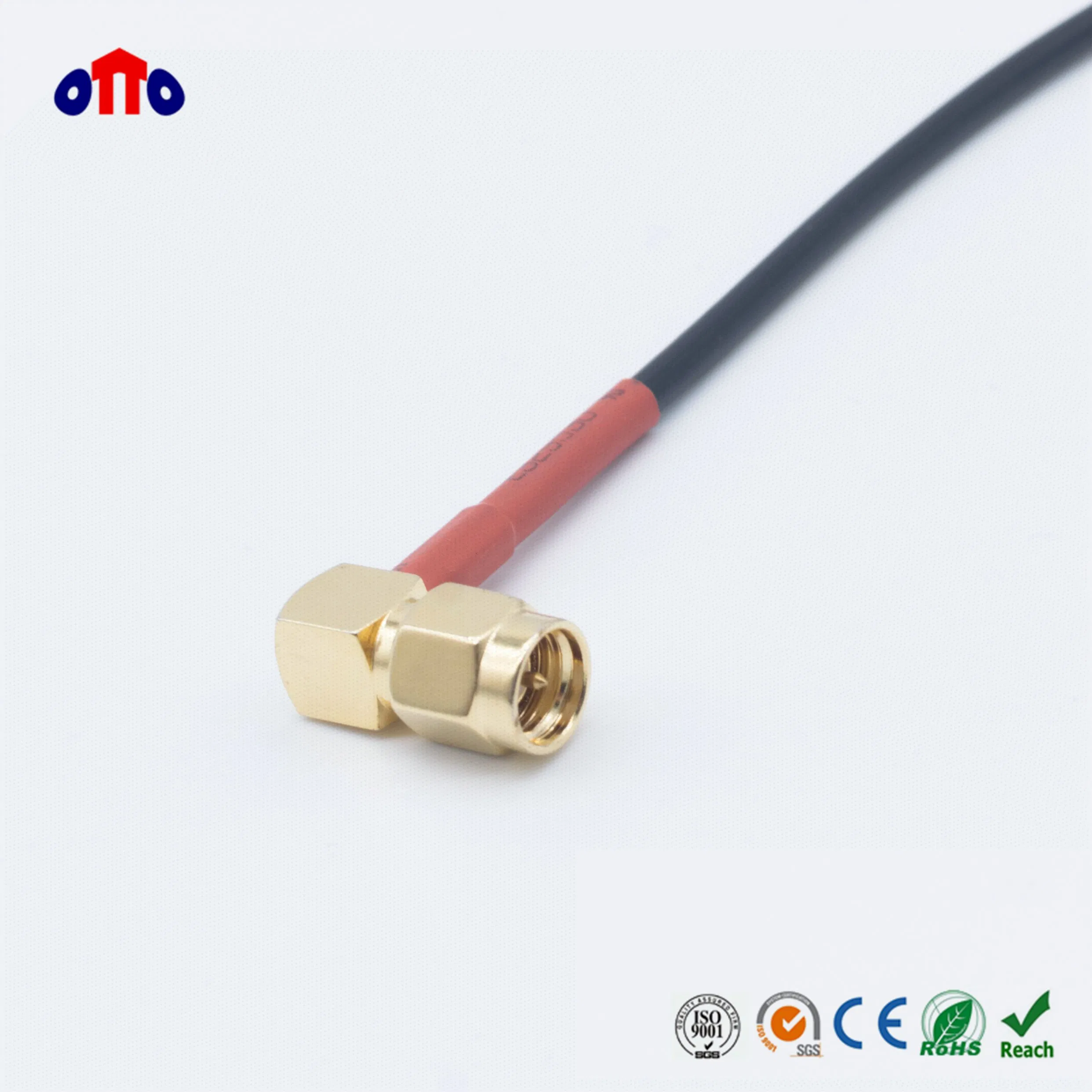

XLPE Coax Cable RG174 Dual Cable for GSM Antenna
MIL-C-17 Low Loss XLPE RG 174 Dual Coaxial CableConstructionItemMaterialDiameter(mm)Inner ConductorDielectricShieldJacketBare Copper / Tinned CopperSolid PE / XLPEBare Copper or Tinned Copper Wire BraidPVC7*0.161.521.902.80Electrical CharacteristicsImpedance (Ω)Capacitance (pF/m)Velocity ......
Send Inquiry
Product Description
MIL-C-17 Low Loss XLPE RG 174 Dual Coaxial Cable

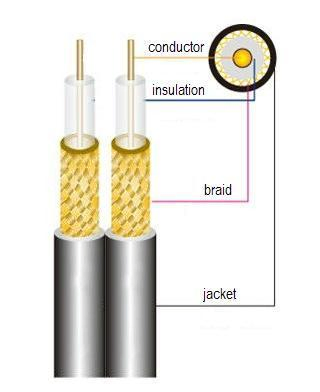

Construction
| Item | Material | Diameter(mm) |
| Inner Conductor Dielectric Shield Jacket | Bare Copper / Tinned Copper Solid PE / XLPE Bare Copper or Tinned Copper Wire Braid PVC | 7*0.16 1.52 1.90 2.80 |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Installation Temp(ºC) Operating Temp(ºC) | 50±3 101 66 20 -30 to +85 / 105 -30 to +85 / 105 |
Attenuation (@20ºC)
| Frequency(MHz) | Max Attenuation(dB/m) |
| 400 600 860 1000 1575 | 0.62 0.72 0.90 1.00 1.10 |
