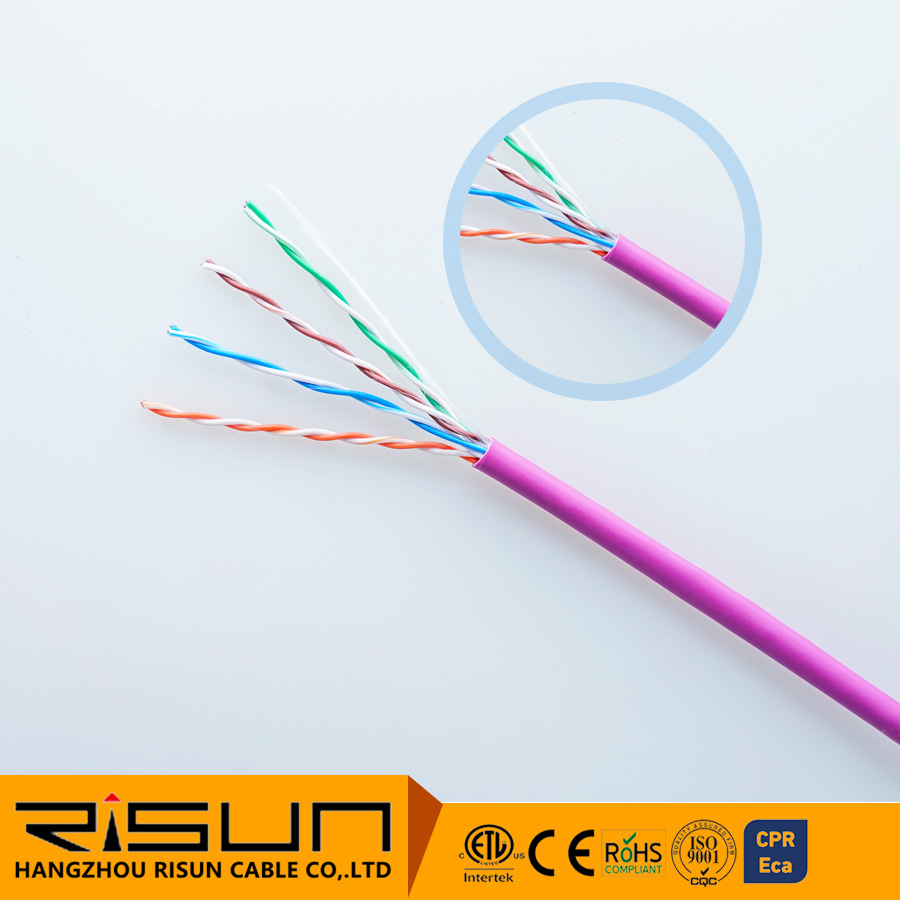

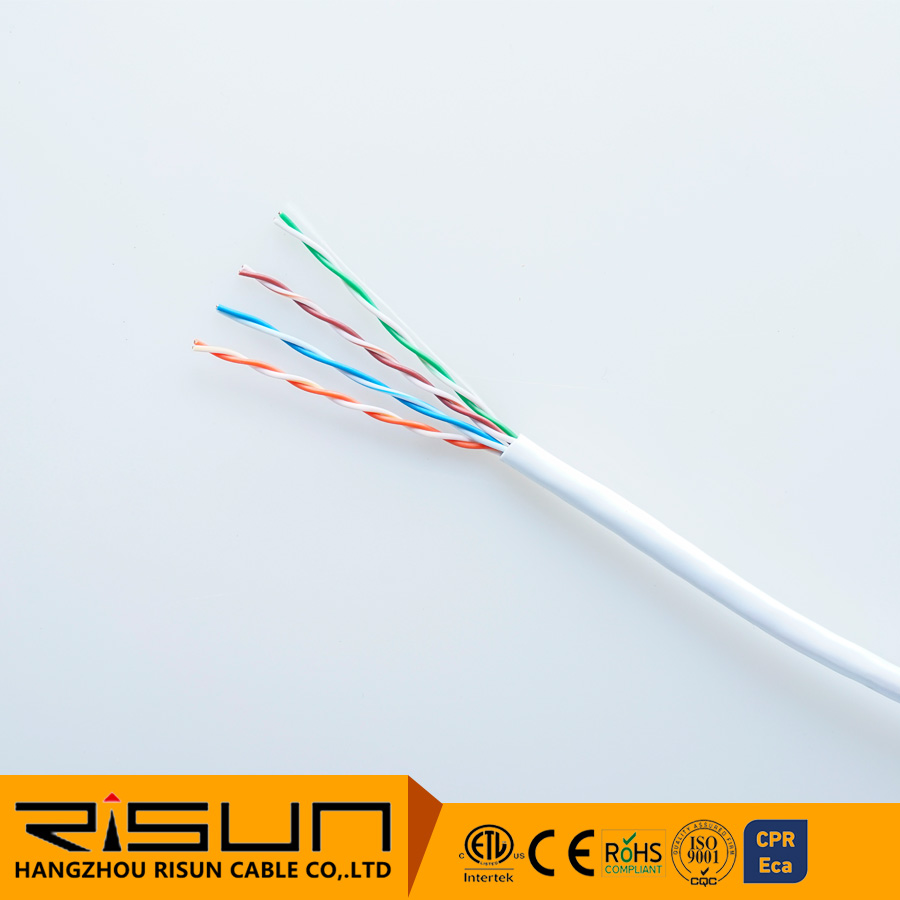

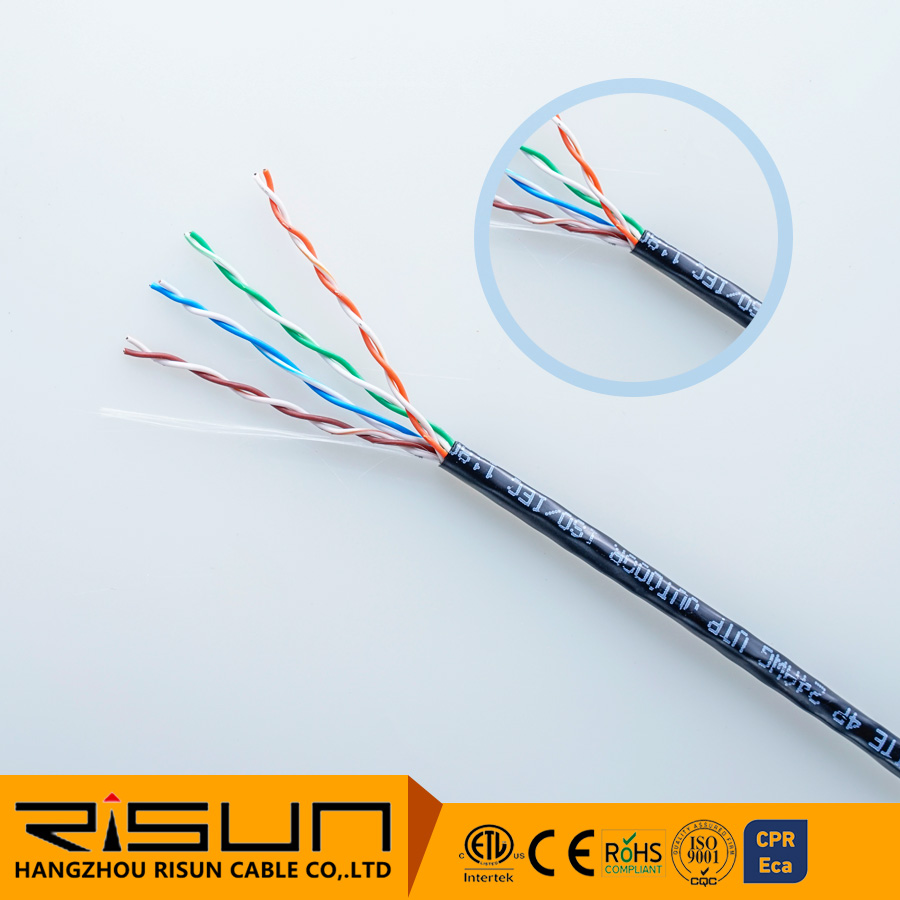

UTP Cat5e LAN Cable with CPR Approved LSZH Jacket
Hangzhou Risun Cable Co., Ltd specializes in manufacturing lan cable, network cable, alarm cable and telephone cable. 1. All of products we offer are top quality and competitive price;2. If there is no special explanation, all of our Brand are RISUN or OEM;3. Payment: We accept T/T and L/C;4. Packin......
Send Inquiry
Product Description
Hangzhou Risun Cable Co., Ltd specializes in manufacturing lan cable, network cable, alarm cable and telephone cable.
1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;
4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, please contact us without hesitation. We'll reply as soon as we can.
FAQ
Q1: What is the MOQ order ?
A1: MOQ is 10000meters.
If you have different and special demands, please contact with us, we'll provide the best solutions to you.
Q2: How to shipping? Is there cheap shipping cost to import to our country ?
A2:The best choice is shipping By sea. Because network cable is very heavy, it's too expensive by air.
By Sea: If you have freight forwarder, they can handle shipping for you. If you don't have it, we can provide the cheapest shipping cost to you, or send our freight forwarder information to you contact directly.
Q3. How to know recycle and new jacket materials ?
A3: Except for conductor price, the jacket materials is the main factors affecting price. Some supplier's price is crazy, because they use recycle materials in production.
Recycle material: The jacket will have bubble, especially tenacity is very bad, it's easy to tear. So the cable's lifetime is short, fire retardant & cold resistance is bad too.
New material: Tenacity is very good, it's hard to tear, and with good fire retardant & cold resistance.
Q4: Can you make OEM ?
Yes, we can supply OEM service to our international clients. It can be marking your brand or any printing that you want. Except for international famous brand.
1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;
4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, please contact us without hesitation. We'll reply as soon as we can.

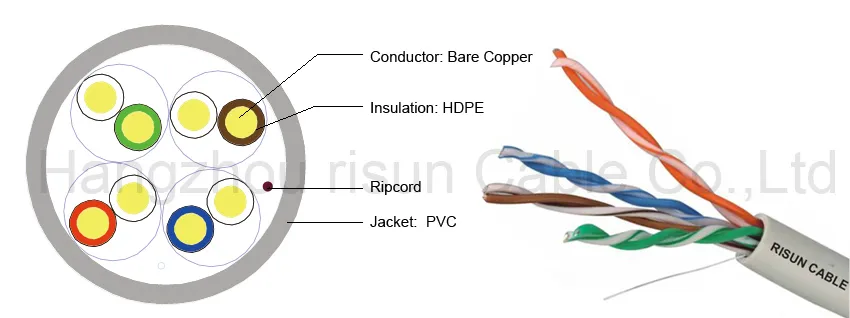

| Construction | |
| Conductor | 24AWG BC/CU/CCA/CCS |
| Insulation | HDPE 0.91±0.02mm |
| Cores/Pairs | 8/4 |
| Sheath | 5.10±0.1mm PVC (FR,RoHS,UV)/ LSOH / PE |
| Mechanical Properties | |
| Elongation | Min. 300% |
| Temperature Range | -20 up to +75°C |
| Tensile strength | Min. 1.68Kg/mm2 |
| Electrical Properties (at 20°C) | |
| Conductor Resistance | Max. 9.38 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Cpacitance Unbalance | Max. 330pF/100m |
| Impendance | 100±15 ohm |
| Spark Test | 2000V |
| Velocity Propagation | 67% |
| Technical Data | ||||
| Attenuation | RL | Next | PS Next | |
| (MHz) | (db/100m) | (db) | (db) | (db/100m) |
| 4MHz | 4.1 | 23 | 56.3 | 53.3 |
| 8MHz | 5.8 | 24.5 | 51.8 | 48.8 |
| 10MHz | 6.5 | 25 | 50.3 | 47.3 |
| 16MHz | 8.2 | 25 | 47.2 | 44.2 |
| 20MHz | 9.3 | 25 | 45.8 | 42.8 |
| 25MHz | 10.4 | 24.3 | 44.3 | 41.3 |
| 31.25MHz | 11.7 | 23.6 | 42.9 | 39.9 |
| 62.5MHz | 17.0 | 21.5 | 38.4 | 35.4 |
| 100MHz | 22.0 | 20.1 | 35.3 | 32.3 |
FAQ
Q1: What is the MOQ order ?
A1: MOQ is 10000meters.
If you have different and special demands, please contact with us, we'll provide the best solutions to you.
Q2: How to shipping? Is there cheap shipping cost to import to our country ?
A2:The best choice is shipping By sea. Because network cable is very heavy, it's too expensive by air.
By Sea: If you have freight forwarder, they can handle shipping for you. If you don't have it, we can provide the cheapest shipping cost to you, or send our freight forwarder information to you contact directly.
Q3. How to know recycle and new jacket materials ?
A3: Except for conductor price, the jacket materials is the main factors affecting price. Some supplier's price is crazy, because they use recycle materials in production.
Recycle material: The jacket will have bubble, especially tenacity is very bad, it's easy to tear. So the cable's lifetime is short, fire retardant & cold resistance is bad too.
New material: Tenacity is very good, it's hard to tear, and with good fire retardant & cold resistance.
Q4: Can you make OEM ?
Yes, we can supply OEM service to our international clients. It can be marking your brand or any printing that you want. Except for international famous brand.
