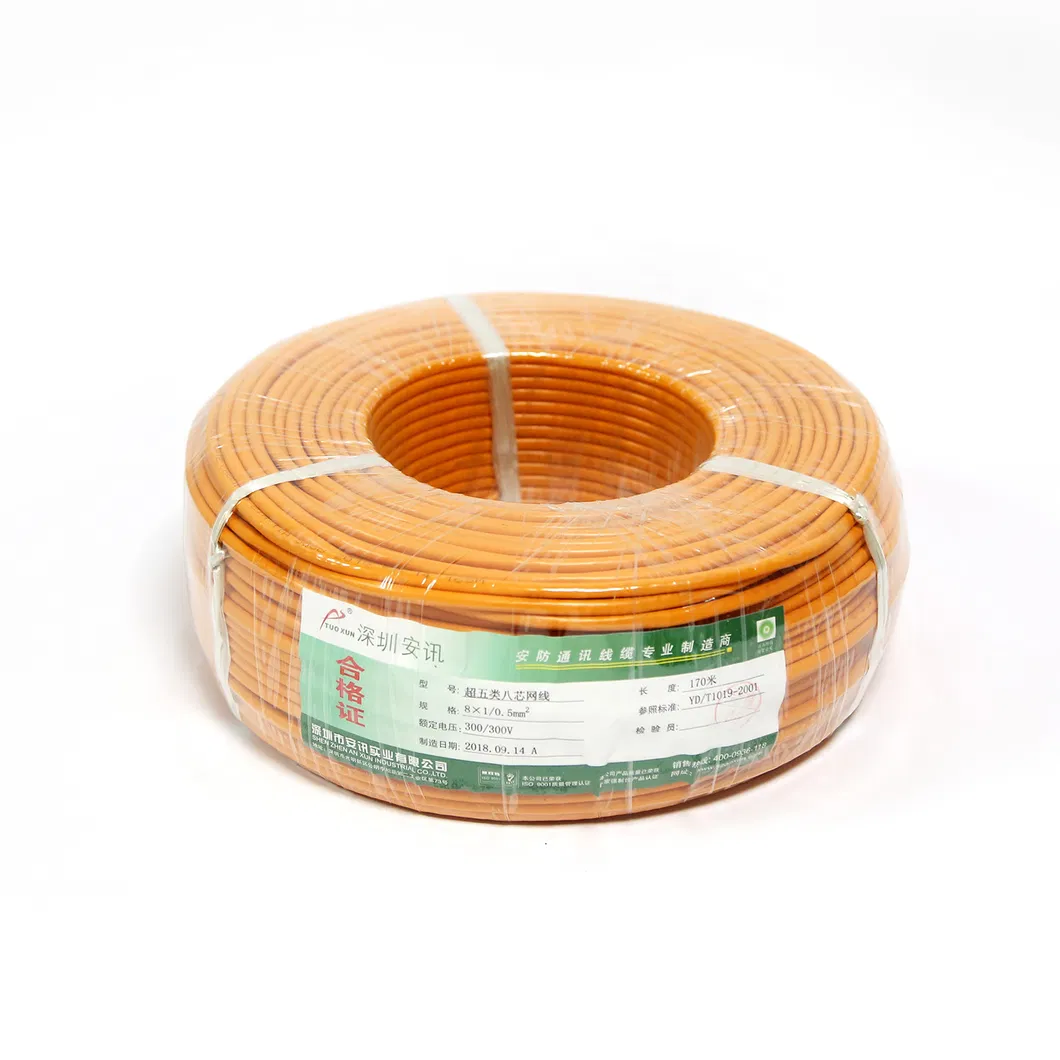

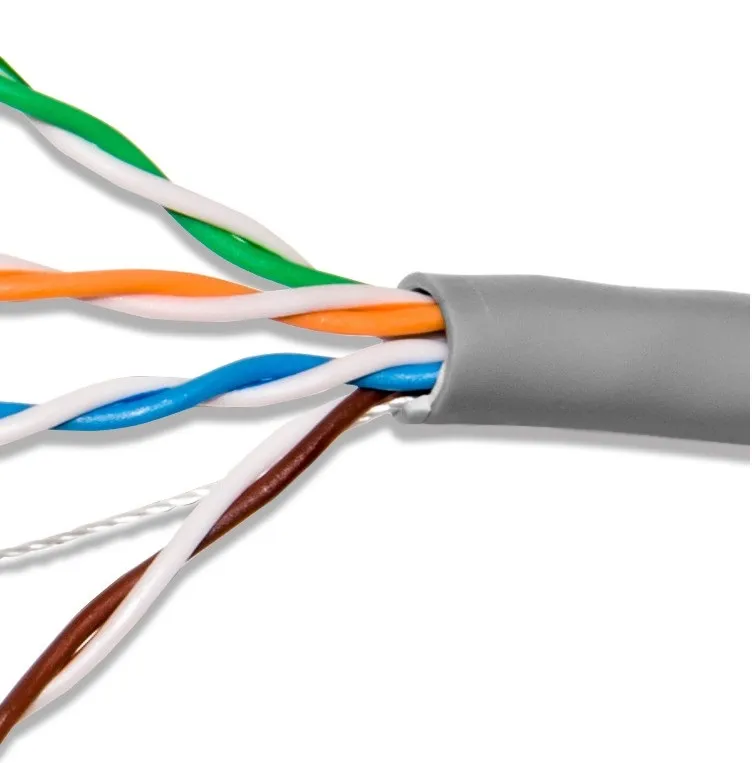

UTP Cat5e Ethernet 305m Cable for Indoor Outdoor Communication Network
Product DescriptionUTP cat 5e cable overview1.Conductor: Material: Solid Bare CopperNumber of pairs: 4 pairsAWG: 24AWGConductor diameter: 0.51 ±0.015mm2.Insulation: Material: HD-PE Average thickness: 0.225mmMinimum point thickness: 0.2245mmFirst screen: Aluminum Foil (superposition rate: ......
Send Inquiry
Product Description

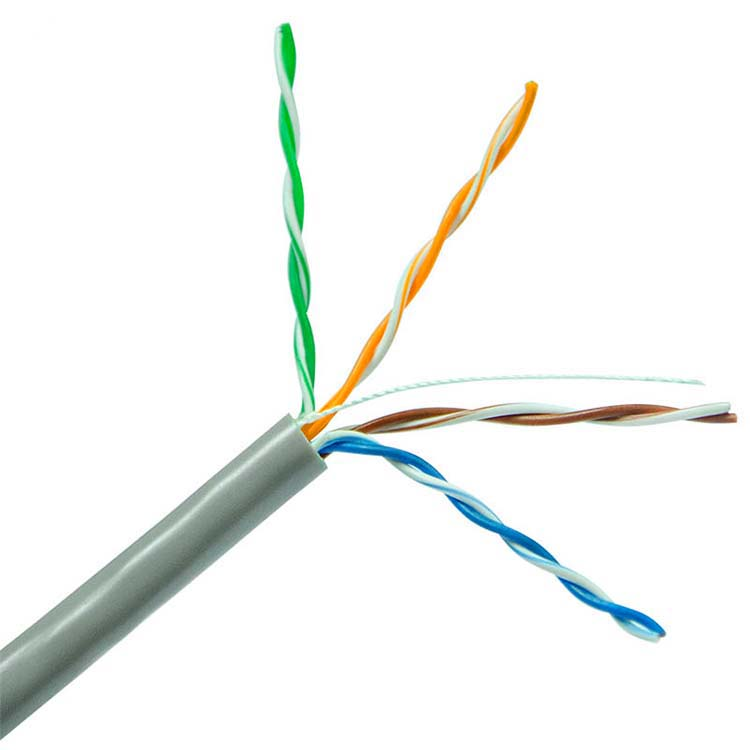

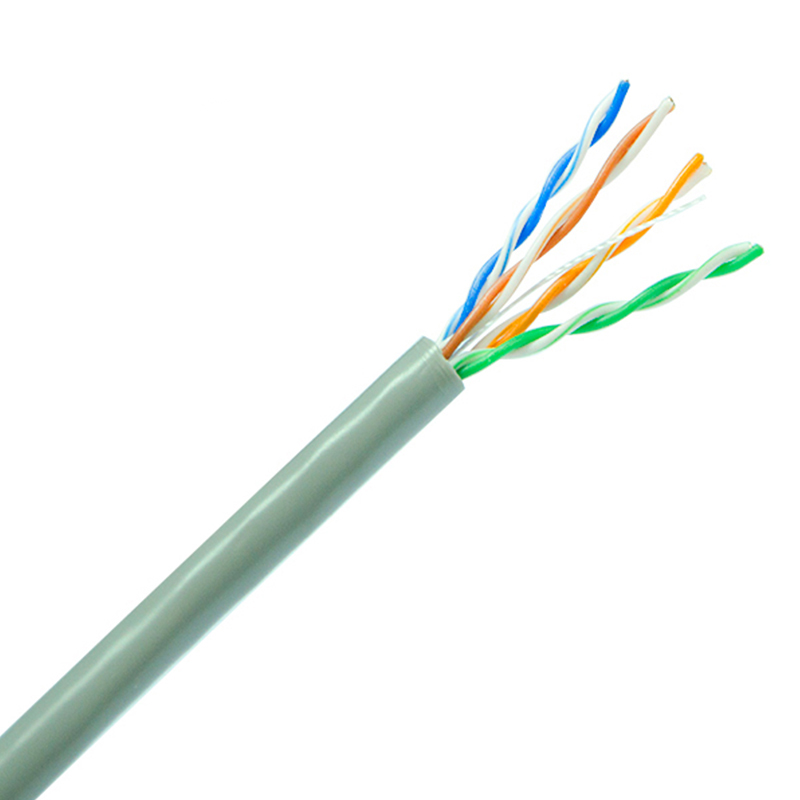

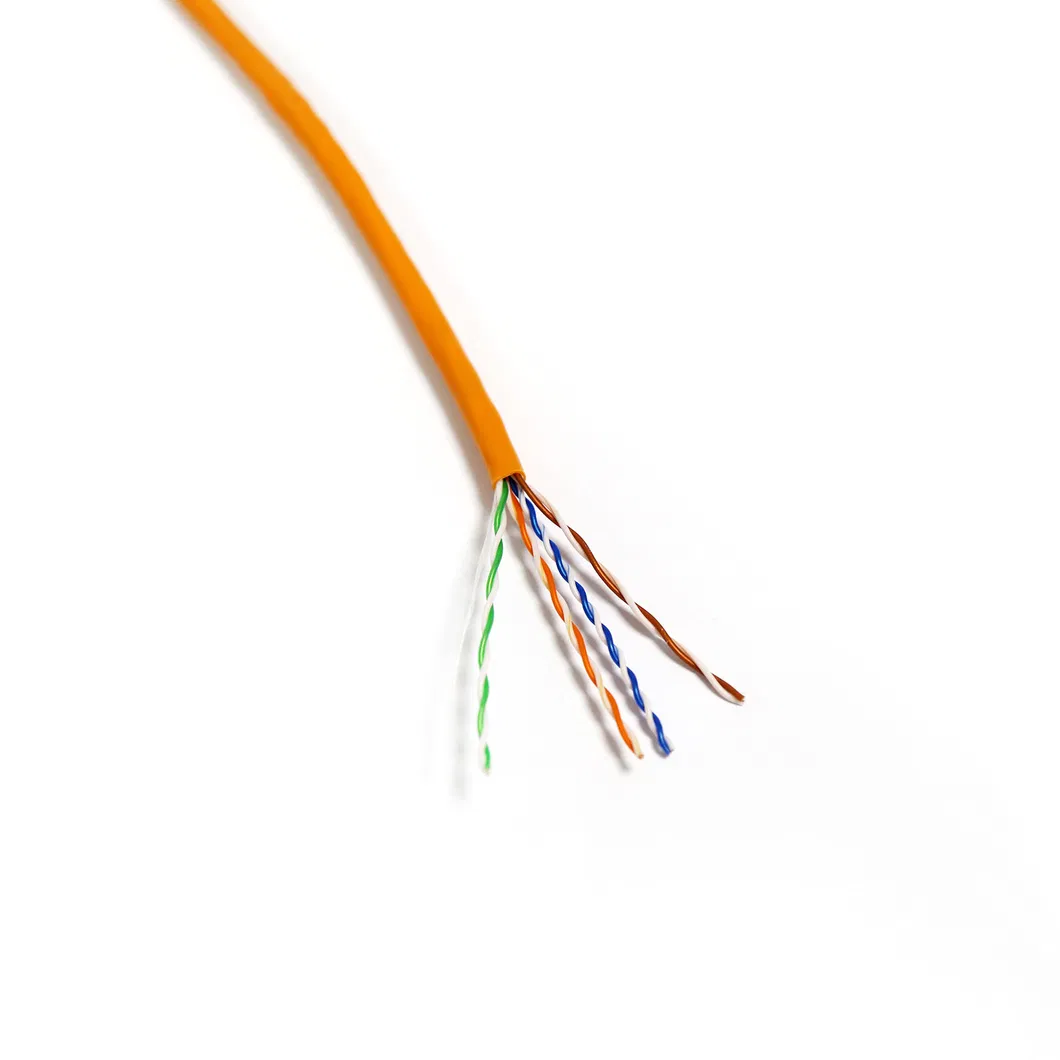

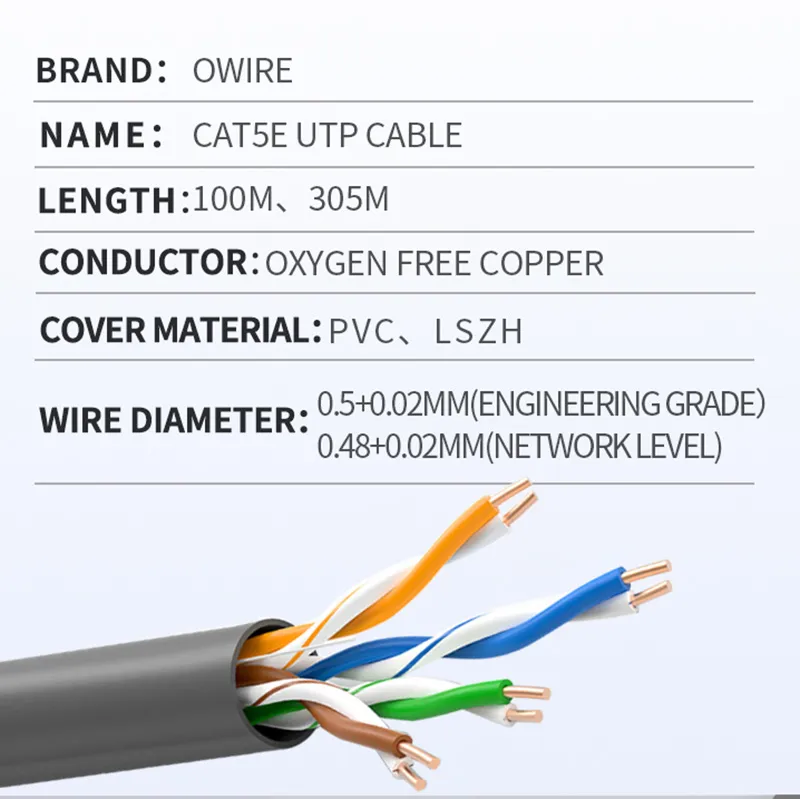

UTP cat 5e cable overview

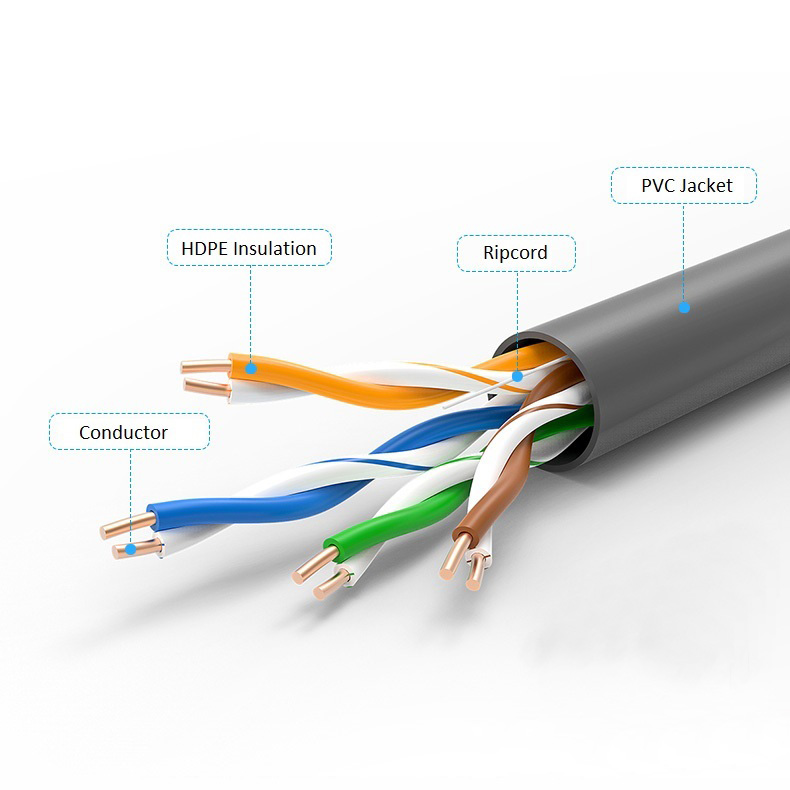

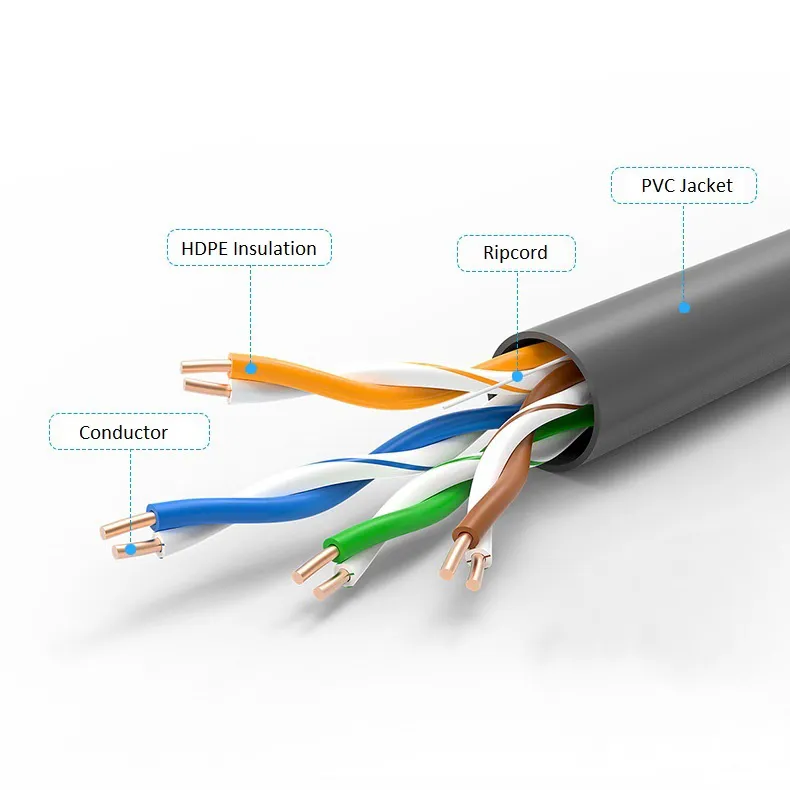

1.Conductor:
Material: Solid Bare Copper
Number of pairs: 4 pairs
AWG: 24AWG
Conductor diameter: 0.51 ±0.015mm
2.Insulation:
Material: HD-PE
Average thickness: 0.225mm
Minimum point thickness: 0.2245mm
First screen: Aluminum Foil (superposition rate: 25%)
Overall screen: 48/0.1mm TC braid shield (braid density: 40%)
Jacket rid cord: optional
3.Sheath:
Material: PVC or LSZH
Nominal diameter: 5.1 ±0.2mm
Average thickness: 0.53mm
Minimum point thickness: 0.525mm
4.Includes:
Insulation
Jacket:PVC / LSZH
5.Standa
YD/T1019-2001, ANSI/TIA/EIA-568B, ISO/IEC11801,UL444
6.Application :
Horizontal cabling in working area.Used in voice system,ISDN,ADSL,Communications room.
10BASE-T,100BASE-TX/T4,1000BASE-T,etc.
Construction: |
|
|
|
|
Item | Conductor AWG | Number Of Pairs | Shielding | O.D. |
Cat5e UTP | 24 (0.51mm) | 4 | Non | 5.4mm |
Cat5e FTP | 24 (0.51mm) | 4 | Aluminum Foil | 6.0mm |
Cat5e SFTP | 24 (0.51mm) | 4 | Aluminum Foil +Alloy Braiding | 6.5mm |
| Model | Cat5e Cable |
| Conductor Size | 24AWG |
| 0.51mm | |
| Conductor Material | BC/CCU/CCA/OFC/CCS |
| Nuber Of Conductor | 2P, 4P |
| Shiled | UTP/FTP/STP/SFTP /SSTP |
| Flammability Grade: | CMX,CM,MP,CMG,MPG,CMR,MPR |
| Indoor / Outdoor | Single jacket / Double jacket |
| Insulation Material | PE , HDPE |
| Insulation Thickness | 0.55mm |
Number of pairs: 4 pairs | Pair1: Orange/White Orange Pair2: Blue/ White Blue |
| Jacket Material | PVC, ROHS PVC, LSZH PVC |
| Jacket Thickness | 0.92-0.95mm |
| DC Resistance(Max.) | 9.5Ω/100m |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance(Max.) | 5.4nF/100m |
| Insulation Resistance | 10000MΩ.km |
| Transmission Velocity | 65% |
| Operating Temperation | -20 °C - +75 °C |
| PVC Jacket Color | As client's request. |
| Print Words On Cable | CAT5E 4P 24AWG VERIFIED TO EIA/TIA 568B.ISO/IEC 11801 EN501 or clients' request. |

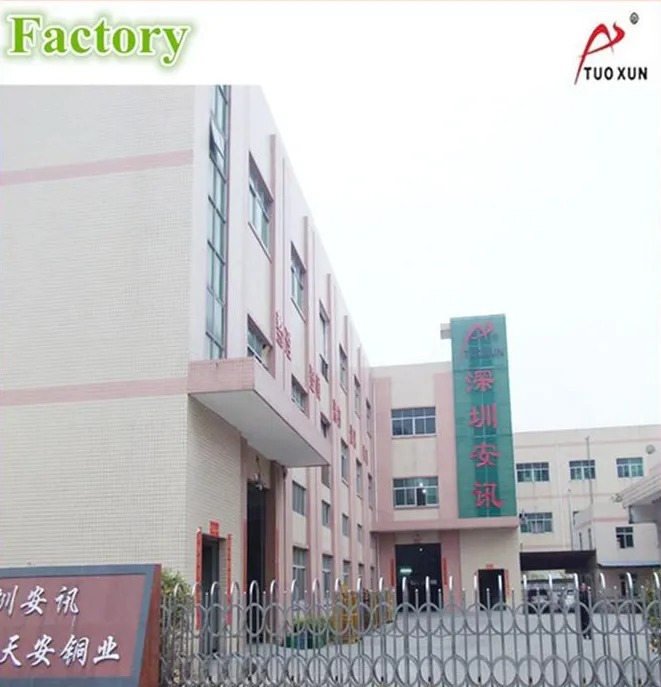

Shenzhen Anxun Industry Co., Ltd. was established in 2004 and our headquarter is located in Shenzhen. Deeply cultivating the wire and cable industry for more than ten years, it has formed an industrial chain group integrating upstream and downstream raw material industries, modernized production, humanized management, and diversified products. The company is guided by market demand and provides customers with customized products and solutions.
The company's products are widely used in security monitoring, smart buildings, national defense and military industry, computer networks, mobile communications, smart homes, smart rail transit, and control systems for mechanical and electrical equipment.
The company has strong technical force, complete testing equipment, stable and reliable product quality, and has successively passed China National Compulsory Product (CCC certification), national industrial product production license for wire and cable, ISO9001 (2008) quality management certification, CQC certification, and UL products. Certification, CE product certification, national radio and television equipment network access certification, and the national standardization management committee approved and issued the international standard product mark certificate.
The company adheres to the business philosophy of honest management and customer first, and takes product quality as the guarantee. The development, research and production of high-quality intelligent system dedicated cables is the pursuit of Anxun people as always, and it is the driving force to motivate Anxun people to move forward.
FAQ
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable and etc.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What kind of certifications do you have?
A: successively passed China's national compulsory product certification (i.e. CCC certification), national industrial product production license for wire and cable, ISO9001 (2008) quality management certification, CQC certification, UL product certification, CE product certification, National Radio and television equipment network certification, Certificate of adopting international standard product mark approved and issued by National Standardization Administration Committee..
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
