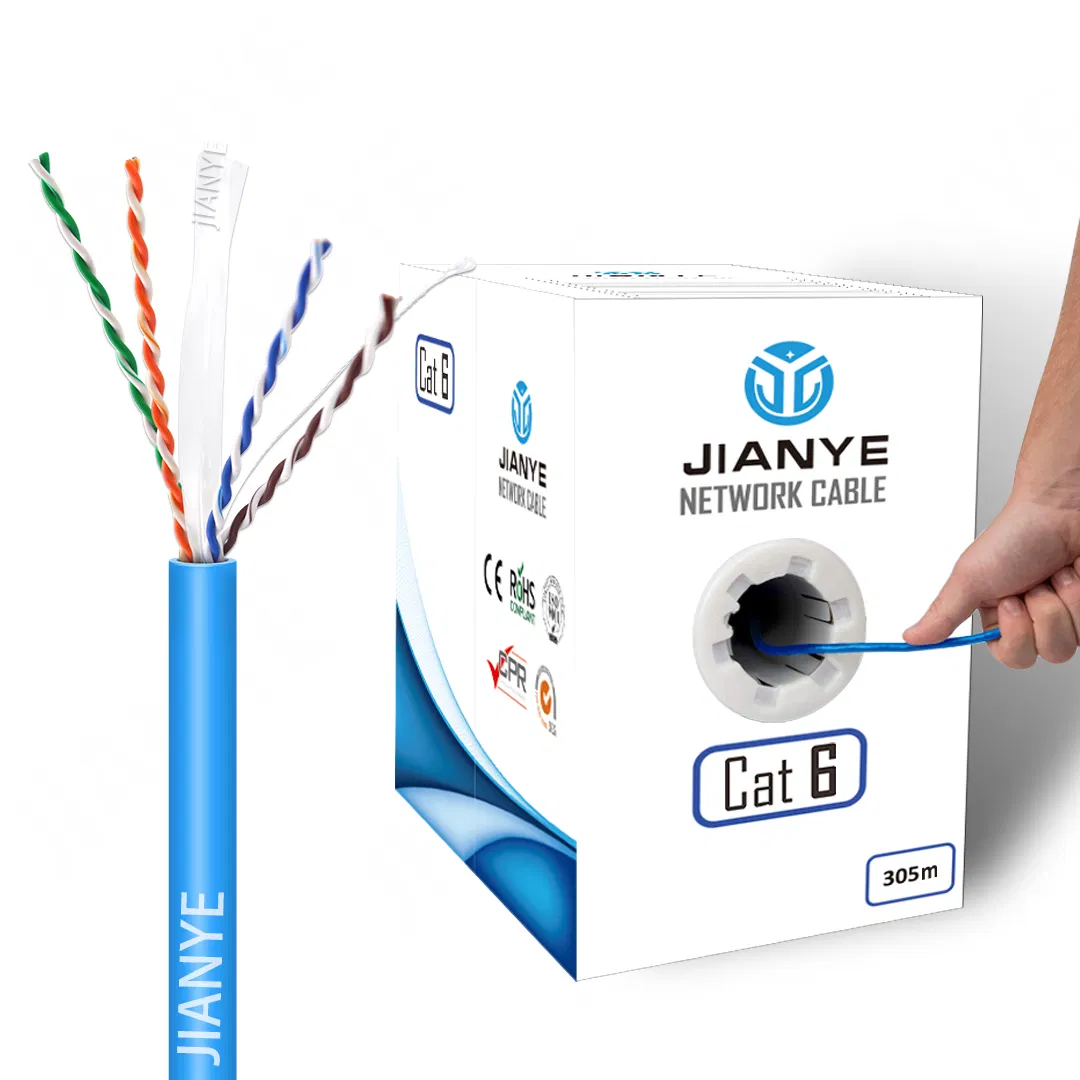

China UTP Cable CAT6 305m Manufacture Price Cabo CAT6 High Quality Internet Cable Customizable LAN CAT6 CCA Cable

Product Description

UTP Cable CAT6 305m Manufacture Price Cabo CAT6 High Quality Internet Cable Customizable LAN CAT6 CCA Cable

UTP Cat6 PVC 23 AWG Cable
Feature and Function
• Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.
• Compliant with RoHS 2.0.
• Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
• Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
• Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
• conductor with less resistance, and better electrical properties and transmission performance

Category	Cat.6
Sheath printing	xxxxxx 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
Reference standard	ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0

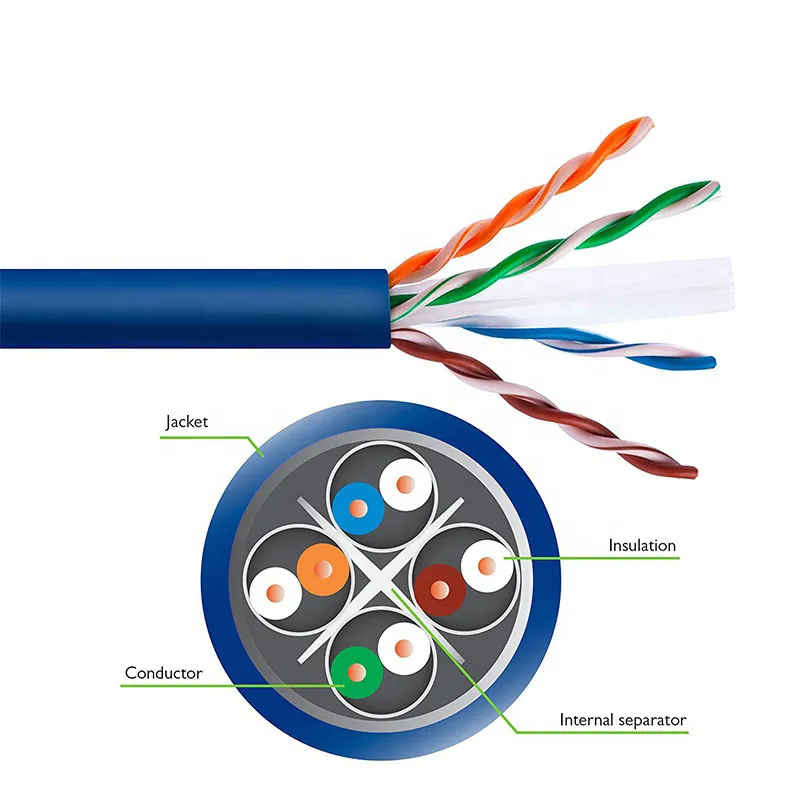

Conductor	Material	Solid-Bare Copper (99.95%)/CCA/CCAG
Conductor	Diameter	0.570 ± 0.005 mm, 24 AWG
Insulation	Material	HDPE
Insulation	Diameter	1.03 ± 0.04 mm
Sheath	Thickness	0.65 ± 0.05 mm
	Diameter	Diameter 6.40 ± 0.4 mm
	Material	PVC/PE/LSZH
	Color	According to your requirements
Rip-cord	YES
Separator	YES
Sheath physical properties	Before aging	Tensile strength ≥ 13.5 Mpa Elongation ≥ 150%
	Aging period	100°C × 24h × 10d
	After aging	Tensile strength ≥ 12.5 Mpa Elongation ≥ 125%
	Cold bend	-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics (20°C)	1.0-250.0 MHz impedance	100 ± 15 Ω @ ≤ 100 MHz 100 ± 25 Ω @100-250 MHz
	1.0-250.0 MHz delay skew	≤ 45 ns/100 m
	DC resistance	≤ 9.38Ω/100 m
	DC conductor resistance unbalance	≤ 5.0%

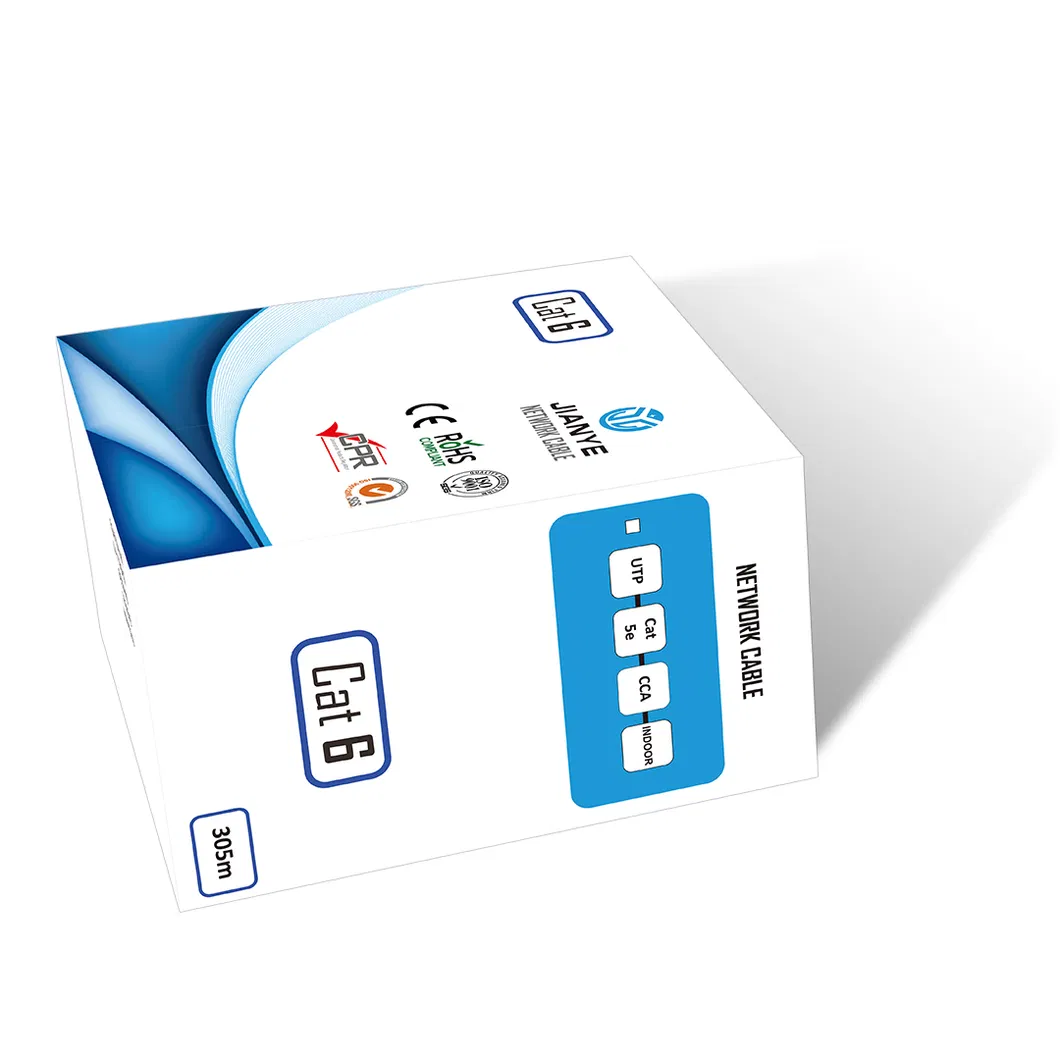

	Package dimension	380 mm (W) × 380 mm (H) × 240 mm (D)
	Weight	12.3 ± 0.5kg

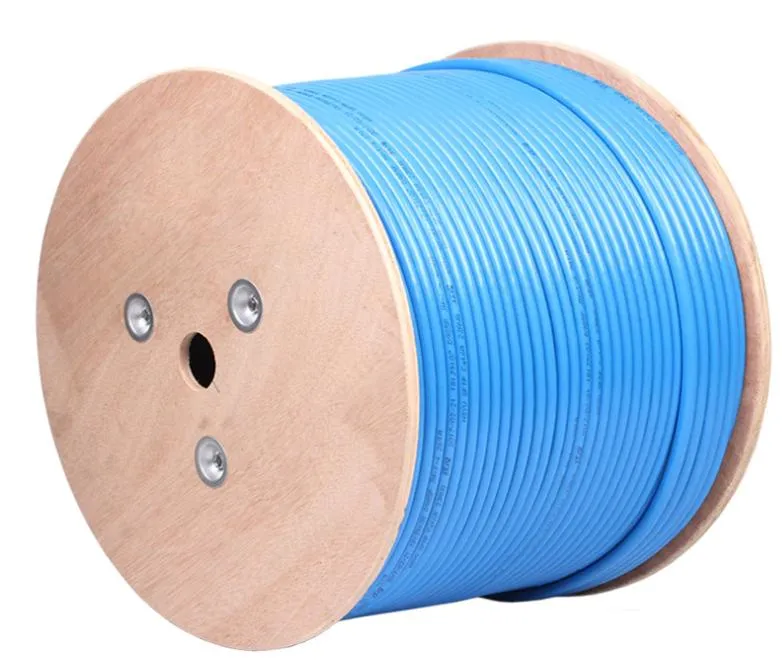

	Cable length	(305 ± 1.5) m
	Ambient temperature	-20°C to 75°C (-4°F to 167°F)
	Operating voltage	60 V
