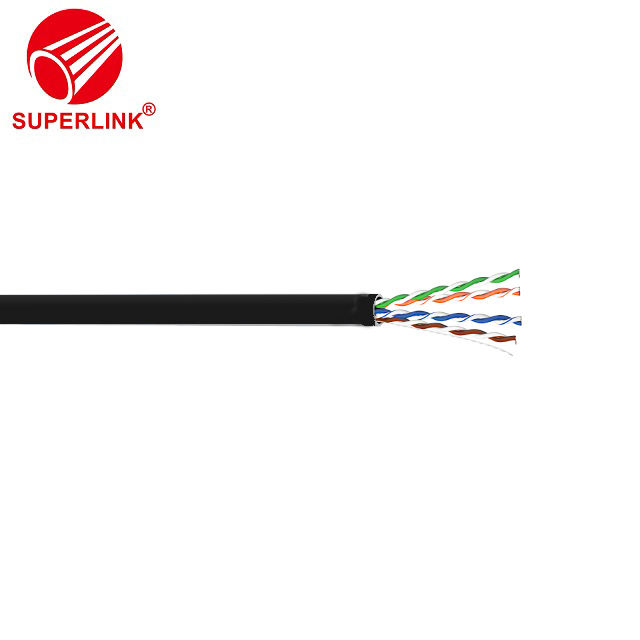

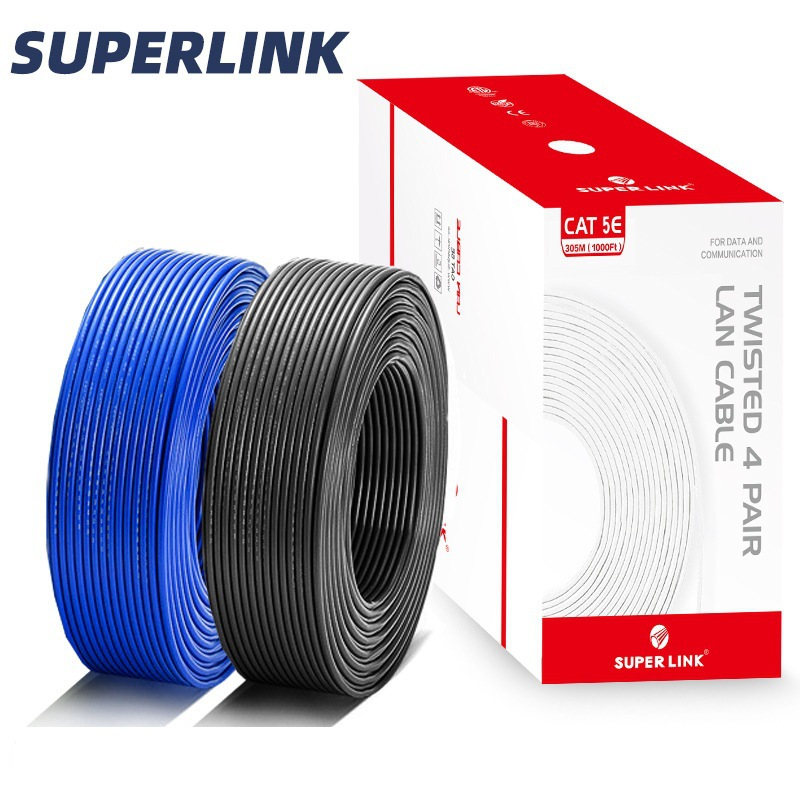

UL ETL CPR UTP LAN Cable 1000FT Packing 4 Twisted Pair Cat5e CAT6 CAT6A Network Cable
ApplicationSpecialized for structured cabling, language transmission, data signal spreading, and it can be appropriate for the network connection between the wireless device terminal like computer,TV,router,TV set-top box and other equipment. Apply to the current high bandwidth applications and inte......
Send Inquiry
Product Description
Application
Specialized for structured cabling, language transmission, data signal spreading, and it can be appropriate for the network connection between the wireless device terminal like computer,TV,router,TV set-top box and other equipment.
Apply to the current high bandwidth applications and intelligent solutions.
Technical Parameter
Specialized for structured cabling, language transmission, data signal spreading, and it can be appropriate for the network connection between the wireless device terminal like computer,TV,router,TV set-top box and other equipment.
Apply to the current high bandwidth applications and intelligent solutions.
Technical Parameter
| Frequency(100m) | RL | IL | DOP | Delay Skew | Next | PSNEXT | ACR-F | PS ACR-F |
| (MHz) | (dB) | (dB) | (ns) | (ns) | (dB) | (dB) | (dB) | (dB) |
| 1 | 20.0 | 2.2 | 570 | 45 | 65 | 62 | 61 | 61 |
| 4 | 23.0 | 4.2 | 552 | 45 | 56 | 53 | 48 | 48 |
| 10 | 25.0 | 6.5 | 545 | 45 | 50 | 47 | 41 | 41 |
| 16 | 25.0 | 8.4 | 543 | 45 | 47 | 44 | 36 | 36 |
| 20 | 25.0 | 9.3 | 542 | 45 | 45 | 42 | 34 | 34 |
| 31.25 | 23.6 | 11.6 | 540 | 45 | 42 | 39 | 31 | 31 |
| 62.5 | 21.5 | 17.0 | 538 | 45 | 38 | 35 | 25 | 25 |
| 100 | 20.1 | 22.0 | 537 | 45 | 35 | 32 | 21 | 21 |
| Note:The above transmission performance for the 100M, 20±2°C under the conditions tested. | ||||||||
