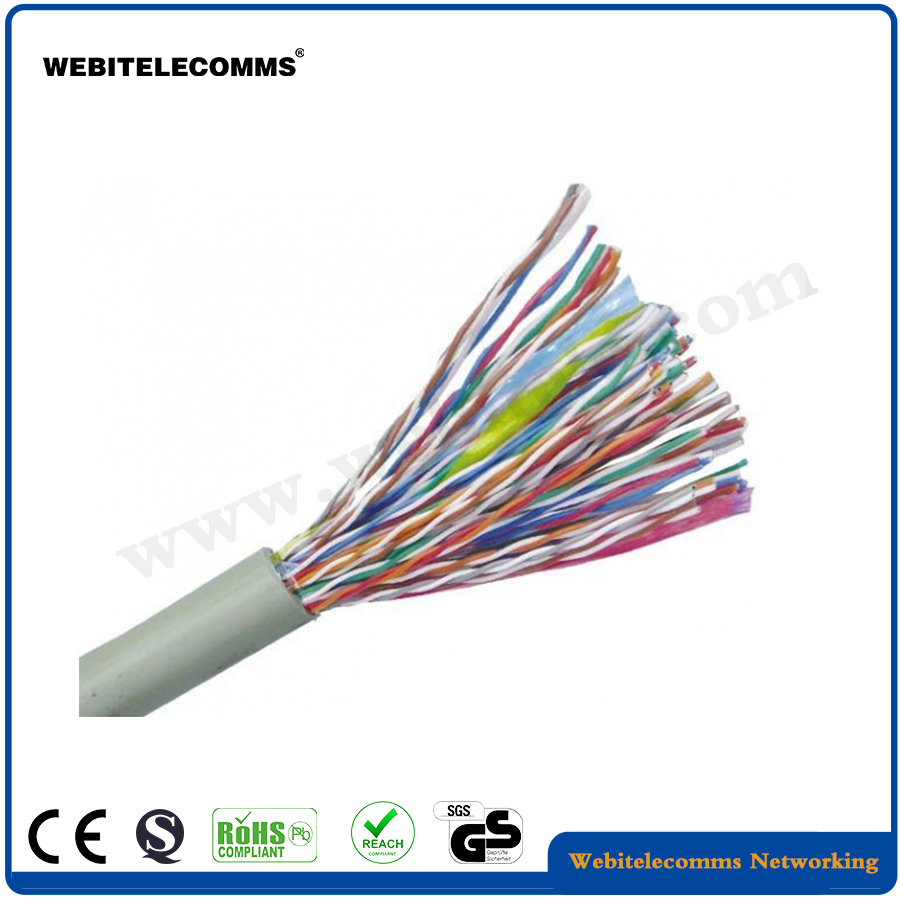

U/UTP Unshielded 25/50/100 Pair Cat 3 Network Cable

Product Description

Production describe and Specification:
U/UTP unShielded Cat5 CAT 3 Twisted 25/50/100 Pair Installation cable, HDPE Insulation;
Twisted in 25/50/100 pairs, PVC/LSZH Jacket

Appliacation

1. Exceeds requirements of ANSI/TIA-568-C. 2 Category 3 and ISO 11801 2nd Edition Class C channel standards.

2. Exceed requirements of ANSI/TIA-568-C. 2 Category 3 Component standards;

3. Descending length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.

4. Color Availability: Additional cable colors available.

5. Patent products: CN200920124769.9.

Mechanical Characteristics

Cable under the minimum tension ≥ 400N

Conductor elongation: ≥ 15%

Jacket before Aging

Tensile strength ≥ 13.5Mpa

Elongation≥ 150%

Jacket after Aging

Tensile strength ≥ 12.5Mpa

Elongation≥ 125%

Electronic Characteristics

Impedance: 1-16MHz 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 111 Ohms
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S

Assortment	Shieded	Describe
Cat 5e Installation cable	U/UTP unShielded	U/UTP unShielded Cat 5e Twisted 25/50/100 Pair Installation cable

Conductor
Conductor	Insulation	Qty of Conductor	Indiviual pair shied	Overall shield	Drain wire
Solid Bare Copper	HDPE	twisted in 25/50/100 pairs	none	none	none

	Outer jacket information
Item no	Outer jacket	overall diameter(mm)
D105-25-P	CMX	12.5±1.0
D105-25-L	LSZH	12.5±1.0
D105-25-E	LDPE	12.5±1.0
D105-50-P	CMX	17.2±1.0
D105-50-L	LSZH	17.2±1.0
D105-50-E	LDPE	17.2±1.0
D105-100-P	CMX	23.5±1.0
D105-100-L	LSZH	23.5±1.0
D105-100-E	LDPE	23.5±1.0

Nominal Transmission Characteristics
Frequence	RL	IL	DOP	SKEW	NEXT	PSNEXT	ACR-F	PSACR-F
(MHz)	(dB)	(dB/100M)	(ns)	(ns)	(dB)	(dB)	(dB)	(dB)
1	20	2.1	570	45	74.3	72.3	67.8	64.8
4	23.0	3.7	552	45	78	63.3	55.8	52.8
10	25.0	5.9	545	45	78	57.3	47.8	44.8
16	25.0	7.4	543	45	78	54.2	43.7	40.7
20	25.0	8.3	542	45	78	52.8	41.8	38.8
31.25	23.6	10.4	540	45	78	49.9	37.9	34.9
62.5	21.5	14.9	539	45	75.5	45.4	31.9	28.9
100	20.1	19.0	538	45	72.4	42.3	27.8	24.8
200	18.0	27.5	537	45	67.9	37.8	21.8	18.8
300	17.3	34.2	536	45	65.2	35.1	18.3	15.3
400	17.3	40.0	536	45	63.4	33.3	15.8	12.8
500	17.3	45.3	536	45	61.9	31.8	13.8	10.8
Note: The above transmission performance for the 100M,20±2 degree under the condition tested
