China Tinned Copper Conductor and PVC Over Jacket Coaxial Cable Rg174/Rg58/5D-Fb/LMR100/LMR400

Product Description

CoaxialCable (RG174/RG58/5D-FB/LMR100/LMR400)

Type: TRC-75-2

Specification, please see the following tables.

Application:

Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The mechanical, thermal and electronic properties of coaxial cables mean that they can be used up to the Ghz levels, as per cable type.

Futher types and details or special orders are available on request.

If you are interested in our products, please contact with us!

Also, you can tell us your requirements, and we can produce for you.

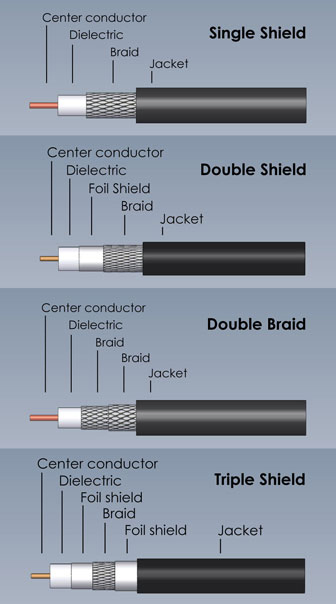

Structure
1. Inner Conductor	Material	TC (Tinned Copper)
1. Inner Conductor	Construction	7/0.16
2. Insulation	Material	PE
2. Insulation	Diameter (mm)	2.95
3. Inner Conductor	Braid Material	TC (Tinned Copper)
3. Inner Conductor	Diameter (mm)	3.55
4. Inner Jacket	Material	PE
4. Inner Jacket	Diameter (mm)	4.45
5. Outer Conductor	Braid Material	TC
5. Outer Conductor	Diameter (mm)	5.10
6. Over Jacket	Material	PVC
6. Over Jacket	Over Diameter (mm)	6.22

Electrical Characteristics

Item	Spec.Value
Capacitance (PF/m)	50.52
Impedance (Ω)	75
Velocity (%)	66
Bending radius (mm)	32
Max.operating voltage (V)	2000
Max.operating frequency (MHZ)	3000
Operating Temperature (ºC)	-40 to 80
