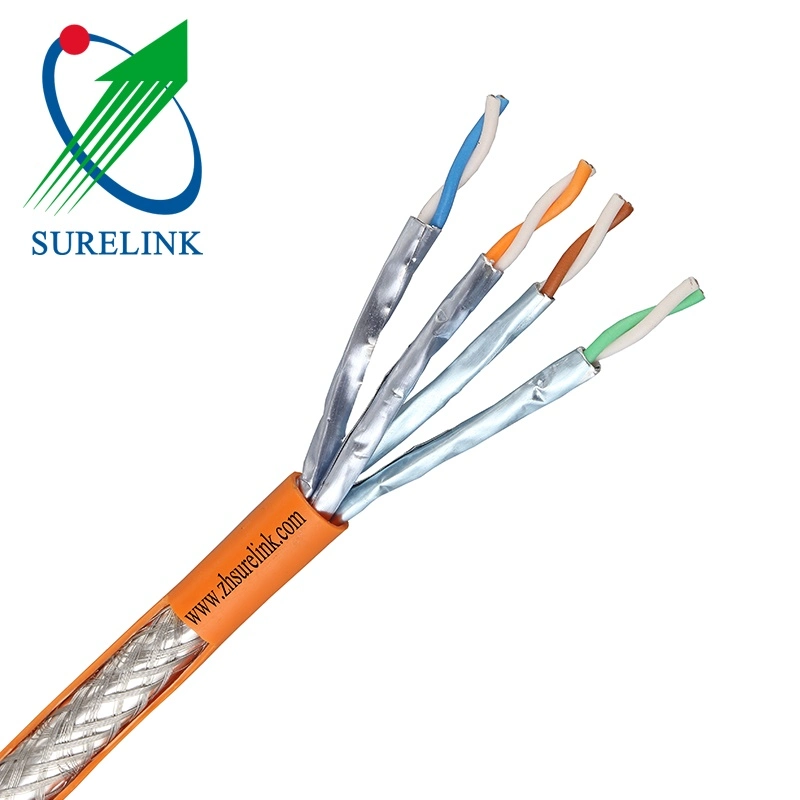

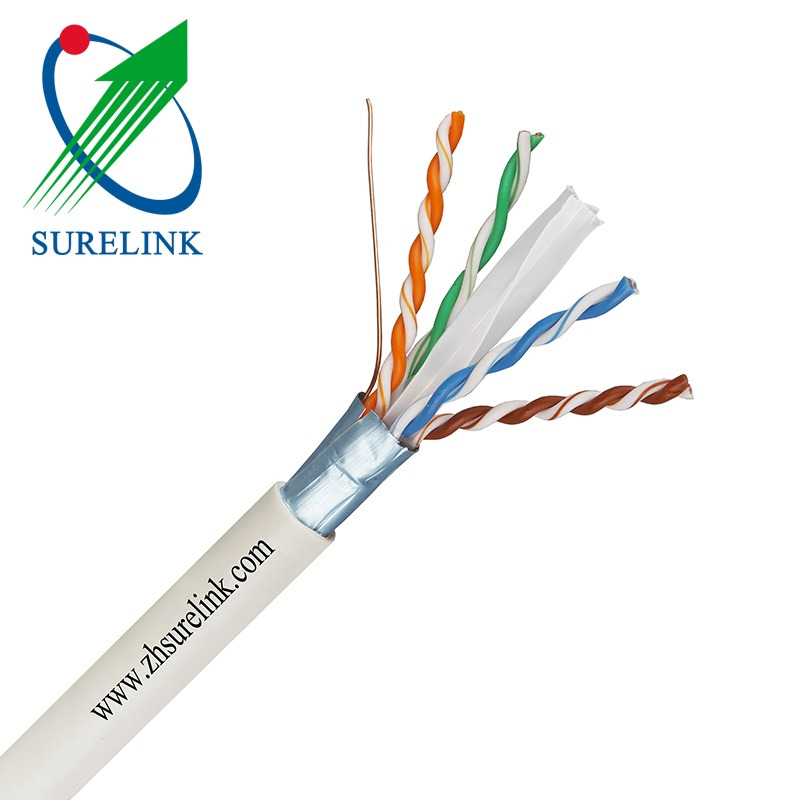

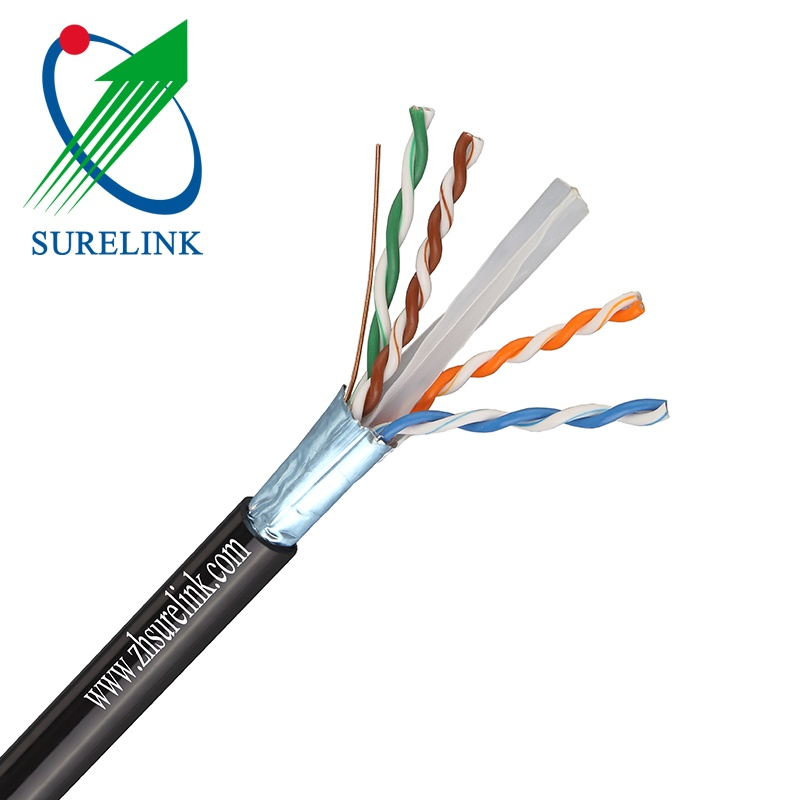

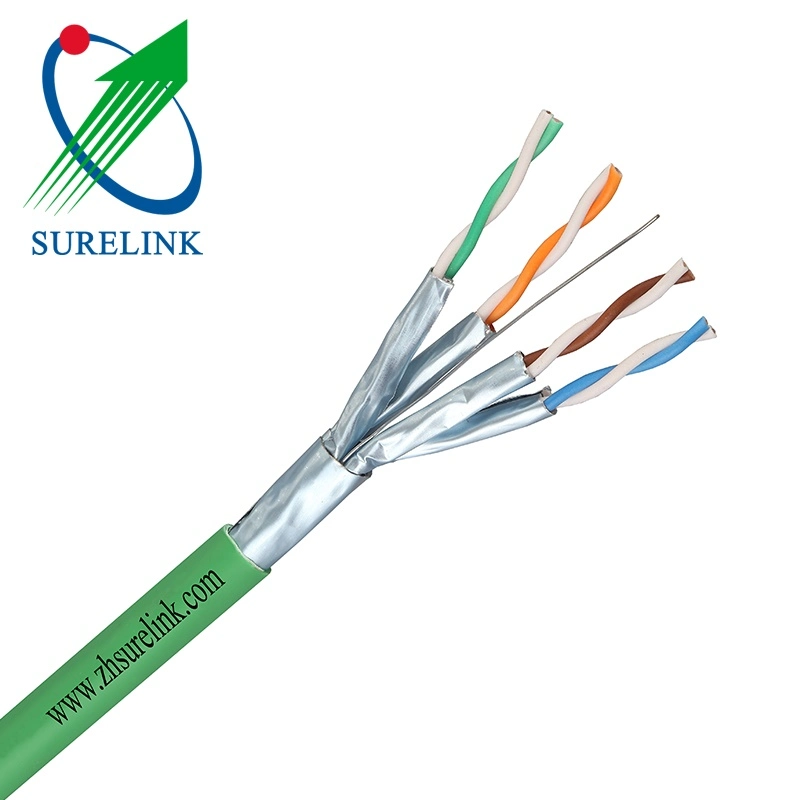

Surelink Indoor Shield 4pair 23AWG 510MHz LSZH 305meters Network Cable Bare Copper FTP CAT6A LAN Cable Futp CAT6A or F/UTP CAT6A
SURELINK Indoor shield 4pair 23awg 510Mhz LSZH 305meters network cablebare copper FTP CAT6A lan cable FUTP CAT6A or F/UTP CAT6ACable Overview 1. Conductor : solid bare copper AWG232. Insulation : PE Skin Foam Skinor solid PE insulation3. Individual shield : Aluminum/Polyester foil - coverage ......
Send Inquiry
Product Description
bare copper FTP CAT6A lan cable FUTP CAT6A or F/UTP CAT6A

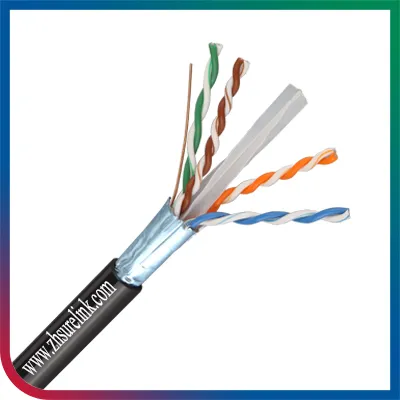

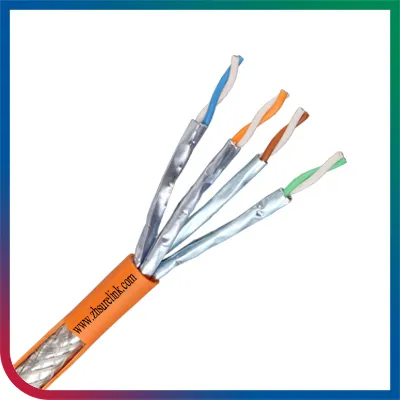

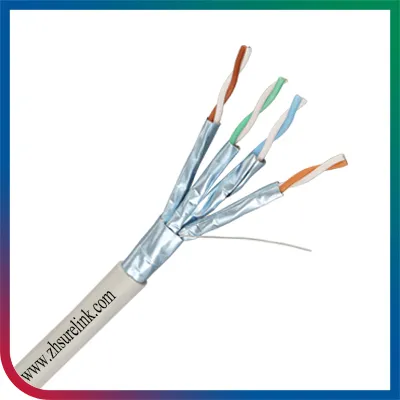

| Cable Overview |
1. Conductor : solid bare copper AWG23
2. Insulation : PE Skin Foam Skinor solid PE insulation
3. Individual shield : Aluminum/Polyester foil - coverage 110%
4. Drain wire : Solid tinned copper
5. General shield : Aluminum/Polyester tape - coverage 110%
6. Outer sheath : LSZH
Appliacation
Ethernet Base T up to 10Gbits/s TOKEN RING 4/16 MBITS
ISDN ATM 155, 622Mbits/s &1.2Gbits
IEEE 802.3 af /at : PoE and PoE+
Standard
CABLE:IEC 61156-5 CAT6a
SYSTEME:ISO / IEC 11801 Ed2.2 Class Ea
Electrical Properties
Max linear electrical resistance:95 ohm/Km
Mutual capacity (nom):45 pF/m
Characteristic impedance:100 +/- 15ohm
Nominal Velocity Propagation:66%
ENVIRONMENTAL PROPERTIES
IEC 60332-1
Operating Temperature:-20°C / +70°C
Minimum bending radius:8 x cable diameter
Compliant to RoHS
Transmission Performances@20°C
Cable 4pairs
DESCRIPTION | EXTERNAL DIAMETER | PACKING |
CAT6A CABLE F/UTP 4PAIRS LSZH | 7mm | DRUM 500M |
CAT6A CABLE F/UTP 4PAIRS LSZH | DRUM 1000M |
Cable 2x4 pairs
DESCRIPTION | EXTERNAL DIAMETER | PACKING |
CAT6A CABLE F/UTP 2X4PAIRS LSZH | 7x14.5mm | DRUM 500M |
CAT6A CABLE F/UTP 2X4PAIRS LSZH | DRUM 1000M |

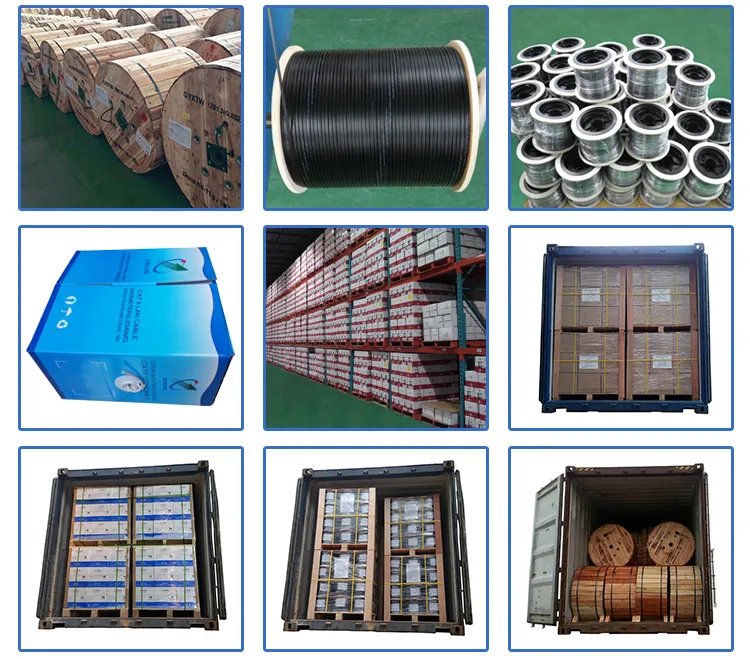

| Related Package |
Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers

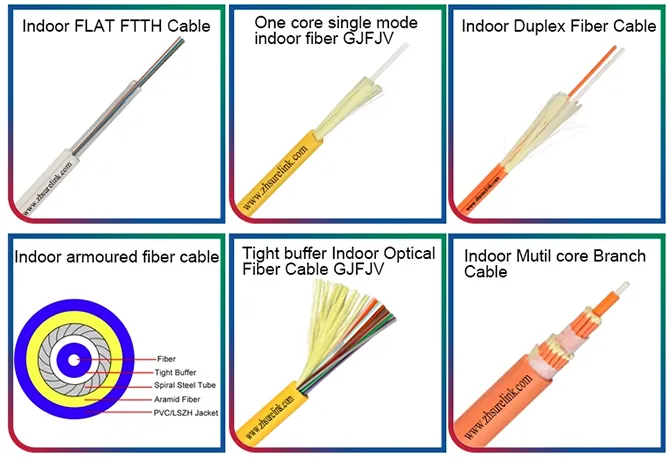

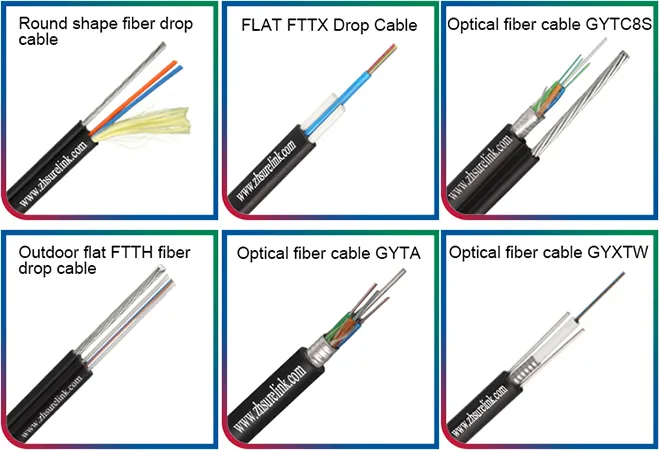

| Related Hot Models |
| Manufacturer Introduction |
Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables
and telecom accessories. We have more than 20 years experience in this line.Our factory has over
twenty production lines and 300 employees.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look
forward to woking with all clients from all over the world.
OEM and ODM order highly welcome !

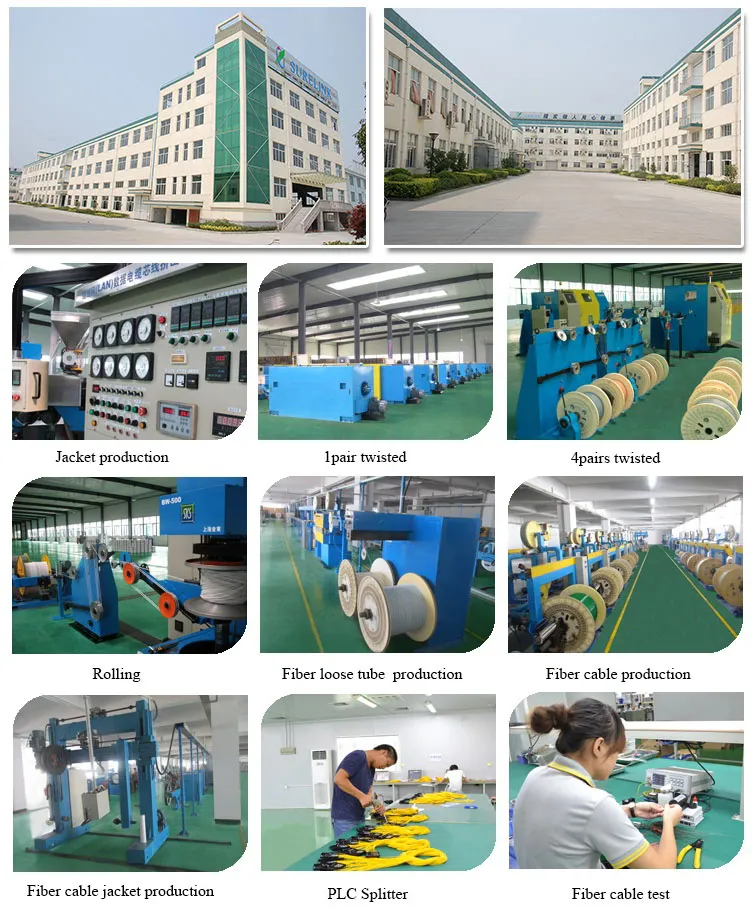

| Workshop and Company Show |

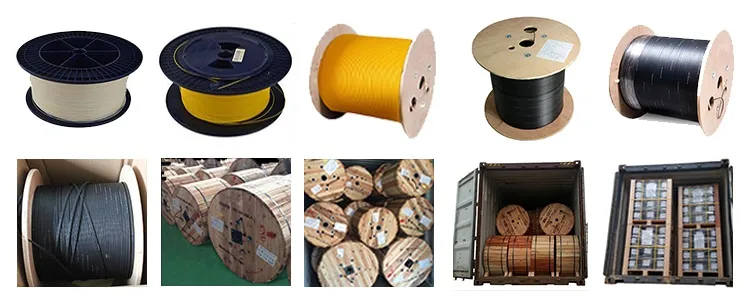

| Package and Delivery |
| Payment and Shipping |
Payment
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
Shipping
If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,
FEDEX or EMS.
For big order,we will ship the goods by air or by sea.
