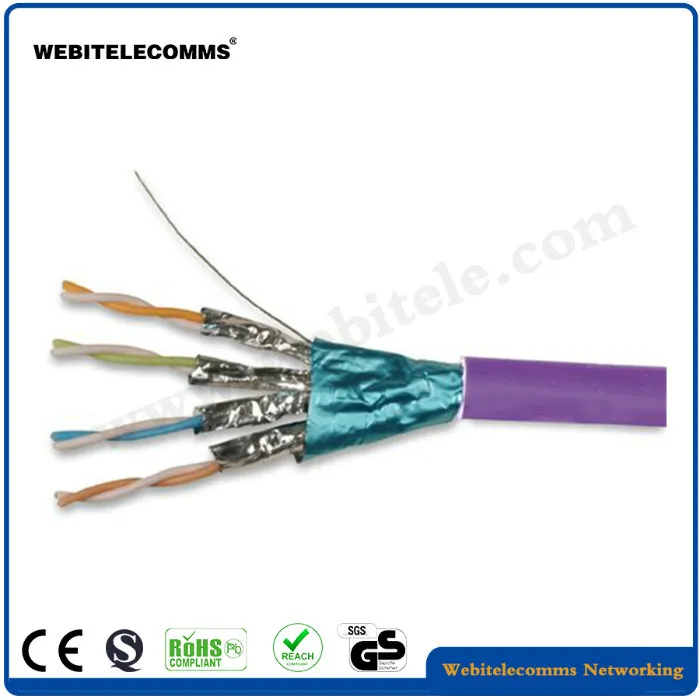

SFTP Cat7 Networking Cable

Product Description

=Overview=

High-performance data cable, application structured cabling, CCTV system, Alarm system, Telecom project etc.

Can be used for voice, integrated service data network (ISDN)

Long transmission distance,small transmission loss, wear resistance,resistance to pressure.
Meet ANSI/EIA/TIA 568-B.2-1 requirements
Fire protection -CMX

Application:

The wires are intended for voice, text, data, video, and image transmission.

10 GBASE-T ETHERNET
1000 BASE-Tx GIGABIT ETHERNET
10 BASE-T, 100 BASE-T FAST ETHERNET
100 VG-AnyLAN, 155/622 Mbps ATM
550 MHz Broadband Video

Their transmission characteristics are specified for frequencies up to 600MHz.

1. SPECIFICATION

1) CONDUCTOR

* Raw material of the conductor: solid bare copper

* Conductor Dia.: 0.585±0.003mm (23AWG)

2) INSULATION

* Raw material of the conductor: F-PE

* Quantity:4 twisted pairs

Blue/white-blue; Green/white-green;

Orange/white-green; Brown/white-brown;

* Insulation Dia. : 1.45±0.005mm

* Average thickness: 0.4325 mm

Minimum point thickness: 0.43mm

3) TWISTED PAIRS SCREEN: Aluminum foil

4) OVERALL SCREEN

* Raw material of the screen: 96/0.10mm TC wire braiding

* Coverage rate:≥40%

5) JACKET RIP CORD: Nylon thread

6) SHEATH

* Sheath material: LSZH or PVC

* Nominal Dia.: 7.5 ± 0.2mm

* Average thickness: 0.65mm

* Minimum point thickness: 0.55mm

2, Mechanical Properties

Conductor insulation material: halogen free Foam/Skin material

Cable jacket material: halogen-free, flame-retardant material

Application area: dray as well as humid rooms

Temperature (moved): 0°C to 50°C

Operating temperature: -20°C to +60°C

Min. bending radius for one-time bending: 4×O.D.

Min. bending radius during installation: 8×O.D.

3, Electrical properties

Loop impendence: 130 W/km

Highest impendence difference: 2%

Insulation resistance >5000 MW x km

Impendence Z0 at 1 500MHz: 100 W ± 15%

Impendence Z0 at 1 350MHz: 100 W ± 18%

Impendence Z0 at 1 600MHz: 100 W ± 25%

Surface transfer impendence: < 100 MW per Meter at 10MHz

Earthing symmetry db/BZL = 1000m > 46dB at 64kHz

Earthing symmetry db/BZL = 100m > 40dB at 1MHz

Earthing symmetry db/BZL = 100m > 20dB at 100MHz

Mutual capacitance: 43pF/m

Highest earthing-coupling: 0,001MHz: 1000 pF/km

Propagation speed at > 10MHz (NVP*c): 0,79c

Signal propagation delay >10MHz: 4,2ns/m

Skew: <25ns/100m

SFTP Cat7 Networking Cable

Model	SFTP CAT7 CABLE
Conductor Size	23 AWG/24 AWG 0.45mm/0.48mm/0.49mm/0.5mm/0.51mm/0.56mm/0.58mm
Conductor Material	BC/CU/CCA/CCAG
Number Of Conductor	4Pairs, 8cores
Shield	UTP/FTP/STP/SFTP
PVC Jacket Color	As client's requests
Jaeket Material	Common PVC /New PVC /ROHS/ LSZH/ CM/ Outdoor
Marking On Jacket	On your request (Print your brand)
Waterblock Tape	Yes
Package detail	305M/box (According to requirements)
