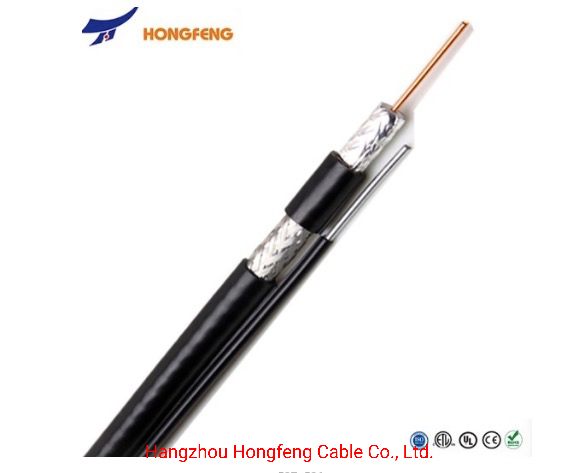

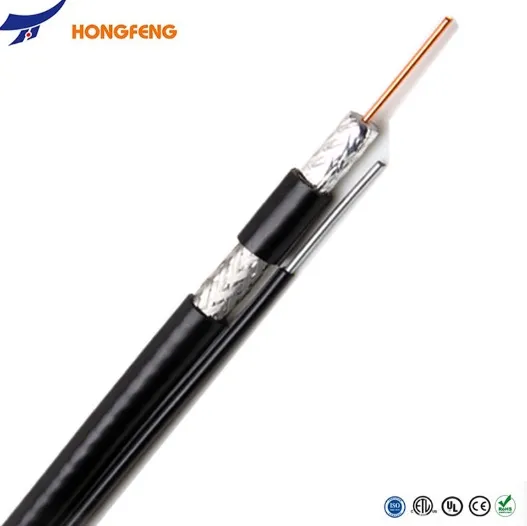

RG6 Series CCTV Coaxial Power Wire Camera Video Cable


INNER CONDUCTOR
·Material: Copper Clad Steel
·Diameter: 1.02mm

DIELETRIC CORE
·Material: Physical Foamed PE
·Diameter: 4.57mm

BRAID
·Material: Aluminum Alloy
·Form: 16 ×4× 0.12mm (Coverage: 60%)
      16 × 8 × 0.12mm (Coverage: 90%)
      16 × 9 × 0.12mm (Coverage: 95%)

FOIL
·Material: Aluminum/Pet/Aluminum
·Breadth: 18mm
·Thickness: 15/12/15μ
·Coverage: >110%

JACKET
·Material: PVC (white or black )
·Diameter: 6.91mm
IMPEDANCE
·75 Ohm ± 3 Ohm

NOMINAL CAPACITANCE
·51.2 pF/m ± 2 pF/m

VELOCITY RATIO
·82%

MESSENGER MIN STRENGTH
·180LBS
SPARKER TEST
4000VAC
STRUCTURAL RETURN LOSS
 5-1000 MHz :-20dB



APPLICATION FOR COAXIAL CABLE RG59 RG6

1.CATV-community antenna television;

2. CCTV-closed-circuit television;

3. DBS-direct broadcasting satellite.
