RG6 Bc CCS Center Conductor Electric Copper Wire CCTV CATV Coaxial Cables
RG6 BC CCS Center Conductor Electric Copper Wire CCTV CATV Coaxial Cables Product DescriptionCOAIXAL CABLE* Duble shield* 60%-90% BraidRG59 cable is the most cost efficient and reliable way of connecting your CCTV video surveillance system. Our RG 59 cable comes with dual shielding, including a 90% ......
Send Inquiry
Product Description
COAIXAL CABLE

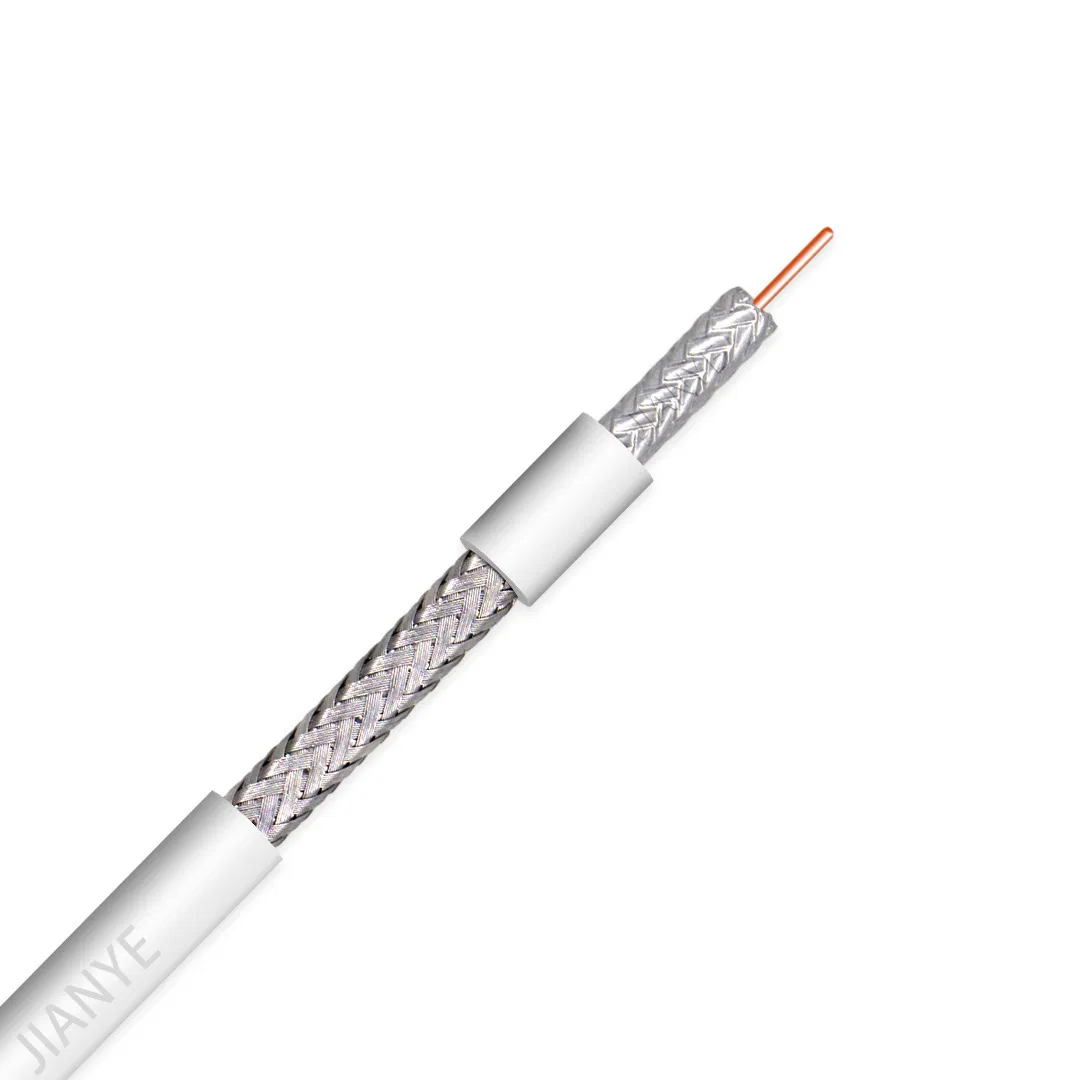

* Duble shield
* 60%-90% Braid

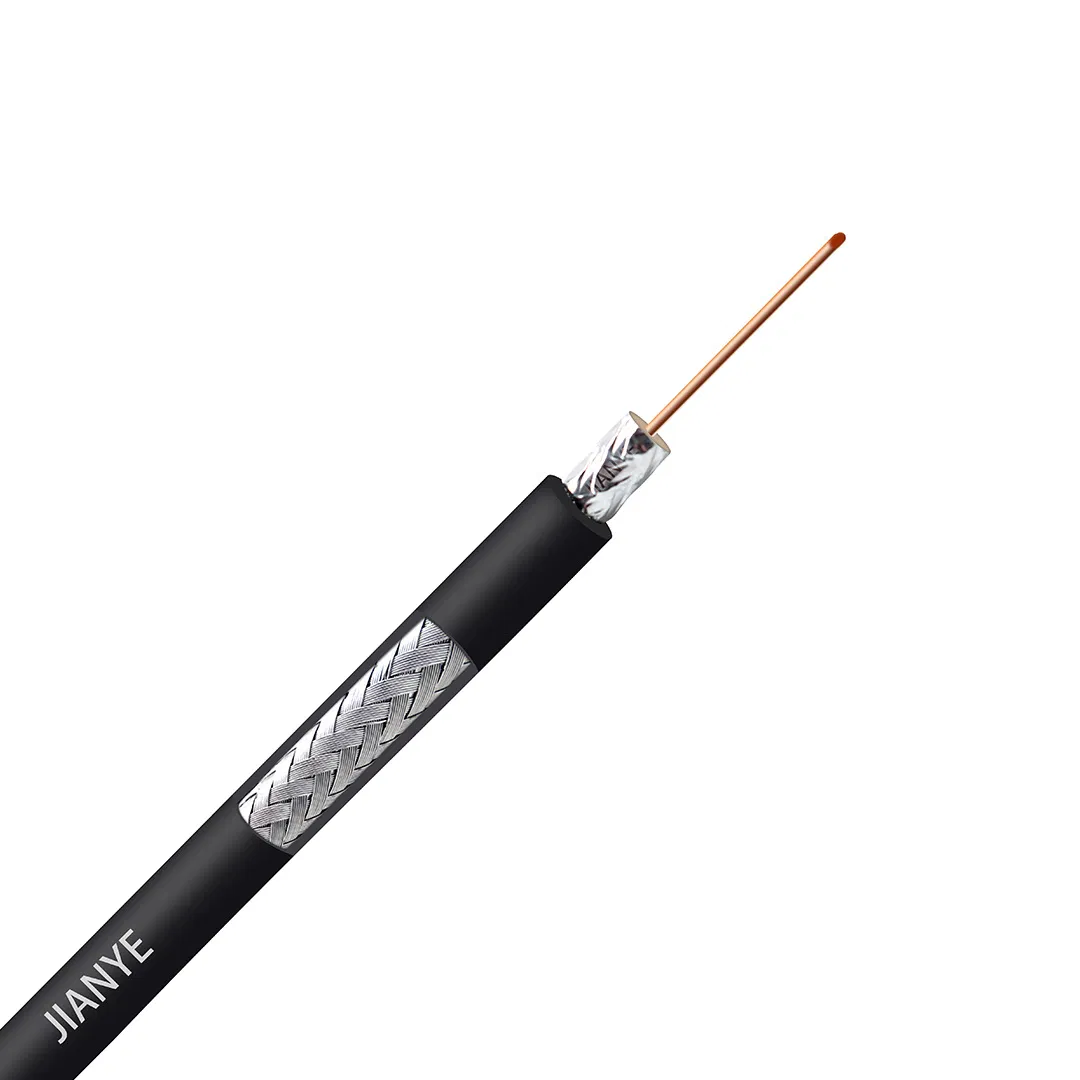

RG59 cable is the most cost efficient and reliable way of connecting your CCTV video surveillance system. Our RG 59 cable comes with dual shielding, including a 90% braid, to give you great signal quality by protecting your signal from electromagnetic interference (EMI).
RG 59 cable now includes the highest percentage braid on the market (90%). Putting that together with a bonded foil shield ensures that this product will outperform quad shielded RG 59 cable.
* Rated for 75 ohms

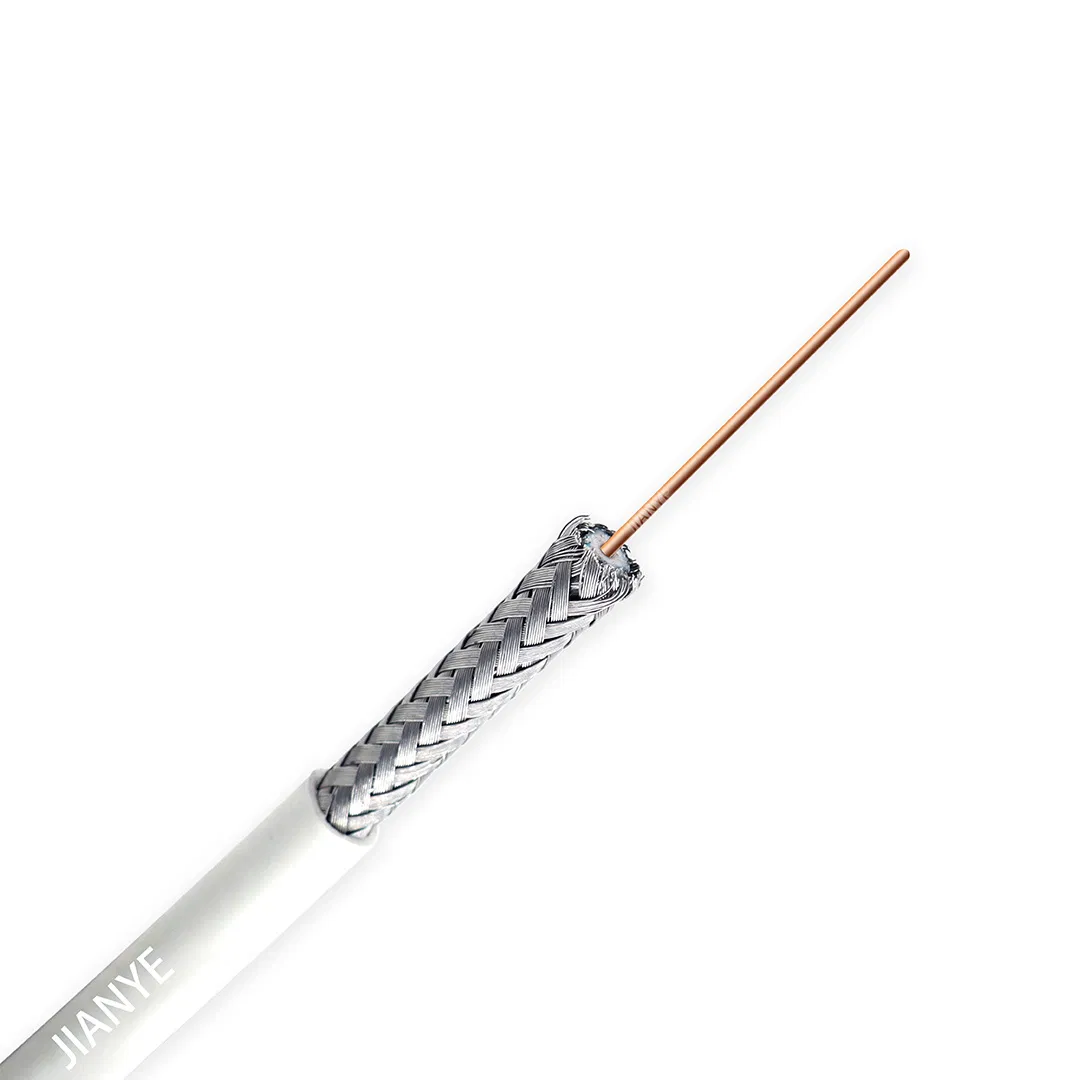

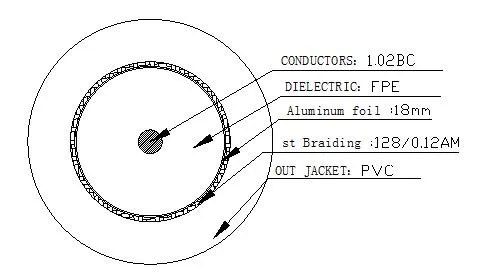

* BC or CCS Center Conductor
Best Used For
* CCTV Video Surveillance Systems
Dielectric Adhesion | >20N/5cm | |
Breaking Strength of Messenger | 1.30mm 82kgf;1.83mm 166kgf | |
Impendence | 75±3 Ohm | |
Capacitance | 50±3.0 nf/KM | |
Return Loss (100% swept) | 1~470MHz | ≥22dB |
470~1000MHz | ≥20dB | |
1000~2200MHz | ≥18dB | |
