RF Connector Right Angle P/Cable 5D- Fb Corrugated Coaxial Cable

RF Connector Right Angle P/cable 5d-fb Corrugated Coaxial Cable

Specification & Constructure

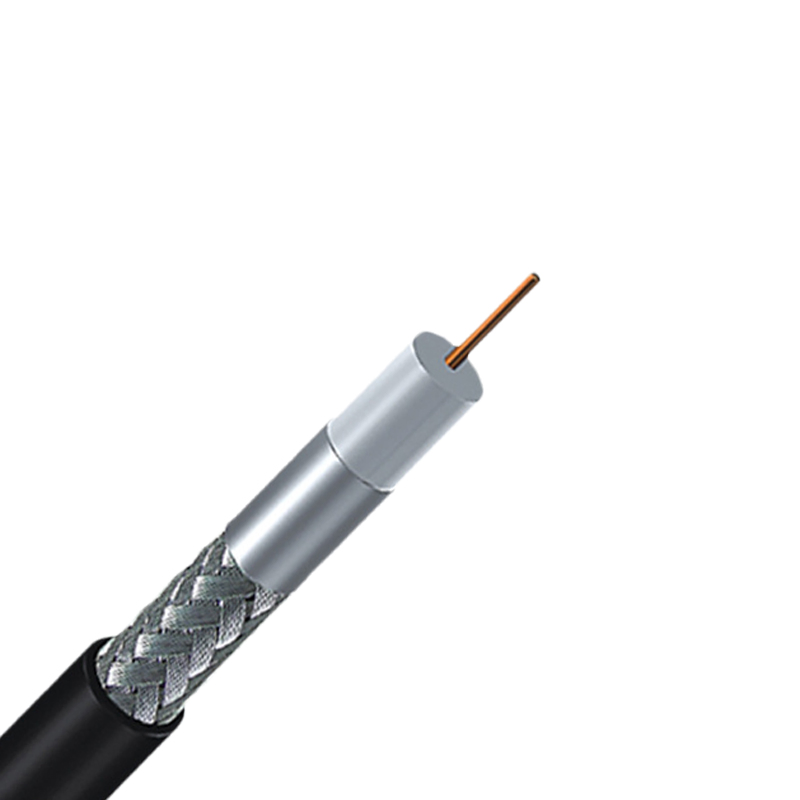

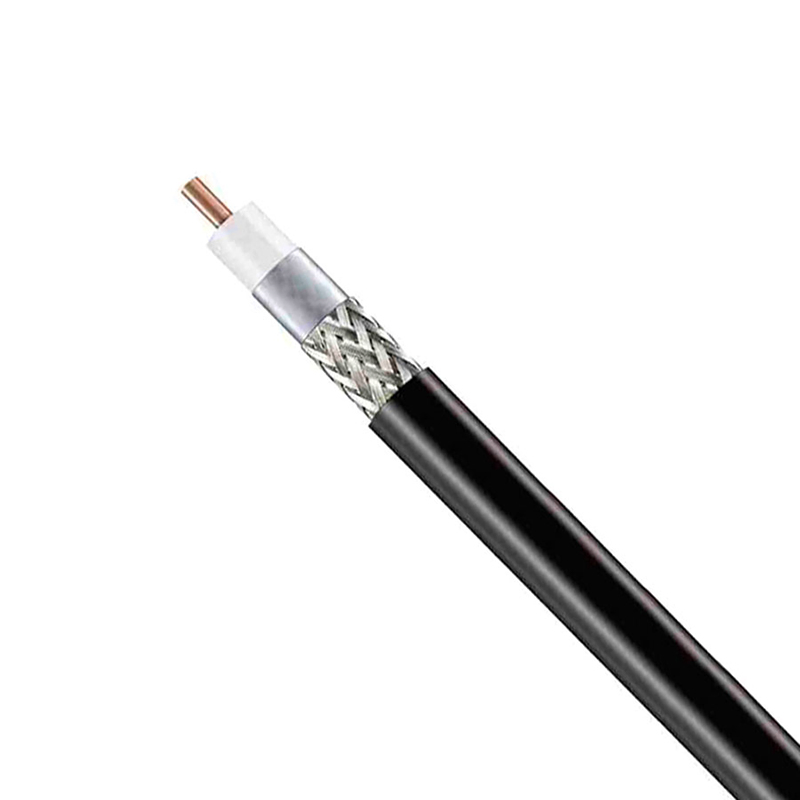

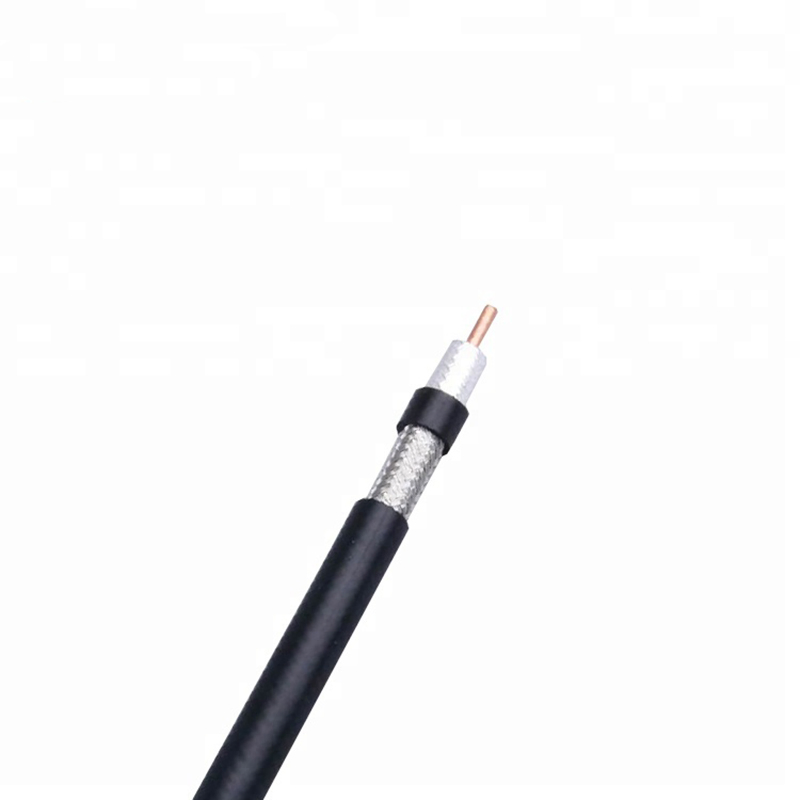

1) Construction
Center Conductor: 1.80 Solid Bare Copper Clad Aluminum or BC
Dielectric: 5.80mm foam PE
Shield: Boned APA (double Aluminum foil)
Braid Coverage: 85% Tinned Copper wires
Jacket: 7.50mm PVC

2) Characteristics
Sparker Test: 2000VAC
Dielectric Strength: Conductor to Shield: 3 Sec. @10000 VDC
Impedance: 50+3Ohm
Capacitance: 29.5+3pF/Ft (Nom. )
Velocity of Propagation: 87%
DCR: Conductor: 1.87 ohms/1000Ft
SRL: 15dB (10 to 300 MHz) Swept Tested
Shielding effectiveness dB> 90

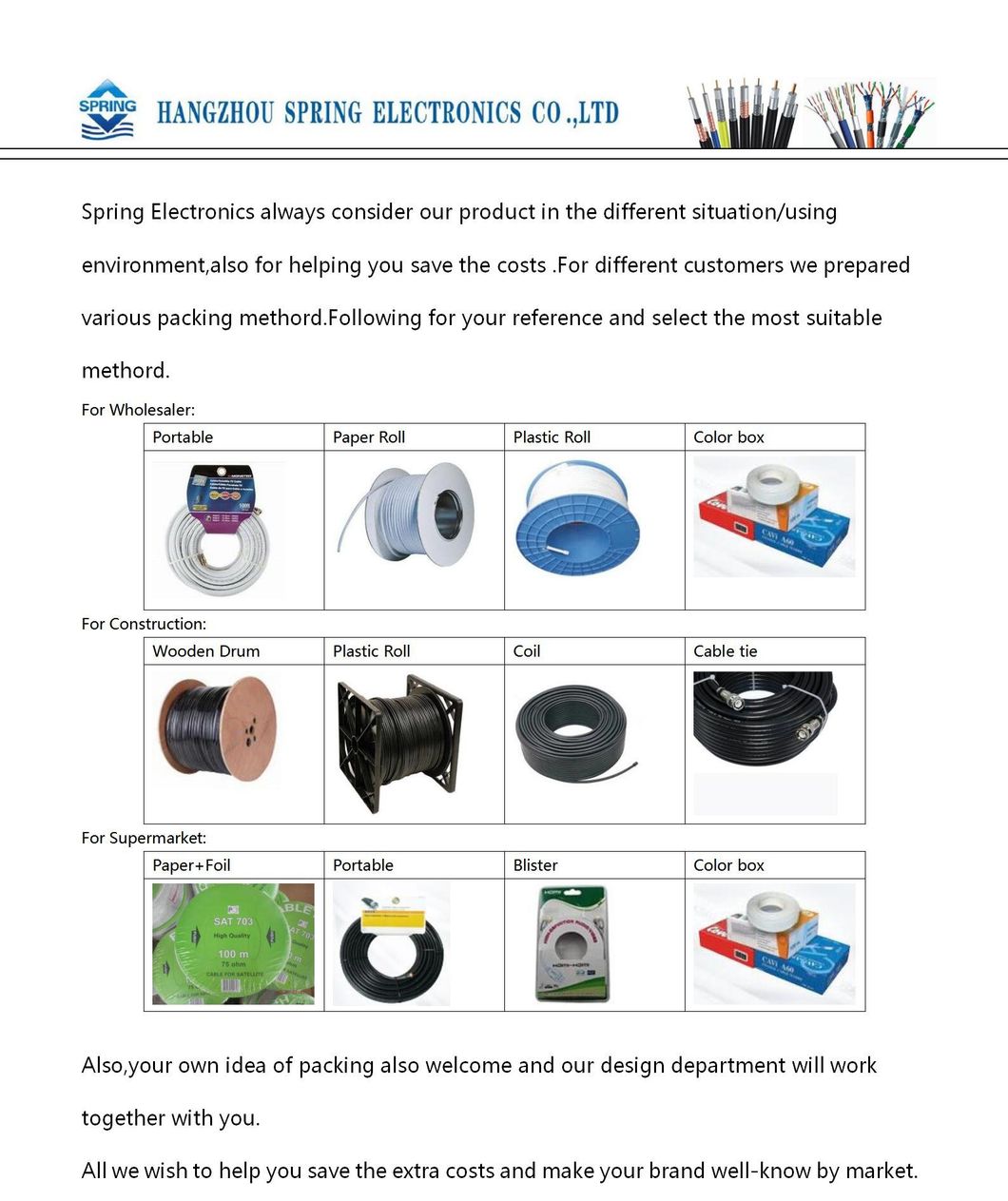

3) Packing
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll,
300yard/roll. Other lengths according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request

4) Applications:
@ Wireless Local Loop (WLL)
@ Land Mobile Radio (LMR)
@ AP, Bridges or CPE
@ Local MultiPoint Distribution System (LMDS)
@ MMDS
@ Personal Communication Systems (PCS)
@ Indoor or Outdoor Use
@ Direct Bury or Tower Use
@ Fixed Wireless
@ GPS WLAN WISP SCADA

5) Attenuation Sheet @ 20 degree

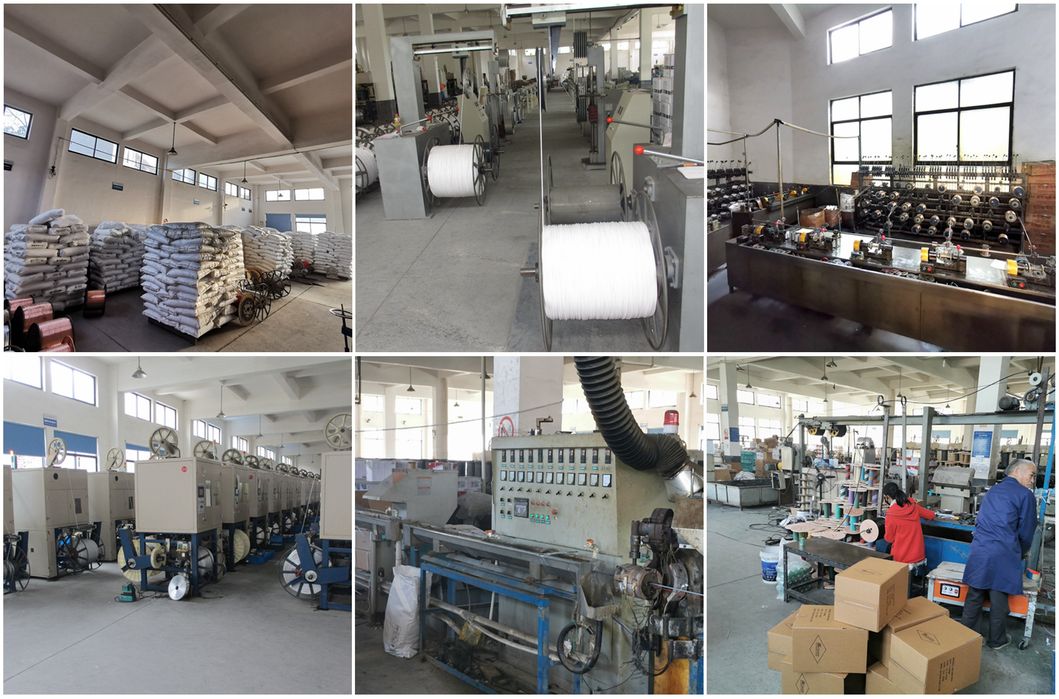

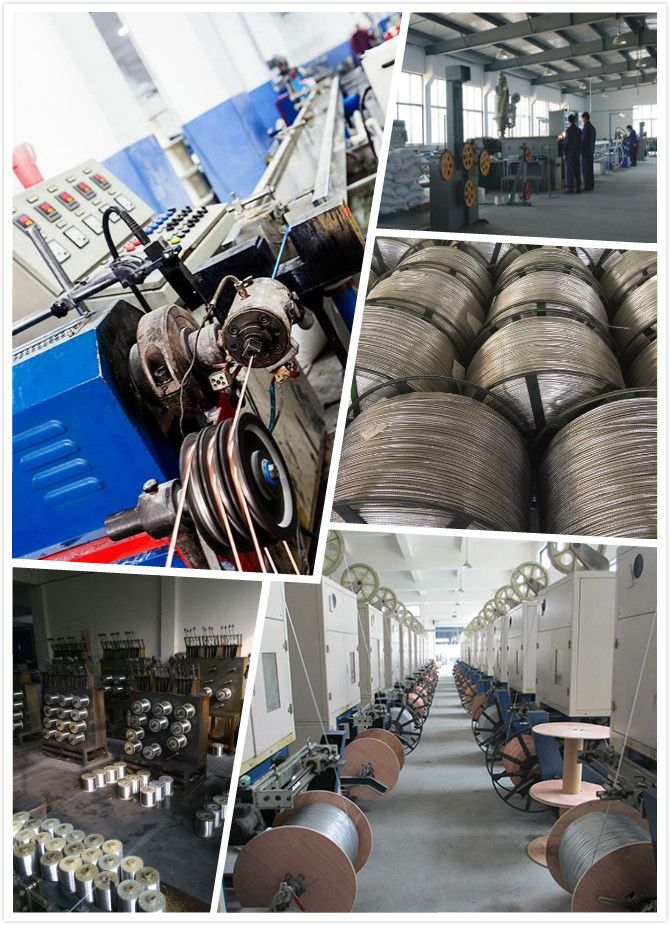

Factory photos and production process





Our Service:

   1) Quick Response --All inquiries will be replied within 24 hours.
   2) Professional Quotation --All prices will be quote according to customers' detailed
   specifications & requirements.
   3) OEM & ODM Service
   4) Can print your own brand on the jacket printing with foot or meter marking.
   5) Make customized designs for stickers, drums, outer cartons, etc.
   6) Stable Quality --All materials and products passed restrict QC procedures,comply with
   international standards.
   7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
   Confirmation in usual.

Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.

FAQ:

Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
