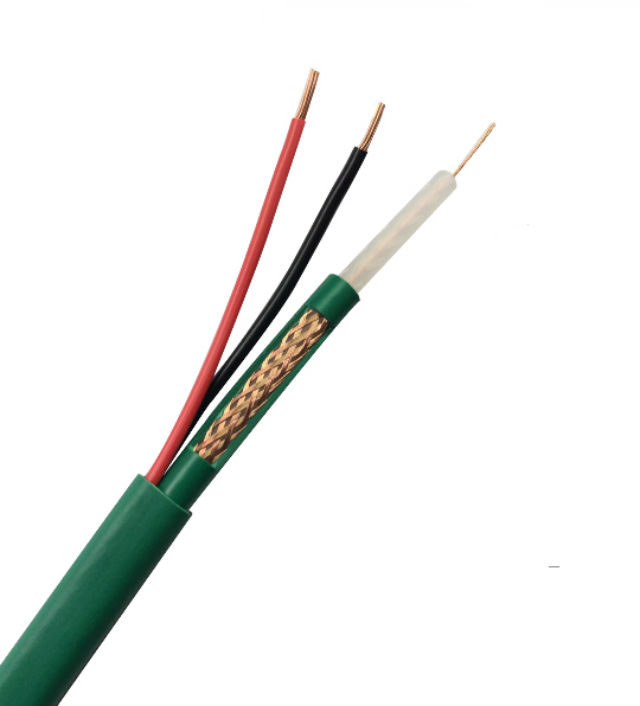

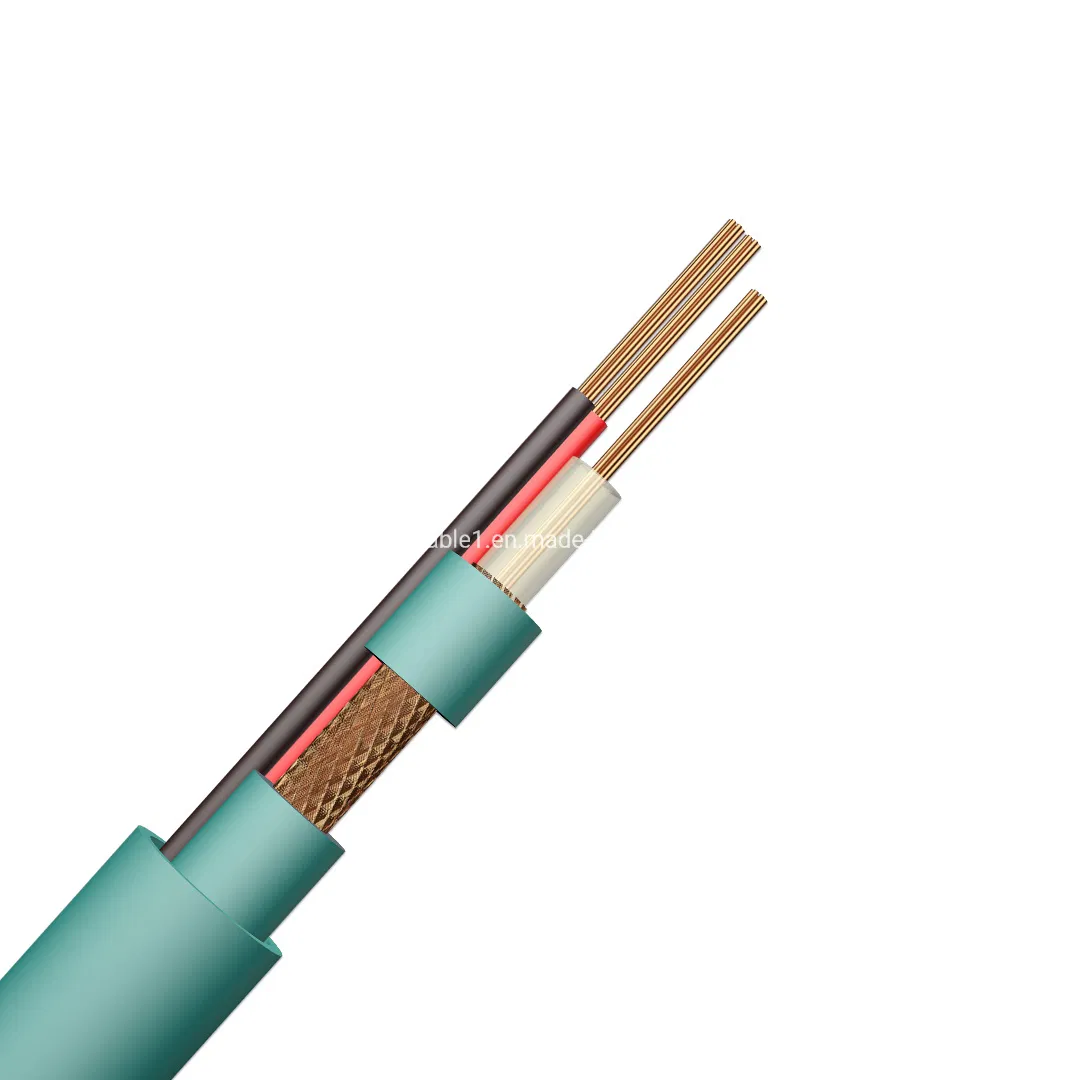

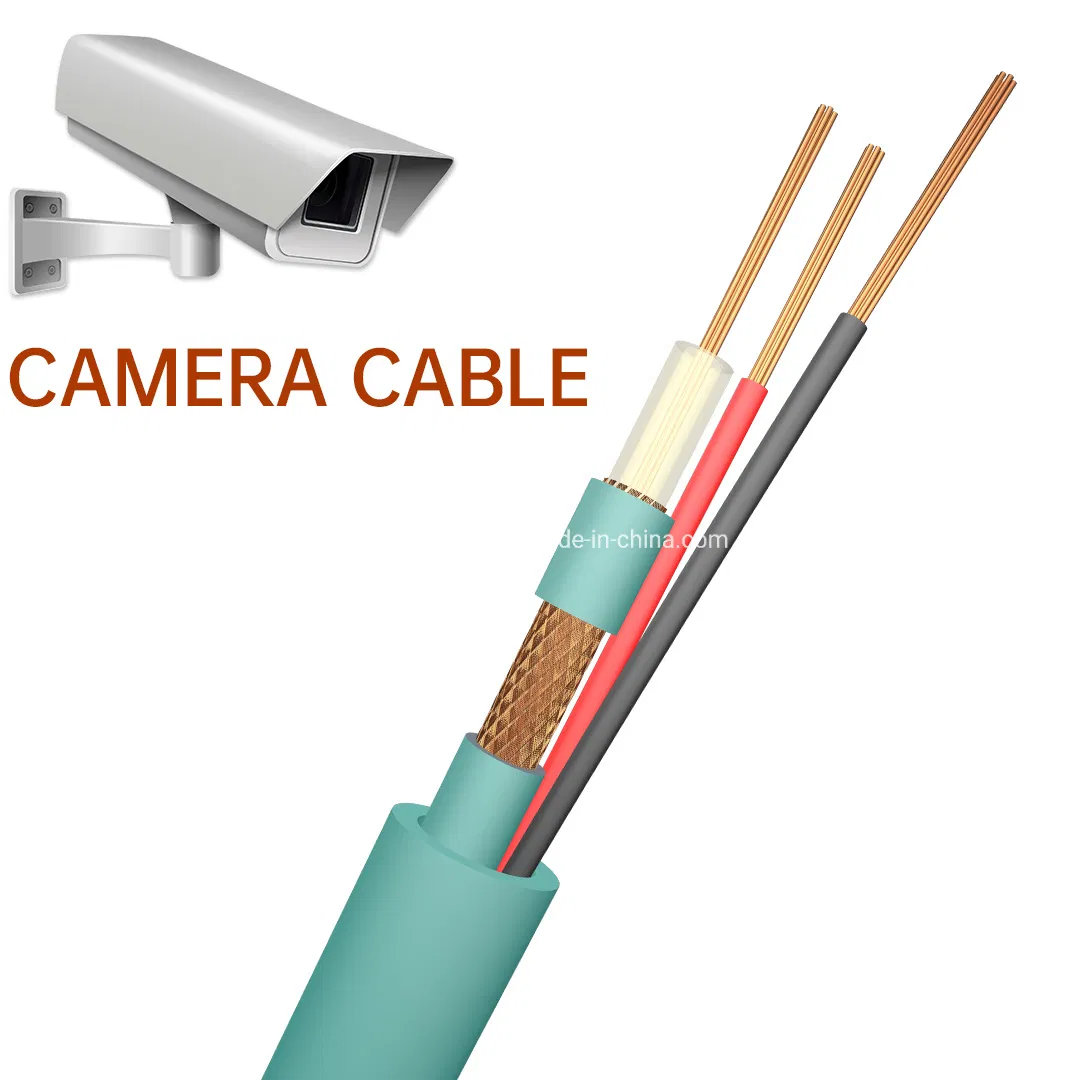

Popular Kx6 Kx6a CCTV Camera Cable Coaxial Cable Kx7 +2c with Power
Product Description Morroco Alegira France popular 100m 300m 500m Kx6 Kx6a Kx7+2C 112 128 Braiding CCTV Camera use coaxial Cable KX7 Inner Conductor (mm): 7*0.20mm BC Dielectric (mm): 3.66± 0.10 SPE Shield:CCA/AL Braids 128*0.12CCA Power wire:2*7*0.38 mm CCA ......
Send Inquiry
Product Description

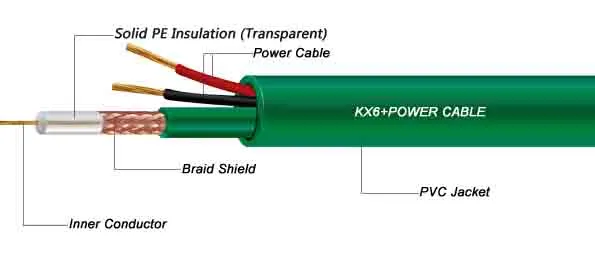

Dielectric (mm): 3.66± 0.10 SPE
Shield:CCA/AL Braids 128*0.12CCA
Power wire:2*7*0.38 mm CCA
Power Jackets: Black & Red PE
Big Out PVC Jackets Green color

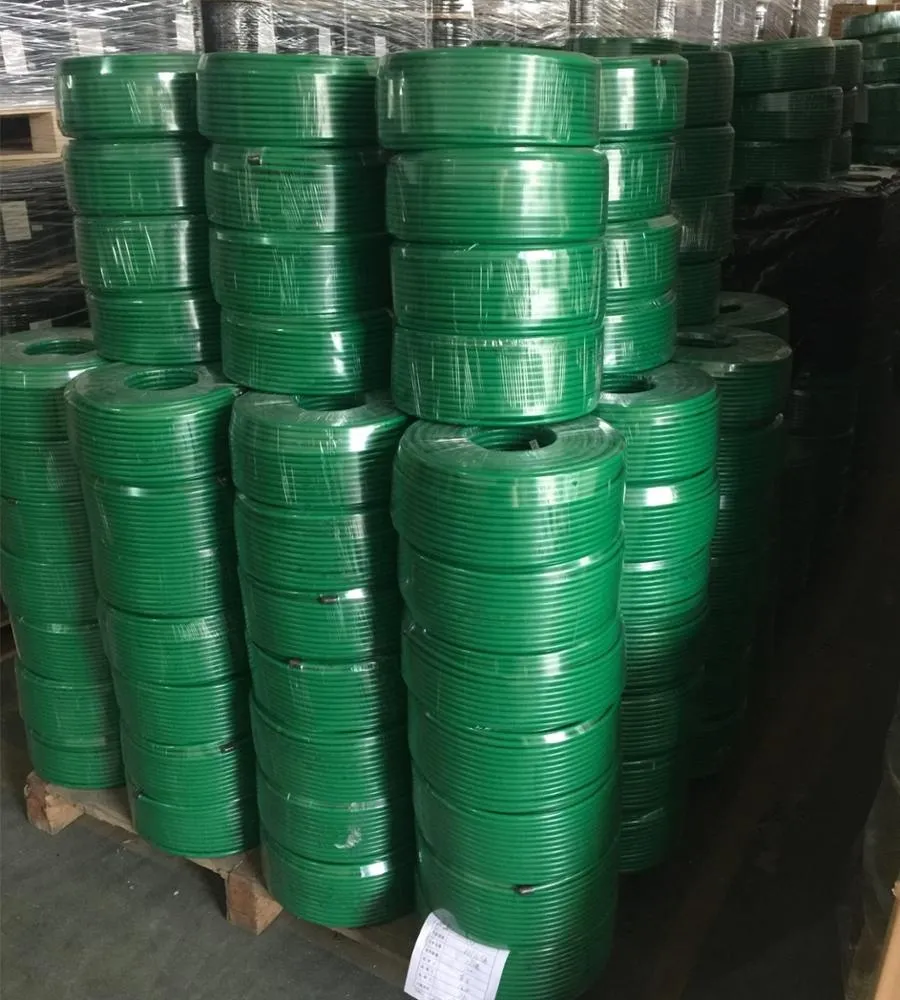

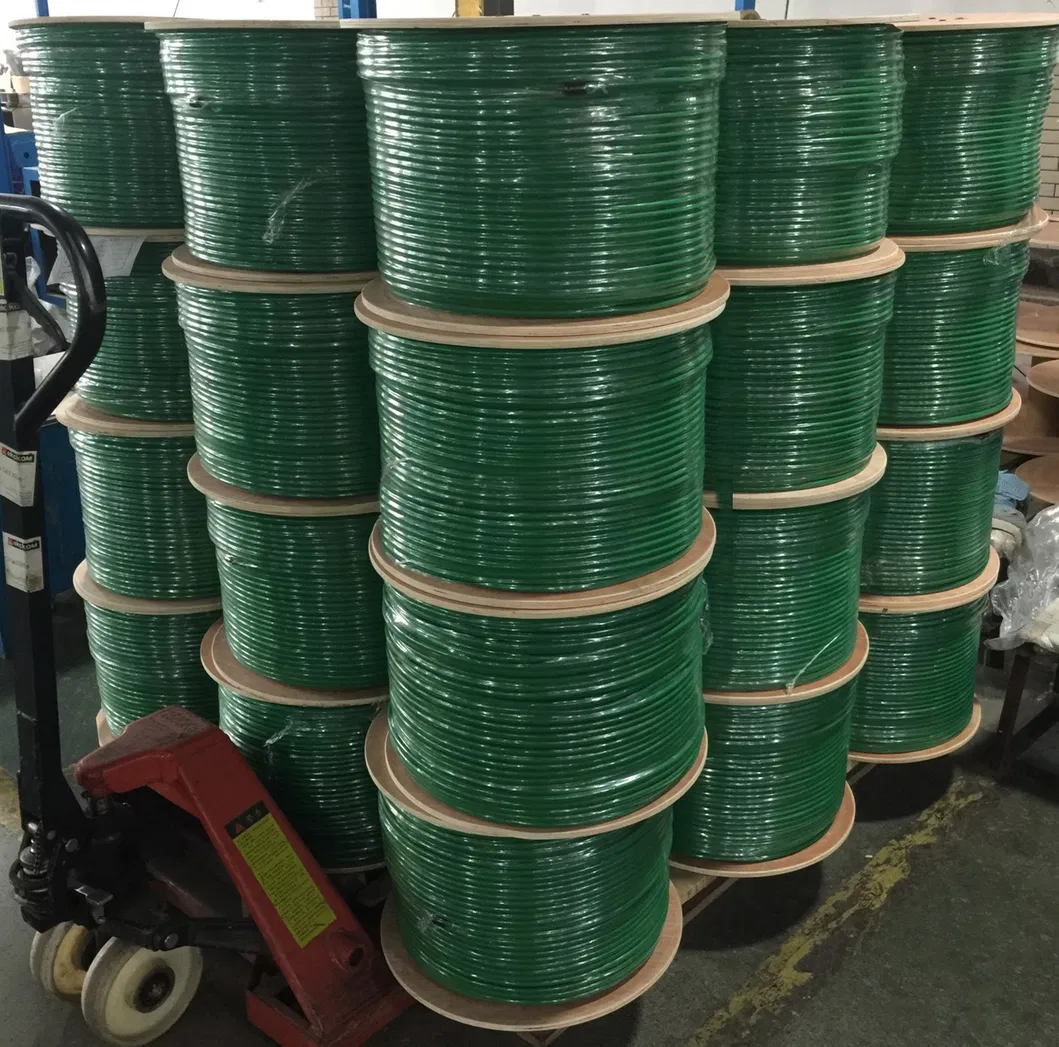

Packing : 100M/Coil 4Coils/CTN

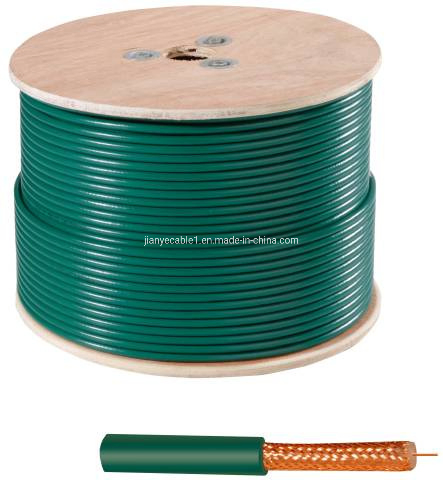

Packing : 300M/Wood drum 500M/Wood drum
ELECTRICAL CHARACTERISTICS | ||
Impedance | 75Ohm±3 | |
Nominal Capacitance(pF/m) | 67 | |
Propagation velocity ration | 66% | |
Insulation resitance | 66% | |
ATTENUATION at 20ºC (≤dB/100m) | 10MHz | 3.80 |
50MHz | 8.30 | |
100MHz | 11.80 | |
200MHz | 17.00 | |
500MHz | 27.10 | |
800MHz | 35.70 | |
1000MHz | 41.50 | |
Our Service:
1.)We are a professional cable manufacturer, can offer you all the best cable solutions.
2.)We can send you free sample to check our quality.
3.)We are familiar with different market, can offer multi-language service.

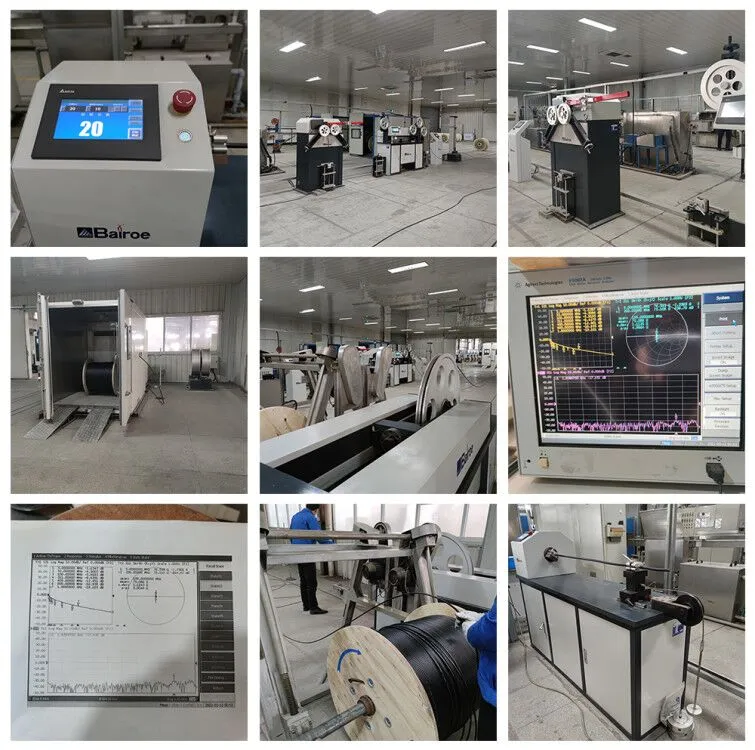

4.)We have quality control department, and after sale service.
5.)Closed to the Ningbo and Shanghai port, the best logistic service.
6.)We offer free box design service.
Main Products:
1.Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
