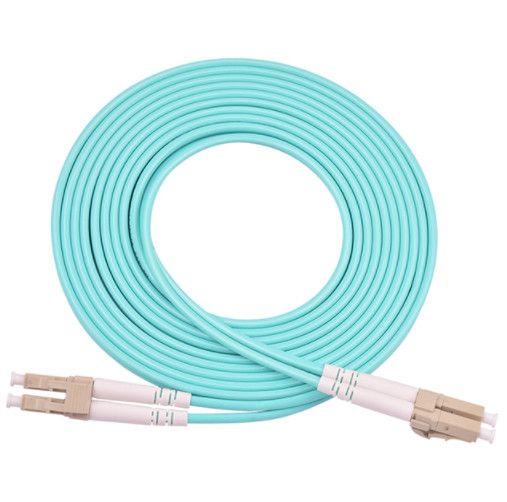

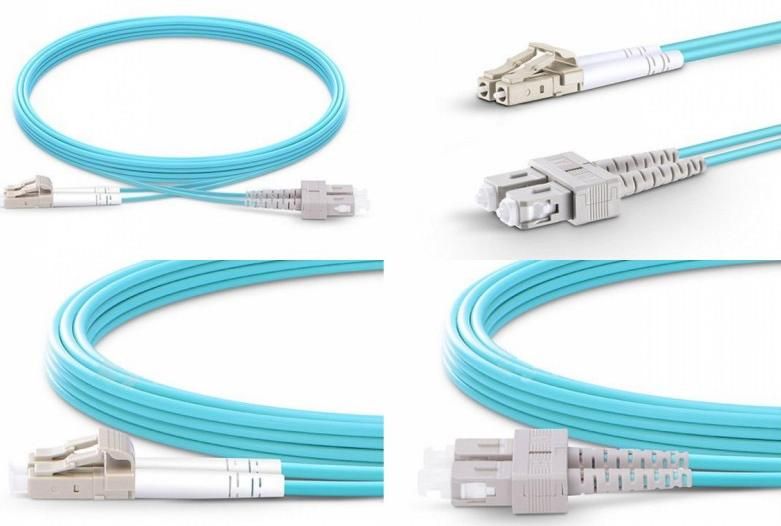

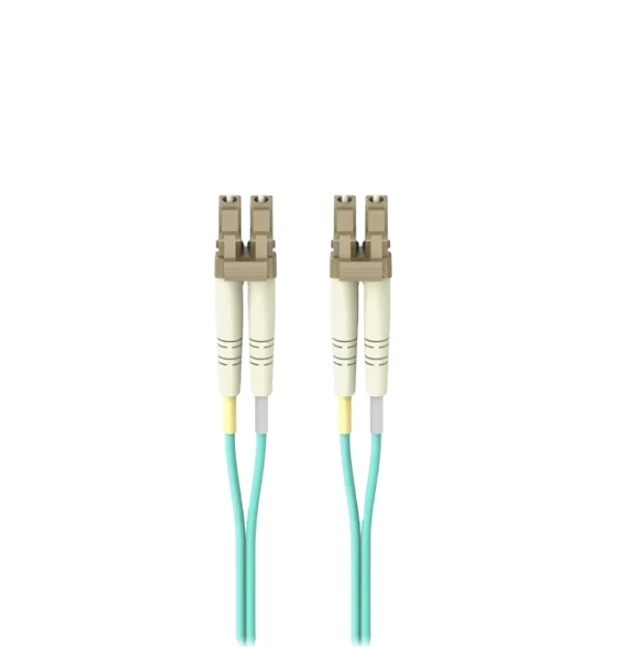

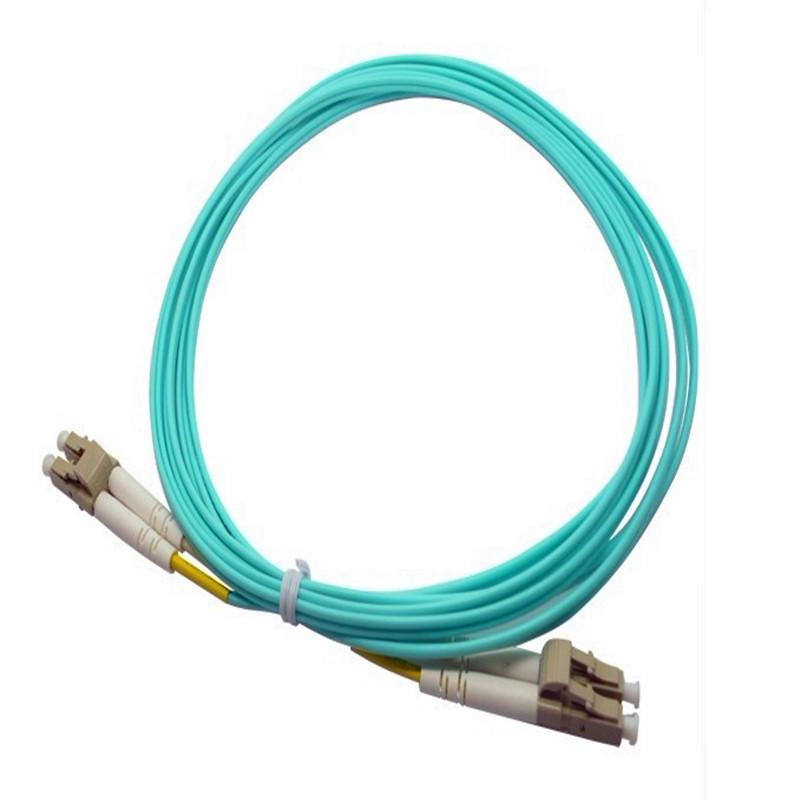

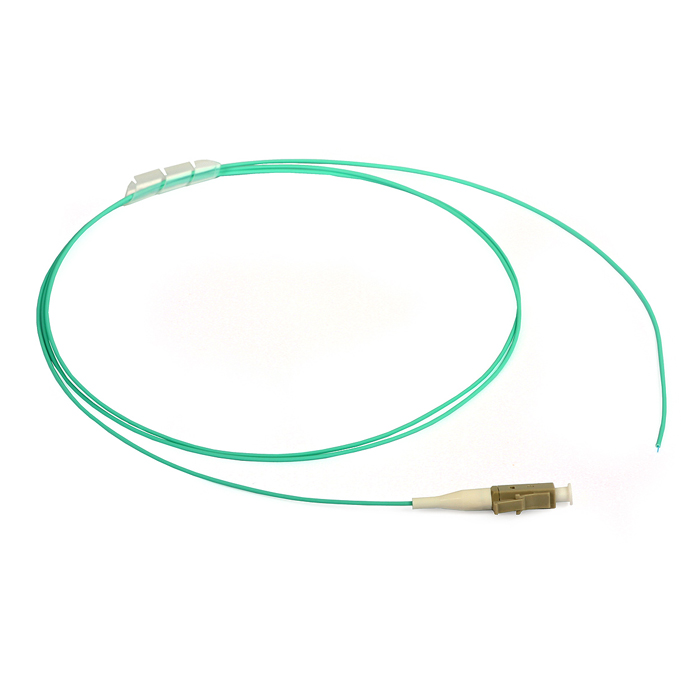

China Om3 LC -LC Fiber Patch Cable 10GB 40GB Fiber Optic Cable Duplex 50/125 Ofnp

Product Description

10Gb 40Gb Fiber Optic Cable Duplex 50/125 OFNP OM3 LC To LC Fiber Patch Cable

Fiber patch cord Complies with IEC, Telcordia GR-326-CORE standard
Low insertion loss and high return loss
PC/UPC/APC polishing
Diameter: 0.9, 2.0, and 3.0mm
Single or multi mode is available
4 fiber, 6 fiber, 8 fiber 12 fiber or 24 fiber is available
10G fiber or LSZH cable is available
Excellent changeability and repeatability
Tensile strength: 10N
Operating temperature range: -40 to 80° C
Storage temperature range: -40 to 80° C.
Color of cable: Yellow (SM), Orange (MM), and Aqua (OM3)

Feature

1. Low insertion loss and back reflection loss

2. Good echangeability

3. Good Durability

4. High temperature stability

5. Standard: Telcordia GR-326-CORE

Application

1. FTTH, LAN, PON & Optical CATV, Local ring net

2. Optical fiber communication system

3. Optical fiber test equipment

4.Optical fiber sensor

5.Industry and military application

Speciafication

Parameter		Single Mode				Multi Mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO
	Ferrule End-face	PC	UPC	APC		UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB		≤0.3bB
	Return Loss	≥50dB	≥55dB	≥60dB		≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um				127um concentricity deviations:<=3um
	Suitable Fiber	9/125um				50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm	N/A
	Fiber Protrusion	≤50nm		≤100nm	N/A
	Fiber Under Cut	≤100nm		≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C

Om3 LC -LC Fiber Patch Cable 10GB 40GB Fiber Optic Cable Duplex 50/125 Ofnp

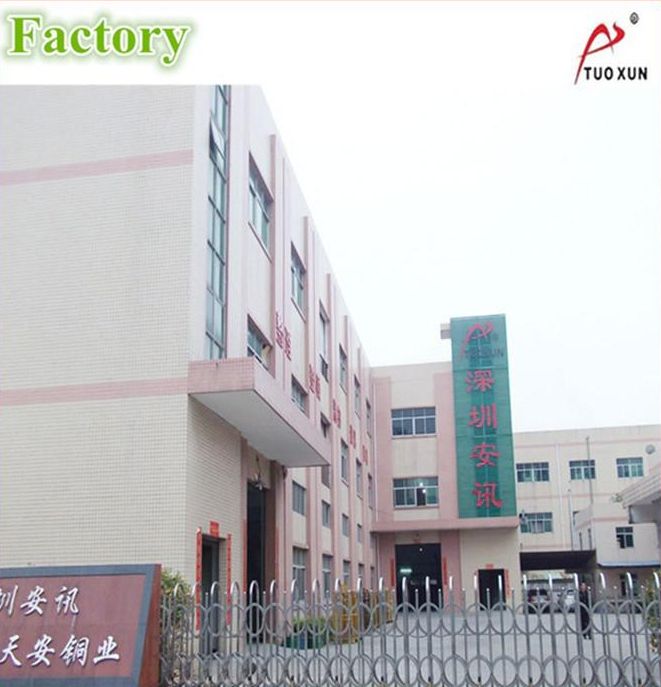

Shenzhen Anxun Industry Co., Ltd. was established in 2004 and our headquarter is located in Shenzhen. Deeply cultivating the wire and cable industry for more than ten years, it has formed an industrial chain group integrating upstream and downstream raw material industries, modernized production, humanized management, and diversified products. The company is guided by market demand and provides customers with customized products and solutions.

The company's products are widely used in security monitoring, smart buildings, national defense and military industry, computer networks, mobile communications, smart homes, smart rail transit, and control systems for mechanical and electrical equipment.

The company has strong technical force, complete testing equipment, stable and reliable product quality, and has successively passed China National Compulsory Product (CCC certification), national industrial product production license for wire and cable, ISO9001 (2008) quality management certification, CQC certification, and UL products. Certification, CE product certification, national radio and television equipment network access certification, and the national standardization management committee approved and issued the international standard product mark certificate.

The company adheres to the business philosophy of honest management and customer first, and takes product quality as the guarantee. The development, research and production of high-quality intelligent system dedicated cables is the pursuit of Anxun people as always, and it is the driving force to motivate Anxun people to move forward.

Om3 LC -LC Fiber Patch Cable 10GB 40GB Fiber Optic Cable Duplex 50/125 Ofnp

FAQ

Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable and etc.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What kind of certifications do you have?
A: successively passed China's national compulsory product certification (i.e. CCC certification), national industrial product production license for wire and cable, ISO9001 (2008) quality management certification, CQC certification, UL product certification, CE product certification, National Radio and television equipment network certification, Certificate of adopting international standard product mark approved and issued by National Standardization Administration Committee..

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
