OEM Coaxial Cable Siamese RG6/RG59 with 2C CCA Power Cable CCTV Camera CableRG59 cable is the most efficient and reliable way of connecting your CCTV video surveillance system. * Rated for 75 ohms* BC or CCS Center Conductor* CCTV Video Surveillance Systems StructureMaterialRG59 DUALRG59 TRIRG59 QUA......
Send Inquiry
Product Description
RG59 cable is the most efficient and reliable way of connecting your CCTV video surveillance system. * Rated for 75 ohms
* BC or CCS Center Conductor
* CCTV Video Surveillance Systems

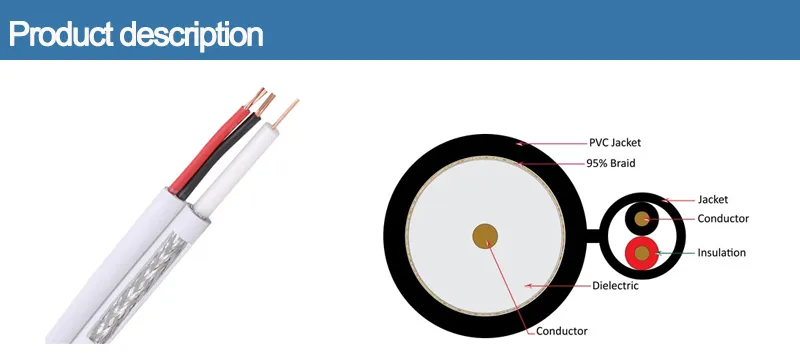

Structure | Material | RG59 DUAL | RG59 TRI | RG59 QUAD |
Conductor | BC/CCS | 0.81mm(20AWG,0.032'') | ||
Dielectric | FPE | 3.66mm(0.144'') | ||
1st Shield | Al Foil | 100%, Overlap>2mm | ||
2nd Shield | BC or Al Braiding | 40%-95% | 53% | |
3rd Shield | Al Foil | - | 100%, Overlap>2mm | |
4th Shield | BC or Al Braiding | - | - | 40% |
Jacket PVC/PE | Outer Diameter | 6.1mm(0.24'') | 6.1mm(0.24'') | 6.73mm(0.265'') |
Nominal Thickness | 0.81mm(0.032'') | 0.76mm(0.030'') | 0.86mm(0.034'') | |
Our Service:
1.)We are a professional cable manufacturer, can offer you all the best cable solutions.
2.)We can send you free sample to check our quality.
3.)We are familiar with different market, can offer multi-language service.
4.)We have quality control department, and after sale service.
5.)Closed to the Ningbo and Shanghai port, the best logistic service.
6.)We offer free box design service.
Main Products:
1.Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
If any futher doubts pls contact us freely.
