N Male Quick Push and Pull Test Cable

EZCON N type  test cable is superior in performance (VSWR <1.10@6GHz, VSWR <1.25@18GH) .It is widely used in  R&D and manufacturers test for high frequency component manufacturers such as filter,dirctional coupier isolator,and antenna.

Electrical performance

characteristic impedance: 50 Ω

VSWR: 1.10:1 Max  (@ 6GHz)

1.25:1 max (@18GHz)
insertion loss: 1.4dB /m

Insulation resistance:  5000MΩmin
dielectric withstanding voltage: 1500V

Mechanical reliability
Connect torque: 1.69N - Max

The number of connection: 500cycles - min
Environmental applicability
Temperature range: -55 ~+155 DEG C
Company Show

EZCON is a product and solution provider, the company provides high quality, high performance, and low-cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with a focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors, and high-end test/calibration products. The company has the capacity of product design, engineering service, low-cost production/sourcing, assembly, and testing. EZCON combines the advantages of low-cost production in China with a high level of engineering expertise, service, and quality.


Our Customers

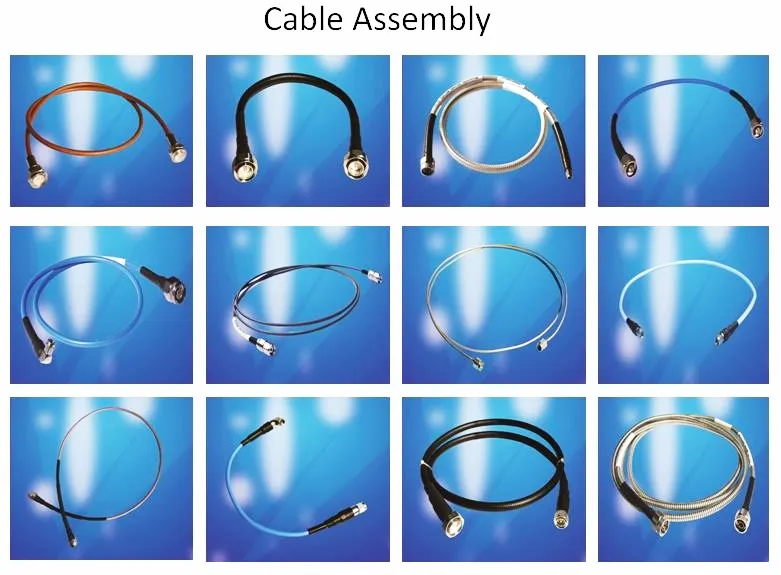

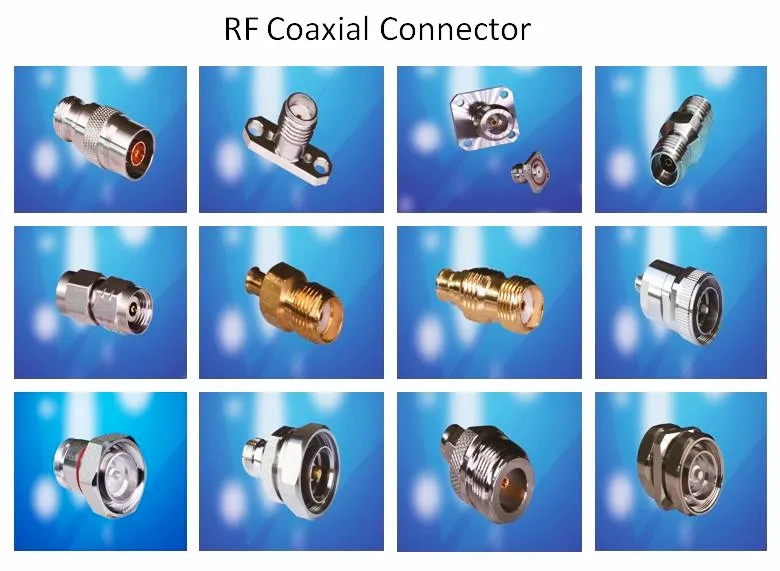

Company Products and Technologies




Customers Testimonials

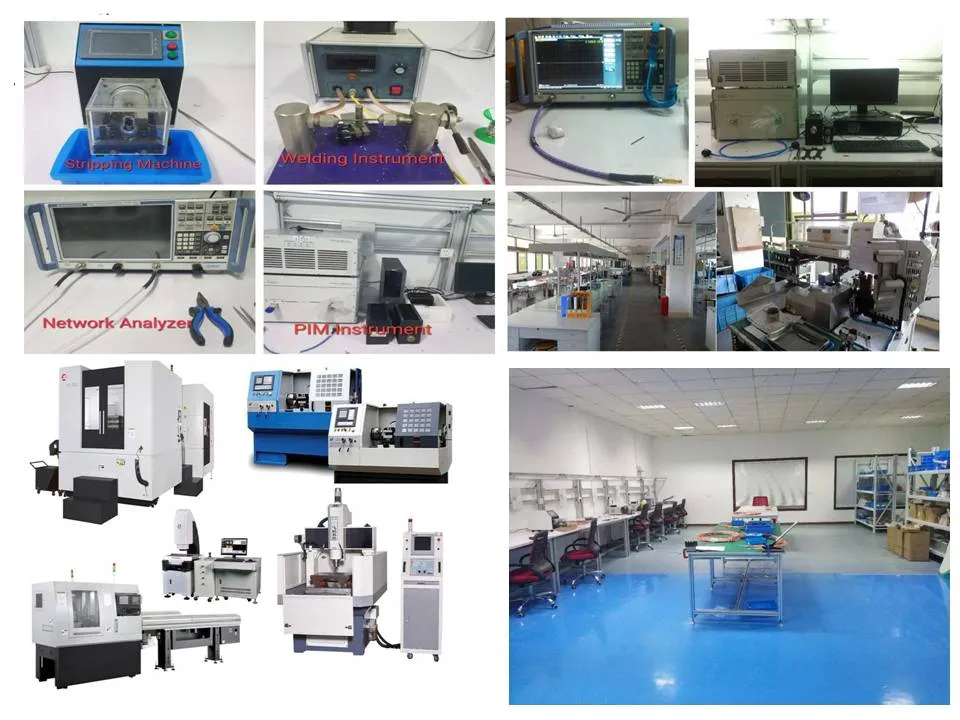

Main Company Equipments And Production line

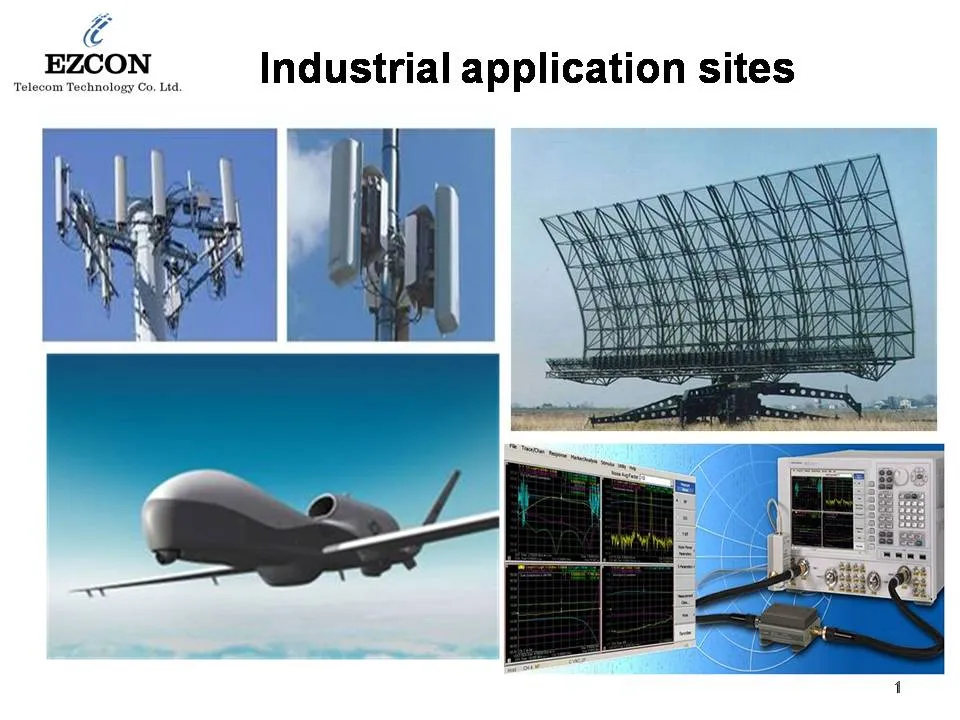

Products application sites



Company Certification


FAQ

1.Q: What's your MOQ?

A: 50 pcs

2.Q: What's your delivery time?

A:7-14 days after receiving PO.

3.Q: Does your company do a customized design?

A: Yes, we do OEM and ODM

4.Q: What is your after-sale service program?

A: Please see our service manual for details.

5. Q: Can you send samples to us for the test?

A: Yes, samples can be sent at a cost.


WHY CHOOSE EZCON

1)Sales directly to the customer.

2) First-class performance, highest quality, and life cycle.

3) Fast delivery: 1-2 working days.

4) Customerized Design.

5) Very competitive price.

7) Fast, enthusiastic, thoughtful, caring, and excellent service.

8) Quick response(replying within 30 minutes of receiving the request).


Our service

1. Email reply within 24 hours.

2. One-stop solution for electronic components, service, and manufacturing.

3. Each piece must pass the precision test.

4.Quality after-sales service.
