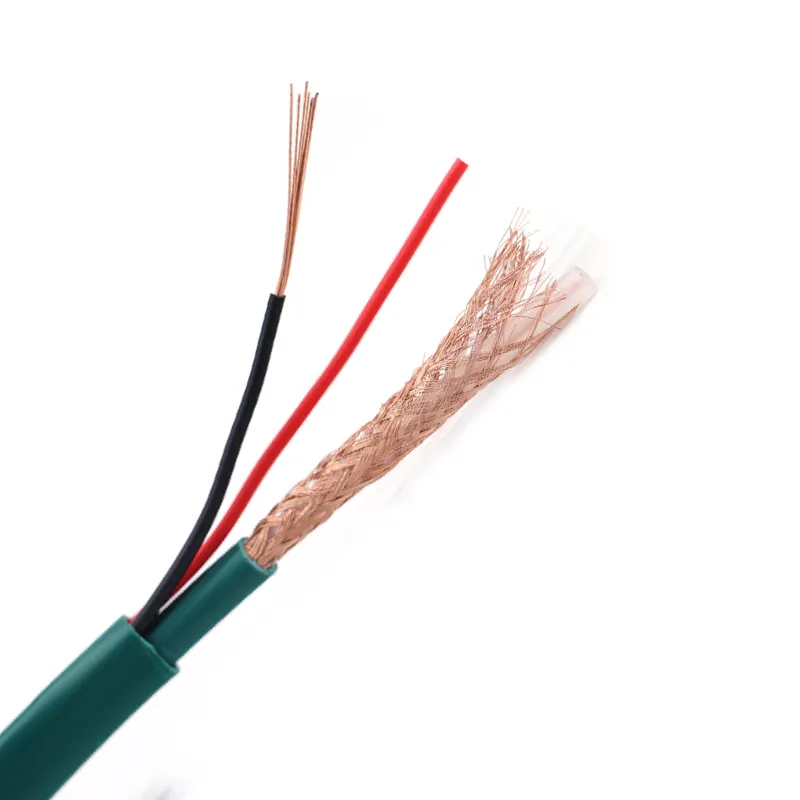

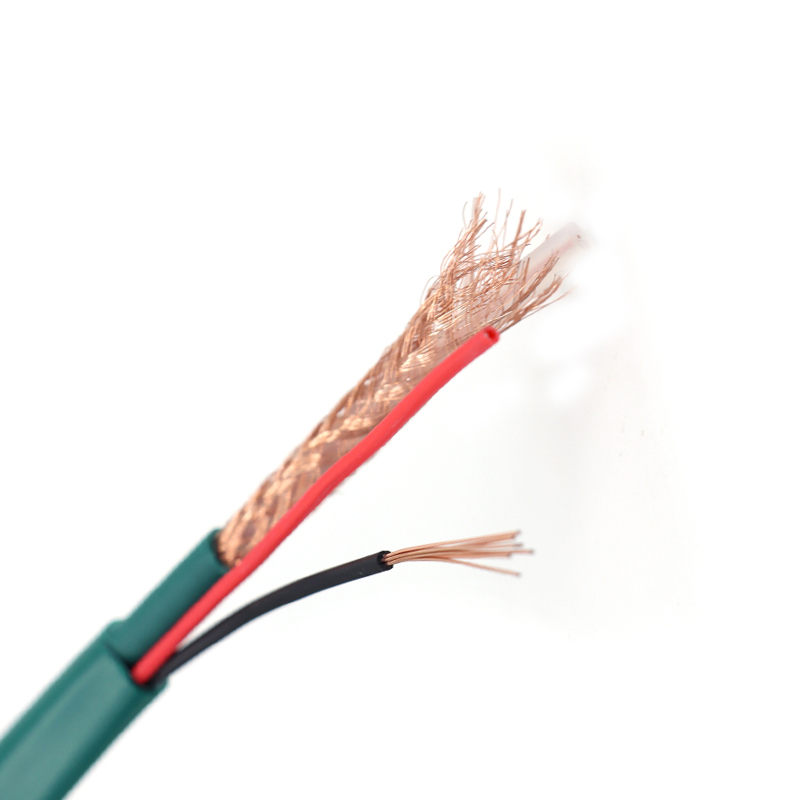

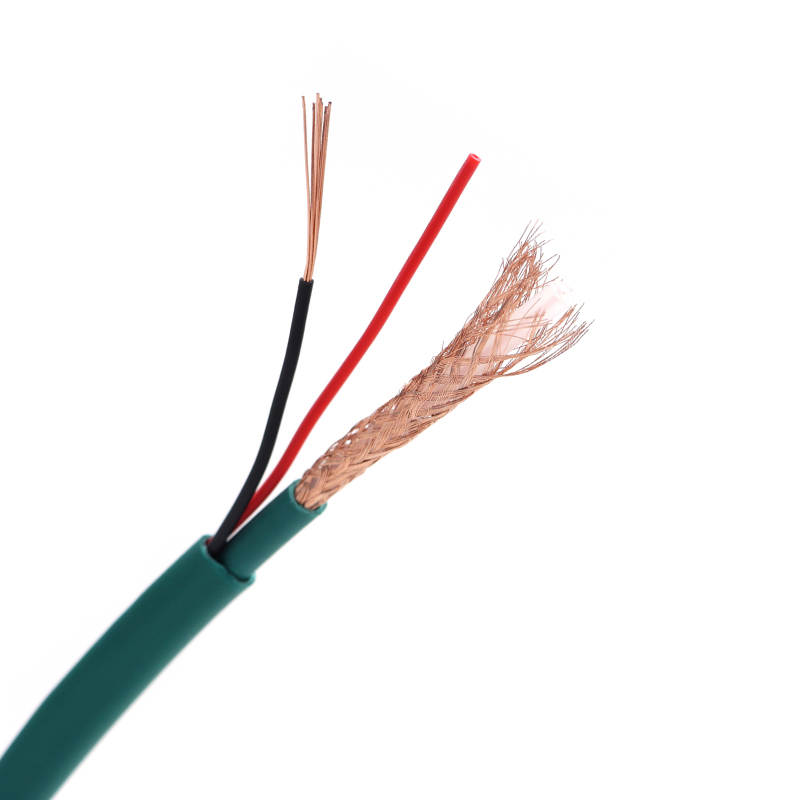

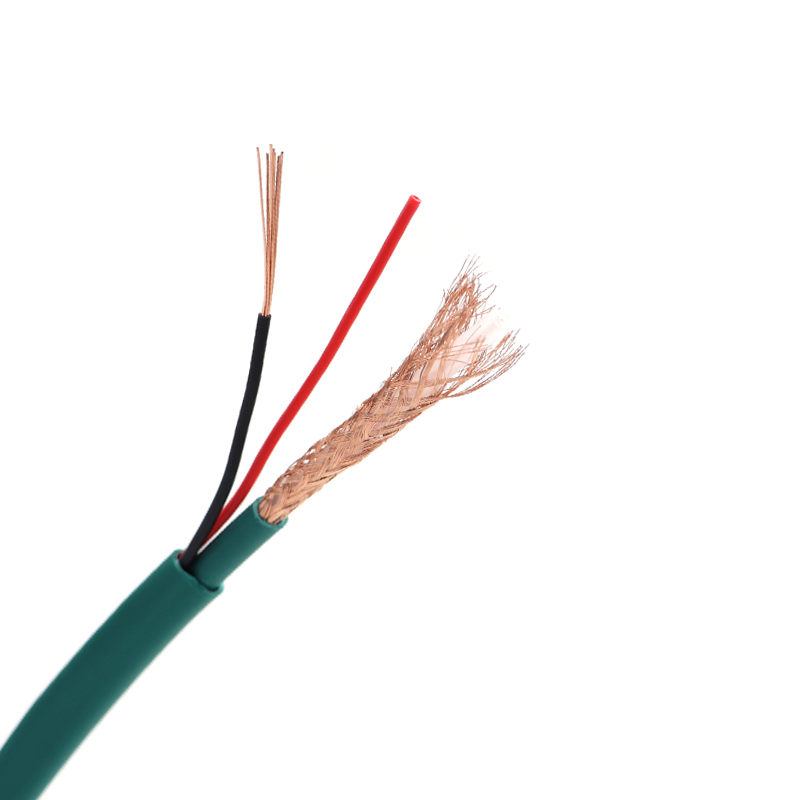

Morocco Algeria Market CCTV Monitoring Kx6/ Kx7 7*0.20 Pure Copper 2 DC Power Siamese Coaxial Cable with Power
CCTV Kx6/ Kx7 +2 dc power Siamese Coaxial Communication CableInner Conductor (mm): 7*0.20mm BCDielectric (mm): 3.66± 0.10 SPE Shield:CCA/AL Braids 128*0.12CCA Power wire:2*7*0.38 mm CCAPower Jackets: Black & Red PEBig Out PVC Jackets Green color Packing : 100M/Coil 4Coils/CTNPacking ......
Send Inquiry
Product Description
Inner Conductor (mm): 7*0.20mm BC
Dielectric (mm): 3.66± 0.10 SPE
Shield:CCA/AL Braids 128*0.12CCA
Power wire:2*7*0.38 mm CCA
Power Jackets: Black & Red PE
Big Out PVC Jackets Green color
Packing : 100M/Coil 4Coils/CTN
Packing : 300M/Wood drum 500M/Wood drum
ELECTRICAL CHARACTERISTICS | ||
Impedance | 75Ohm±3 | |
Nominal Capacitance(pF/m) | 67 | |
Propagation velocity ration | 66% | |
Insulation resitance | 66% | |
ATTENUATION at 20ºC (≤dB/100m) | 10MHz | 3.80 |
50MHz | 8.30 | |
100MHz | 11.80 | |
200MHz | 17.00 | |
500MHz | 27.10 | |
800MHz | 35.70 | |
1000MHz | 41.50 | |
We Hangzhou Feinan is a comprehensive manufacturer of communication cables with more than 15 years experience.
We located in a beautiful western suburb of Hangzhou Lin'an city, with pleasant geographical location and convenient
transportation to Shanghai and Ningbo Port.

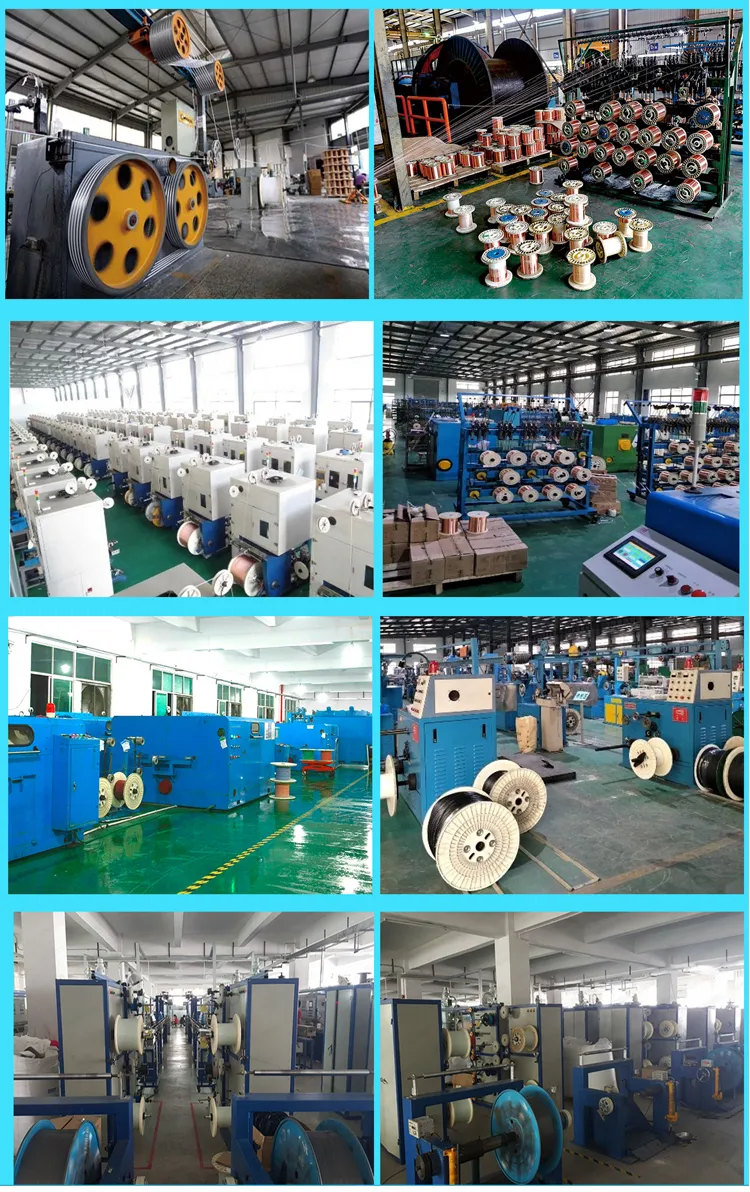

The factory could professionally manufacture and supply coaxial cables, lan cables and fiber optic cables.Our principal
products include coaxial cable (RG59 with power , RG6, KX 7 ), fiber optic cable(drop cable, ADSS, G Y X T W, GYTS,
G Y X F T Y),Lan cable (CAT 5e , CAT 6, CAT 7).
In feinan , quality always comes to the first concern. The company is running under I S O 9 0 0 1 quality management
system, and our products have been approved by RoHS, C E , C P R and ANATEL certifications. Besides ,we could
offer free sample for verity, free box design, OEM production. With advanced testing equipment, our experienced QC
team assures every line of our products is qualified with particular standards for specific markets.
Most of our products are exported to Europe, America,South America and South-east Asia. Etc. What is more, our
company always devotes to developing custom cables according to clients needs. We look forward to working with
you and getting mutual
benefit in future.
