Product Description

Customization for RS485, RS232, TTL, I2C, Spi, USB C TO MICRO USB 5P Cable 3.3V USB to TTL Serial Cable FTDI Programming cable

Product Description

FTDI to USB C Cable - 3.3V Logic 5V VCC
FTDI Serial TTL-232 USB Type C Cable
USB 3.1 C to TTL cable Raspberry Pi
USB Type C RS232 Cable

FTDI Serial TTL-232 USB Type C Cable

FTDI FT232RL USB to Micro USB 5Pin Adapter RS485 Serial Converter Cable

FTDI to USB C Cable - 3.3V Logic 5V VCC

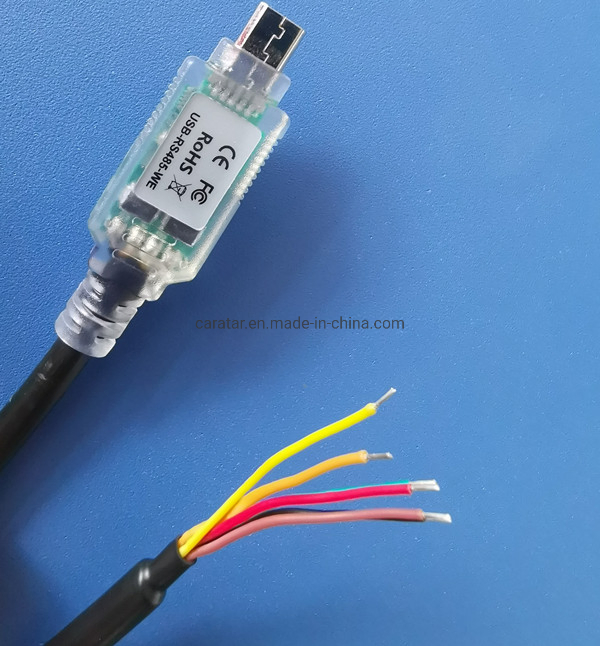

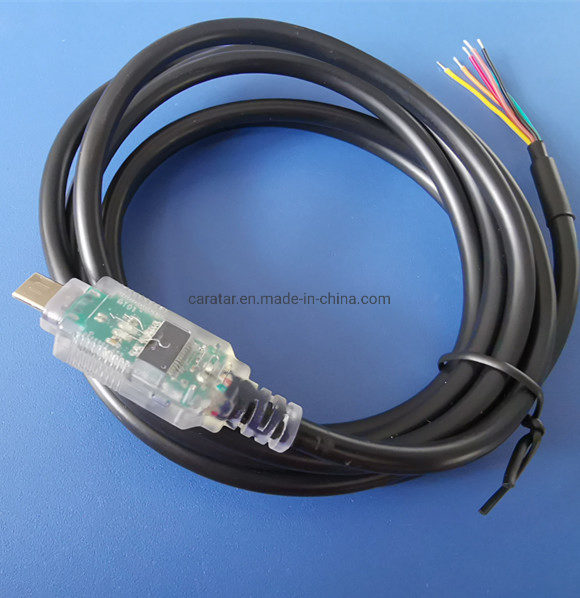

The FTDI cable is designed around an RS232, which is housed in a USB C connector. The other side of the cable is terminated with a 0.1" pitch, 6-pin connector with the following pinout: (3.3V Logic) RTS (Green), RX (Yellow), TX (Orange), VCC 5V (Red), CTS (Brown), GND (Black). This FTDI to USB C Cable is also capable of handling high voltages up to 300V max.

Quality Control	We have a QC director leading all IQC, IPQC, FQC, OQC, SQA, and QE
Insulation resistance	10 OHM min
Conductive resistance	2-ohm max
Voltage	DC300V 5M ohm/10ms
Working Temperature	-25C-80C

There are pros and cons to the FTDI Cable vs the FTDI Basic. The FTDI Basic has great LED indicators, but requires a Mini-B cable. The FTDI Cable is well protected against the elements, but is large and cannot be embedded into a project as easily. The FTDI Basic uses DTR to cause a hardware reset where the FTDI cable uses the RTS signal.

Cable Specifications

What are the specifications of our cable?

1)Connector: ftdi usb uart ttl to micro usb cable.
2).Pin assignment:
1.GND
2.CTS
3.VCC
4.TXD
5.RXD
6.RTS
3)Chipset: FTDI 232RL
4)Cable Gauge: 26 AWG
5)Converter: 5 V / 15 mA (VCC, GND)
6)Compatible to UHCI / OHCI / EHCI controller
7)VTTL 5 V (data) / 4 mA or high level 12 mA
8)Flow control: software XON / XOFF or hardware RTS / CTS
