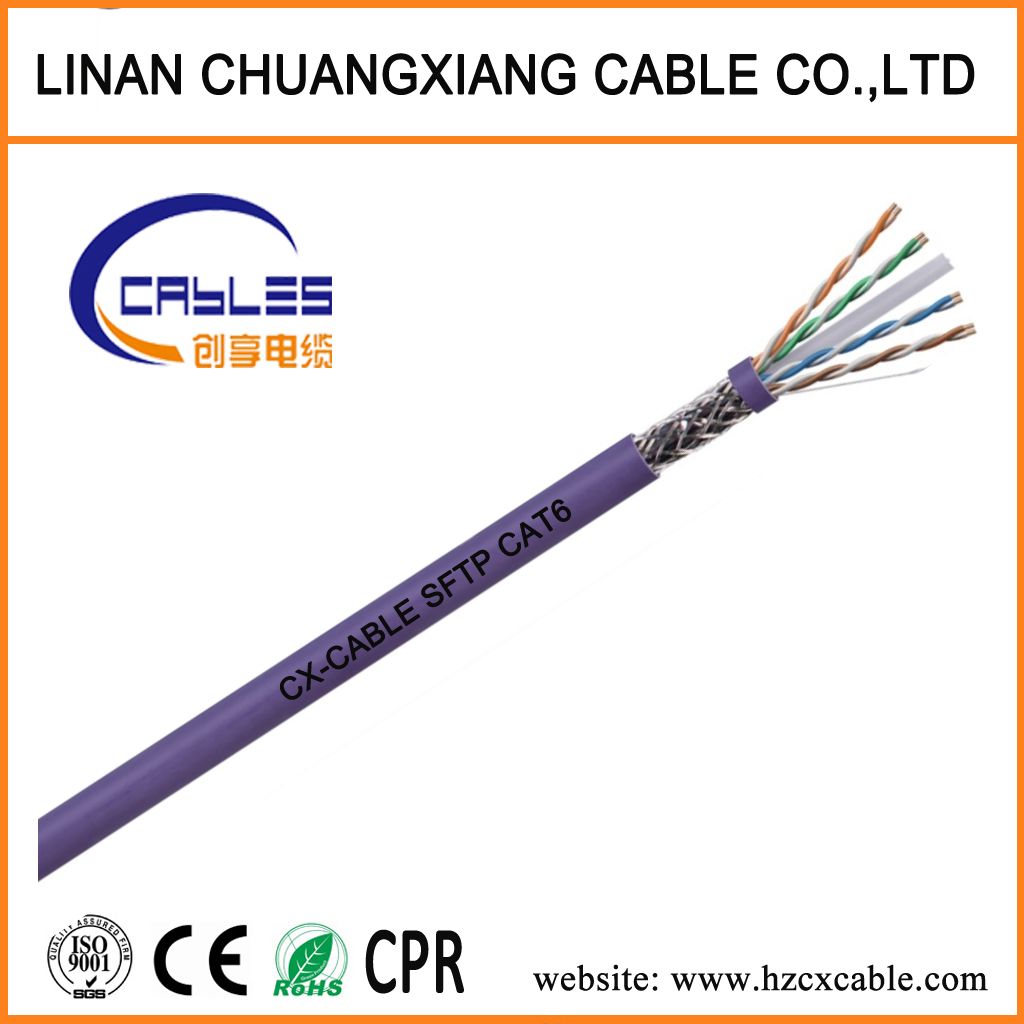

LAN Cable Outdoor Telecom FTP/SFTP CAT6 Cat7 Network Cable Monitor Security Communication Cable Copper Wire/CCA
Material Instruction:1.CCA or 23AWG Soft Plain Copper.2.Eco-friendly,pollution-free and new materials selected.Promise new material only.3.Insulation: Solid HDPE;4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life. TypeFTP CAT6 Conductor23/24AWG CU/CCAInsulation1.13+/-0.2m......
Send Inquiry
Product Description
Material Instruction:
1.CCA or 23AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.
| Type | FTP CAT6 |
| Conductor | 23/24AWG CU/CCA |
| Insulation | 1.13+/-0.2mm HDPE |
| Total number of insulated conductor | 8, twisted in 4 pairs |
| Color code | white-blue/blue,white-orange/orange, white-green/green,white-brown/brown |
| Center Cross | Yes |
| Drain wire | 0.5mm BC/TC/CCA |
| Outer Jacket | 6.8+/-0.2mm PVC/PE/LSZH |

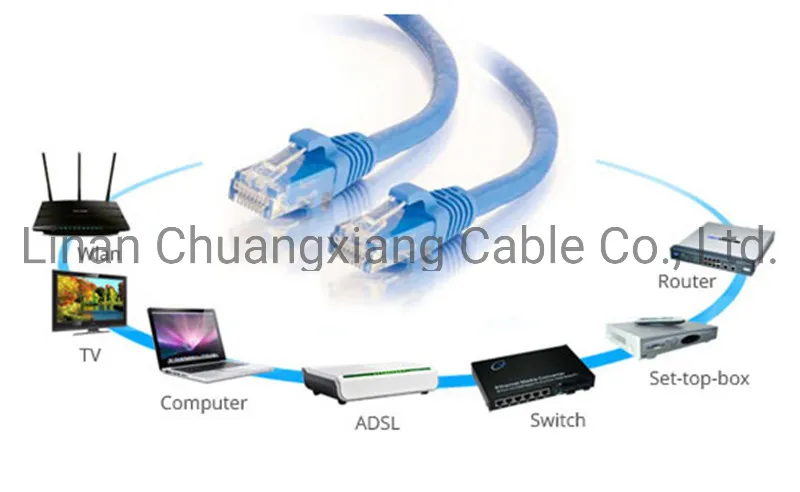

Each cable is fully tested, quality inspected, and meets all TIA/EIA Cat6 standards. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels, and provides universal connectivity for LAN network components such as PCs, computer servers, printers, routers, switch boxes, network media players, NAS, VoIP phones, PoE devices, etc
| Impedance 1.0-100.0MHz (ohms) | 100±15 |
| D.C, Resistance @20ºC(ohms/km) | ≤9.5 |
| D.C. Resistance Unbalance(%) | Max 2.5 |
| Insulation Resistance | >5000MΩ*KM |
| Rated Temperature | 70ºC |
| Frequency (MHz) | Return loss (dB) | Attenuation (dB/100m) | NEXT (dB) | FEXT (dB) |
| 1 | 20.00 | 2.10 | 64 | 63.8 |
| 4 | 23.01 | 4.30 | 55 | 51.7 |
| 10 | 25.00 | 6.60 | 49 | 43.8 |
| 16 | 25.00 | 8.20 | 46 | 39.7 |
| 20 | 25.00 | 9.20 | 44 | 37.7 |
| 31.25 | 23.64 | 11.80 | 42 | 33.8 |
| 62 | 21.54 | 17.10 | 37 | 27.6 |
| 100 | 20.11 | 22.00 | 34 | 23.6 |
1,Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
FAQ:
1.Are you the real manufacturer?
Yes. We are the real manufacturer,which is specialized in coaxial cable,lan cable and optical cable,etc.
2.Can you accept small order?
Yes,We support new project of our customers,and we know business is always from small order.
3.What is your delivery time?
Usually within 30days after we received deposit.
4.What is your payment way?
T/T, L/C,it can be negotiated.
5.Can you supply customized products and logo?
Yes. We supply OEM&ODM service.
If you were interested in our competitive products,pls call me,let's talk more!
