LAN Cable Cat5e/CAT6/Cat7 Cable Copper Wire
Application:In the horizontal cabling as an installation for laying cable in cable channels and pipes inside of telecommunications equipment and data systems to 350 Mhz. Installation is very easy because of a central element (cross) no individual shield is required. Usable for: 10Base-T, 100 Base-T,......
Send Inquiry
Product Description
Application:
In the horizontal cabling as an installation for laying cable in cable channels and pipes inside of telecommunications equipment and data systems to 350 Mhz. Installation is very easy because of a central element (cross) no individual shield is required. Usable for: 10Base-T, 100 Base-T, 1000 Base-T, CDDI/TPDDI, ISDN, ATM 155 Mbit/s, TP-PMD 125 Mbit/s, Token Ring 4/16 Mbit/s.

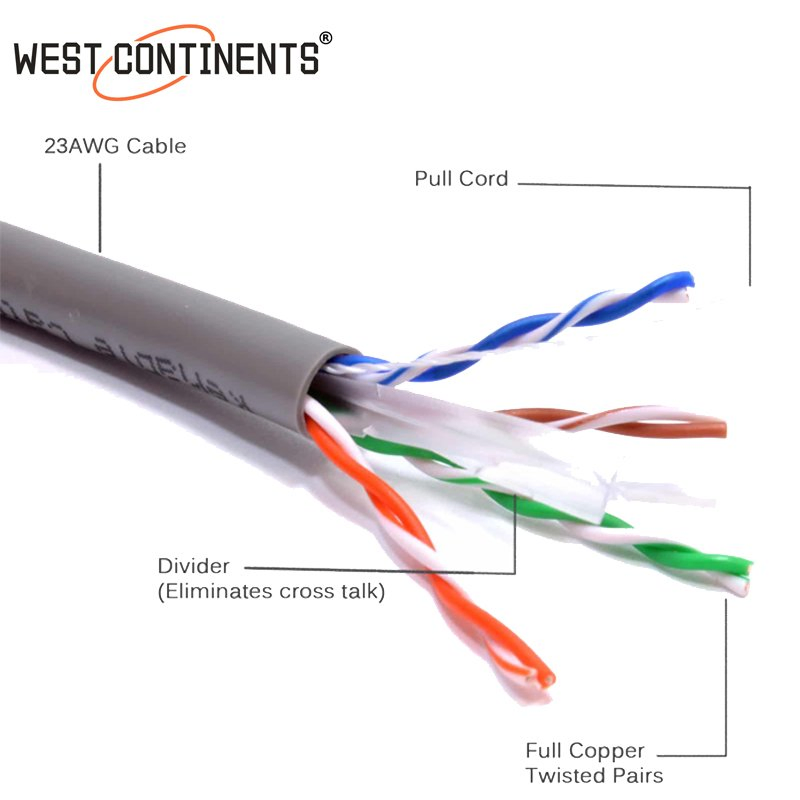

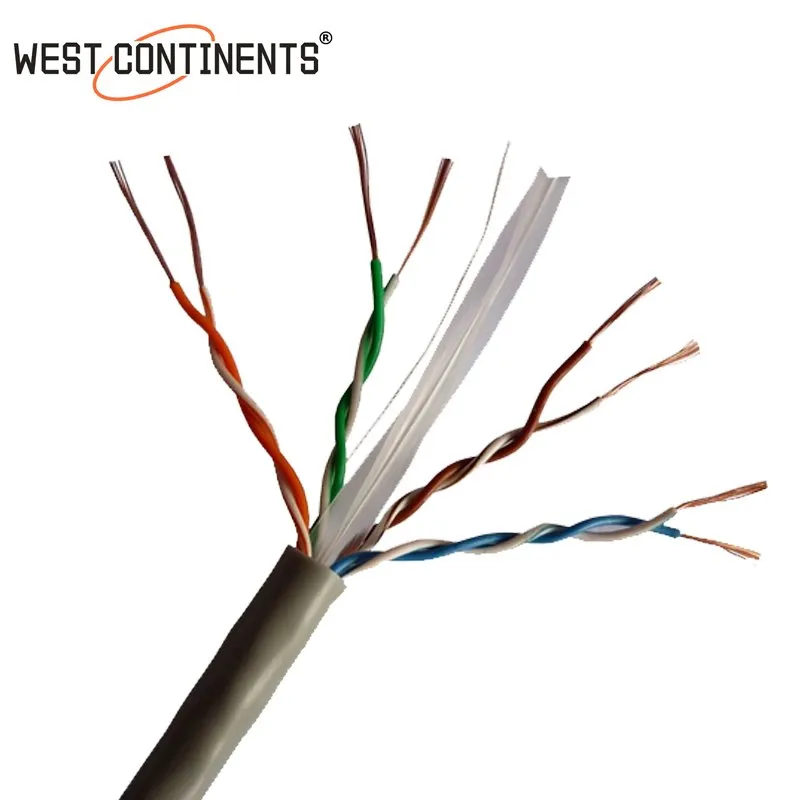

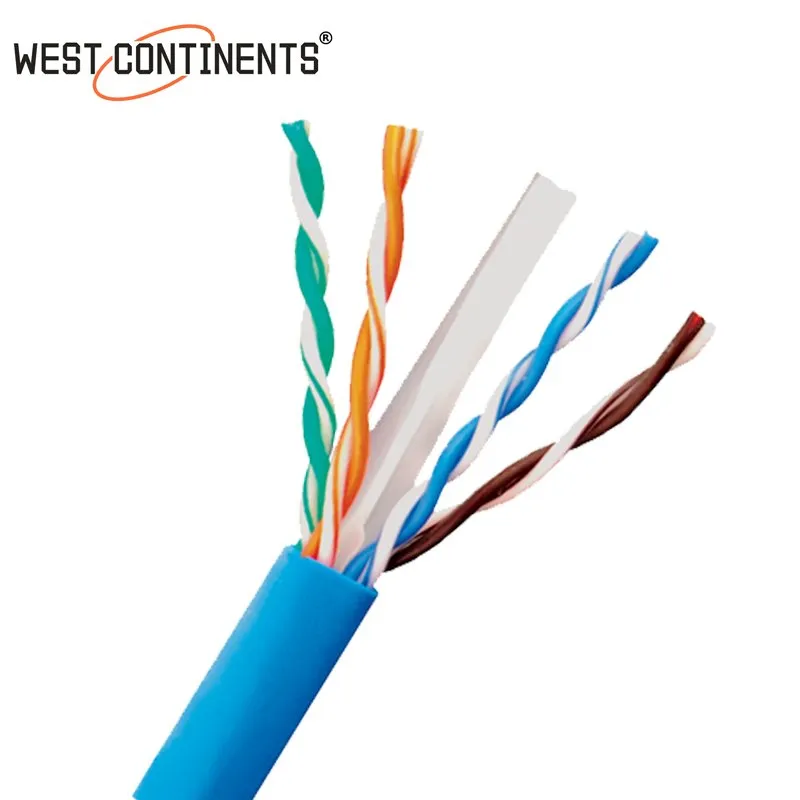

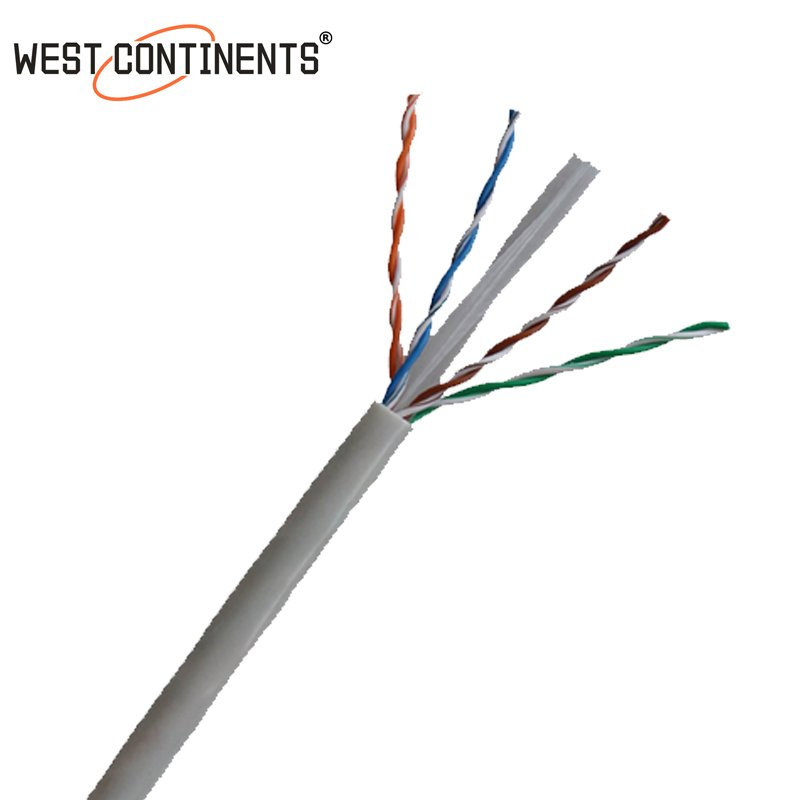

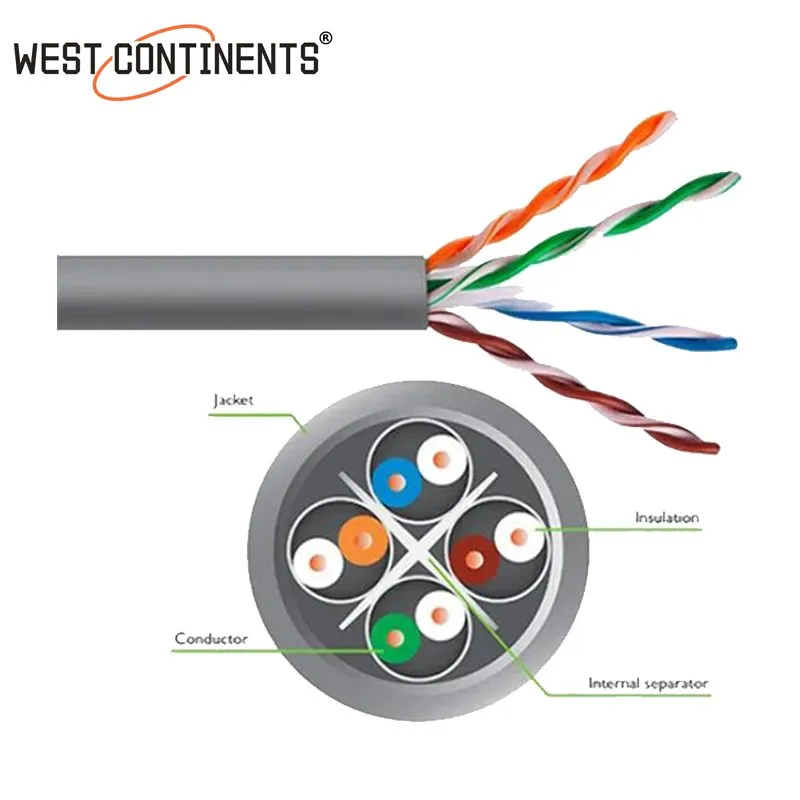

Construction:
1.....Bare, solid copper conductor, Ø 0,55mm (AWG 24/1)
2.....core insulation SFS Polyethylen
3.....layer of plastic foil
4.....plastic laminated aluminium foil
5.....PVC-sheath or with halogen free sheath
Standards:
ISO/IEC 11801 2.Edition EN 50173-1 TIA/EIA 568-B.2 IEC 61156-5 EN 50288-5-1
Technical data:
Product details

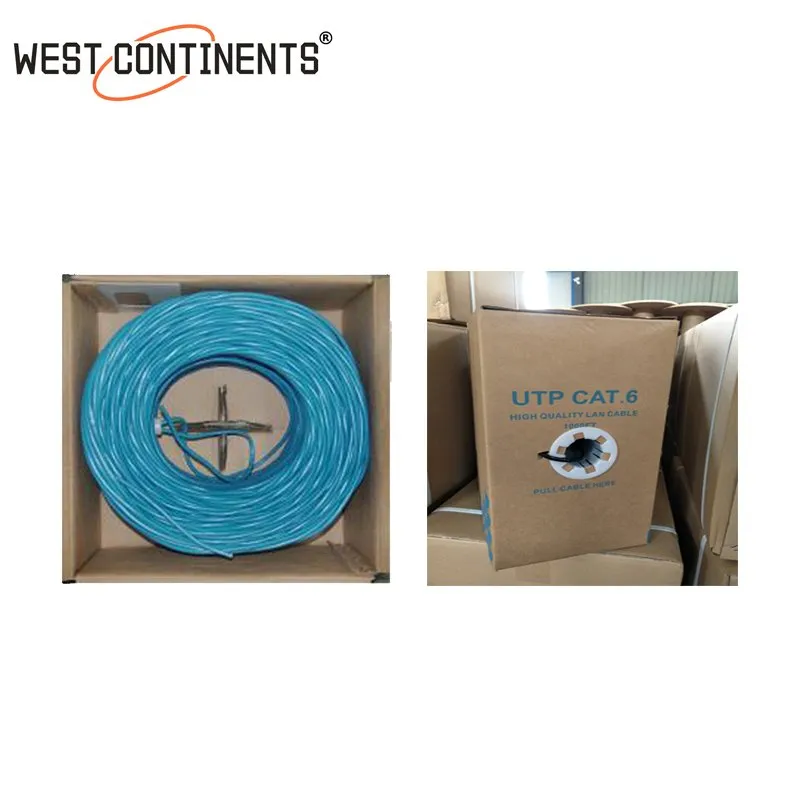

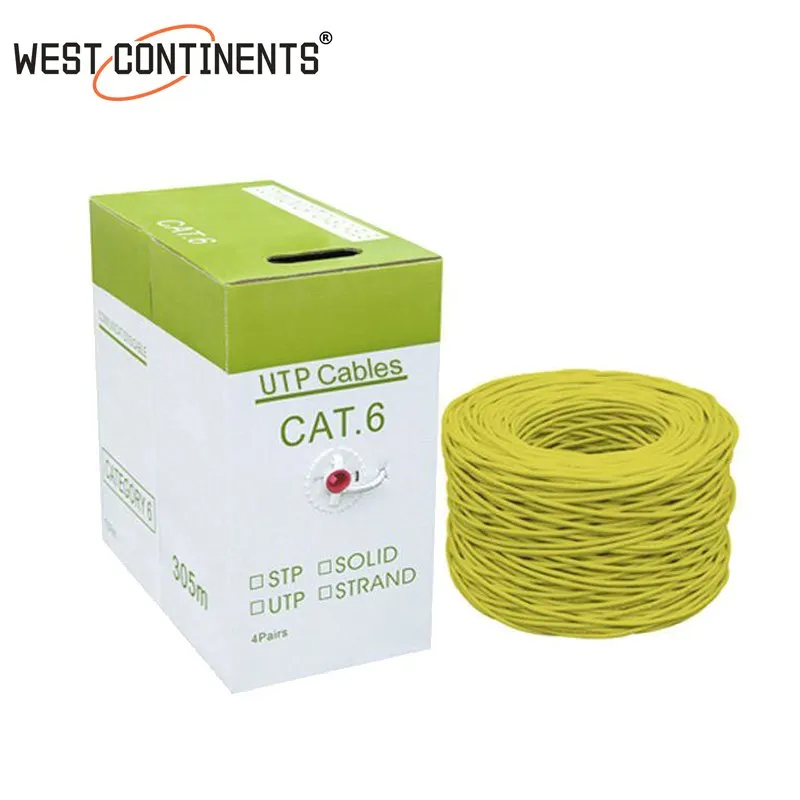

Packages details
Company profile
Sales service
In the horizontal cabling as an installation for laying cable in cable channels and pipes inside of telecommunications equipment and data systems to 350 Mhz. Installation is very easy because of a central element (cross) no individual shield is required. Usable for: 10Base-T, 100 Base-T, 1000 Base-T, CDDI/TPDDI, ISDN, ATM 155 Mbit/s, TP-PMD 125 Mbit/s, Token Ring 4/16 Mbit/s.
Construction:
1.....Bare, solid copper conductor, Ø 0,55mm (AWG 24/1)
2.....core insulation SFS Polyethylen
3.....layer of plastic foil
4.....plastic laminated aluminium foil
5.....PVC-sheath or with halogen free sheath
Standards:
ISO/IEC 11801 2.Edition EN 50173-1 TIA/EIA 568-B.2 IEC 61156-5 EN 50288-5-1
Technical data:
| Temperature range | moved | 0°C till +60°C | Bending rad. | under tension | 8,0 x Ø | |
| Loop impedance | [Ohm/100m] | 19 | Bending rad. | no tension | 4,0 x Ø | |
| Capacity | max. | [nF/100m] | 50 | |||
| Nom. Velocity of propagation | NVP nom. | 77 | ||||
| Attenuation | 1-100 MHz | [Ohm] | 100+/- 22 | |||
| Coupling resistance | 1-100 MHz | [mOhm/m] | 10 | |||
| Capacity coupling (f=800 Hz) | K< 100 | [pF/100m] | 150 | |||
| Insualtion resistance | [GOhm/m] | >5 | ||||
| Test voltage at 50 Hz | [VAC] | 700 |
| Frequency [MHz] | Line attenuation(dB/100m)Next(dB) | Next(dB) Next(dB) | ACR(dB) | Return Loss RL(dB) | ||||
| nom.* | max.CAT 6 | nom.* | min. CAT6 | mon.* | min.CAT 6 | nom.* | min. CAT 6 | |
| 1 | 1.8 | 2.1 | 78 | 66 | 76.2 | - | 22 | 20.0 |
| 4 | 3.4 | 3.8 | 74 | 65 | 70.6 | - | 25 | 23.1 |
| 10 | 5.4 | 6.0 | 70 | 60 | 64.6 | - | 28 | 25.0 |
| 16 | 6.9 | 7.6 | 65 | 56 | 58.1 | - | 28 | 25.0 |
| 20 | 7.8 | 8.5 | 62 | 55 | 54.2 | - | 28 | 25.0 |
| 31.25 | 9.8 | 10.8 | 58 | 52 | 48.2 | - | 27 | 23.6 |
| 62.5 | 13.8 | 15.5 | 55 | 47 | 41.2 | - | 26 | 21.5 |
| 100 | 17.5 | 19.9 | 52 | 44 | 34.5 | - | 25 | 20.1 |
| 155 | 21.8 | 25.3 | 50 | 41 | 28.2 | - | 25 | 18.8 |
| 200 | 24.9 | 29.2 | 48 | 40 | 23.1 | - | 24 | 18.0 |
| 300 | 29.5 | - | 43 | - | 13.5 | - | 22 | - |
| 350 | 33.0 | - | 41 | - | 8.0 | - | 21 | - |
| * Category 6 - Values per ISO / IEC 11801, EN 50173, EN 50288-2-1 * Category 6 - Values per TIA / EIA - 568-A-5 | ||||||||
Product details
Packages details
Company profile
HANGZHOU XIZHOU TECHNOLOGY., LTD located at Hangzhou city, zhejiang province, China. We provide various kinds of cables. We have two factories, one for networker cable,alarm cable and others, another for coaxial cables.
We are also the cable supplier of Dahua and Hikvision camera agents. Many agents will choose our cable to support his CCTV Camera and business. We also have our cable agent in Mid-east country. Let's us to be your reliable cable supplier and cooperative partner.
We are also the cable supplier of Dahua and Hikvision camera agents. Many agents will choose our cable to support his CCTV Camera and business. We also have our cable agent in Mid-east country. Let's us to be your reliable cable supplier and cooperative partner.
Sales service
1. OBM and ODM service
2. Cables guaranteed for one year (except wet location)
3. Respond inquiry in 12 hours, quotation in 24 hours.
4. Leading time 25-30 days in slack season and 30-40 days in peak season
5. Mature and stable logistics system to ensure the smooth export of goods
6. Sample order service
2. Cables guaranteed for one year (except wet location)
3. Respond inquiry in 12 hours, quotation in 24 hours.
4. Leading time 25-30 days in slack season and 30-40 days in peak season
5. Mature and stable logistics system to ensure the smooth export of goods
6. Sample order service
