Indoor Symmetrical Pair with Copper Conducor FTP S/FTP Hsyvp6
Product Description- Characteristics of product:1.More bandwidth excess than 250MHz standard required;2.Comply with ROHS standard;3.Support 10-Gigabit Ethernet network transmission requirement;4.There are a variety of different environment jacket optional, to take full advantage of the cable;5.The p......
Send Inquiry
Product Description
Product Description
- Characteristics of product:
1.More bandwidth excess than 250MHz standard required;
2.Comply with ROHS standard;
3.Support 10-Gigabit Ethernet network transmission requirement;
4.There are a variety of different environment jacket optional, to take full advantage of the cable;
5.The products of special outer sheath or purpose can be designed according to customer's demands.
- Applications:
1.10 Base-T4
2.100 Base-TX
3.100 Base-VG-ANYLAN
4.155 Mbps ATM
5.622 Mbps ATM
6.1000 Base-T
7.1000 Base-TX
8.10G Base-T

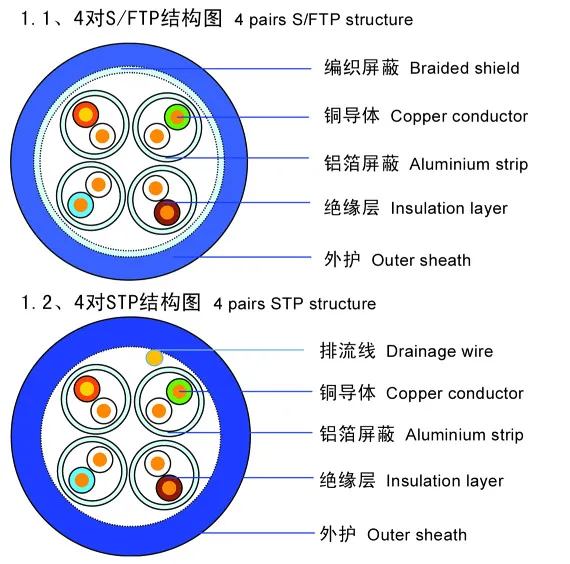

-Material instruction:
1.Conductor:Single strands of pure Copper;
2.Insulation:Solid High Density polyethylene;
3.Central Cross:Elastomer;
4.Wrapping tape:Polyester tape;
5.Single pair of sheath:Single plastic coated aluminum foil shielded;
6.Shield:Single plastic coated aluminum foil shielded;
7.Braided shielding layer:Tinned copper wire braided shield;
8.Outer Sheath:PVC or low-density polyethylene.
-Physical Electrical Characteristics:
1.Impedance:1-100 MHz 100+/-15Ω;100-500MHz 100+/- 25Ω;
2.Maximum mutual capacitance:5.6nF/100m;
3.Maximum D.C resistance:7.5Ω/100m at 20ºC;
4.Maximum unblanced capacitance:160pF/100m;
5.Maximum differential phase delay:45ns/100m;
6.Permitted bend radius:Over 8 times diameter of the cable;
7.Installation temperature:-20ºC-+60ºC;
8.Minimum dielectric strength between conductors:2.5kv/2s.

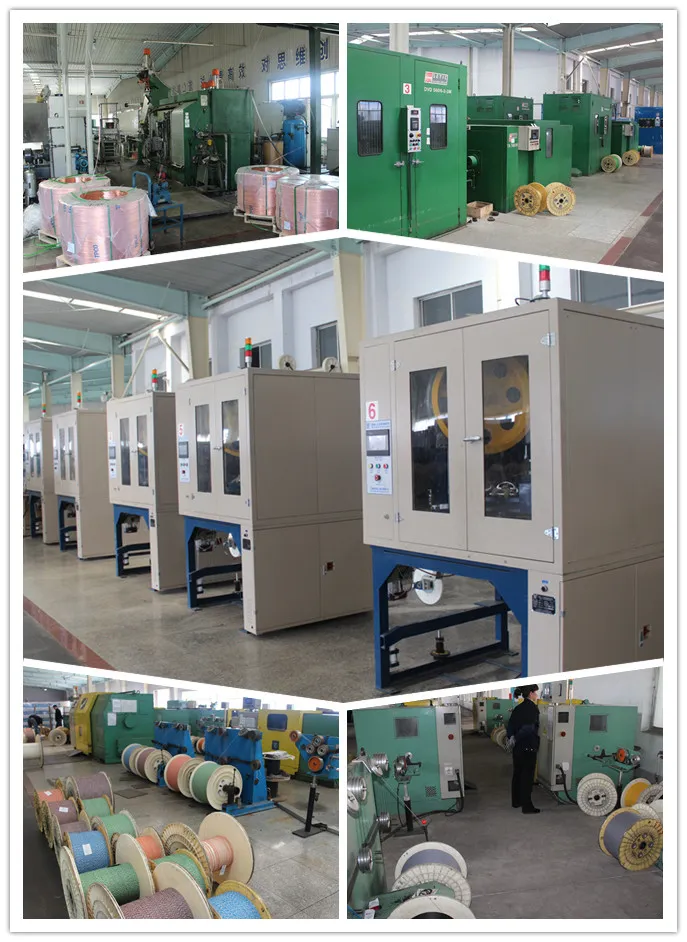

Item&Production Line

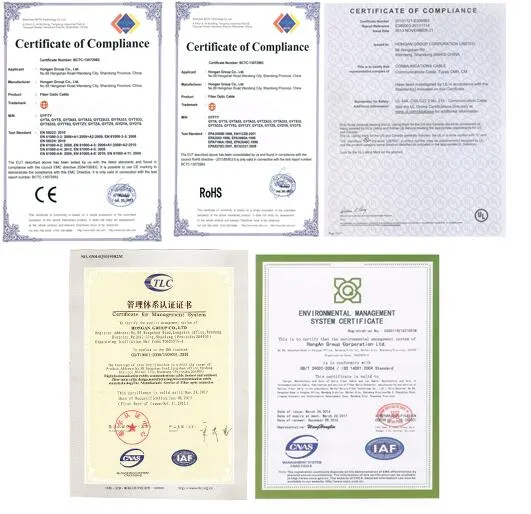

Certification
Company Information
Hongan Fiber Optical Cable Company was established in 1994 which was expanded in 1998,2001,2012 respectively. Advanced fiber optical cable lines and inspection equipments were imported from Switzerland,Finland,USA,Japan and other countries.The main products include:outerdoor fiber optical cable,indoor fiber optical cable,FTTH fiber optical cable, special fiber optical cable (include OPLC hybrid cable,ADSS fiber optical cable,under-water fiber optical cable,micro fiber optical cable, dry outdoor fiber optical cable.flexible armored indoor fiber optical cable,low temperature resistance fiber optical cable.high temperature resistance fiber optical cable etc.) Annual production capacity reaches 150,000 km.
Hongan Optical Cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system.OHSAS18001 occupational health and safety management system, and its fiber optical cable meet the requirements of European CE.ROHS,Chinese TLC. The products are mainly used in China Mobile,China Telecom,China Broadcast,China Defense,Railway,Oil Fields and other communication operators ,also export to Europe, Middle East,South-East Asia,America,Africa etc.
Our Customer:
FAQ
-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
Welcome you select our products! Any inquiry, pls feel free to contact with us!
- Characteristics of product:
1.More bandwidth excess than 250MHz standard required;
2.Comply with ROHS standard;
3.Support 10-Gigabit Ethernet network transmission requirement;
4.There are a variety of different environment jacket optional, to take full advantage of the cable;
5.The products of special outer sheath or purpose can be designed according to customer's demands.
- Applications:
1.10 Base-T4
2.100 Base-TX
3.100 Base-VG-ANYLAN
4.155 Mbps ATM
5.622 Mbps ATM
6.1000 Base-T
7.1000 Base-TX
8.10G Base-T
-Material instruction:
1.Conductor:Single strands of pure Copper;
2.Insulation:Solid High Density polyethylene;
3.Central Cross:Elastomer;
4.Wrapping tape:Polyester tape;
5.Single pair of sheath:Single plastic coated aluminum foil shielded;
6.Shield:Single plastic coated aluminum foil shielded;
7.Braided shielding layer:Tinned copper wire braided shield;
8.Outer Sheath:PVC or low-density polyethylene.
-Physical Electrical Characteristics:
1.Impedance:1-100 MHz 100+/-15Ω;100-500MHz 100+/- 25Ω;
2.Maximum mutual capacitance:5.6nF/100m;
3.Maximum D.C resistance:7.5Ω/100m at 20ºC;
4.Maximum unblanced capacitance:160pF/100m;
5.Maximum differential phase delay:45ns/100m;
6.Permitted bend radius:Over 8 times diameter of the cable;
7.Installation temperature:-20ºC-+60ºC;
8.Minimum dielectric strength between conductors:2.5kv/2s.
| Transmission Performance | ||||||||||
| Frequency(MHz) | Attenuation(Max)(dB/100m) | Next(Min) (dB/100m) | Psnext(Min)(dB/100m) | Elfext(Min)(dB/100m) | PSELFEXT(Min)(dB/100m) | PS ANEXT(Min)(dB/100m) | PS ANEXT(Min)(dB/100m) | RL (Min)(dB) | Phase Velocity(Min)(m/s) | Phase delay(Max)(ns/100m) |
| 4 | 3.8 | 66.3 | 63.3 | 56 | 53 | 67.0 | 66.2 | 23 | 0.604c | 552 |
| 8 | 5.3 | 61.8 | 58.8 | 49.9 | 46.9 | 67.0 | 60.1 | 24.5 | 0.610c | 547 |
| 10 | 5.9 | 60.3 | 57.3 | 48 | 45 | 67.0 | 58.2 | 25 | 0.612c | 545 |
| 16 | 7.5 | 57.2 | 54.2 | 43.9 | 40.9 | 67.0 | 54.1 | 25 | 0.614c | 543 |
| 20 | 8.4 | 55.8 | 52.8 | 42 | 39 | 67.0 | 52.2 | 25 | 0.615c | 542 |
| 25 | 9.4 | 54.3 | 51.3 | 40 | 37 | 67.0 | 50.2 | 24.3 | 0.616c | 541 |
| 31.25 | 10.5 | 52.9 | 49.9 | 38.1 | 35.1 | 67.0 | 48.3 | 23.6 | 0.617c | 540 |
| 62.5 | 15.0 | 48.4 | 45.4 | 32.1 | 29.1 | 65.6 | 42.3 | 21.5 | 0.619c | 539 |
| 100 | 19.1 | 45.3 | 42.3 | 28 | 25 | 62.5 | 38.2 | 20.1 | 0.620c | 538 |
| 200 | 27.6 | 40.8 | 37.8 | 22 | 19 | 58.0 | 32.2 | 18 | 0.622c | 537 |
| 250 | 31.1 | 39.3 | 36.3 | 20 | 17 | 56.5 | 30.2 | 17.3 | 0.622c | 536 |
| 300 | 34.3 | 38.1 | 35.1 | 18.5 | 15.5 | 55.3 | 28.7 | 17.3 | 0.622c | 536 |
| 400 | 40.1 | 36.3 | 33.3 | 16 | 13 | 53.5 | 26.2 | 17.3 | 0.623c | 536 |
| 500 | 45.3 | 34.8 | 31.8 | 14 | 11 | 52.0 | 24.2 | 17.3 | 0.623c | 536 |
Item&Production Line
Certification
Company Information
Hongan Fiber Optical Cable Company was established in 1994 which was expanded in 1998,2001,2012 respectively. Advanced fiber optical cable lines and inspection equipments were imported from Switzerland,Finland,USA,Japan and other countries.The main products include:outerdoor fiber optical cable,indoor fiber optical cable,FTTH fiber optical cable, special fiber optical cable (include OPLC hybrid cable,ADSS fiber optical cable,under-water fiber optical cable,micro fiber optical cable, dry outdoor fiber optical cable.flexible armored indoor fiber optical cable,low temperature resistance fiber optical cable.high temperature resistance fiber optical cable etc.) Annual production capacity reaches 150,000 km.
Hongan Optical Cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system.OHSAS18001 occupational health and safety management system, and its fiber optical cable meet the requirements of European CE.ROHS,Chinese TLC. The products are mainly used in China Mobile,China Telecom,China Broadcast,China Defense,Railway,Oil Fields and other communication operators ,also export to Europe, Middle East,South-East Asia,America,Africa etc.
Our Customer:
FAQ
-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
Welcome you select our products! Any inquiry, pls feel free to contact with us!
