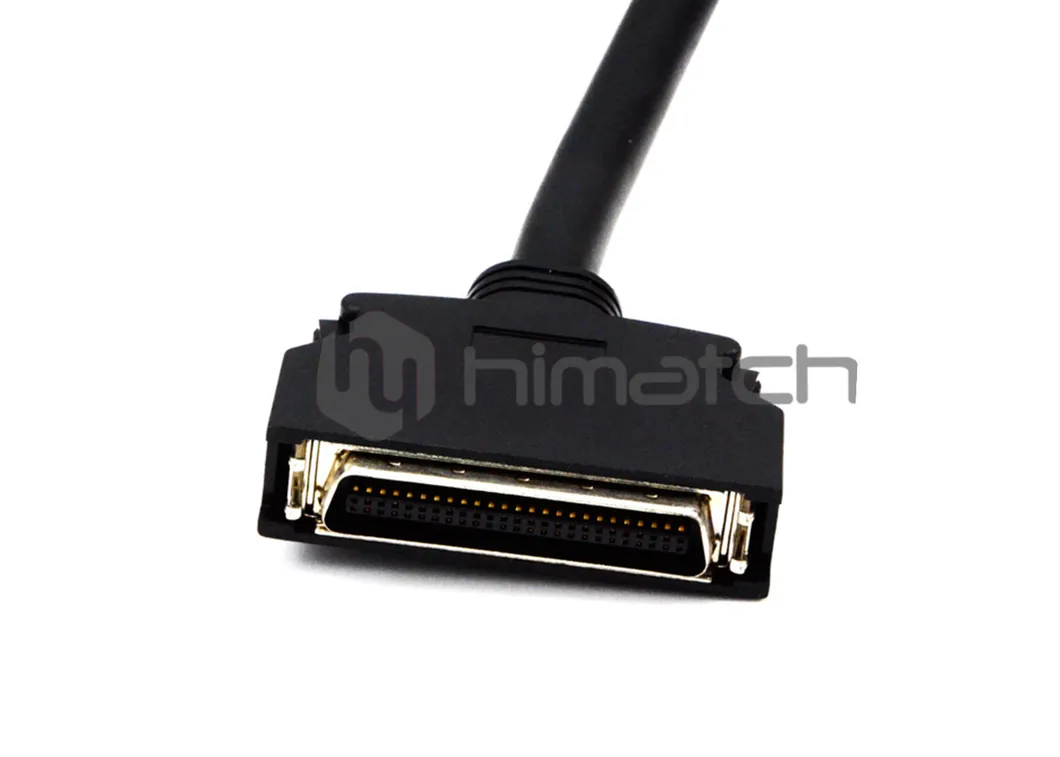

Hight Quality SCSI 68 Pin Cable with Thumbscrews
SCSI Hpcn 68pin Cable socket connectorSCSI connector. HPCN 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, 100pin Connector for cable, male, assembley type with ABS Hood, solder type and IDC type.A series of high density connector with 1.27mm (0.050") spacing.Suitable for Cable end.Conforms to the Am......
Send Inquiry
Product Description
SCSI Hpcn 68pin Cable socket connector
SCSI connector. HPCN 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, 100pin Connector for cable, male, assembley type with ABS Hood, solder type and IDC type.
A series of high density connector with 1.27mm (0.050") spacing.
Suitable for Cable end.
Conforms to the American National Standards Institute ( ANSI) specifications.
Choice of bracket configurations includes: Without rails and latch, and with latch only.
Insulator is made of polyester resin and glass fiber reinforced (UL 94-0) providing superior heat and chemical resistance.
Application to miniaturized electronic equipment such as personal computers, facsimiles and other OA equipment.
Recognized UL under the component program of Underwriters Laboratories Inc. File No. E112081.
Electrical:
Rated Current: 1 AMP
Insulation Resistance: 500M ohms min.
Contact resistance: 35 m ohms max.
Dielectric Withstanding Voltage: AC 250V (for 1 minute).
Operating Temperature: -25 ~ +85
Mechanical:
Insulator Material: PBT with glass-fiber reinforced(UL 94V-0).
Contact material: Phosphor bronze.
SCSI connector. HPCN 14pin, 20pin, 26pin, 36pin, 50pin, 68pin, 100pin Connector for cable, male, assembley type with ABS Hood, solder type and IDC type.
A series of high density connector with 1.27mm (0.050") spacing.
Suitable for Cable end.
Conforms to the American National Standards Institute ( ANSI) specifications.
Choice of bracket configurations includes: Without rails and latch, and with latch only.
Insulator is made of polyester resin and glass fiber reinforced (UL 94-0) providing superior heat and chemical resistance.
Application to miniaturized electronic equipment such as personal computers, facsimiles and other OA equipment.
Recognized UL under the component program of Underwriters Laboratories Inc. File No. E112081.
Electrical:
Rated Current: 1 AMP
Insulation Resistance: 500M ohms min.
Contact resistance: 35 m ohms max.
Dielectric Withstanding Voltage: AC 250V (for 1 minute).
Operating Temperature: -25 ~ +85
Mechanical:
Insulator Material: PBT with glass-fiber reinforced(UL 94V-0).
Contact material: Phosphor bronze.
