High Speed Ethernet UTP CAT6 305m Networking Cable

Product Description

High Speed Ethernet UTP CAT6 305m Cable

UTP CAT6 Cable is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is
Also used to carry other signals such as telephony and video.

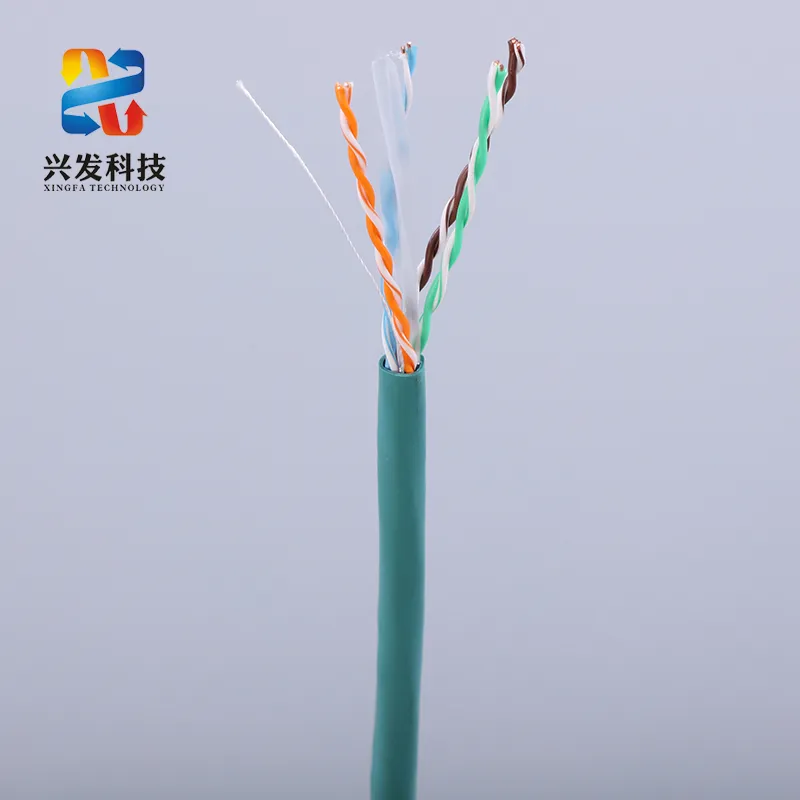

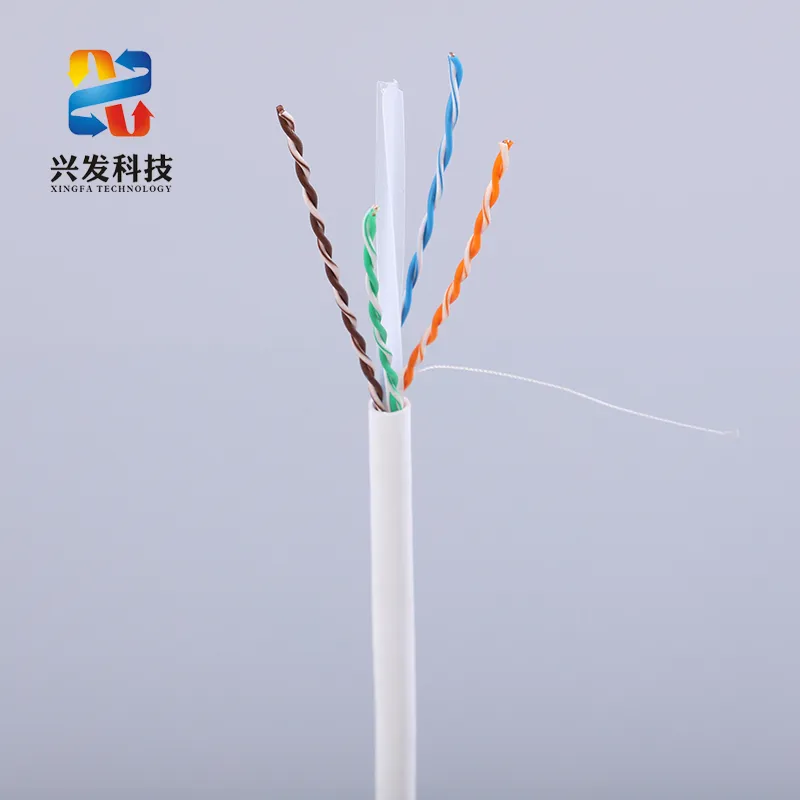

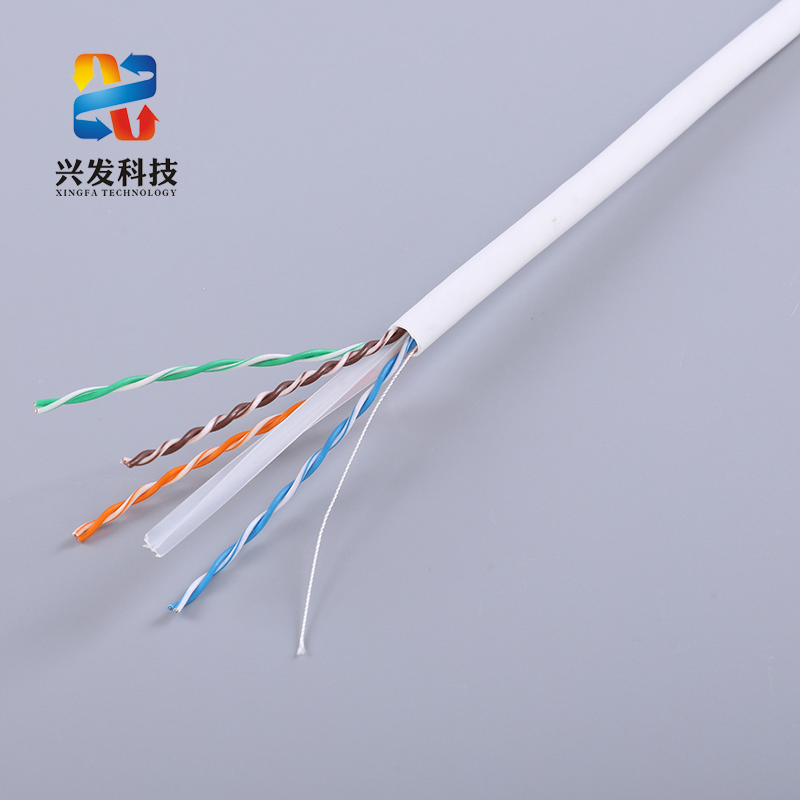

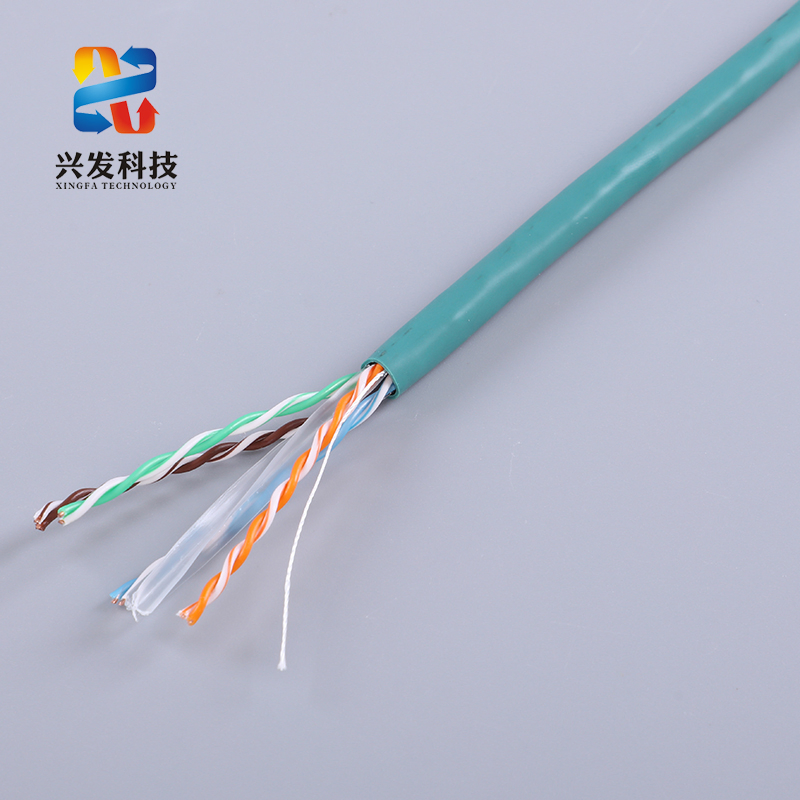

UTP Cat6

4Pairs(1 x 0.56mm) BC Conductor

1.03mm HDPE Insulation

Cross Seperator+Rip Cord

6.1mm PVC Jacket

Frequency MHz	RL ≥dB	Attenuation ≤dB/100m	NEXT ≥dB/100m	PHASE DELAY≤ ns	ELFEXT ≥dB/100m	PS NEXT ≥dB/100m	PS ELFEXT ≥dB/100m
1	20.0	2.03	74.3	570	67.8	72.3	64.8
4	23.0	3.78	65.3	552	55.7	63.3	52.8
8	24.5	5.32	60.8	546.73	49.7	58.8	46.7
10	25.0	5.95	59.3	545.38	47.8	57.3	44.8
16	25.0	7.55	56.2	543	43.8	54.2	40.7
20	25.0	8.47	54.8	542.05	41.8	52.8	38.8
25	24.3	9.51	53.3	541.2	39.8	51.3	36.8
31.25	23.6	10.67	51.9	540.44	37.9	49.9	34.9
62.5	21.5	15.38	47.7	538.55	31.8	45.4	28.8
100	20.1	19.8	44.3	537.6	27.8	42.3	24.8
200	18.0	28.98	39.8	536.54	21.8	37.8	18.8
250	17.3	32.85	38.3	536.27	19.8	36.3	16.8

High Speed Ethernet UTP CAT6 305m Networking Cable

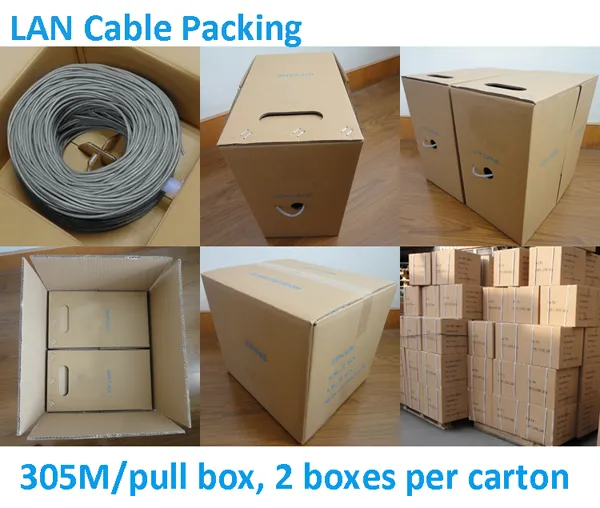

Packing

More Cables & Products

Cables:

1) 75 ohm Coaxial Cable RG6, RG59, RG11;
2) 50 ohm Coaxial Cable RG174, RG58, RG8, RG213, RG214;
3) Siamese CCTV Cable RG59+2C, KX6+2C, RG6+2C;
4) Combo Coaxial Cable RG6+Cat5e, RG6+CAT5E+Messenger etc;
5) LAN Cable/Network Cable UTP/FTP Cat5e, Cat6, Jumper Cable;
6) 1 pair/2 pairs Telephone Cable;
7) Security Alarm Cable, Fire Alarm Cable, Speaker Cable;
8) Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTHH etc.);
9) 50 ohm RF Feeder Cable 1/4"S, 3/8"S, 1/2"S, 1/2", 7/8", 1-1/4", 1-5/8".

Cable Related Products:

1) Coaxial Cable Connector (F, BNC, RCA, Female, Male);
2) Cable Crimping Tool, Wire Stripper, Insertion Punch Tool;
3) Optical Transmission Equipments, CATV amplifier, Taps, Splitters.
