China FTP CAT6 Solid Bc CCA CCS Communication Cable

Product Description

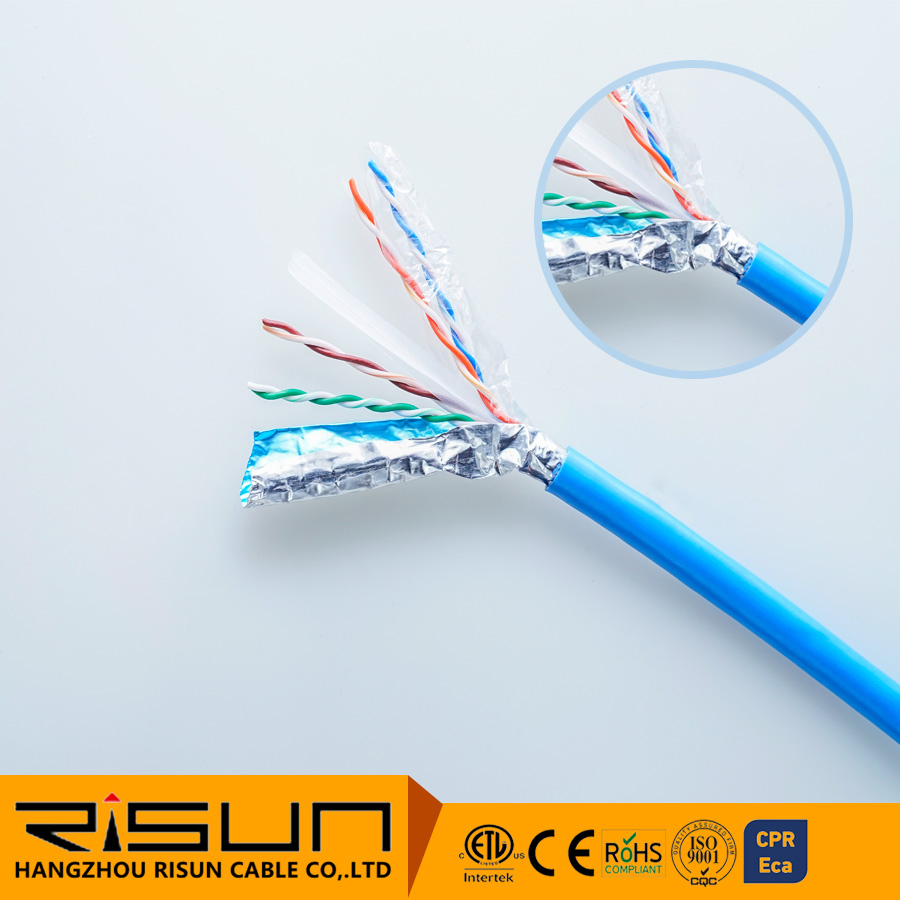

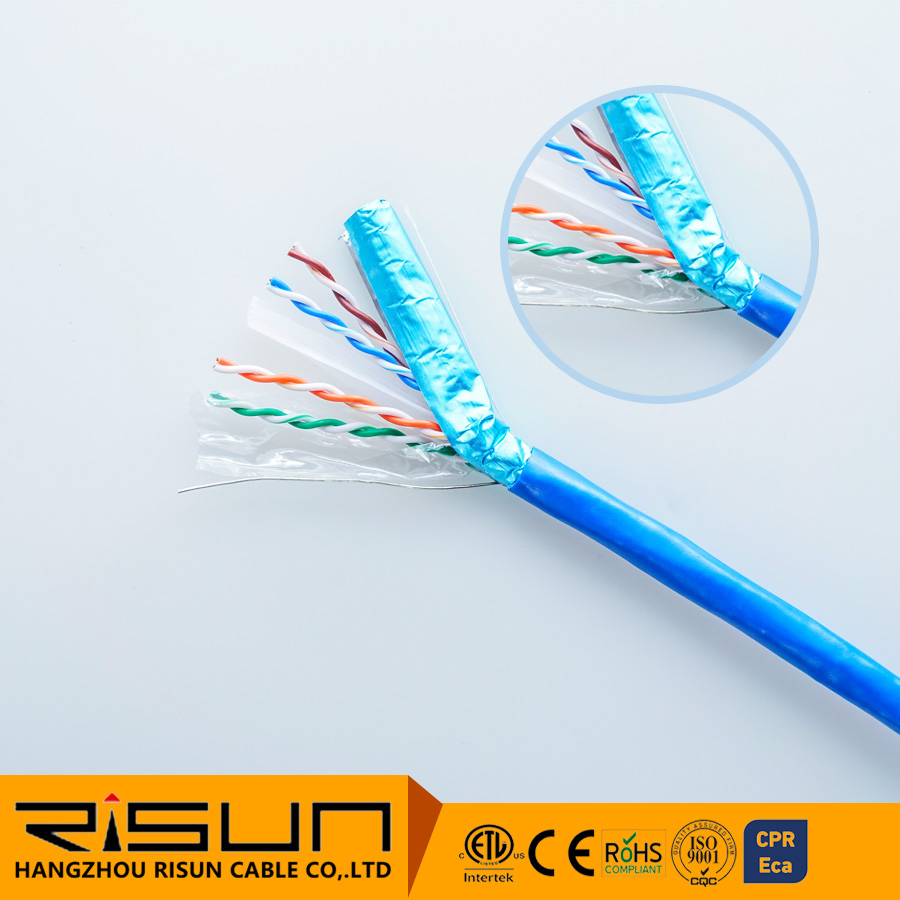

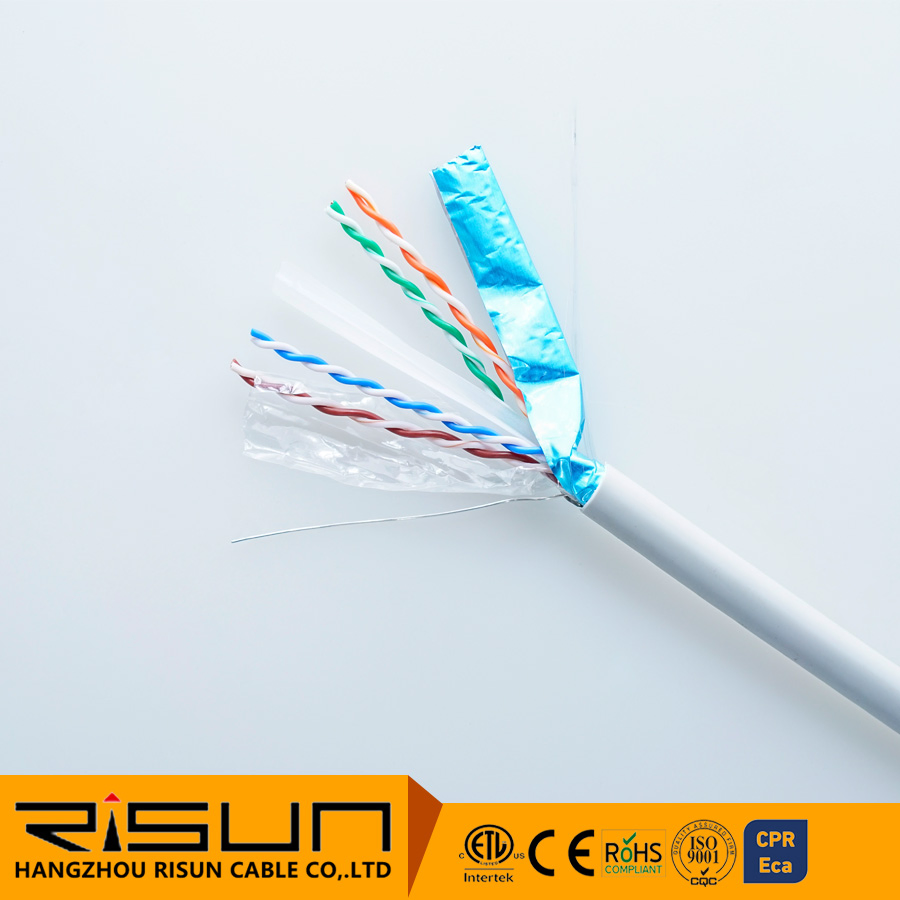

FTP CAT6 Solid Bc CCA CCS Communication Cable

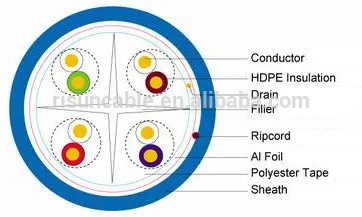

Configuration:

1. Conductor: 0.57±0.01mm(23AWG) Bare copper

2. Insulation: 1.10±0.03mm HDPE
3. Filler

4. Shield: Pet/Al Foil

5. Drain wire: 0.4mmTC

6. Ripcord

7. Sheath: 7.4±0.3mm PVC (PE, LSZH)

Options: Jelly Compound, Jacket: UV, FR, RoHS complied.

Mechanical Properties:

Elongation	Min. 300%
Temperature Range	-20 up to +75° C
Tensile Strength	Min 1.68kg/mm²

Electrical Properties:

Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Capacitance Unbalance	Max. 330pF/100m
Impedance	100+/-15 ohm
Spark Test	2000V
Velocity of Propagation	67%

Technical Performance:

	Attenuation	RL	Next	PS Next
(Mhz)	(dB/100M)	(dB)	(dB)	(dB/100m)
1	2.0	23	74.3	71.8
4	3.8	23	65.3	61.2
10	6.0	23	59.3	53
16	7.6	23	56.2	48.4
20	8.5	23	54.8	46.5
31.2	10.7	23	51.9	41.3
62.5	15.1	23	47.4	31.5
100	19.1	23	44.3	24.1
125	21.3	21	42.8	20.5
155.5	23.8	21	41.4	16.6
175	25.3	21	40.7	13.9
200	27	21	39.8	10.8
250	32.6	19	38.3	5

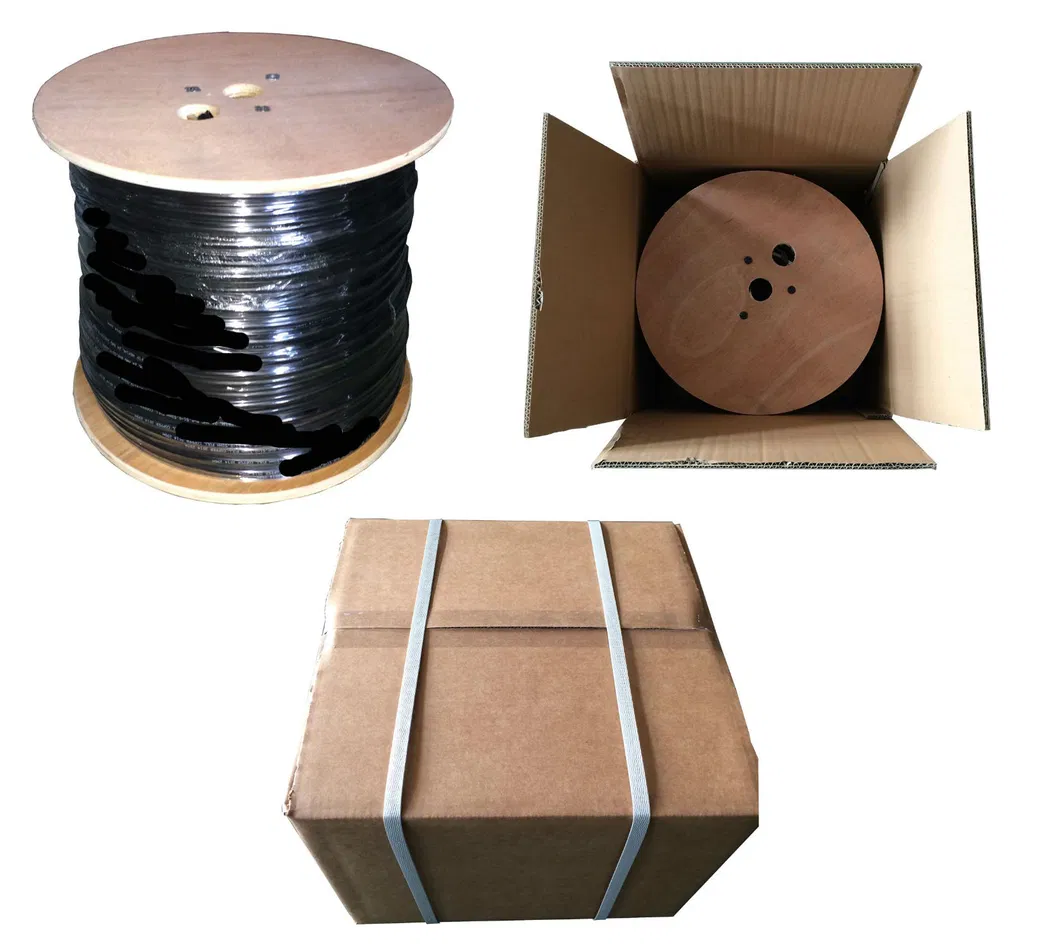

Packing:

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.

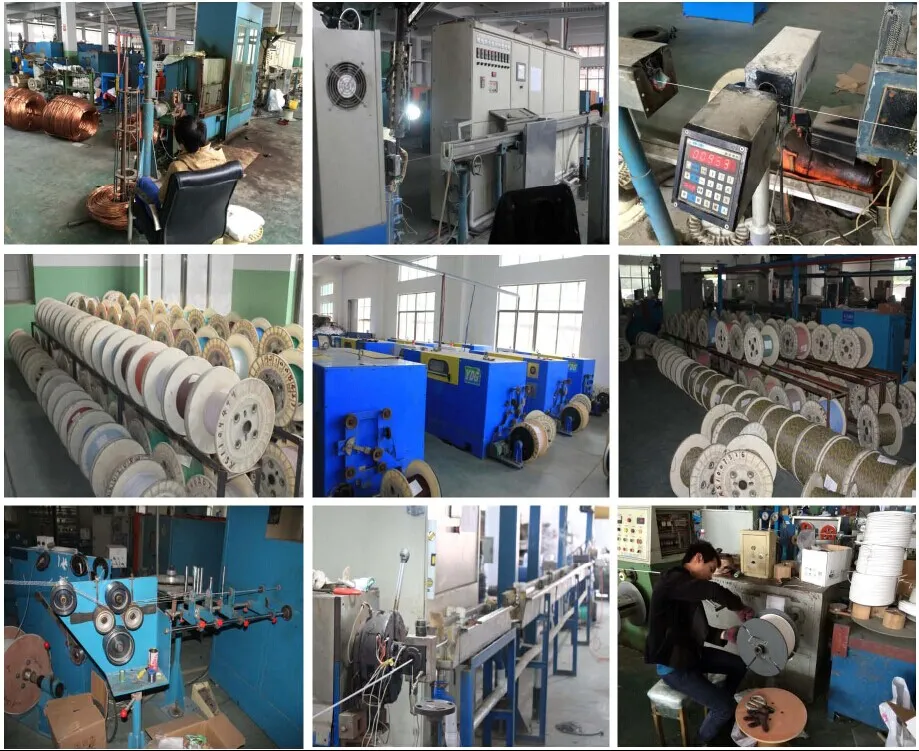

Production line:

FTP CAT6 Solid Bc CCA CCS Communication Cable
