Fire Retardant Flexible Fire Alarm Electric Cable
Production DescriptionThe fire survival cables range features a variety of cables and wires designed to withstand extreme heat. the range of products includes flame retardant cables, low smoke halogen-free(LSHF or name LSZF) cables and wire, and fire resistant cable. Flame retardant cables help prev......
Send Inquiry
Product Description
Production Description
The fire survival cables range features a variety of cables and wires designed to withstand extreme heat. the range of products includes flame retardant cables, low smoke halogen-free(LSHF or name LSZF) cables and wire, and fire resistant cable. Flame retardant cables help prevent the spread of fire while fire resitant cables are able to continue supplying power to emergency circuits during fire. LSHF cables are slow to catch fire and they burn slowly with low amount of smoke and toxic halogen gases, making it easier for people to escape in the event of a fire.
Specifications
Production Feacture

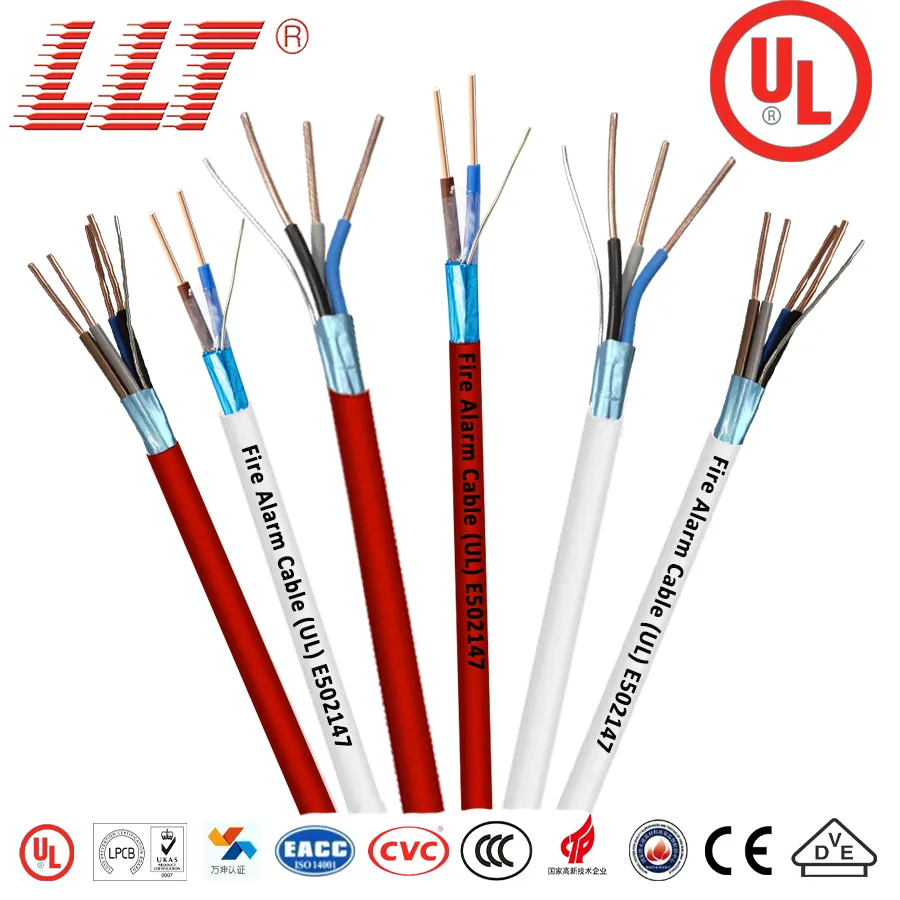

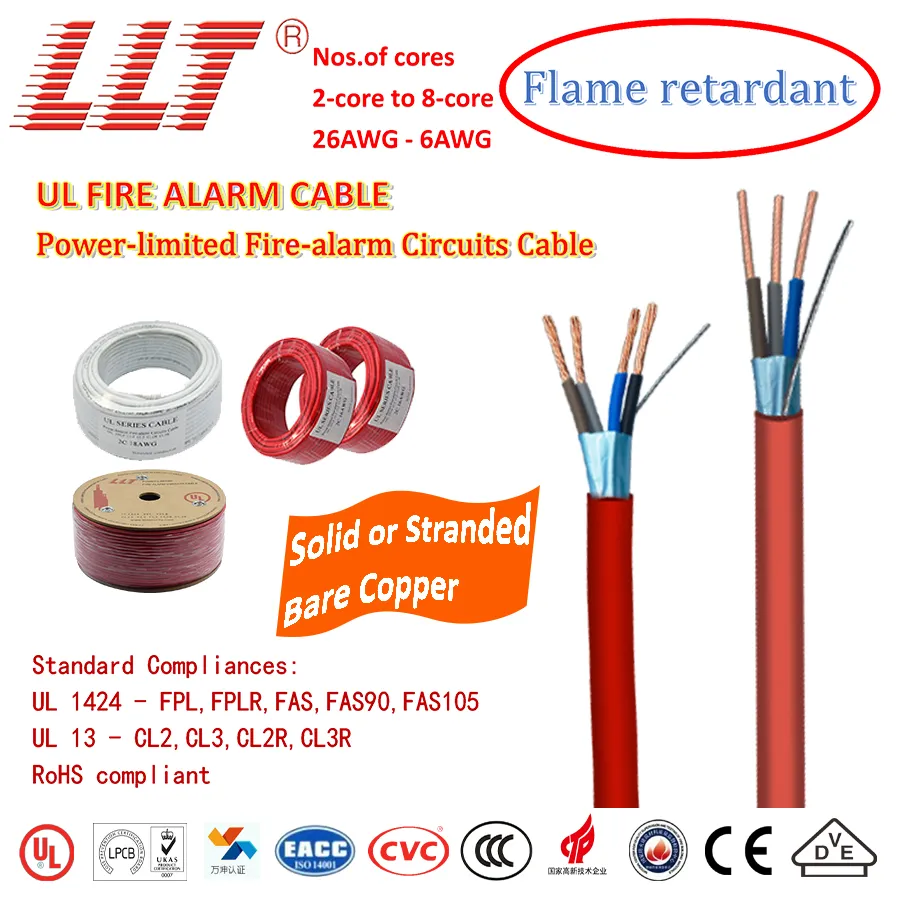

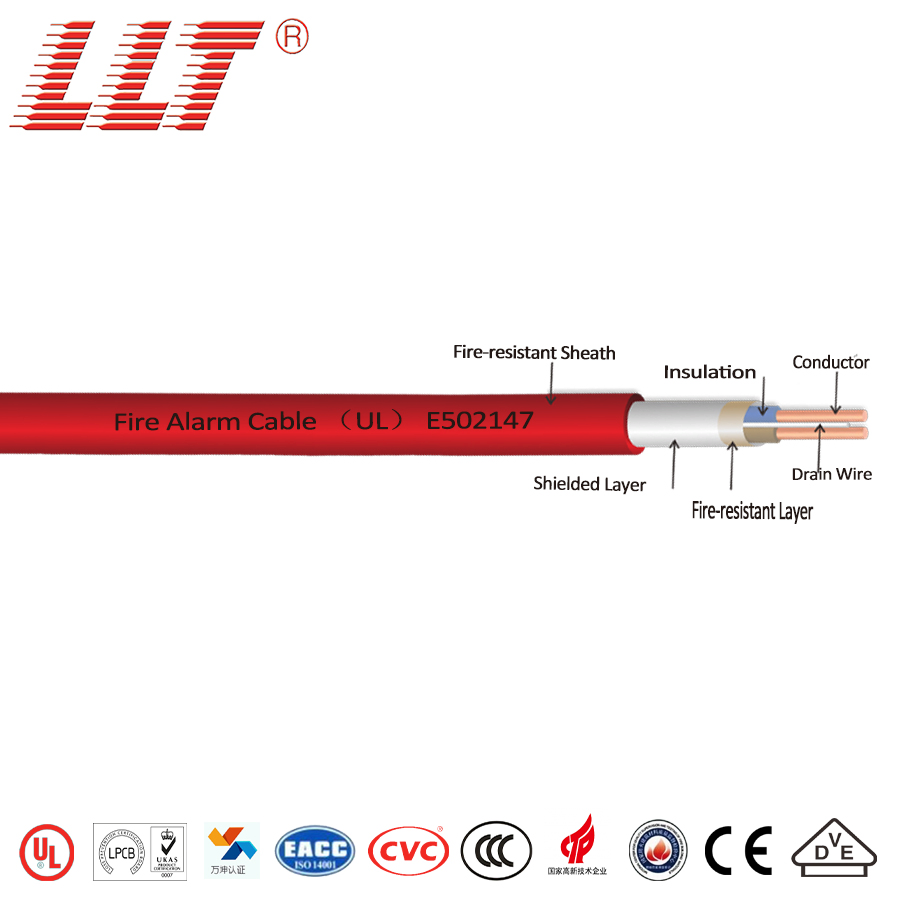

LLT shielded/unshilded fire alarm cable power limited fire alarm cable describes one pair (2 Cores). The maximum operating voltage is 300/300V, the flame retardant is in according with UL 1685, UL 1666.
ANSI/UL 1424, Cables for Power-Limited Fire-Alarm Circuits
UL 1685 Type FPL, UL 1666 Type FPLR
UL Listed File No. E502147
RoHS Compliance

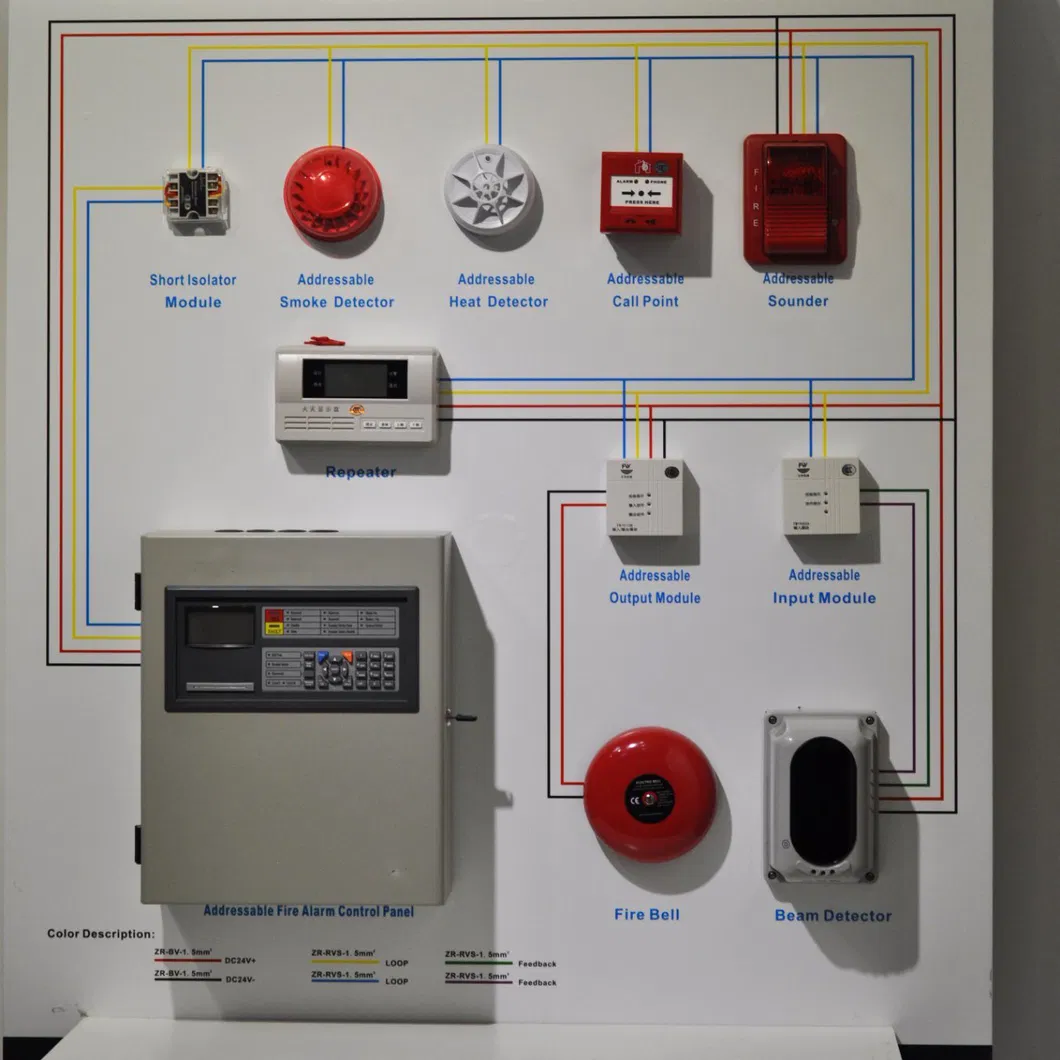

Application
1.Fire Alarm System
2.Sprinkler System
3.Smoke Detector
4. Critical Central Fire Systems
5. Signalling System
6. Manual Call Point
7. Foam System

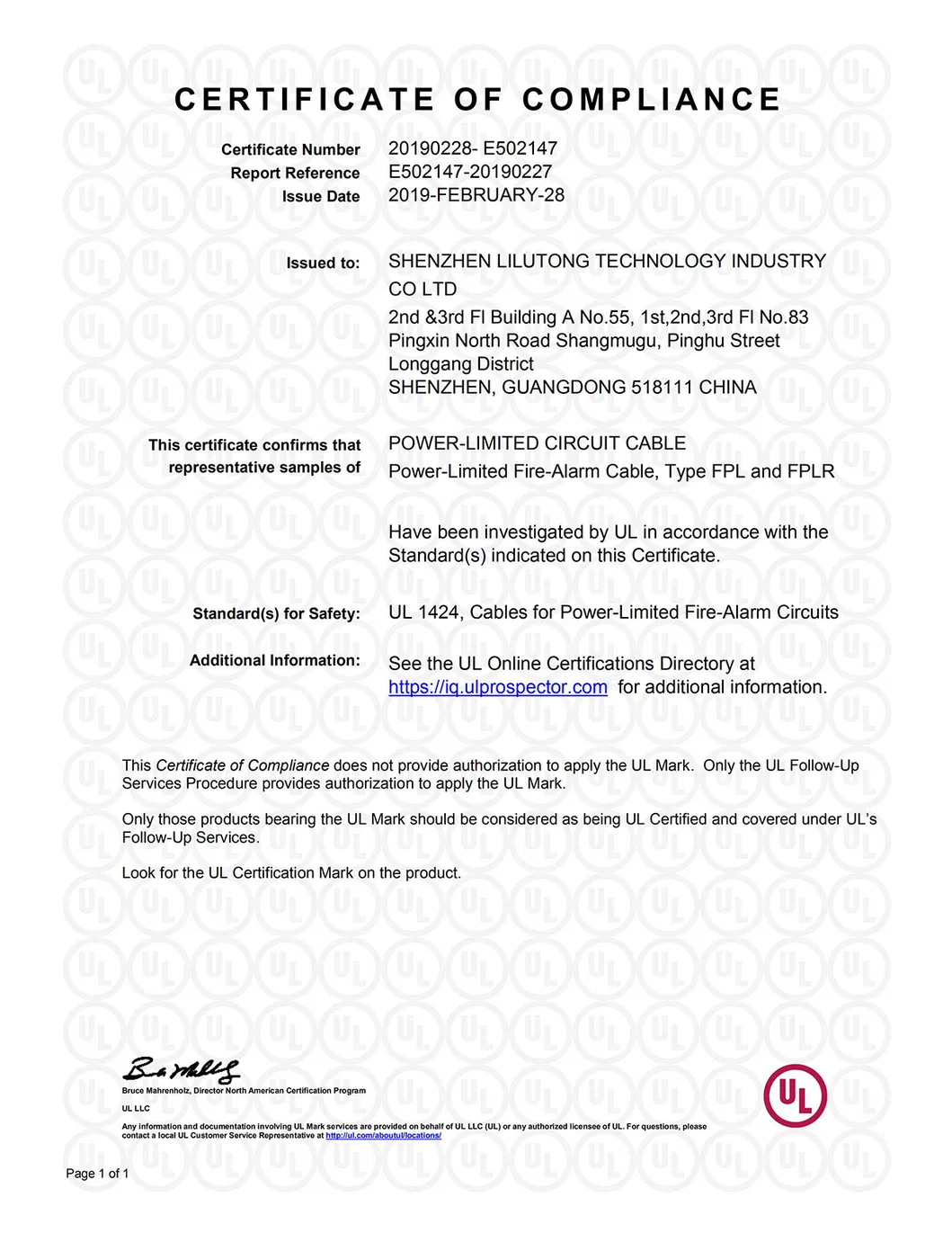

Certifications
Packing & Delivery

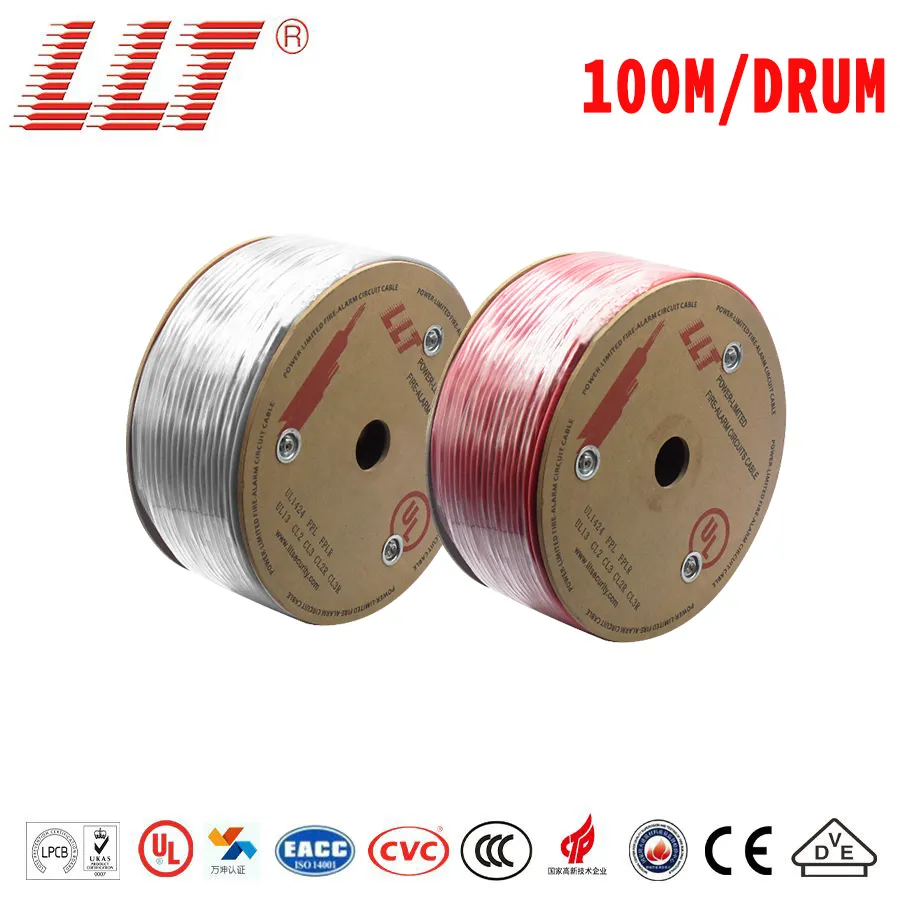

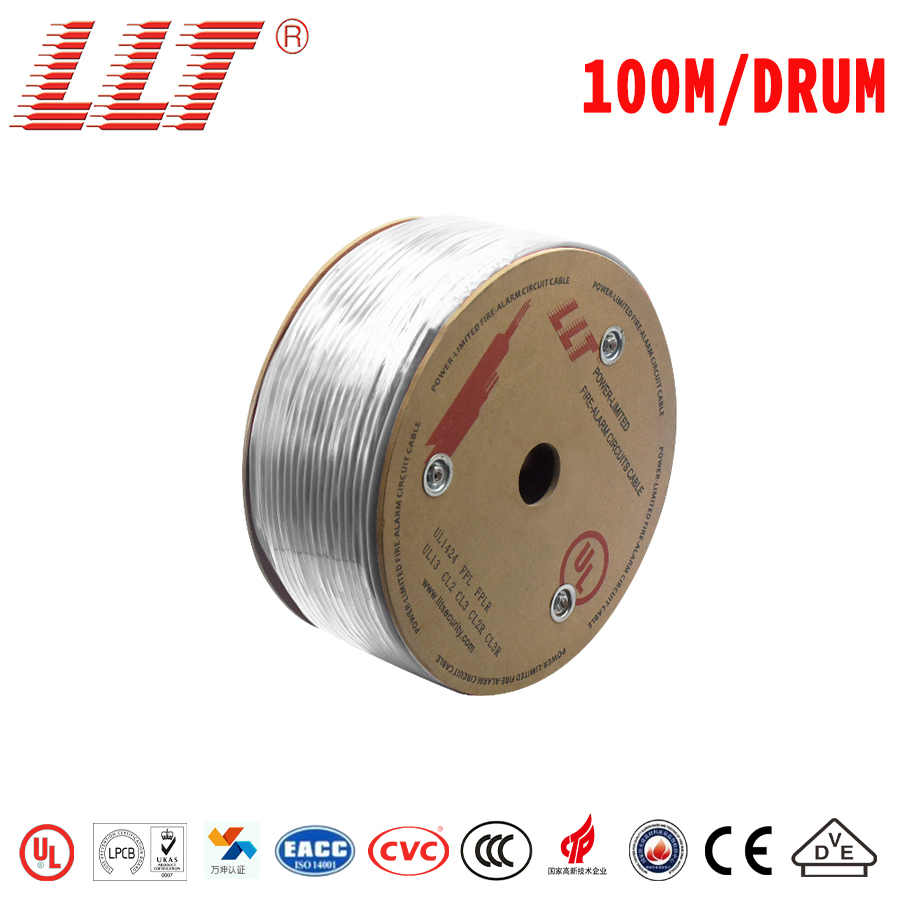

***100 Meter/Coil, 100 Meter/Paper reel, 100 Meter/plastic reel, 500 Meter/Wooden drum, Carton & Pallet
Company Profile
Shenzhen Lilutong Technology Industry Co.,LTD is a professional manufacturer for security and fire fighting cables which was established in 2001 with an area over 10,000 m² in Shenzhen. LLT has been very professional in the security field after a period for launching, promoting, developing for security products, especially for LPCB fire resistant cable, UL fire alarm cable, elevator cable and flexible cables.
As an international manufacturer, LLT imports advanced technology, trains a great number of high-quality, international, and conscientious personnel. During the production, LLT's skilled production team follows the standardized manufacturing process which is ISO9001:200 Quality System strickly for making sure every procedure is out of mistakes. LLT products are approved by British Standard LPCB, CCC, CE, FCC and SGS,VDE. UL and compliant with the RoHS Standard.
FAQ
The fire survival cables range features a variety of cables and wires designed to withstand extreme heat. the range of products includes flame retardant cables, low smoke halogen-free(LSHF or name LSZF) cables and wire, and fire resistant cable. Flame retardant cables help prevent the spread of fire while fire resitant cables are able to continue supplying power to emergency circuits during fire. LSHF cables are slow to catch fire and they burn slowly with low amount of smoke and toxic halogen gases, making it easier for people to escape in the event of a fire.
Specifications
| Cable | Nos. of Croes & Section (AWG) | Rated Voltage U0/U | Conductor structure(AWG) | Conductor Resistance at 20°C (Ω/KM)max | Number of Cores | Binding Tape | Overall diameter (mm) min max | Sheath material type |
| LLT-FR001 | 2C*24AWG+AL+E | 300/300 | 1/0.511 | 93.8 | 2 | Al Tape | 3.6 | PVC |
| LLT-FR002 | 2C*20AWG+AL+E | 300/300 | 1/0.813 | 36.4 | 2 | Al Tape | 4.6 | PVC |
| LLT-FR003 | 2C*18AWG+AL+E | 300/300 | 1/1.02 | 21.4 | 2 | Al Tape | 4.9 | PVC |
| LLT-FR011 | 3C*16AWG+AL+E | 300/300 | 1/1.29 | 13.5 | 3 | Al Tape | 5.8 | PVC |
| LLT-FR012 | 3C*14AWG+AL+E | 300/300 | 1/1.63 | 8.45 | 3 | Al Tape | 6.7 | PVC |
| LLT-FR013 | 3C*12AWG+AL+E | 300/300 | 1/2.05 | 5.31 | 3 | Al Tape | 7.6 | PVC |
| LLT-FR019 | 4C*14AWG+AL+E | 300/300 | 1/1.63 | 8.45 | 4 | Al Tape | 7.4 | PVC |
| LLT-FR020 | 4C*12AWG+AL+E | 300/300 | 1/2.05 | 5.31 | 4 | Al Tape | 8.5 | PVC |
| LLT-FR021 | 4C*10AWG+AL+E | 300/300 | 1/2.59 | 3.34 | 4 | Al Tape | 10.0 | PVC |
| ...... |
Production Feacture
LLT shielded/unshilded fire alarm cable power limited fire alarm cable describes one pair (2 Cores). The maximum operating voltage is 300/300V, the flame retardant is in according with UL 1685, UL 1666.
ANSI/UL 1424, Cables for Power-Limited Fire-Alarm Circuits
UL 1685 Type FPL, UL 1666 Type FPLR
UL Listed File No. E502147
RoHS Compliance
Application
1.Fire Alarm System
2.Sprinkler System
3.Smoke Detector
4. Critical Central Fire Systems
5. Signalling System
6. Manual Call Point
7. Foam System
Certifications
Packing & Delivery
***100 Meter/Coil, 100 Meter/Paper reel, 100 Meter/plastic reel, 500 Meter/Wooden drum, Carton & Pallet
Company Profile
Shenzhen Lilutong Technology Industry Co.,LTD is a professional manufacturer for security and fire fighting cables which was established in 2001 with an area over 10,000 m² in Shenzhen. LLT has been very professional in the security field after a period for launching, promoting, developing for security products, especially for LPCB fire resistant cable, UL fire alarm cable, elevator cable and flexible cables.
As an international manufacturer, LLT imports advanced technology, trains a great number of high-quality, international, and conscientious personnel. During the production, LLT's skilled production team follows the standardized manufacturing process which is ISO9001:200 Quality System strickly for making sure every procedure is out of mistakes. LLT products are approved by British Standard LPCB, CCC, CE, FCC and SGS,VDE. UL and compliant with the RoHS Standard.
FAQ
1.Are you a manufacture or a trading company?
We are professional cable manufacturer with 21 years' production experience.2.Does the factory have certification?
Yes, LLT's skilled production team follows the standardized manufacturing process which is ISO9001 Quality system strictly for making sure every procedure is out of mistakes.3.Does your company's products have certification?
Yes, LLT products are approved by British Standard LPCB, CCC, CE, FCC and SGS, VDE, UL and commpliant with the RoHS standard.4.When can I get the price and effectiveness?
We usually quote with in 6 hours. If you desperately need the price, please contact us or send us an EMAIL. We can handle the priority of your inquiry. Usually within a day. It's valid for 10 days.5.What's your factory MOQ?
Our factory has MOQ requirement, but small quantity is also accepted.6.I didn't find the product specifications I needed on this page.
Dear friends, you can contact us by email. In addition, we provide customized services. So please contact us!Related Category
