F/UTP Shielded Network Cable Cat 6A Twisted Pair Installation Cable

Lan/Network Twisted Pair Cat6A F/UTP Cable For Structured Cabling System

Features:

High-Performance Data Communications Cable

Capable of 10GS High-Speed Applications

CMR Riser-Rated for Indoor Installations

Easy to Identify Color-Striped Pairs

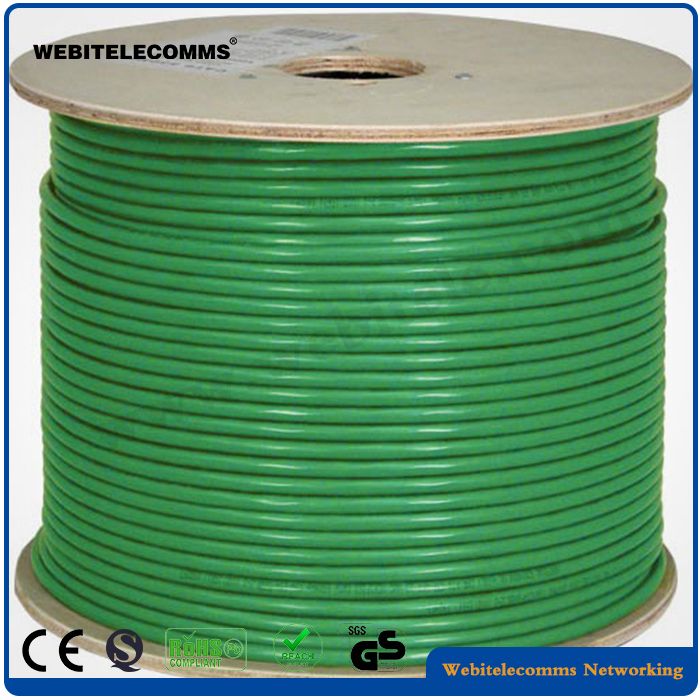

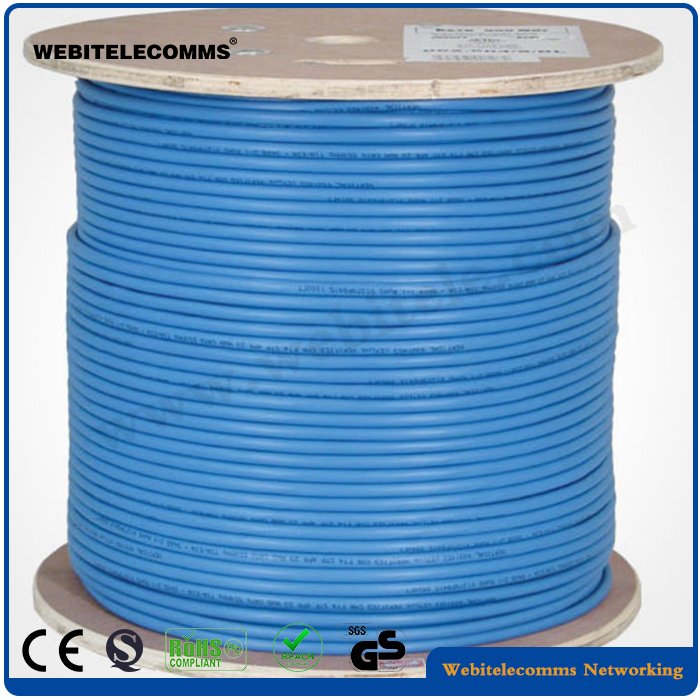

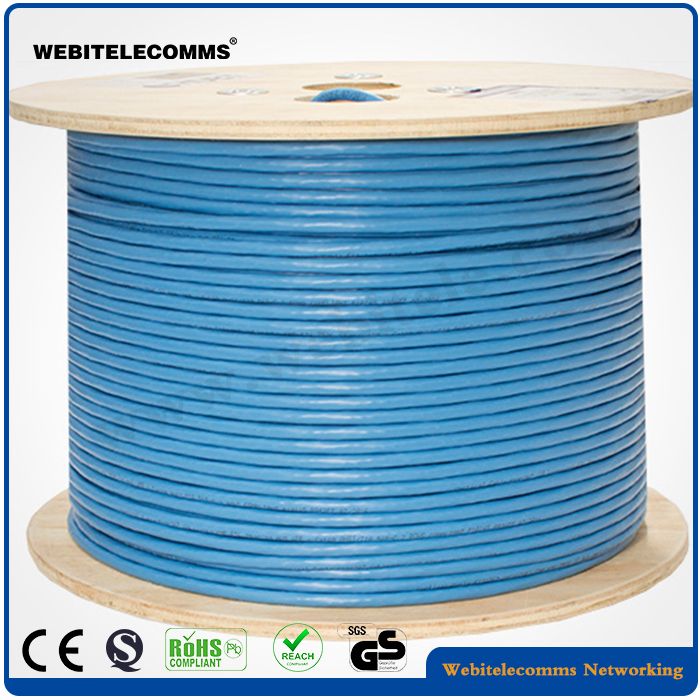

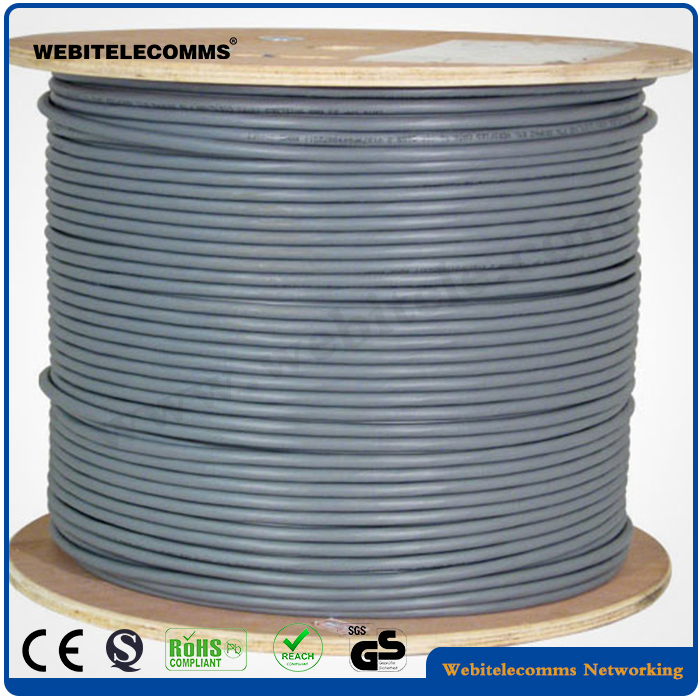

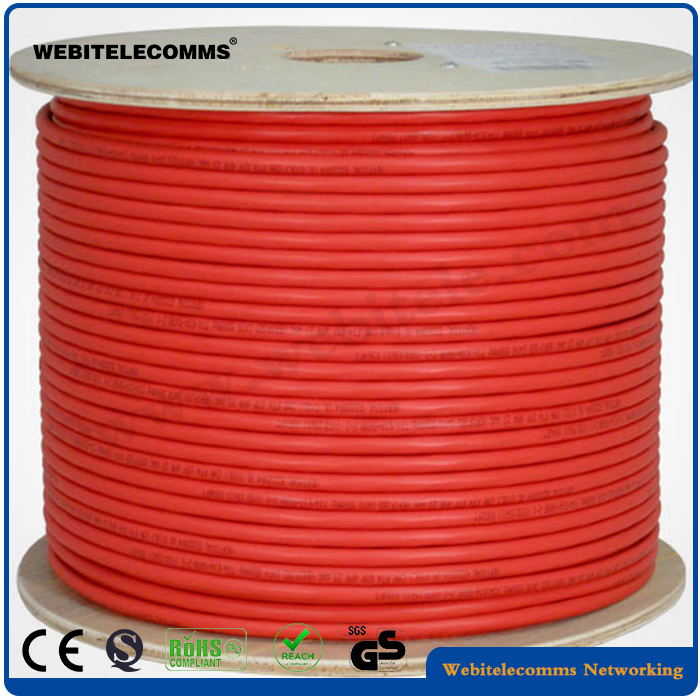

Delivered on 1000ft Wooden Spool

Exceeds ANSI EIA/TIA 568-C.2

Specs:

Rated Temperature: 70ºC

Rated Voltage: 30V

Product Standard Certification: ETL/UL

Flammability Test: RoHS

Conductor Material: Solid Bare Copper

Conductor Size: 23AWG

Conductor Diameter: 0.585mm

Insulation Material: PE

Insulation Average Thickness: 0.29mm

Insulation Diameter (±0.002mm): 1.15mm

Insulation Separator: PE

Shielding Material: Aluminum Foil

Drain Wire Material: Tinned Copper

Polyester Film

Jacket Material: PVC

Jacket Average Thickness: 0.55mm

Jacket Outer Diameter (±0.10mm): 7.8mm

Rip Cord

Color of Pairs:

Pair 1: Blue, White-Blue

Pair 2: Orange, White-Orange

Pair 3: Green, White-Green

Pair 4: Brown, White-Brown

Test Object: Jacket

Test Material: PVC

Before Tensile Strength (Mpa): >=13.8

Aging Elongation: >=100%

Aging Condition (ºCxhrs): 100x240

After Tensile Strength (Mpa): >=85% of unaged

Aging Elongation: >=50% of unaged

Cold Bend (-20±2ºCx4hrs): No Crack

RoHS Compliant

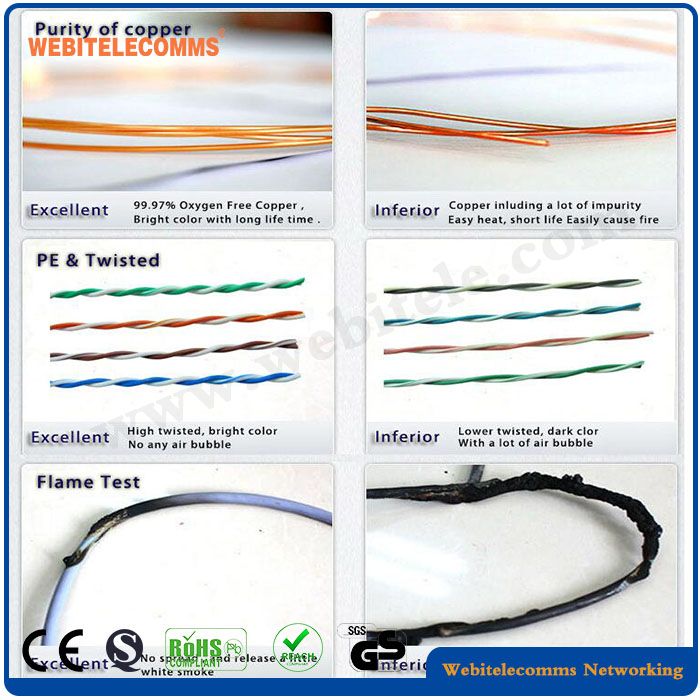

Conductor

Finished Products

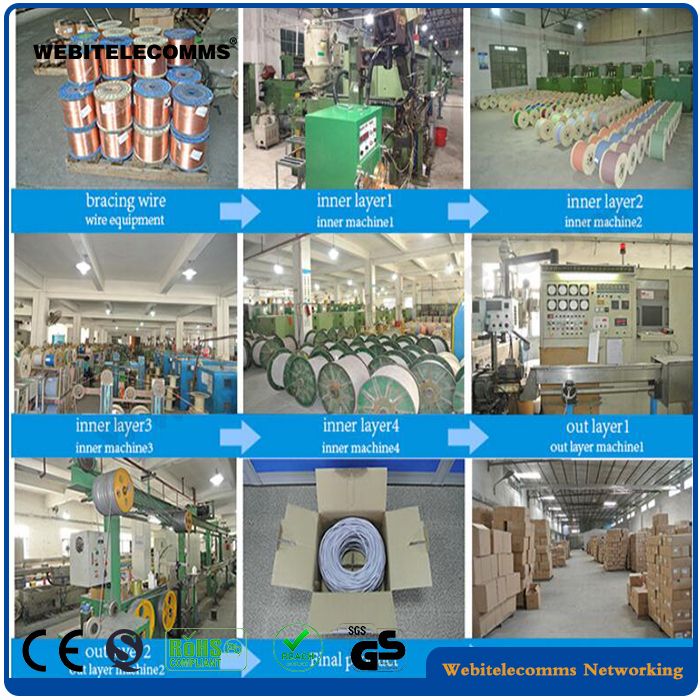

Cable Production

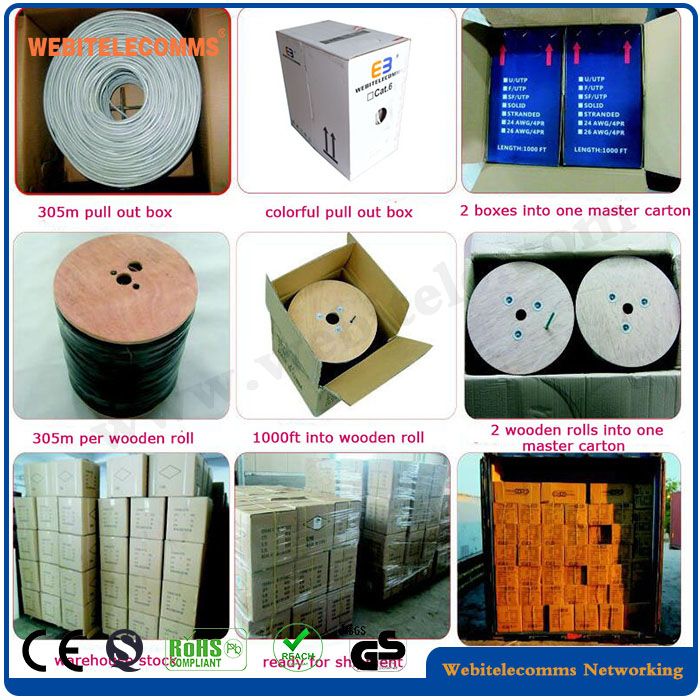

Cable Packing

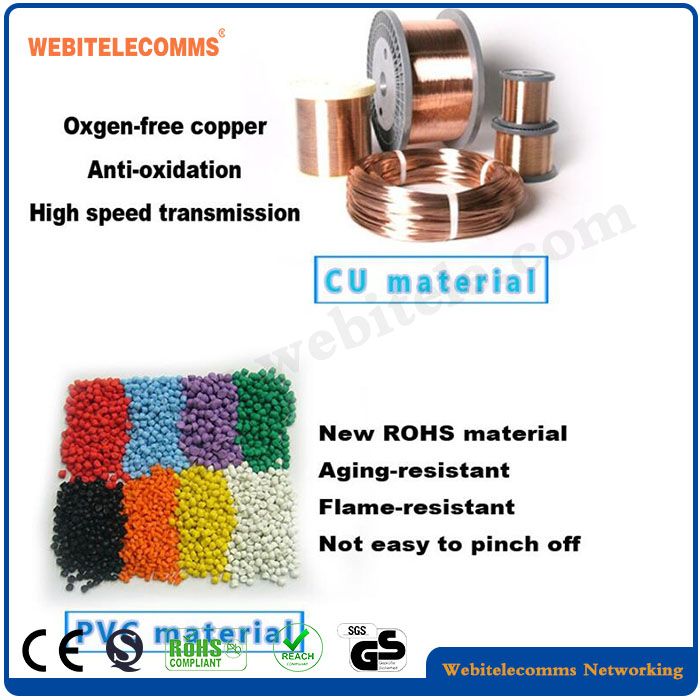

Material




Our Services

WEBIT not only takes pride in the quality of our products, but also in the security we give our customers by standing behind them with a complete warranty. We put our products through rigorous performance tests throughout their production cycle before they reach our customers. Knowing to expect the unexpected, we ensure our customer's satisfaction with a standard and extended warranty.

Standard Warranty

One year limited warranty on WebiT Products(Except man-made,natural disaster,special environmental corrosion).

Extended Warranty

3-Year limited warranty on WebiT Products, upon registration for extended warranty.

Standard and Extended Warranty Terms/Conditions

WebiT guarantees that all Products are free of production defects and will honor warranty claims except where:
1 Product has been altered in such way as to affect the Product.
2 Product has been subject to negligence by Buyer.
3 Product has not been used in accordance with normal practices and/or the recommendations.
4 Product has been destroyed by natural disaster,special environmental corrosion

NOTIFICATION OF DEFECTS. Buyer shall notify WebiT in writing within 30 days of discovering a defect. Failure to do so, will disqualify the Product from its warranty.

WARRANTY LIMITATIONS. Upon receiving notice of defective Product, WebiT will negotiate with buyer how to handle the defects,compensation,replacement or refund the purchanse price in new business.

Both WebiT & the Buyer agree that this warranty and all legal action between each other shall be construed under and governed by the rules of the China Busines Council in the buyer's country.

Who is WebiT?

Since 2003 XEBIT (WebiT's HQ) was built, WebiT has grown considerably to become a leading supplier of integrated cabling products in China. We owe our success to vast and diversified range of indoor/outdoor 19''cabinets,PDU and other cabling products,professional
production technology,expert knowledge of the markets and a reputation for superior customer satisfaction.

With the unique location advantage of Ningbo port,WebiT has exported to over 30 countries.Though under the increasing competitive pressure in the global market,we keep looking for new opportunities and challenges.

Why Choose WebiT Co.,Ltd?

1.Innovative and complete solution provider
2.Professional and timely technical support
3.Comprehensive certificate authentication
4.Strict testing and packing section
5.Stocks available
6.OEM/ODM production service
7.Perfect after-sales service
8.1 year warranty period after sales(except man-made,natural disaster,special environmental corrosion)

1)    What is your Payment term?

---TT, LC, Western Union could be accepted.

2)    What is your Trade term?

---EXW, FOB, CNF, CIF is also ok.

3)    What is the Loading Port?

--- Ningbo,Shanghai.

4)    What is your MOQ?

MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.

5)    What is your Product Warranty?

---As Europe market, we have CE RoHS and other international safety standard for our products.

---As other market,international safety standard certificate also could be provided.
